Model: USBC-PWRTESTER
EAN: 65030904469

StarTech.com USB-C Power Tester, Digital Multimeter, Bi-Directional Voltage and Current Meter, Up to 240W PD EPR, Portable USB-C Cable and Port Power Meter Tester

Manufacturer:
StarTech.com
StarTech.com USB-C Power Tester, Digital Multimeter, Bi-Directional Voltage and Current Meter, Up to 240W PD EPR, Portable USB-C Cable and Port Power Meter Tester, Amperage, Voltage, Wattage, 4.5V-50V, USB Type-C, 6.5 A, 4.5V-50V, 0.05 - 6.5 A
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

StarTech.com USB-C Power Tester, Digital Multimeter, Bi-Directional Voltage and Current Meter, Up to 240W PD EPR, Portable USB-C Cable and Port Power Meter Tester. Testing type: Amperage, Voltage, Wattage, DC output voltage test: 4.5V-50V, Power connectors supported: USB Type-C. Width: 57 mm, Depth: 23 mm, Height: 10 mm. Package width: 80 mm, Package depth: 84 mm, Package height: 15 mm. Master (outer) case width: 430 mm, Master (outer) case length: 180 mm, Master (outer) case height: 270 mm

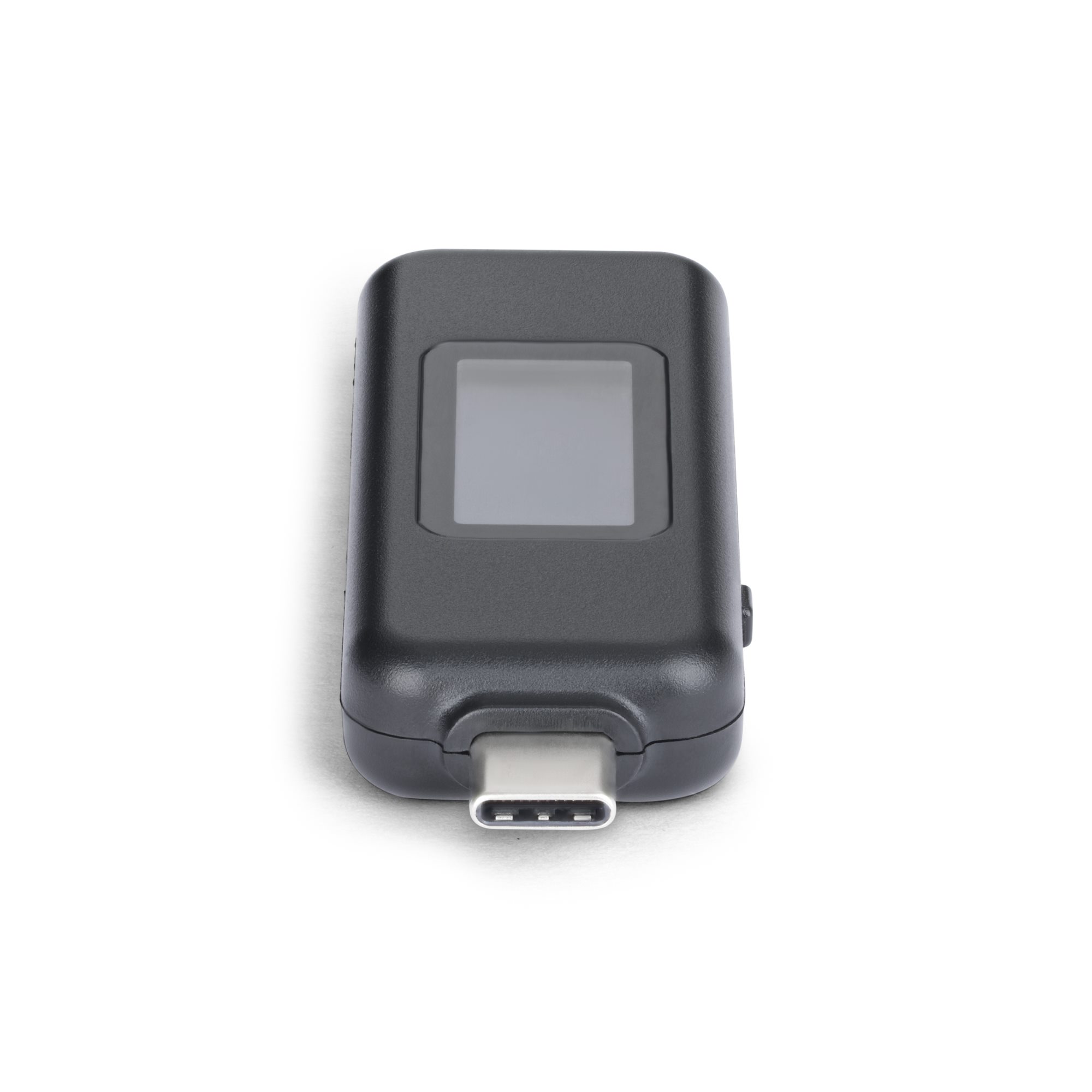

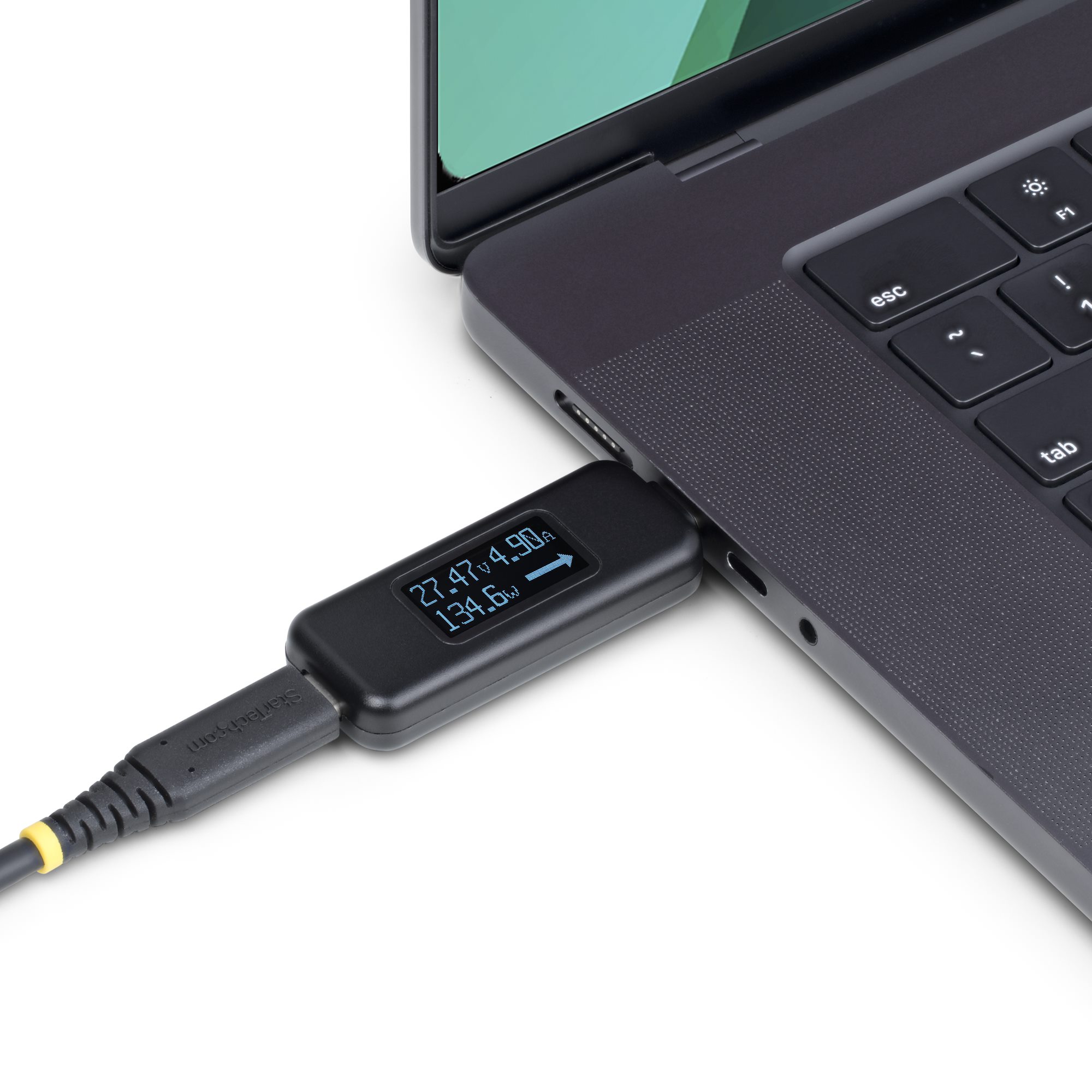

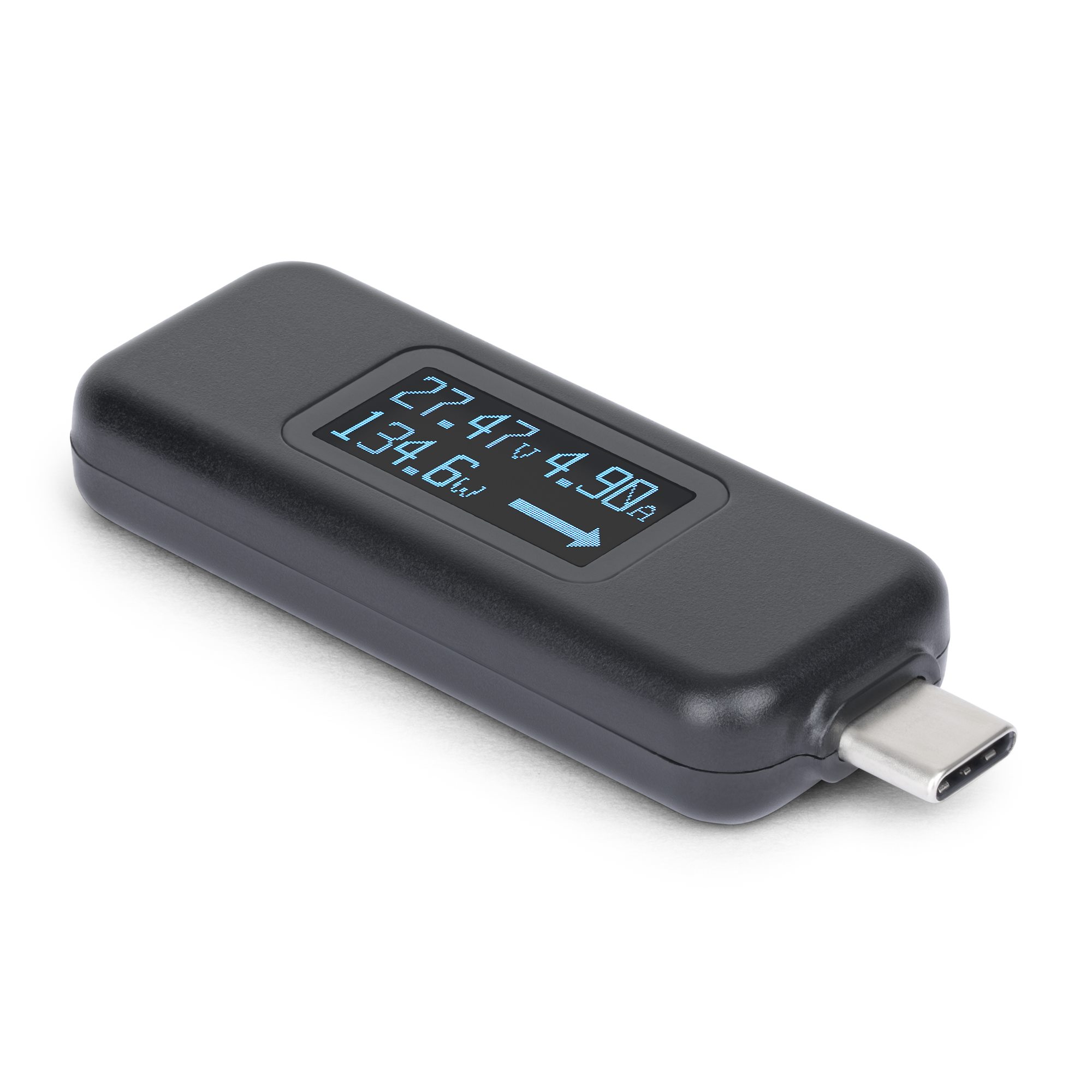

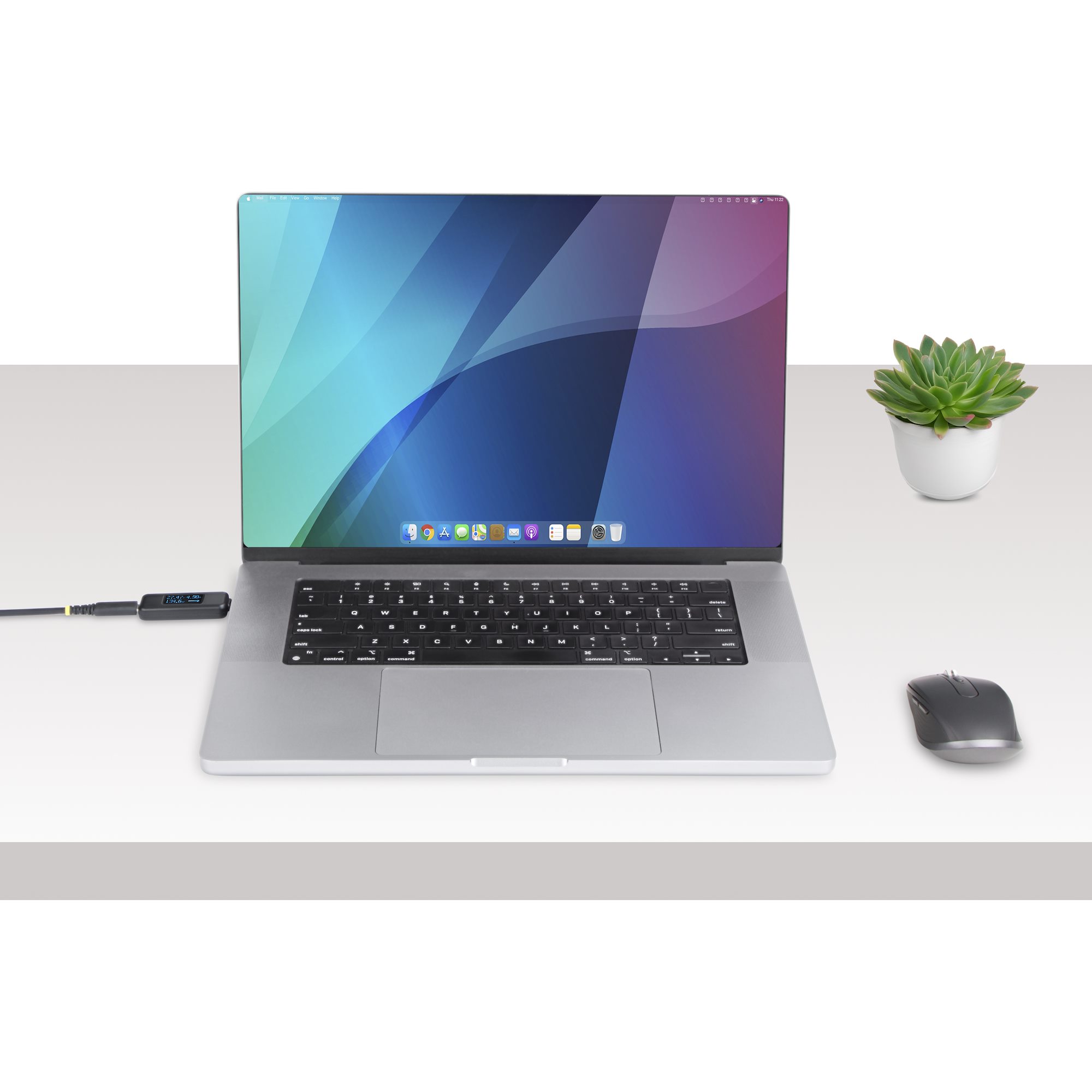

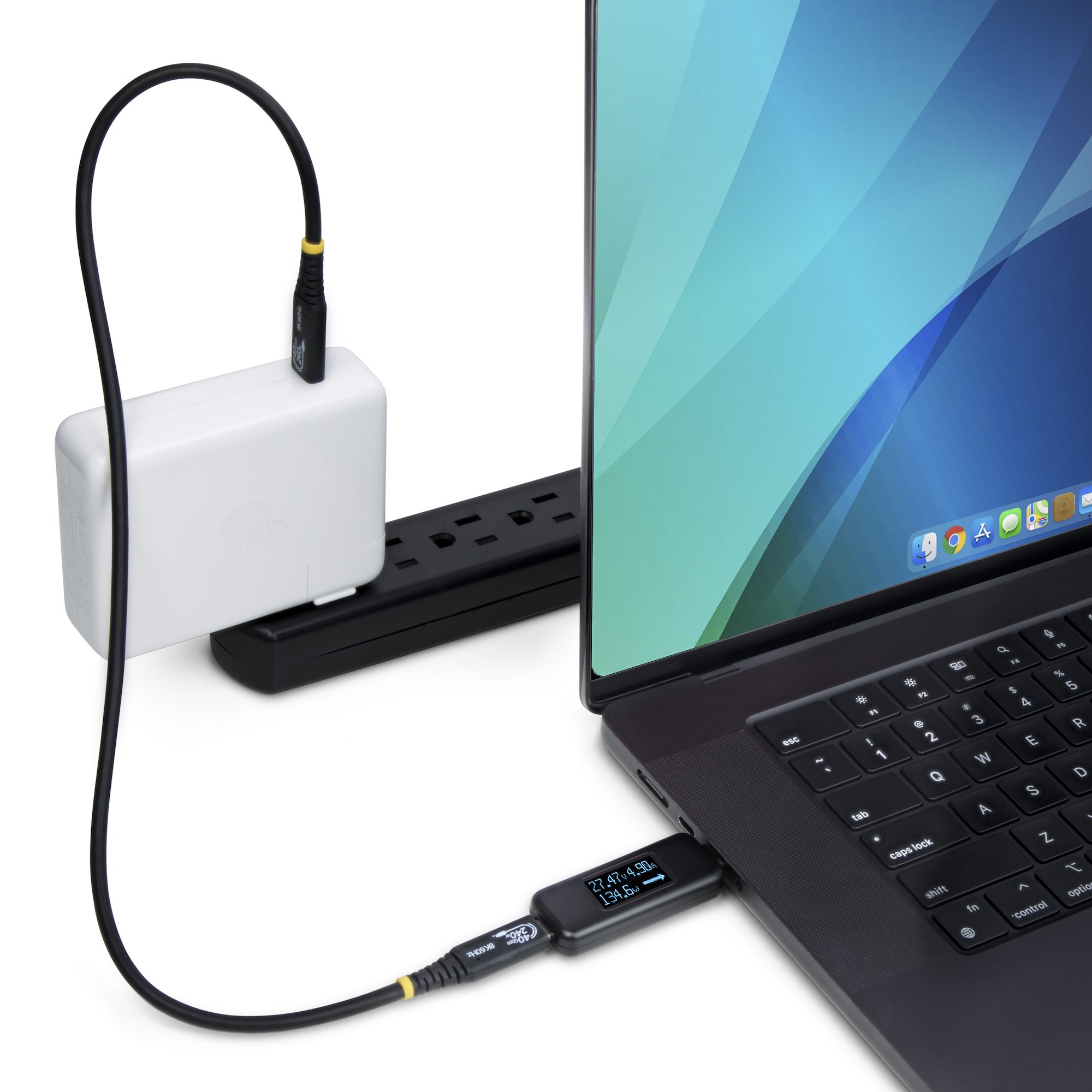

  • PORTABLE USB-C POWER TESTING: Measure Voltage, Current, and Wattage in any direction with this bi-directional USB-C Power Tester; Digital display w/180° flip rotation provides real-time at-a-glance readings; Portable design ideal for IT Pros on-the-go

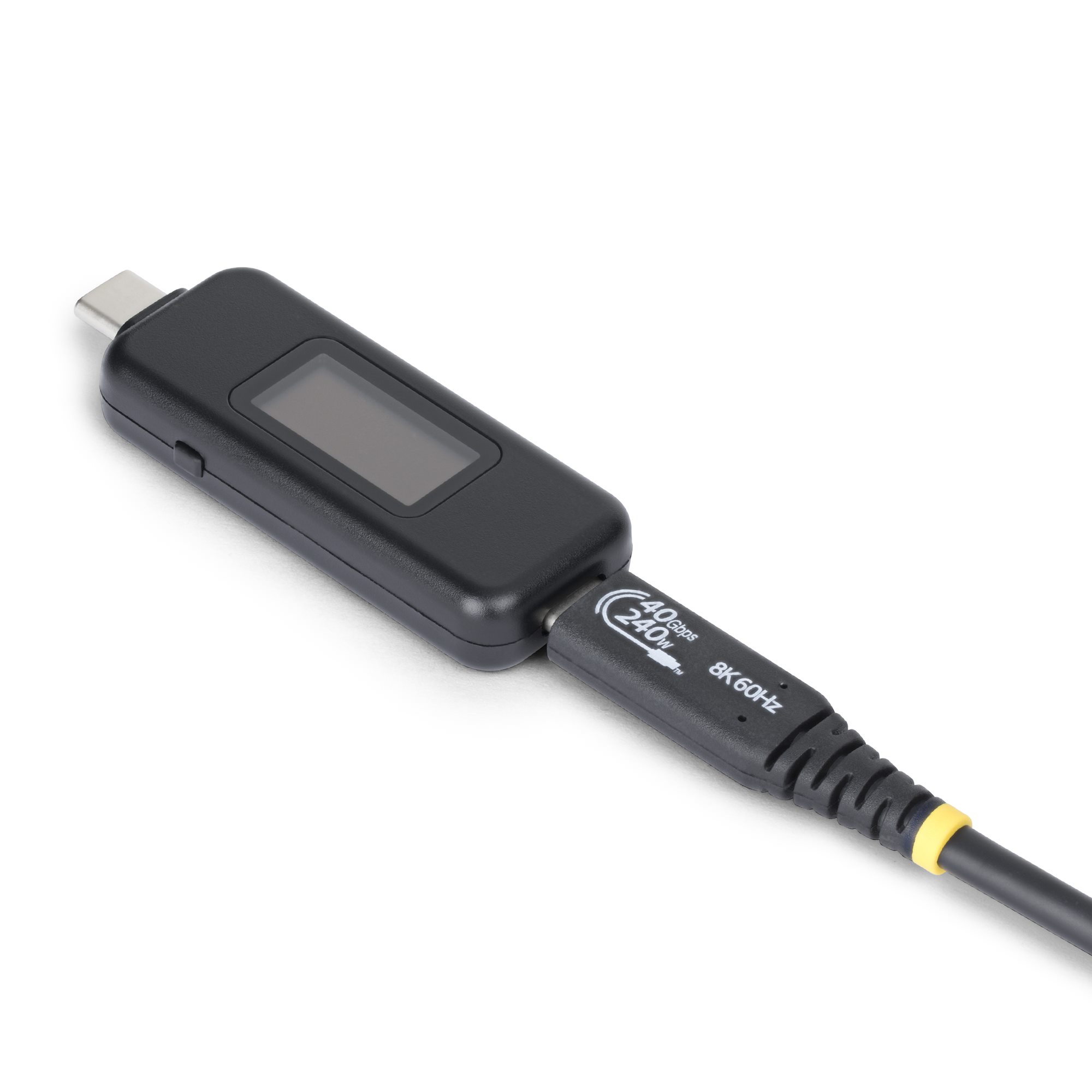

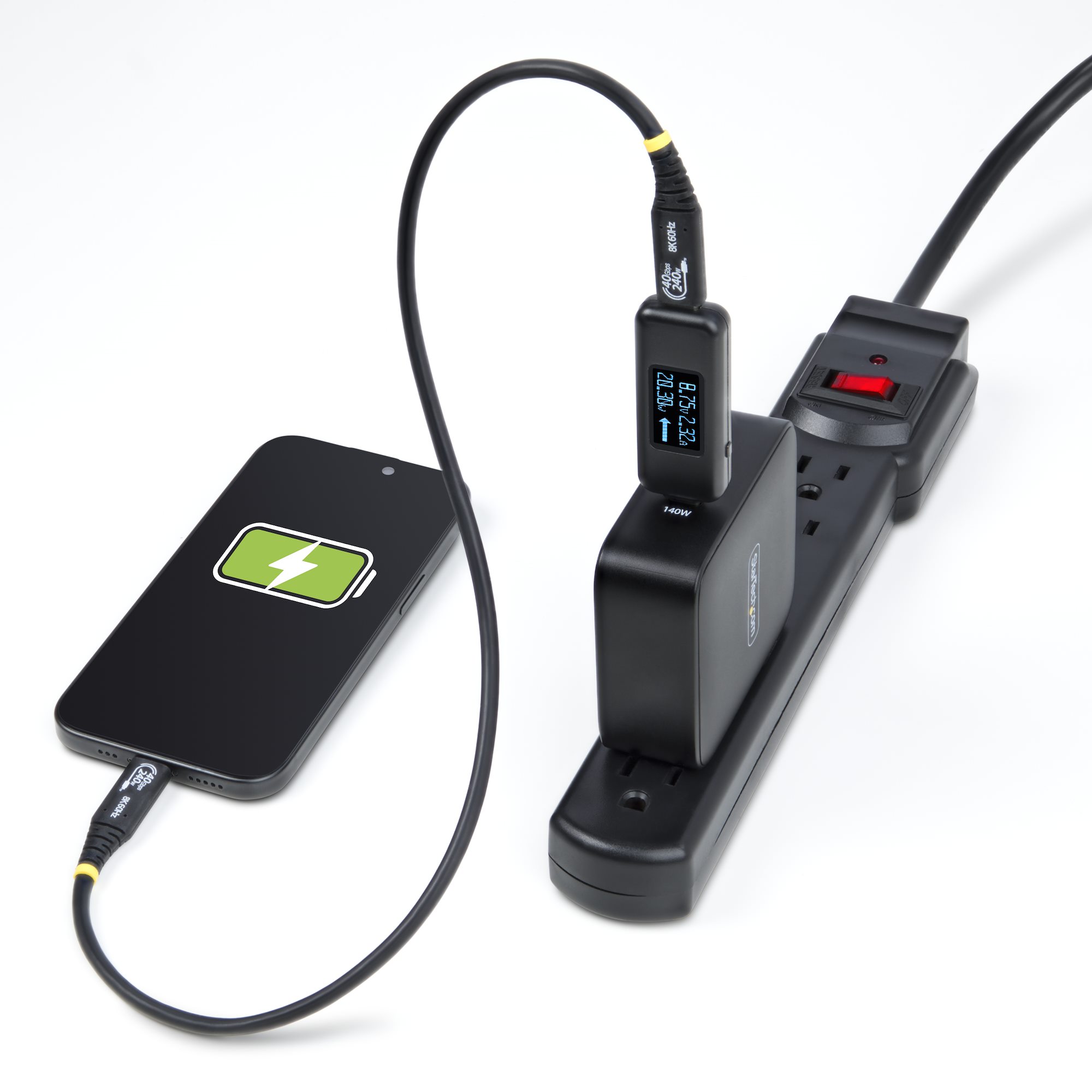

  • SIMPLIFY TROUBLESHOOTING: Quickly identify Power Delivery issues between USB-C docking stations, chargers/hubs, and connected devices; Test USB-C cables to ensure full power transmission from USB-C sources; Validate performance of high-power devices
  • UNIVERSAL COMPATIBILITY: Supports USB data pass-through up to 10Gbps, including DP Alt Mode video (backward compatible); Measures up to 4.5V-50V/50mA-6.5A operating range, and 240W USB Power Delivery 3.1 Extended Power Range (EPR)

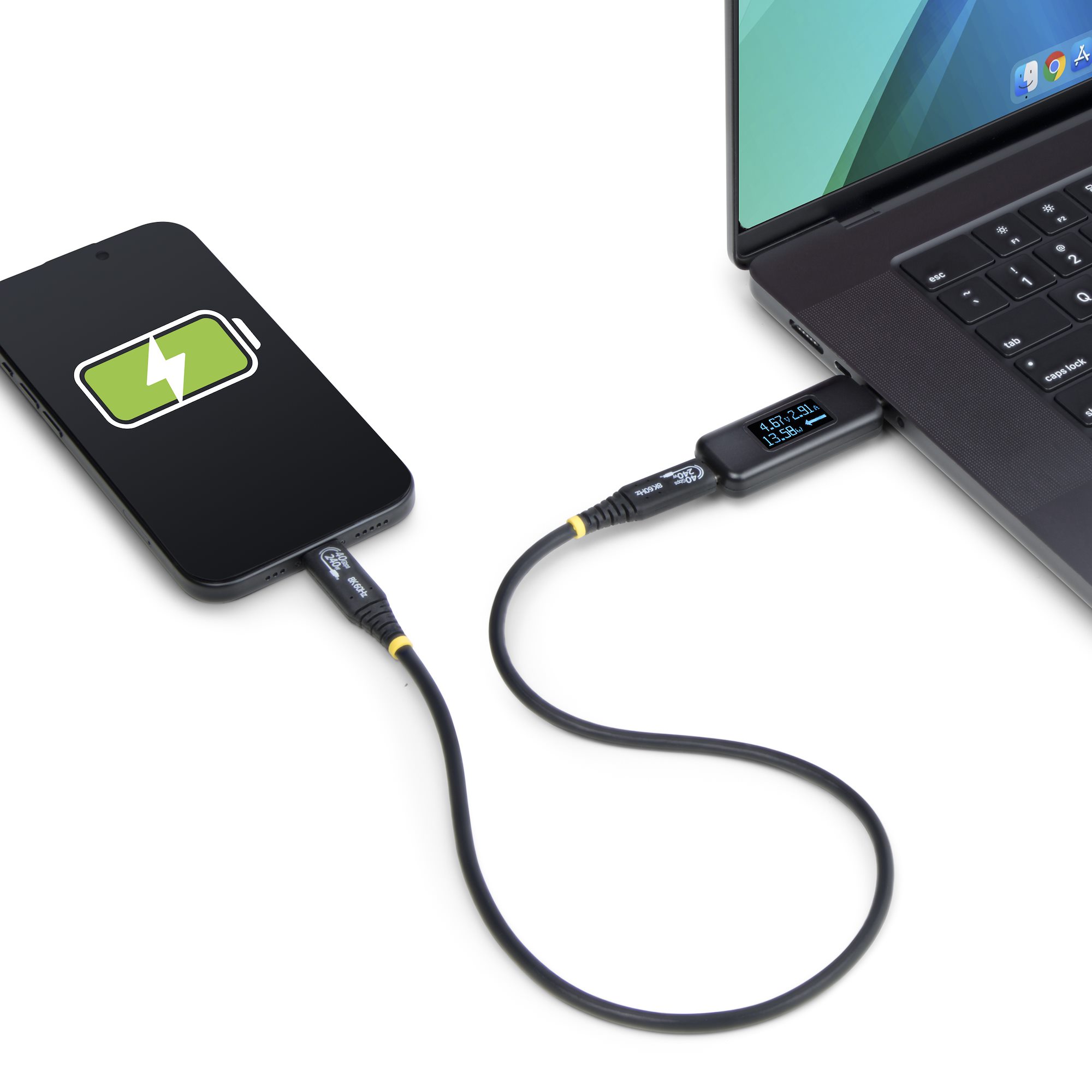

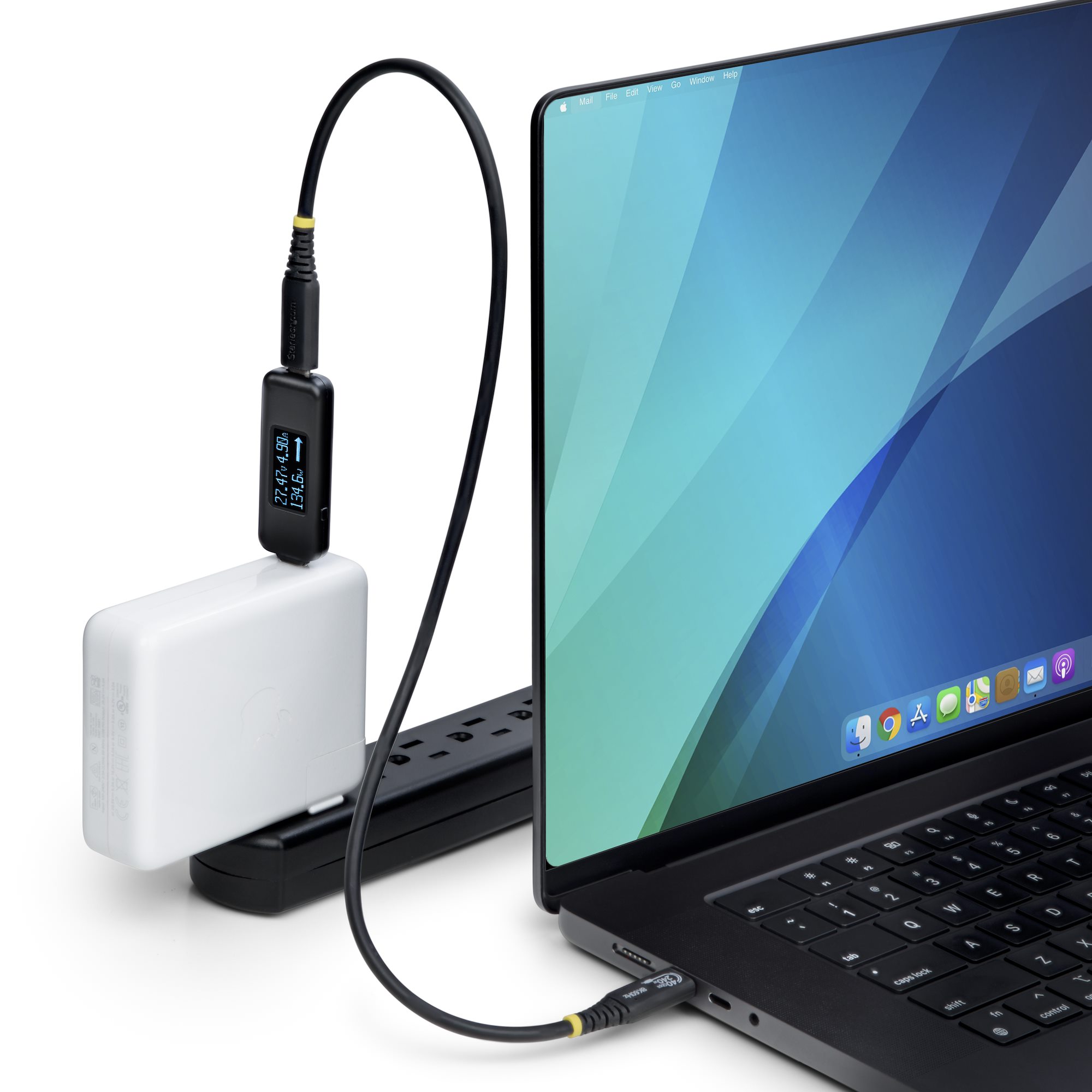

  • APPLICATIONS: Test USB-C charging stations, verify power delivery across devices & diagnose port or cable issues; Measure power draw from bus-powered USB-C devices; Ensure USB-C port compliance w/VBUS & voltage drop tests

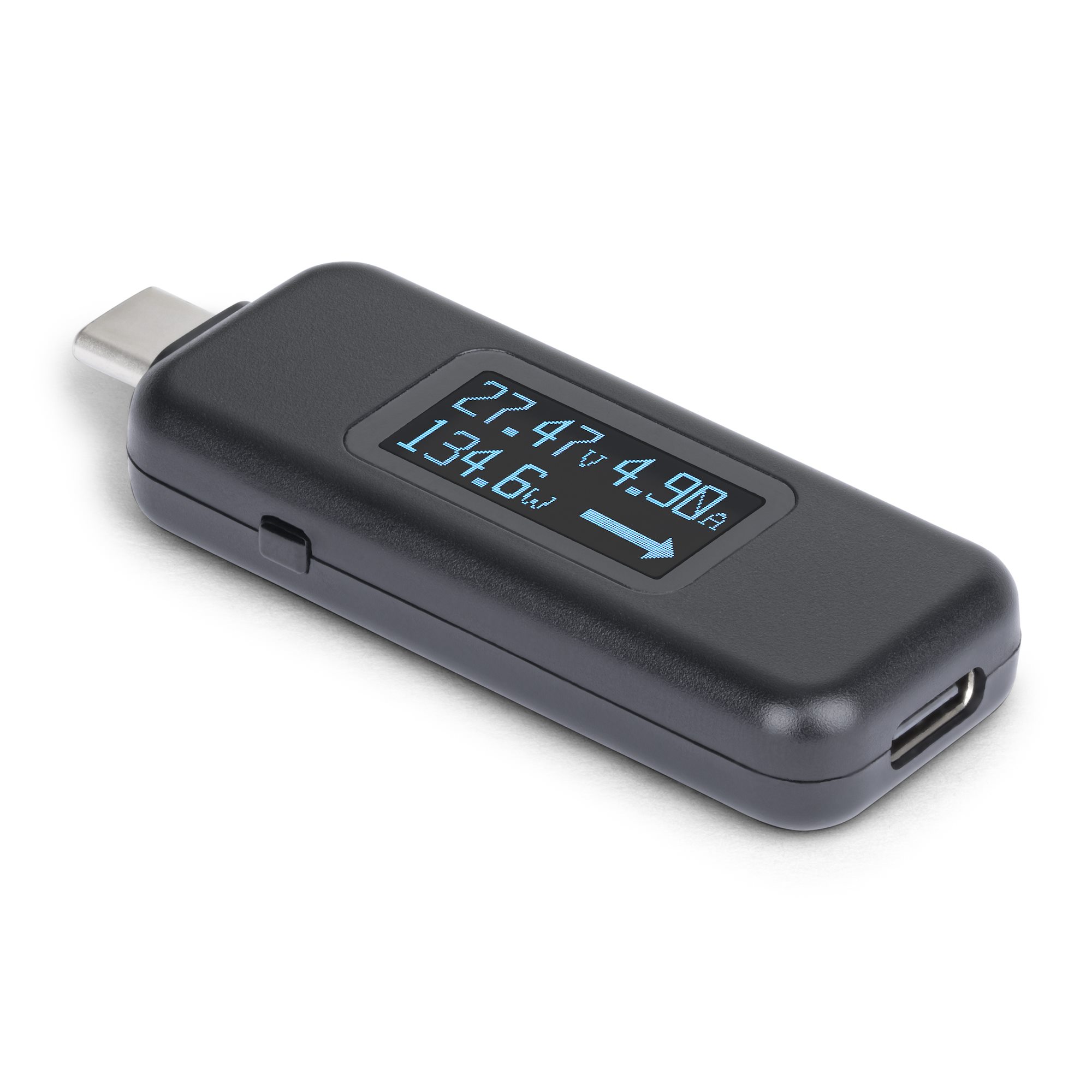

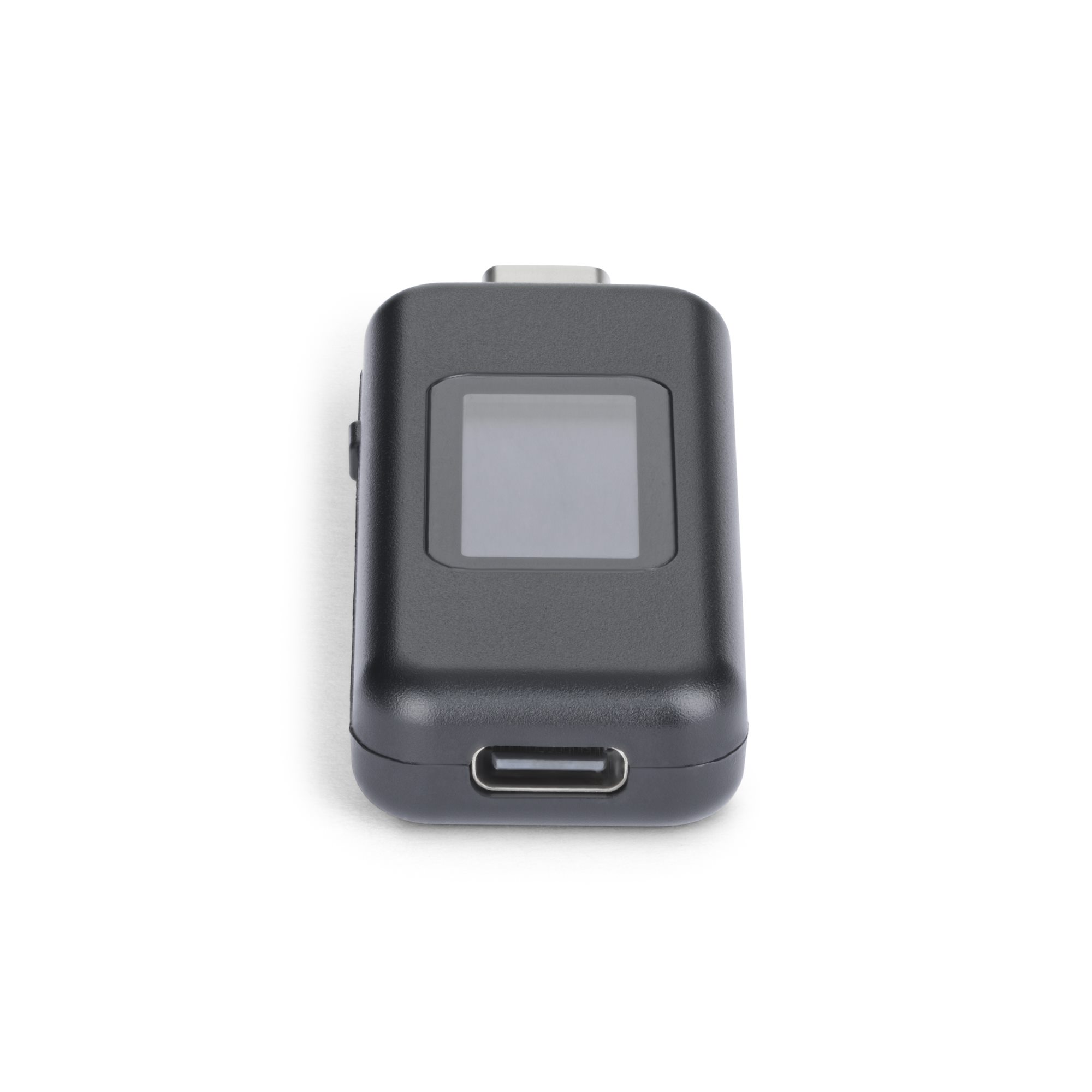

  • SPECS: Bi-directional USB Type-C Male to Female; Digital display with 180° flip rotation; Voltage/Current Range: 4.5V-50V / 50mA-6.5A; Up to 240W USB PD 3.1 EPR; USB 10Gbps Data Pass-Through w/DP Alt Mode; Not compatible with Thunderbolt 3 devices

Product Properties

  • Model
  • USBC-PWRTESTER
  • EAN
  • 65030904469
  • Bullet points
  • Point
  • APPLICATIONS
    PORTABLE USB-C POWER TESTING
    SIMPLIFY TROUBLESHOOTING
    SPECS
    UNIVERSAL COMPATIBILITY
  • Features
  • Backlight colour
  • Blue
  • Backlight display
  • Yes
  • Built-in display
  • Yes
  • DC input voltage test
  • 4.5V-50V
  • DC output voltage test
  • 4.5V-50V
  • Host interface
  • USB 3.2 USB Type C
  • Housing material
  • Polycarbonate (PC)
  • Input current
  • 0.05 - 6.5 A
  • Maximum charging test
  • 240 W
  • Output current
  • 6.5 A
  • Output interface
  • USB 3.2 USB Type C
  • Power connectors supported
  • USB Type-C
  • Product colour
  • Black
  • Testing type
  • Amperage, Voltage, Wattage
  • USB version
  • 3.2 Gen 2 (3.1 Gen 2)
  • Logistics data
  • Master (outer) case height
  • 270 mm
  • Master (outer) case length
  • 180 mm
  • Master (outer) case width
  • 430 mm
  • Products per master (outer) case
  • 150 pc(s)
  • Operational conditions
  • Operating relative humidity (H-H)
  • 5 - 95%
  • Operating temperature (T-T)
  • 0 - 40 °C
  • Storage temperature (T-T)
  • -20 - 85 °C
  • Packaging data
  • Package depth
  • 84 mm
  • Package height
  • 15 mm
  • Package weight
  • 28 g
  • Package width
  • 80 mm
  • Technical details
  • Compliance certificates
  • RoHS
  • Weight & dimensions
  • Depth
  • 23 mm
  • Height
  • 10 mm
  • Weight
  • 12 g
  • Width
  • 57 mm
