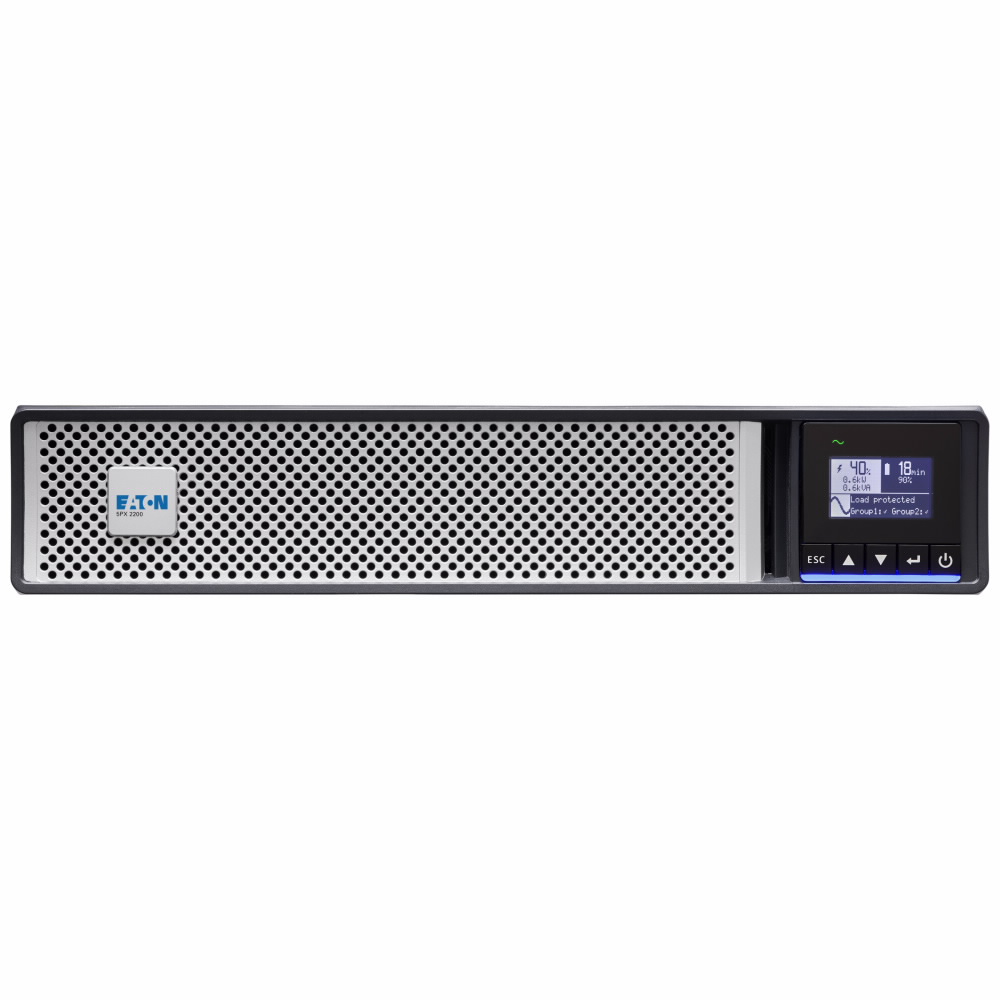

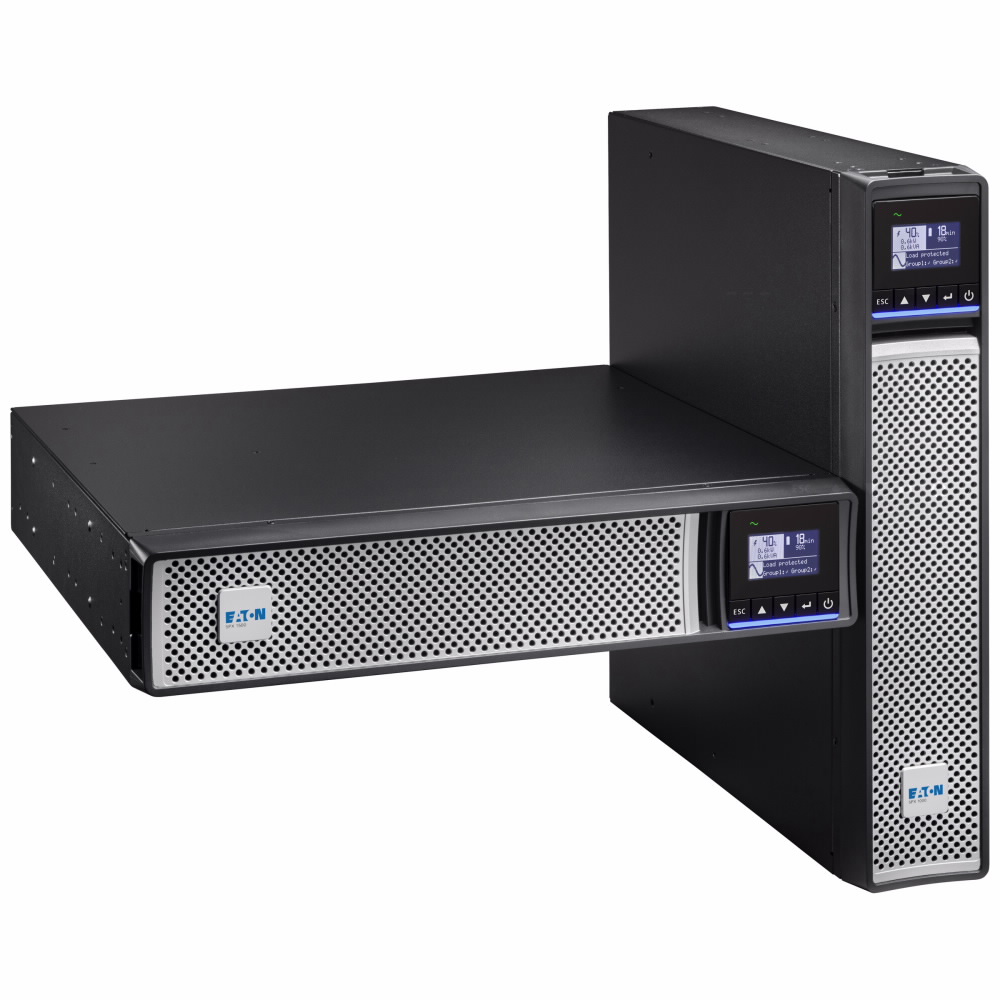

Eaton 5PX2200IRT2UG2BS uninterruptible power supply (UPS) Line-Interactive 2.2 kVA 2200 W 10 AC outlet(s)

Roll over image to zoom inClick to Open expanded view

Select to compare

Model: 5PX2200IRT2UG2BS

EAN: 3553340620867

Eaton 5PX2200IRT2UG2BS uninterruptible power supply (UPS) Line-Interactive 2.2 kVA 2200 W 10 AC outlet(s)

Manufacturer:

Eaton 5PX2200IRT2UG2BS, Line-Interactive, 2.2 kVA, 2200 W, Sine, 150 V, 47/70 Hz

Please log in to see your price

Included in the cost of this product is the WEEE recycling charge.

Click here for details

Description

Eaton 5PX2200IRT2UG2BS. UPS topology: Line-Interactive, Output power capacity: 2.2 kVA, Output power: 2200 W. AC outlet types: C13 coupler, C19 coupler, Power plug: C20 coupler, AC outlets quantity: 10 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 7 Ah, Battery voltage: 12 V. Form factor: Rackmount/Tower, Product colour: Black, Silver, Cable length: 1.8 m. Width: 588 mm, Depth: 770 mm, Height: 240 mm

Product Properties

Manufacturer
Eaton

Model
5PX2200IRT2UG2BS

EAN
3553340620867

Battery

Automatic battery test
Yes

Battery capacity
7 Ah

Battery technology
Sealed Lead Acid (VRLA)

Battery voltage
12 V

Number of batteries supported
6

Design

Cable length
1.8 m

Certification
IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 UL 1778 CSA 22.2 cTUVus EAC Cm UKCA Ukr KCC

Display type
LCD

Form factor
Rackmount/Tower

Product colour
Black, Silver

Features

Automatic Voltage Regulation (AVR)
Yes

Input frequency
47/70 Hz

Input operation voltage (min)
150 V

Noise level
40 dB

Number of input phases
1

Number of output phases
1

Output frequency
50/60 Hz

Output operation voltage (max)
240 V

Output operation voltage (min)
200 V

Output power
2200 W

Output power capacity
2.2 kVA

Output power factor
1

Power factor
1

Power protection features
Overdischarge

UPS topology
Line-Interactive

Waveform
Sine

Operational conditions

Operating altitude
0 - 3000 m

Operating relative humidity (H-H)
0 - 90%

Operating temperature (T-T)
0 - 40 °C

Packaging data

Cables included
Input power cable, Serial, USB cable

Quick installation guide
Yes

Rack mount kit
Yes

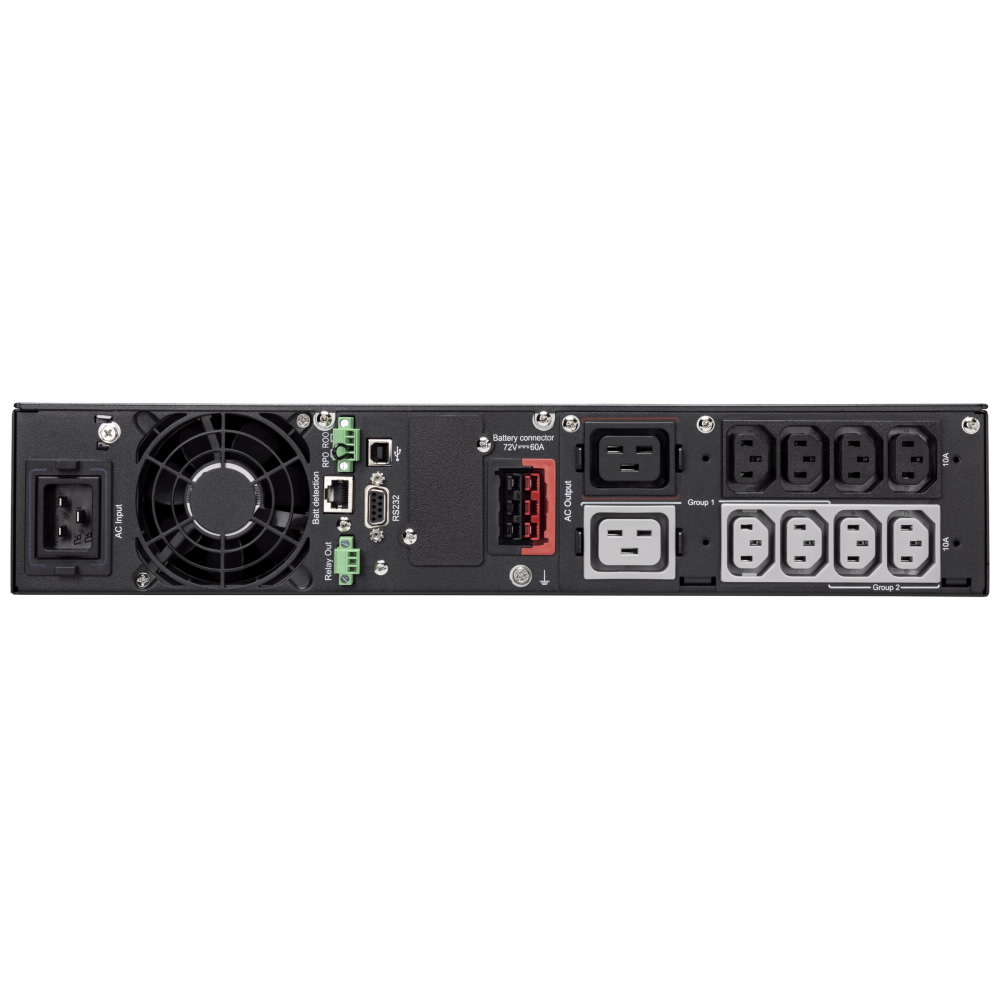

Ports & interfaces

AC outlet types
C13 coupler, C19 coupler

AC outlets quantity
10 AC outlet(s)

Power plug
C20 coupler

Serial interface
Yes

Serial interface type
RS-232

Serial ports quantity
1

USB 2.0 ports quantity
1

USB port
Yes

USB port type
USB Type-B

Technical details

Sustainability certificates
CE, ENERGY STAR, REACH, RoHS

Sustainability compliance
Yes

Weight & dimensions

Depth
770 mm

Height
240 mm

Weight
28.6 kg

Width
588 mm
