Description

Hypertec ProDock Lite Gen2 - Universal USB 3.1 Type C Mini Dock. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Silver, Compatible memory cards: MicroSD (TransFlash), Maximum digital resolution: 3840 x 2160 pixels. Power source type: USB, AC input voltage: 20 V, Input current: 5 A. Mobile operating systems supported: Android, iOS

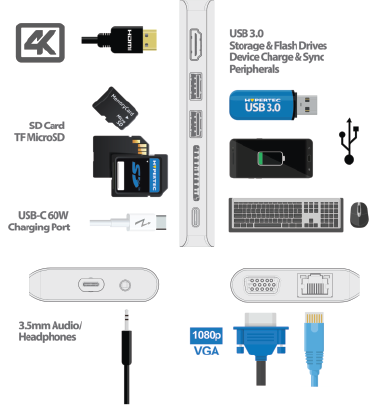

Universal USB 3.1 Type-C Connection
HDMI Supports 4K Ultra-HD Video
1080p VGA Support
2 x USB 3.0 Ports
RJ45 Gigabit Ethernet
SD Card Reader (Also reads MicroSD)
100W Power Delivery via Type-C Port
Windows & MAC compatible
3.5mm Audio Output

Product Properties

Manufacturer
Hypertec

Model
HYP-USBCPD-L2

EAN
5050914083601

Bullet points

Point
100W Power Delivery via Type-C Port

1080p VGA Support

2 x USB 3.0 Ports

3.5mm Audio Output

HDMI Supports 4K Ultra-HD Video

RJ45 Gigabit Ethernet

SD Card Reader (Also reads MicroSD)

Universal USB 3.1 Type-C Connection

Windows & MAC compatible

Network

Ethernet LAN
Yes

Ethernet LAN (RJ-45) ports
1

Ethernet LAN data rates
10,100,1000 Mbit/s

Wake-on-LAN ready
Yes

Operational conditions

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
5 - 90%

Storage temperature (T-T)
-10 - 70 °C

Other features

Maximum operating temperature
40 °C

USB data transfer rates
5000 Mbit/s

USB port
Yes

USB ports quantity
3

Packaging data

Package dimensions (WxDxH)
133 x 20 x 150 mm

Quantity per pack
1 pc(s)

Performance

Brand compatibility
Any brand

Card reader integrated
Yes

Certification
CE,FCC,ROHS.REACH

Charging function
Yes

Compatible memory cards
MicroSD (TransFlash)

Country of origin
China

Display modes
Single

Housing material
Aluminium

Maximum digital resolution
3840 x 2160 pixels

Maximum refresh rate
60 Hz

Number of displays supported
2

Plug and Play
Yes

Product colour
Silver

Ports & interfaces

Audio output
3.5mm jacket

Connectivity technology
Wired

HDMI ports
1

Headphone connectivity
3.5 mm

Headphone outputs
1

Host interface
USB 3.2 Gen 1 (3.1 Gen 1) Type-C

USB 2.0 ports quantity
2

USB connector type
USB Type-C

USB Power Delivery (USB PD)
Yes

USB Power Delivery up to
100 W

VGA (D-Sub) ports quantity
1

Power

AC input voltage
20 V

Input current
5 A

Power source type
USB

Power supply
100 W

Software

Mac compatibility
Yes

Mac operating systems supported
Yes

Mobile operating systems supported
Android, iOS

Windows operating systems supported
Yes

Technical details

Warranty period
1 year(s)

Weight & dimensions

Depth
116.5 mm

Height
16 mm

Weight
151 g

Width
60.8 mm
