Description

Epson WorkForce DS-970. Optical scanning resolution: 600 x 600 DPI, Input colour depth: 30 bit, Output colour depth: 24 bit. Scanner type: Sheet-fed scanner, Product colour: Black, White, Display: LCD. Sensor type: CIS, Daily duty cycle (max): 9000 pages, Light source: LED. Auto document feeder (ADF) input capacity: 100 sheets. Maximum ISO A-series paper size: A3, Scanning media types supported: Business Card, Plastic Card, ISO A-series sizes (A0...A9): A4, A5, A6

High-speed scanning: 100-page ADF and 85ppm (170ipm) scanning speed
Low intervention: Active Separation Roller system to prevent double feeding
Built-in protection: Ultrasonic and paper protection sensors to detect processing errors
Optional flatbed scanner: Choose from the conversion kit, or link to DS-5500 (A4) or DS-50000 (A3)

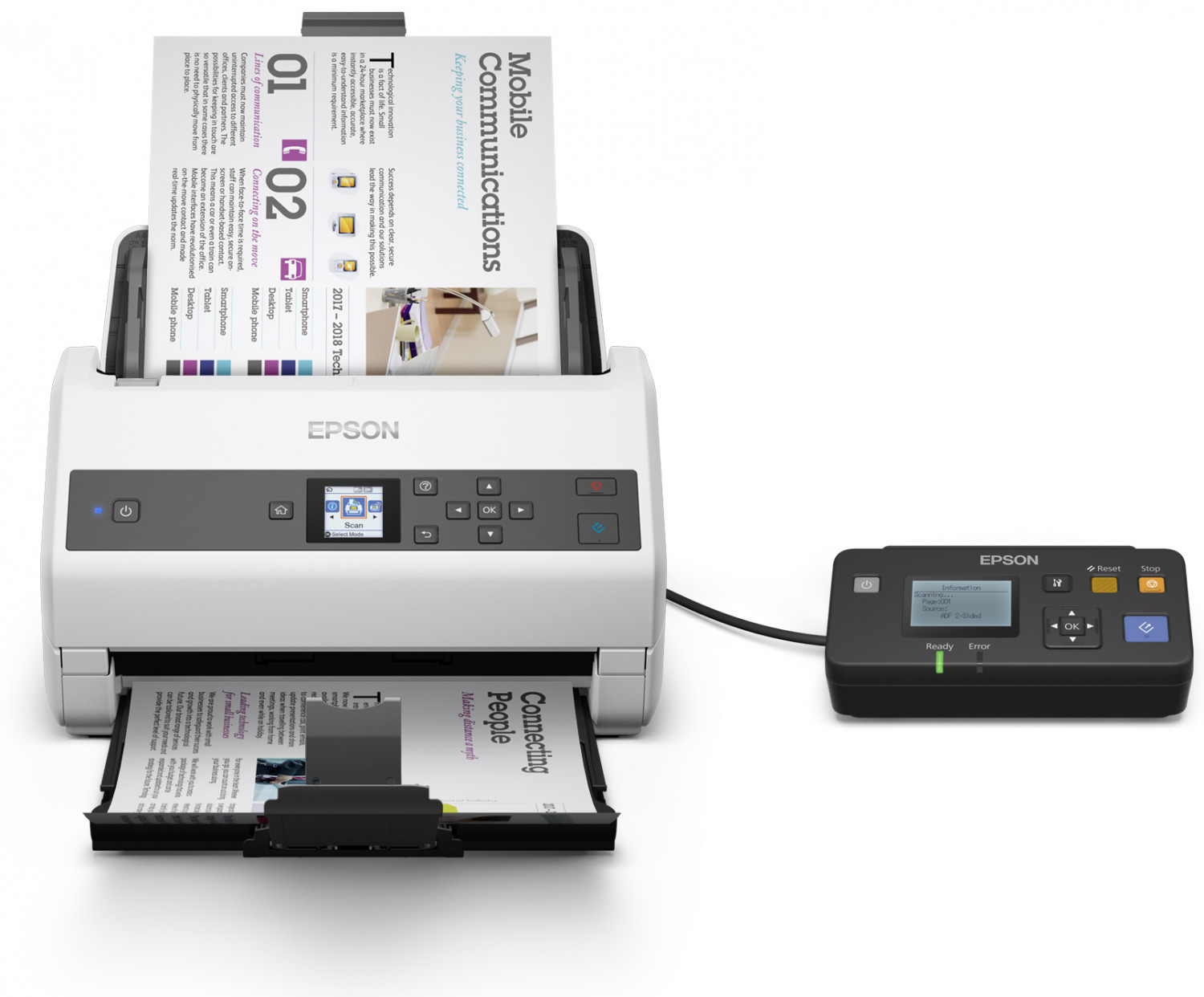

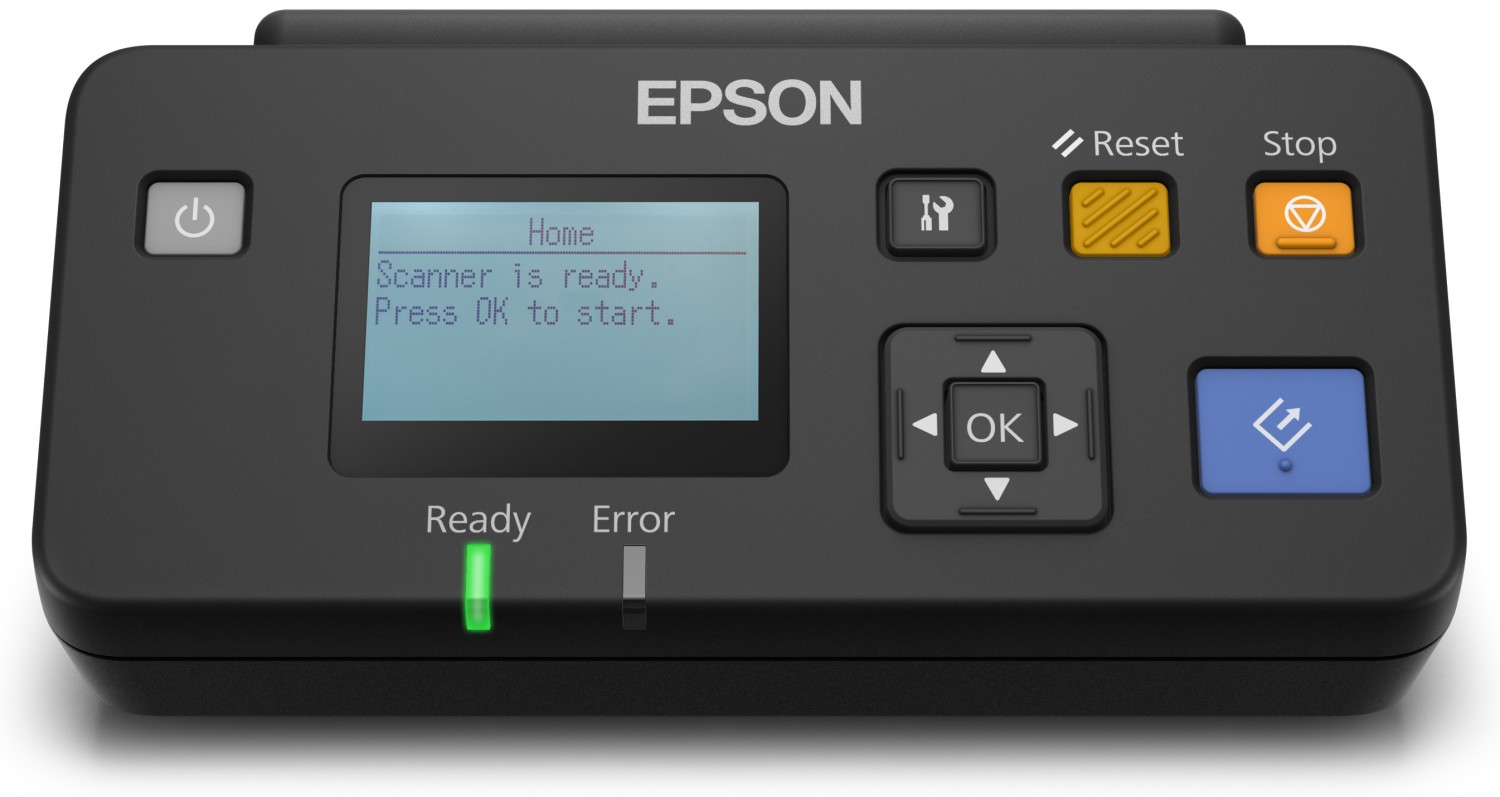

Optional Network Interface: Enable device sharing in a department. Create pre-defined job profiles

Product Properties

Manufacturer
Epson

Model
B11B251401BY

EAN
8715946660882

Bullet points

Point
Built-in protection: Ultrasonic and paper protection sensors to detect processing errors

High-speed scanning: 100-page ADF and 85ppm (170ipm) scanning speed

Low intervention: Active Separation Roller system to prevent double feeding

Optional flatbed scanner: Choose from the conversion kit, or link to DS-5500 (A4) or DS-50000 (A3)

Optional Network Interface: Enable device sharing in a department. Create pre-defined job profiles

Design

Built-in display
Y

Colour display
Y

Display
LCD

Display diagonal
3.68 cm (1.45")

Product colour
Black, White

Scanner type
Sheet-fed scanner

Input capacity

Auto document feeder (ADF) input capacity
100 sheets

Logistics data

Harmonized System (HS) code
84716070

Network

Supported network protocols
TCP/IP, DHCP, DNS, SNMP, SLP

Operational conditions

Operating relative humidity (H-H)
15 - 80%

Operating temperature (T-T)
5 - 35 °C

Storage relative humidity (H-H)
15 - 85%

Storage temperature (T-T)
25 - 60 °C

Packaging content

AC adapter included
Y

Bundled software
Document Capture Pro 2.0, Epson Device Admin, Epson Scan 2

Cables included
AC, USB

Drivers included
Y

Manual
Y

Warranty card
Y

Paper handling

Auto Document Feeder (ADF) media weight
27 - 413 g/m²

ISO A-series sizes (A0...A9)
A4, A5, A6

ISO B-series sizes (B0...B9)
B4, B5, B6

Legal
Y

Letter
Y

Maximum ISO A-series paper size
A3

Scanning media types supported
Business Card, Plastic Card

Performance

Daily duty cycle (max)
9000 pages

Light source
LED

Scan drivers
SANE, TWAIN, WIA

Scan file formats
BMP, JPEG, PDF, PNG, TIFF

Sensor type
CIS

Ports & interfaces

Standard interfaces
USB 3.2 Gen 1 (3.1 Gen 1)

USB port
Y

USB version
3.2 Gen 1 (3.1 Gen 1)

Power

AC input frequency
50-60 Hz

Input voltage
100-240 V

Power consumption (off)
0.1 W

Power consumption (sleep)
1.4 W

Power consumption (standby)
8.5 W

Power consumption (typical)
20 W

Power supply type
AC

Sleep mode
Y

Scanning

ADF scan speed (b/w, A4)
85 ppm

ADF scan speed (colour, A4)
170 ppm

Black/white scanning colour modes
Monochrome

Colour scanning
Y

Duplex scanning
Y

Input colour depth
30 bit

Optical scanning resolution
600 x 600 DPI

Output colour depth
24 bit

Output monochrome depth
1 bit

System requirements

Mac operating systems supported
Mac OS X 10.6 Snow Leopard

Windows operating systems supported
Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP

Server operating systems supported
Windows Server 2003, Windows Server 2008, Windows Server 2012 R2

Technical details

Data compression
IFF (JPEG(7), CCITT G4, LZW), PDF, JPEG

Weight & dimensions

Depth
169 mm

Height
167 mm

Weight
3.6 kg

Width
296 mm

Epson WorkForce DS-970 Sheet-fed scanner 600 x 600 DPI A3 Black, White
