Description

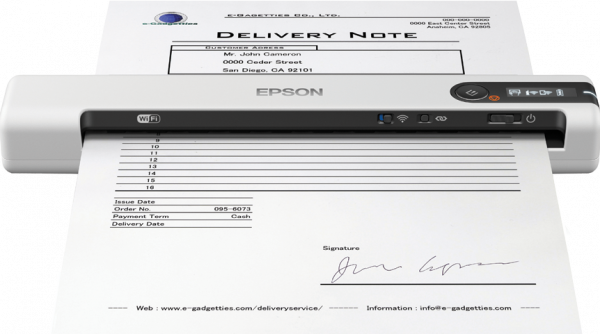

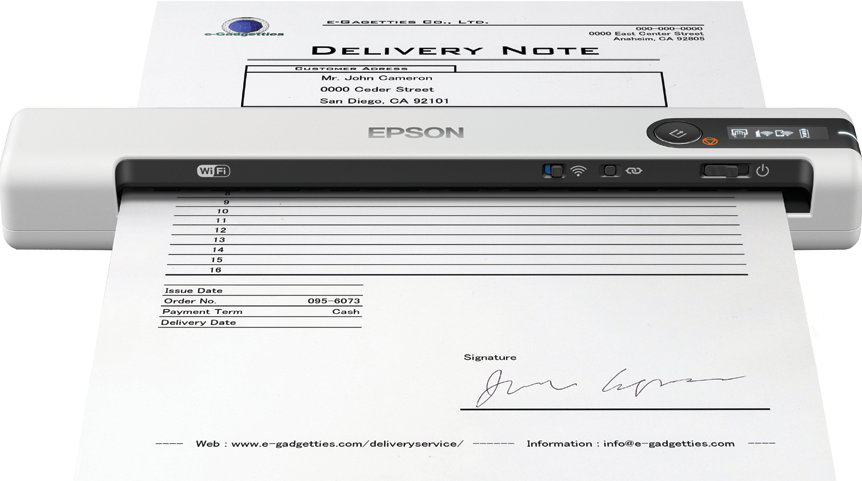

Epson WorkForce DS-80W. Maximum scan size: 216 x 1828 mm, Optical scanning resolution: 600 x 600 DPI, Input colour depth: 48 bit. Scanner type: Handheld scanner, Product colour: White, Display: LCD. Sensor type: CIS, Daily duty cycle (max): 300 pages, Light source: ReadyScan LED. Auto document feeder (ADF) input capacity: 1 sheets. Maximum ISO A-series paper size: A4, Scanning media types supported: Business Card, Plastic Card, Post Card(JPN), Paper tray media weight: 35 - 270 g/m²

Scan anywhere: Small, lightweight design
USB cable or integrated battery power: Scan up to 300 pages between battery charges
Fast scanning speeds: At up to four seconds per page (8.5ppm)
Simplify your workload: Continuous scanning with automatic feed mode
Includes a range of software: Document Capture Pro 2, Epson Scan 2.0 and TWAIN driver support

Product Properties

Manufacturer
Epson

Model
B11B253402

EAN
8715946662848

Bullet points

Point
Fast scanning speeds: At up to four seconds per page (8.5ppm)

Includes a range of software: Document Capture Pro 2, Epson Scan 2.0 and TWAIN driver support

Scan anywhere: Small, lightweight design

Simplify your workload: Continuous scanning with automatic feed mode

USB cable or integrated battery power: Scan up to 300 pages between battery charges

Design

Built-in display
Y

Colour display
N

Display
LCD

Product colour
White

Scanner type
Handheld scanner

Features

Country of origin
China

Input capacity

Auto document feeder (ADF) input capacity
1 sheets

Logistics data

Harmonized System (HS) code
84716070

Master (outer) case height
320 mm

Master (outer) case length
360 mm

Master (outer) case width
350 mm

Pallet gross height
171 cm

Pallet gross length
120 cm

Pallet gross width
80 cm

Pallet height (UK)
171 cm

Pallet length (UK)
120 cm

Pallet width (UK)
100 cm

Products per master (outer) case
10 pc(s)

Products per pallet
360 pc(s)

Products per pallet (UK)
360 pc(s)

Products per pallet layer
60 pc(s)

Products per pallet layer (UK)
60 pc(s)

Network

Wi-Fi
Y

Operational conditions

Operating relative humidity (H-H)
10 - 85%

Operating temperature (T-T)
5 - 35 °C

Storage relative humidity (H-H)
10 - 90%

Storage temperature (T-T)
-25 - 60 °C

Other features

Image formats supported
BMP, JPEG, TIFF, PNG

Output resolutions
600 dpi

Packaging content

Bundled software
Document Capture Pro 2.0, Epson Scan 2

Cables included
USB

Packaging data

Package depth
330 mm

Package height
67 mm

Package weight
597 g

Package width
141 mm

Quantity per pack
1 pc(s)

Paper handling

Auto Document Feeder (ADF) media weight
35 - 270 g/m²

Maximum ISO A-series paper size
A4

Paper tray media weight
35 - 270 g/m²

Scanning media types supported
Business Card, Plastic Card, Post Card(JPN)

Performance

Daily duty cycle (max)
300 pages

Light source
ReadyScan LED

Scan drivers
TWAIN, WIA, SANE, ICA

Scan file formats
BMP, JPEG, PDF, PNG, TIFF

Sensor type
CIS

Ports & interfaces

Standard interfaces
USB 2.0, Wireless LAN

USB port
Y

USB version
2.0

Power

Power supply type
USB

Scanning

Colour scanning
Y

Duplex scanning
N

Input colour depth
48 bit

Input greyscale depth
16 bit

Maximum scan size
216 x 1828 mm

Optical scanning resolution
600 x 600 DPI

Output colour depth
24 bit

Output greyscale depth
8 bit

Output monochrome depth
8 bit

Scan speed (b/w, low res, A4)
4 sec/page

Scan speed (colour, low res, A4)
4 sec/page

System requirements

Compatible operating systems
Mac OS 10.6+, Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Server 2003, Windows Server 2008 (32/64 Bit), Windows Server 2012 R2, Windows Server 2016, Windows Vista, Windows XP

Mac operating systems supported
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks

Windows operating systems supported
Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP

Server operating systems supported
Windows Server 2003, Windows Server 2008, Windows Server 2008 x64, Windows Server 2012 R2, Windows Server 2016

Technical details

Master (outer) case GTIN (EAN/UPC)
8715946663005

Weight & dimensions

Depth
47 mm

Height
34 mm

Weight
300 g

Width
272 mm
