Description

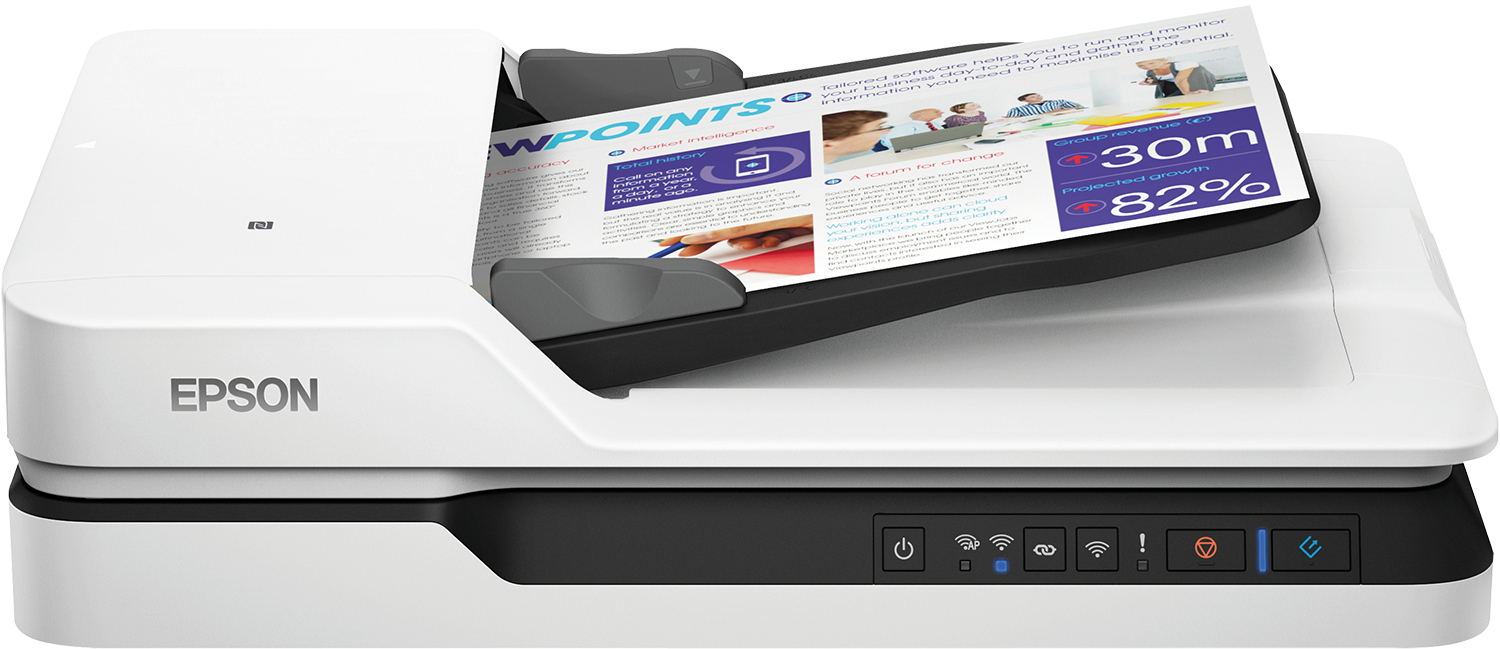

Epson WorkForce DS-1660W Power PDF. Maximum scan size: 210 x 3048 mm, Optical scanning resolution: 1200 x 1200 DPI, Enhanced scan resolution: 1200 x 1200 DPI. Scanner type: Flatbed scanner, Product colour: Black, White. Sensor type: CIS, Daily duty cycle (max): 1500 pages, Light source: ReadyScan LED. Auto document feeder (ADF) input capacity: 50 sheets. Maximum ISO A-series paper size: A4, ISO A-series sizes (A0...A9): A4, A5, A6, ISO B-series sizes (B0...B9): B5

Smallest footprint in its class{s1: Making it easy to position in both front or back-office environments.
Scan a wide range of documents: Including books, bound documents, passports and delicate items
Intelligent colour and image adjustments: Auto crop, skew correction, blank page and background removal
One of the fastest in its class: 25ppm scan speed

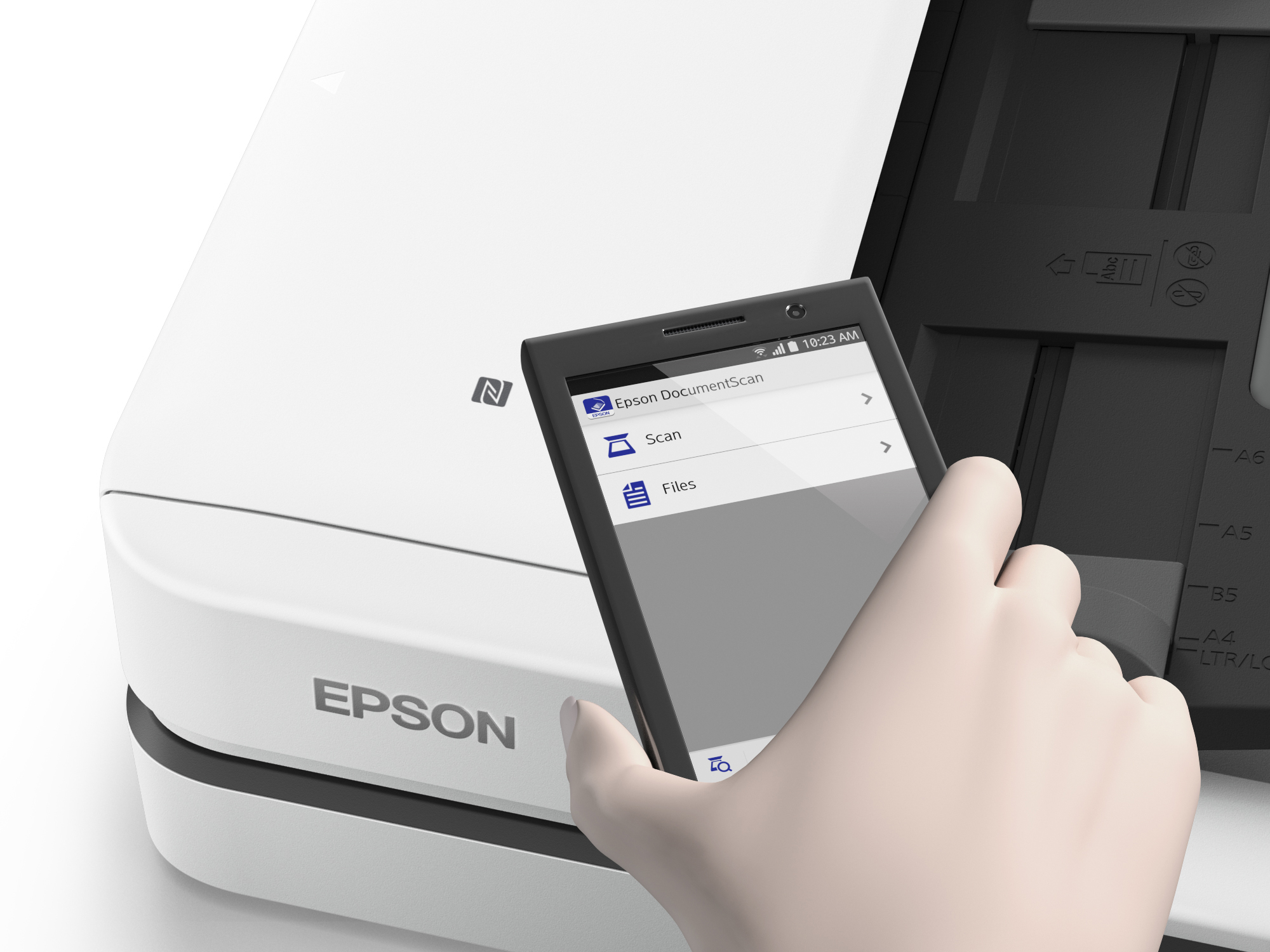

Wireless and USB 3.0 connectivity: Choose flexibility and speed

Product Properties

Manufacturer
Epson

Model
B11B244401PU

EAN
8715946672151

Bullet points

Point
Intelligent colour and image adjustments

One of the fastest in its class: 25ppm scan speed

Scan a wide range of documents: Including books, bound documents, passports and delicate items

Smallest footprint in its class{s1

Wireless and USB 3.0 connectivity: Choose flexibility and speed

Design

Built-in display
No

Product colour
Black, White

Scanner type
Flatbed scanner

Input capacity

Auto document feeder (ADF) input capacity
50 sheets

Logistics data

Harmonized System (HS) code
84716070

Network

Ethernet LAN
Yes

IPv6 support
Yes

Supported network protocols
TCP/IP, DHCP, DNS, SNMP, SLP

Wi-Fi
Yes

Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)

Operational conditions

Operating relative humidity (H-H)
20 - 80%

Operating temperature (T-T)
10 - 35 °C

Storage relative humidity (H-H)
20 - 80%

Storage temperature (T-T)
-20 - 80 °C

Packaging content

Cables included
USB

Packaging data

Package depth
520 mm

Package height
405 mm

Package weight
4.84 kg

Package width
195 mm

Quantity per pack
1 pc(s)

Paper handling

Auto Document Feeder (ADF) media weight
50 - 120 g/m²

ISO A-series sizes (A0...A9)
A4, A5, A6

ISO B-series sizes (B0...B9)
B5

Legal
Yes

Letter
Yes

Maximum ISO A-series paper size
A4

Maximum scan area (ADF)
210 x 3048 mm

Minimum scan area (ADF)
89 x 127 mm

Performance

Daily duty cycle (max)
1500 pages

Light source
ReadyScan LED

Password protection
Yes

Scan drivers
TWAIN

Scan file formats
JPG, PDF, TIFF

Scanning noise level
55 dB

Sensor type
CIS

Ports & interfaces

Optional Connectivity
Ethernet

USB port
Yes

USB version
3.2 Gen 1 (3.1 Gen 1)

Power

Power supply type
AC

Scanning

ADF scan speed (b/w, A4)
25 ppm

ADF scan speed (colour, A4)
25 ppm

Colour scanning
Yes

Duplex scanning
Yes

Enhanced scan resolution
1200 x 1200 DPI

Input colour depth
30 bit

Input greyscale depth
10 bit

Maximum scan size
210 x 3048 mm

Optical scanning resolution
1200 x 1200 DPI

Output colour depth
24 bit

Output greyscale depth
8 bit

System requirements

Mac operating systems supported
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks

Windows operating systems supported
Windows 10, Windows 7, Windows 7 x64, Windows 8, Windows 8 x64, Windows 8.1, Windows 8.1 x64, Windows Vista, Windows Vista x64

Weight & dimensions

Depth
315 mm

Height
120 mm

Weight
3.9 kg

Width
451 mm
