Description

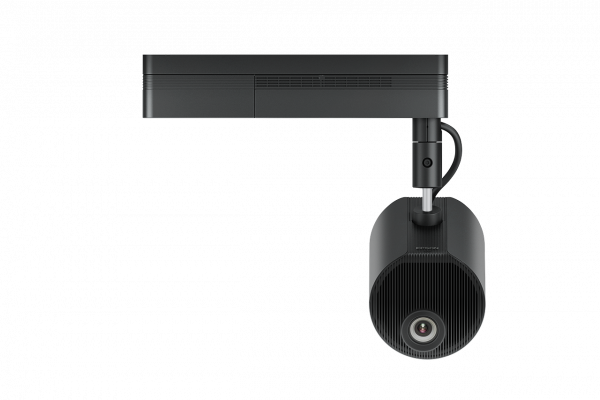

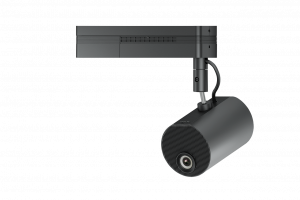

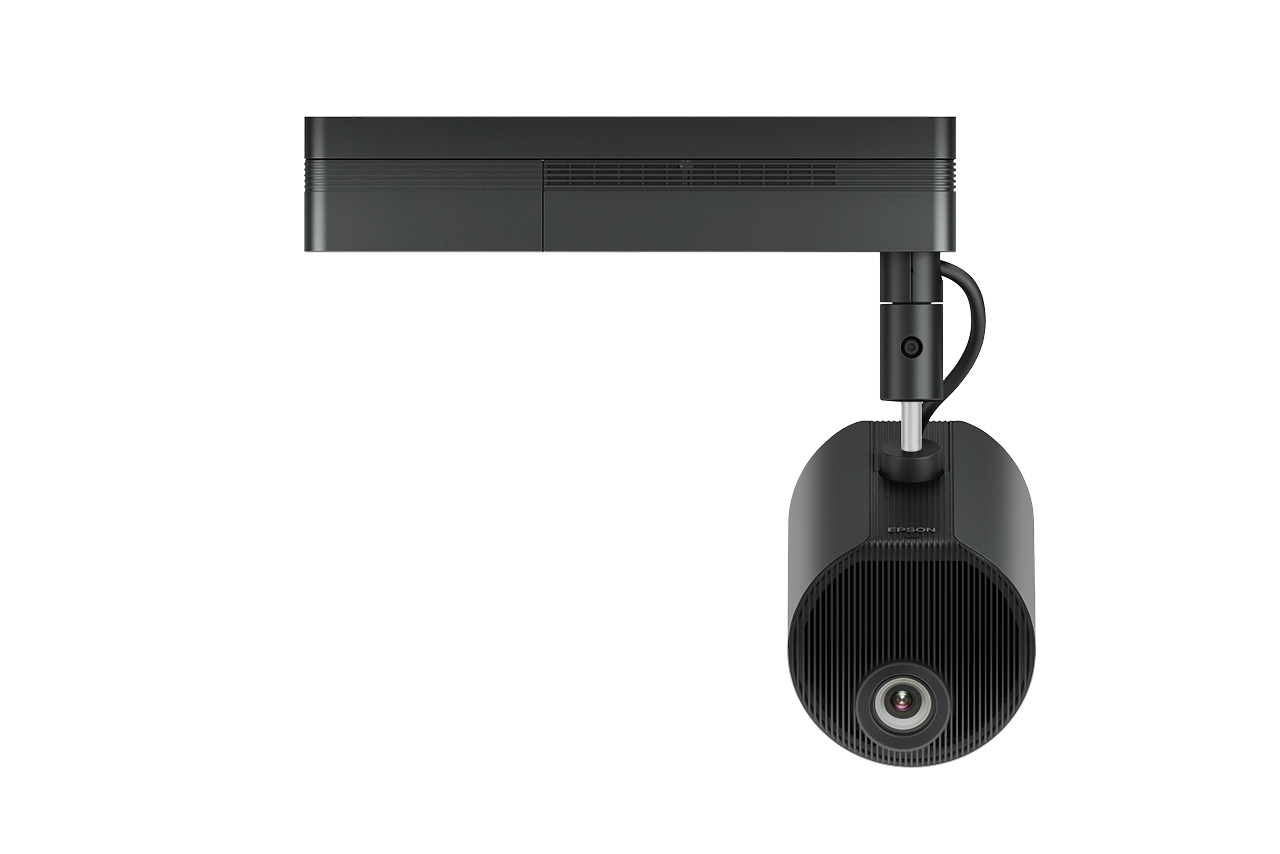

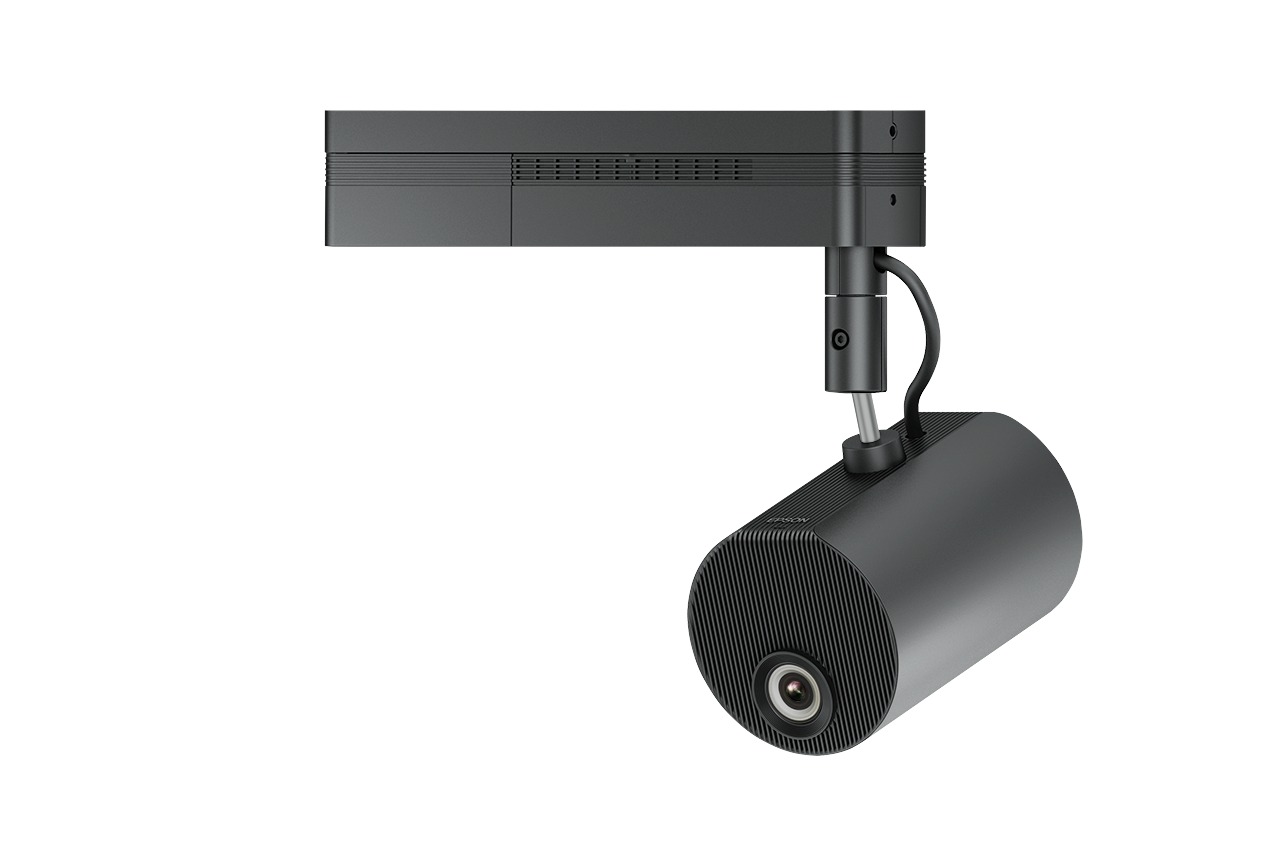

Epson LightScene EV-115. Projector brightness: 2200 ANSI lumens, Projection technology: 3LCD, Projector native resolution: WXGA (1280x800). Light source type: Laser, Service life of light source: 20000 h, Service life of light source (economic mode): 30000 h. Focus: Auto, Focal length range: 18.2 - 28.4 mm, Aperture range (F-F): 1.51 - 1.92. Analog signal format system: NTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, Supported video modes: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p. Compatible memory cards: SD

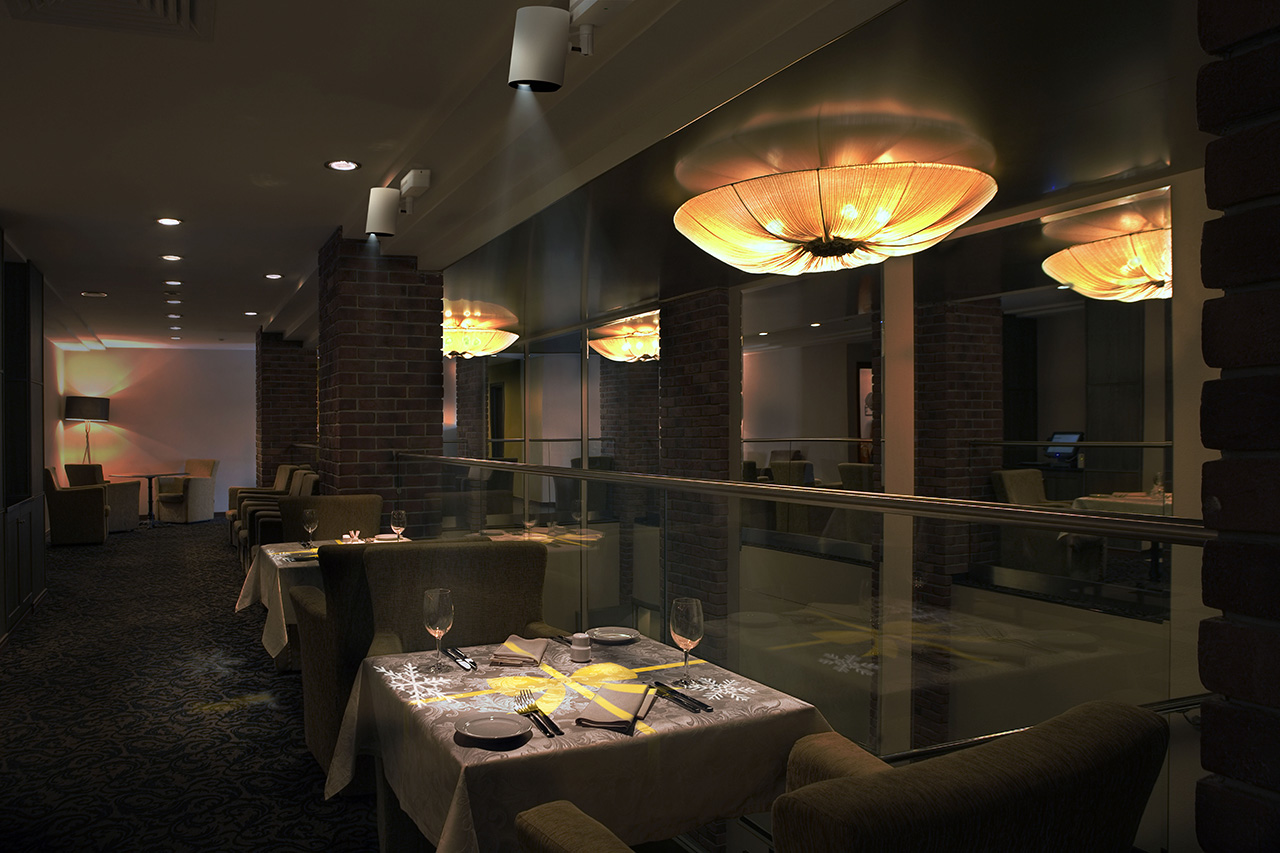

Experiential projection: Create borderless content, lighting effects and blended displays with ease
Sensor-based content: GPI function for simple sensor-based experiences
Flexible installation: Can be ceiling-mounted, freestanding or attached to a lighting track
Signage-ready: Built-in media player and simple CMS integration
Fit and forget reliability: Durable Epson laser technology supported by a five-year warranty

Legal Statement

Complies with The UK Product Security and Telecommunications Infrastructure (Product Security) requirements. Epson will provide security updates for 7 years from purchase

Product Properties

Manufacturer
Epson

Model
V11HA22140

EAN
8715946689333

Bullet points

Point
Experiential projection: Create borderless content, lighting effects and blended displays with ease

Fit and forget reliability: Durable Epson laser technology supported by a five-year warranty

Flexible installation: Can be ceiling-mounted, freestanding or attached to a lighting track

Sensor-based content: GPI function for simple sensor-based experiences

Signage-ready: Built-in media player and simple CMS integration

Design

Market positioning
Business

Placement
Ceiling, Floor, Lighting track, Wall

Product colour
Black

Product type
Standard throw projector

Features

Country of origin
China

Noise level
34 dB

Noise level (economic mode)
22 dB

Password protection
Yes

Lens system

Aperture range (F-F)
1.51 - 1.92

Focal length range
18.2 - 28.4 mm

Focus
Auto

Throw ratio
1.38 - 2.19:1

Zoom ratio
1.58:1

Zoom type
Auto

Light source

Light source type
Laser

Service life of light source
20000 h

Service life of light source (economic mode)
30000 h

Logistics data

Harmonized System (HS) code
85286200

Pallet weight (UK)
0 g

Products per pallet (UK)
32 pc(s)

Quantity per pack
1 pc(s)

Network

Bluetooth
Yes

Ethernet LAN
Yes

Ethernet LAN (RJ-45) ports
1

Wi-Fi
Yes

Operational conditions

Operating relative humidity (H-H)
20 - 80%

Operating temperature (T-T)
5 - 40 °C

Storage relative humidity (H-H)
10 - 90%

Other features

Supported network protocols
HTTPS, IPv6, SNMP, ESC/VP.net, PJLink

Packaging content

Bundled software
Inhalt DIY-App, Epson Projektor Content Manager

Cables included
AC

Remote control included
Yes

Ports & interfaces

DVI port
No

HDBaseT port
No

HDMI ports
1

Headphone outputs
1

USB 2.0 ports quantity
1

USB 2.0 Type-A ports quantity
1

VGA (D-Sub) ports quantity
0

Power

AC input frequency
50 - 60 Hz

AC input voltage
100-240 V

Power consumption (economy mode)
112 W

Power consumption (standby)
0.4 W

Power consumption (typical)
149 W

Power source
AC

Projector

Contrast ratio (typical)
2000:1

Keystone correction, horizontal
-40 - 40°

Keystone correction, vertical
-45 - 45°

Matrix size
1.5 cm (0.59")

Native aspect ratio
16:10

Number of colours
16.78 million colours

Projection distance (wide)
0.9 - 4.5 m

Projection technology
3LCD

Projector brightness
2200 ANSI lumens

Projector brightness (economic mode)
1100 ANSI lumens

Projector native resolution
WXGA (1280x800)

Screen size compatibility
762 - 3810 mm (30 - 150")

Supported aspect ratios
4:3, 16:10, 16:9

Software

Software support
via: Crestron (Network), Crestron Integrated Partner, Crestron RoomView

Storage

Card reader integrated
Yes

Compatible memory cards
SD

Video

Analog signal format system
NTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N

Full HD
Yes

Supported video modes
480i, 480p, 576i, 576p, 720p, 1080i, 1080p

Weight & dimensions

Depth
110 mm

Height
65 mm

Weight
6.9 kg

Width
459 mm
