Description

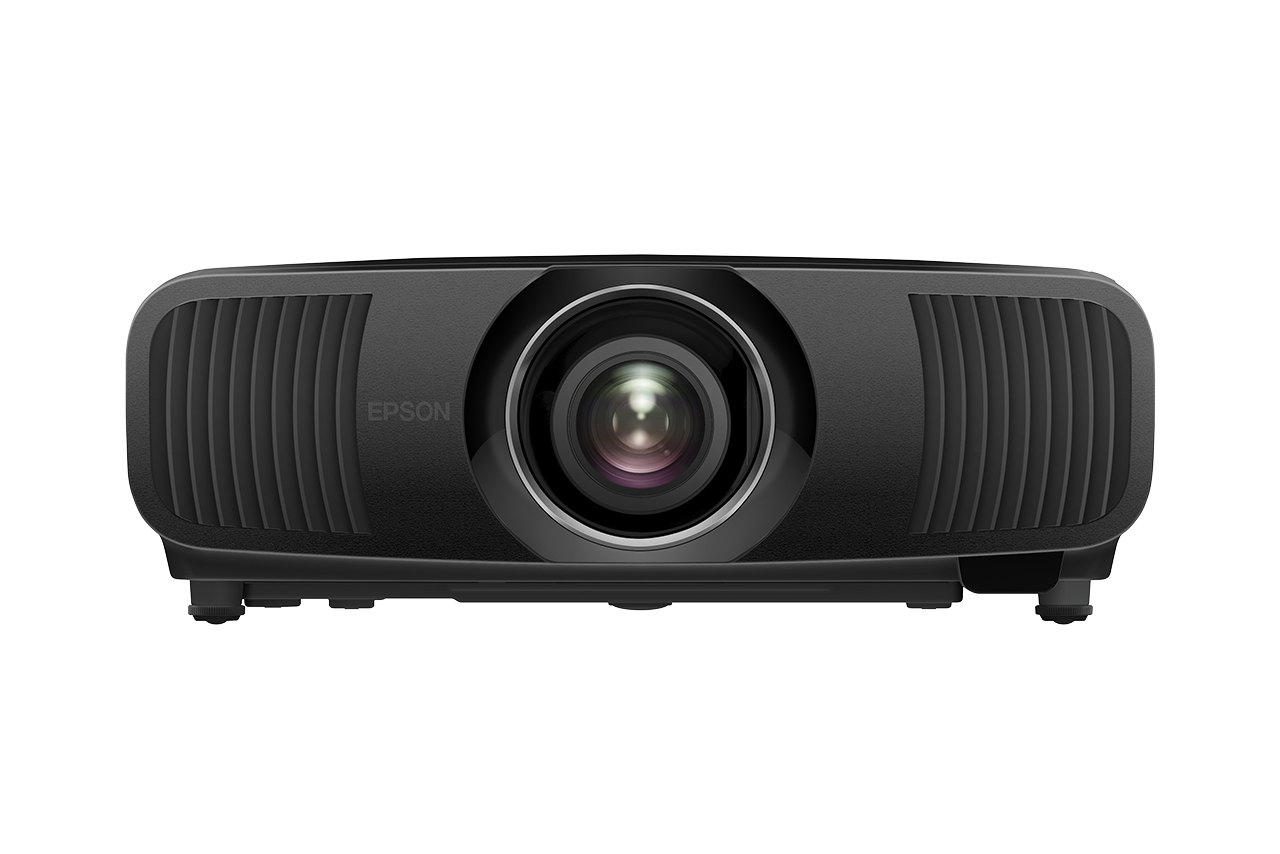

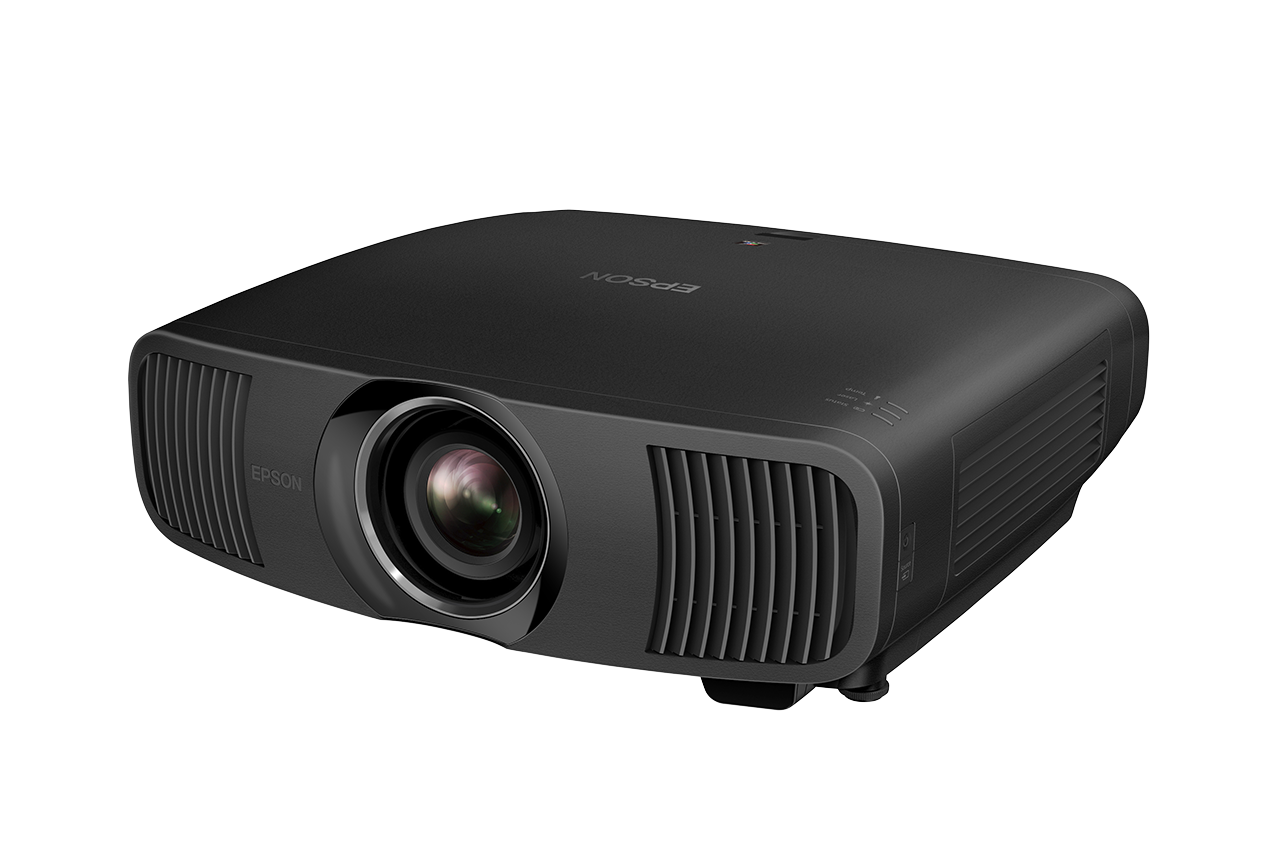

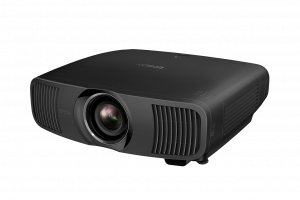

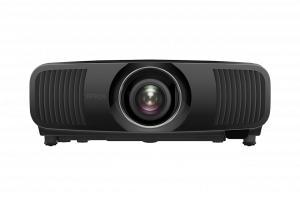

Epson EH-LS12000B. Projector brightness: 2700 ANSI lumens, Projection technology: 3LCD, Projector native resolution: UHD 4K (3840x2160). Light source type: Laser, Service life of light source: 20000 h. Focus: Auto, Focal length range: 22.5 - 46.7 mm, Aperture range (F-F): 2 - 3. Video processing: 10 bit, Video colour modes: Cinema, Dynamic, Natural, Bright cinema, Vivid. Serial interface type: RS-232C, HDMI connector type: Full-size

Impressive sharp display: 4K resolution (8.3mil pixels) and HDR10+ support
Smooth, fast-moving action: 4K Frame Interpolation and 4K Super Resolution
Long-lasting solution: Enjoy up to 10 years of entertainment¹ thanks to laser light-source
Fully motorised optics: Powered zoom, focus and lens shift
Wide lens shift: Vertical ±96.3% and horizontal ±47.1%

Legal Statement

Complies with The UK Product Security and Telecommunications Infrastructure (Product Security) requirements. Epson will provide security updates for 7 years from purchase

Product Properties

Manufacturer
Epson

Model
V11HA47040

EAN
8715946700731

Bullet points

Point
Fully motorised optics: Powered zoom, focus and lens shift

Impressive sharp display: 4K resolution (8.3mil pixels) and HDR10+ support

Long-lasting solution: Enjoy up to 10 years of entertainment¹ thanks to laser light-source

Smooth, fast-moving action: 4K Frame Interpolation and 4K Super Resolution

Wide lens shift: Vertical ±96.3% and horizontal ±47.1%

Design

Cable lock slot
Yes

Cable lock slot type
Kensington

Market positioning
Home cinema

Placement
Ceiling, Desktop

Product colour
Black

Product type
Standard throw projector

Display

Built-in display
No

Features

2D/3D frequency image
384/480 Hz

4K Ultra HD upscaling
Yes

Country of origin
China

HDCP
Yes

Interactive
No

Noise level
30 dB

Noise level (economic mode)
22 dB

On Screen Display (OSD)
Yes

Lens system

Aperture range (F-F)
2 - 3

Focal length range
22.5 - 46.7 mm

Focus
Auto

Horizontal lens shift range
-47.1 - 47.1%

Lens position memory
10

Throw ratio
1.35 - 2.84:1

Vertical lens shift range
-96.3 - 96.3%

Zoom capability
Yes

Zoom ratio
2.1:1

Zoom type
Auto

Light source

Light source type
Laser

Service life of light source
20000 h

Logistics data

Harmonized System (HS) code
85286200

Pallet gross weight
0 g

Pallet weight (UK)
0 g

Products per pallet
14 pc(s)

Products per pallet (UK)
14 pc(s)

Quantity per pack
1 pc(s)

Network

Ethernet LAN
Yes

Ethernet LAN (RJ-45) ports
1

Smart TV
No

Wi-Fi
No

Operational conditions

Operating relative humidity (H-H)
20 - 80%

Operating temperature (T-T)
5 - 35 °C

Storage relative humidity (H-H)
10 - 90%

Storage temperature (T-T)
-10 - 60 °C

Packaging content

Batteries included
Yes

Cables included
AC

Remote control included
Yes

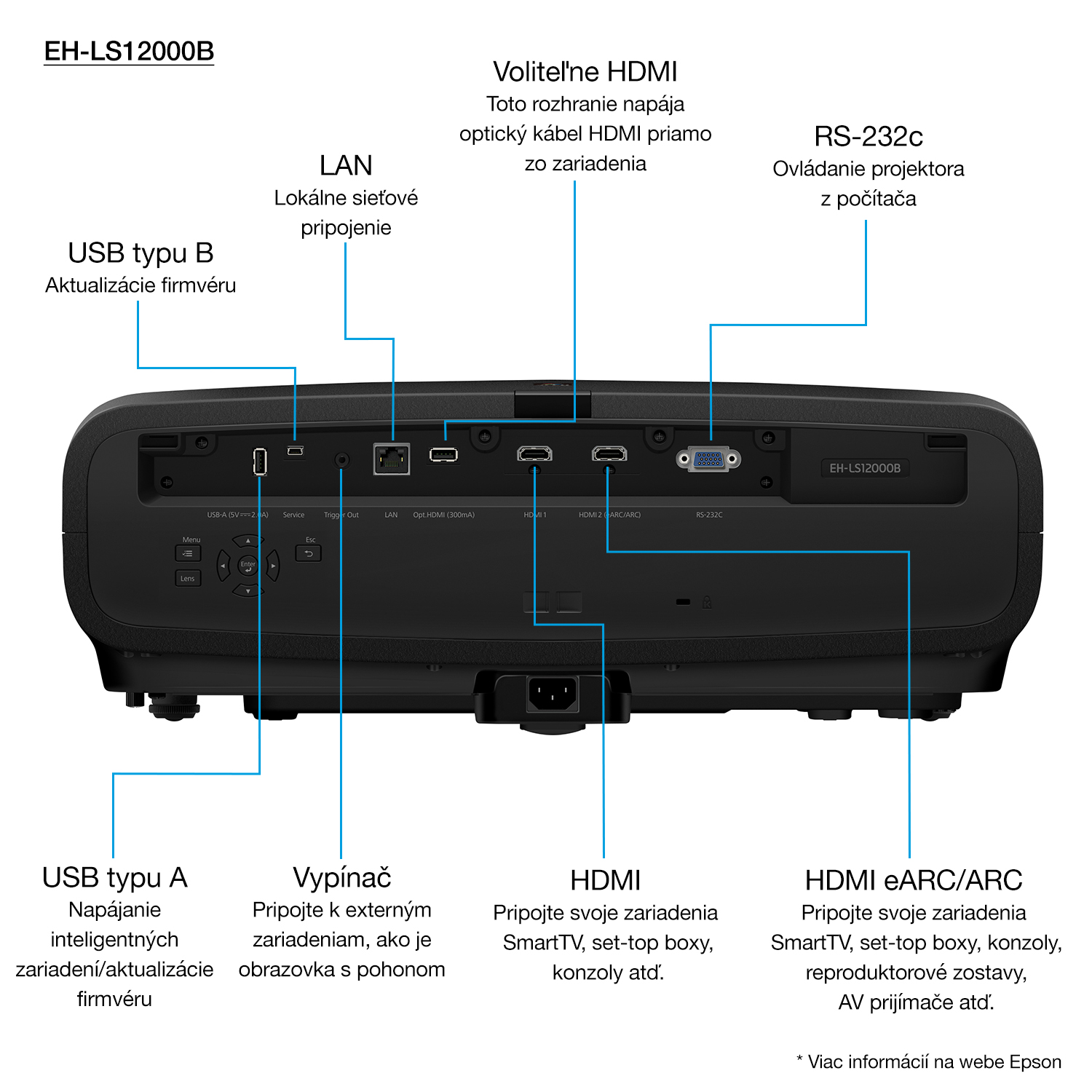

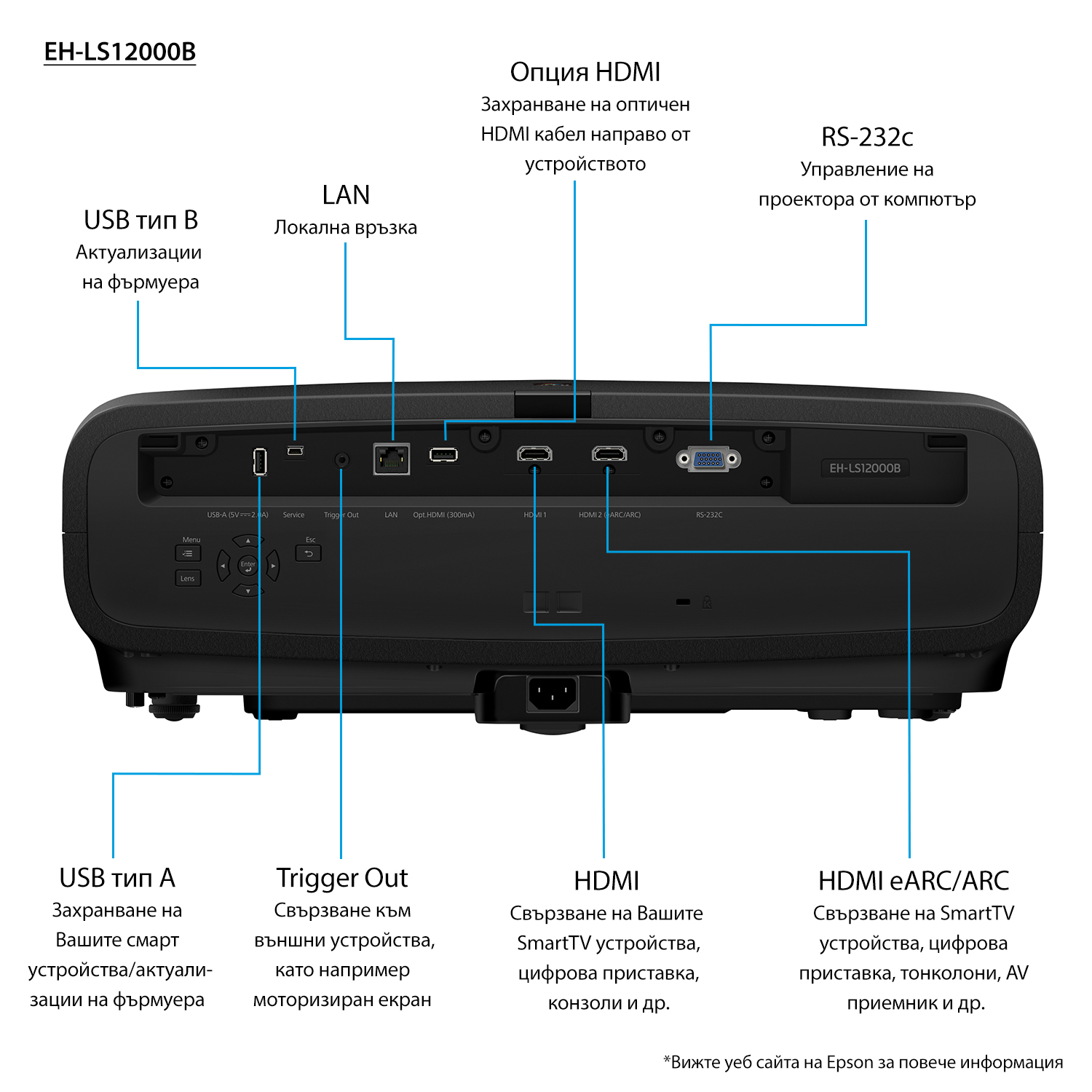

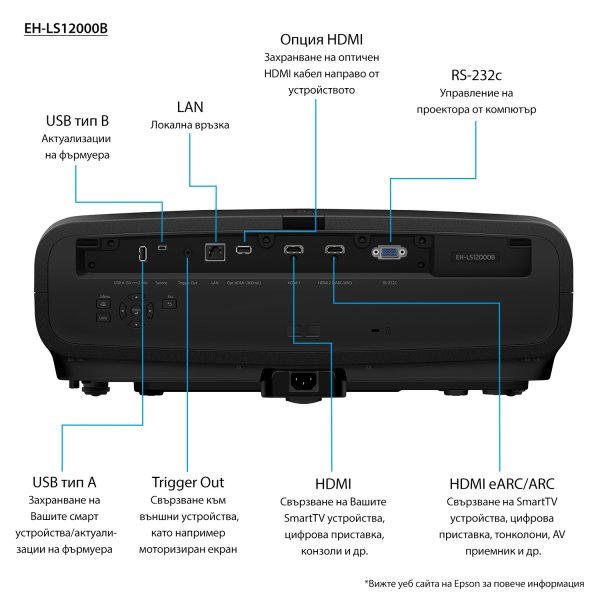

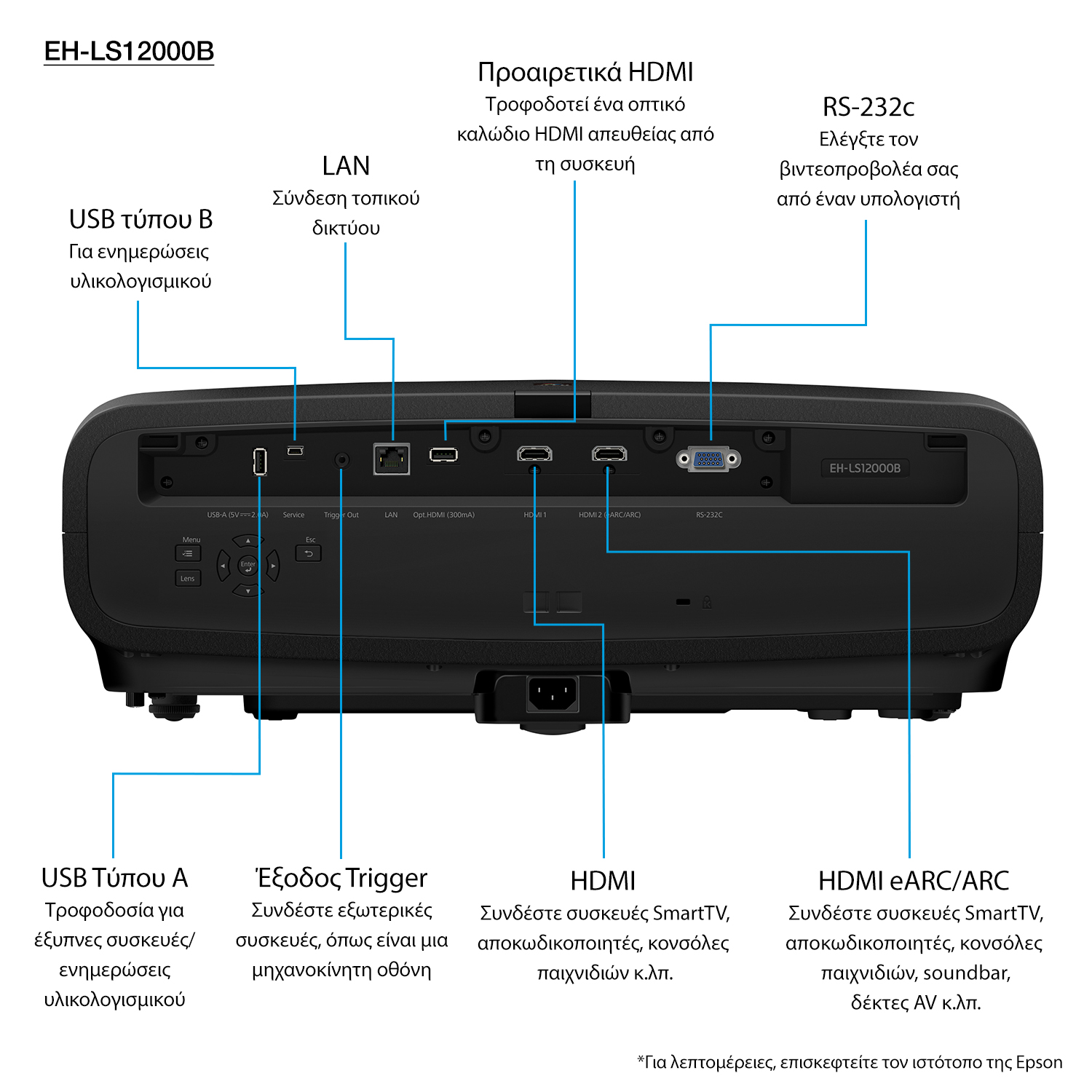

Ports & interfaces

AC (power) in
Yes

Audio (L/R) in
0

Component video (YPbPr/YCbCr) in
0

Composite video in
0

DVI port
No

HDMI connector type
Full-size

HDMI ports
2

Mini-USB 2.0 ports quantity
1

Serial interface type
RS-232C

USB 2.0 ports quantity
1

VGA (D-Sub) ports quantity
0

Power

AC input frequency
50 - 60 Hz

AC input voltage
100-240 V

Power consumption (economy mode)
198 W

Power consumption (standby)
0.4 W

Power consumption (typical)
302 W

Power source
AC

Projector

Contrast ratio (typical)
2500000:1

Heat dissipation
1026.8 BTU/h

Keystone correction, horizontal
-30 - 30°

Keystone correction, vertical
-30 - 30°

Matrix size
1.88 cm (0.74")

Native aspect ratio
16:9

Number of colours
1.07 billion colours

Projection distance
3 - 6.4 m

Projection technology
3LCD

Projector brightness
2700 ANSI lumens

Projector native resolution
UHD 4K (3840x2160)

Screen size compatibility
1270 - 7620 mm (50 - 300")

Smart projector
No

Supported aspect ratios
16:9

Vertical scan range
384 - 480 Hz

Software

Software support
via: Crestron Integrated Partner, AMX Device Discovery, Control4 Simple Device Discovery Protocol

Storage

Card reader integrated
No

Video

Full HD
Yes

Video colour modes
Cinema, Dynamic, Natural, Bright cinema, Vivid

Video processing
10 bit

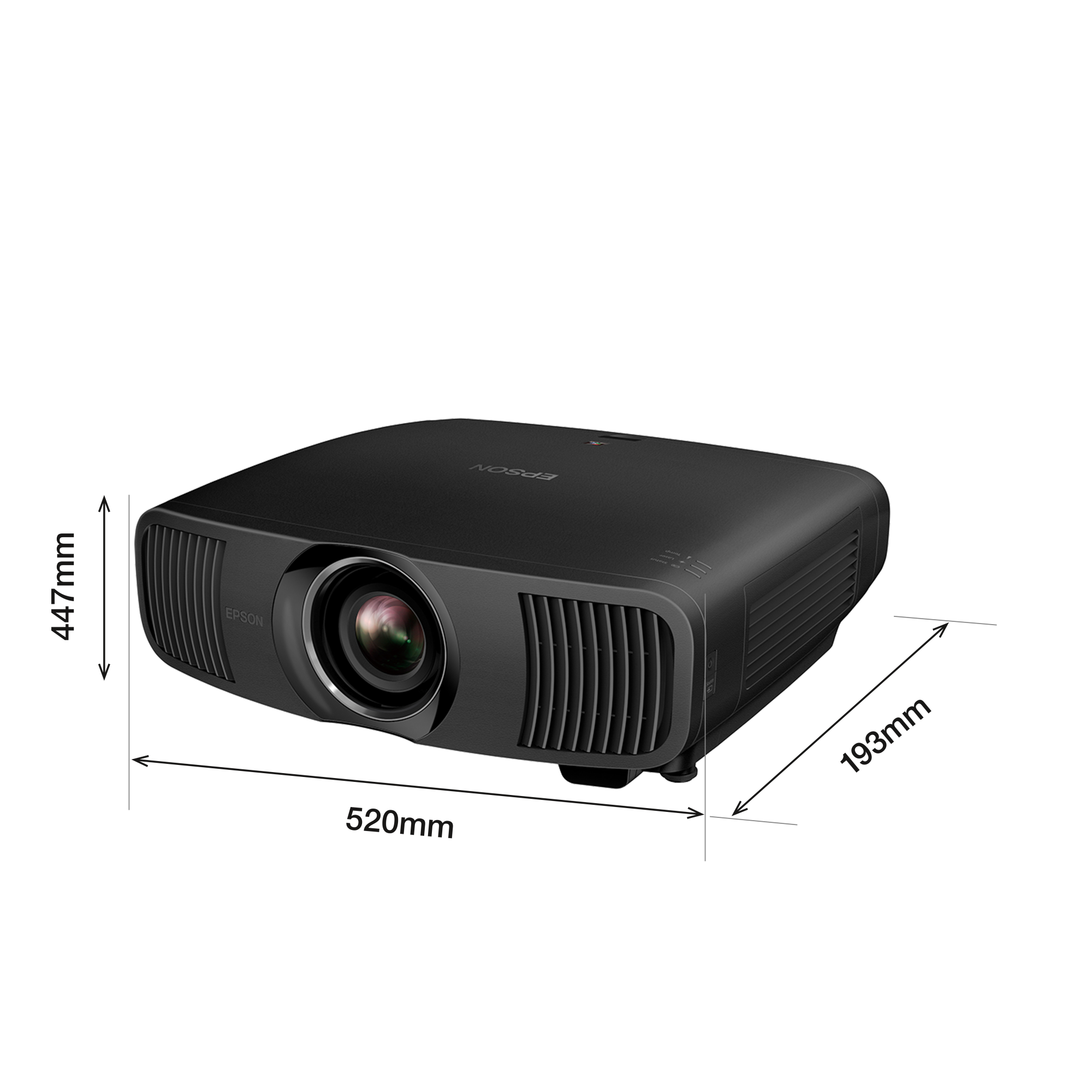

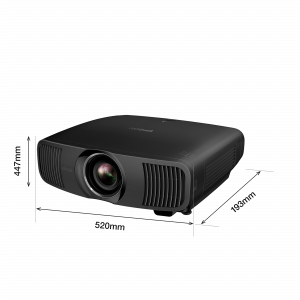

Weight & dimensions

Depth
447 mm

Height
193 mm

Package depth
703 mm

Package height
193 mm

Package weight
17.5 kg

Package width
520 mm

Weight
12.7 kg

Width
520 mm
