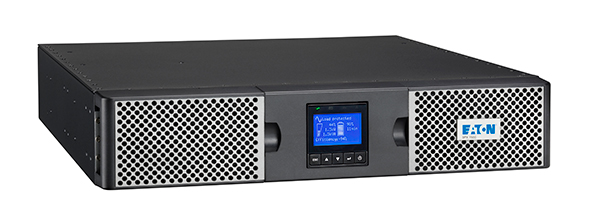

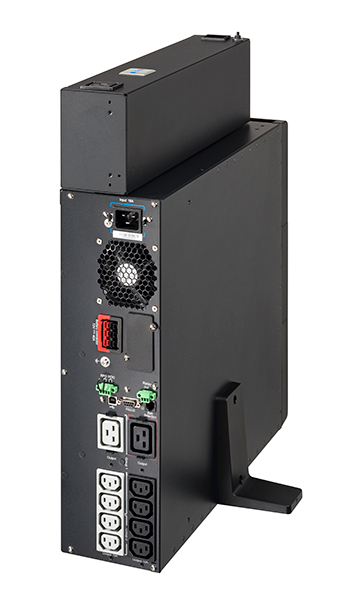

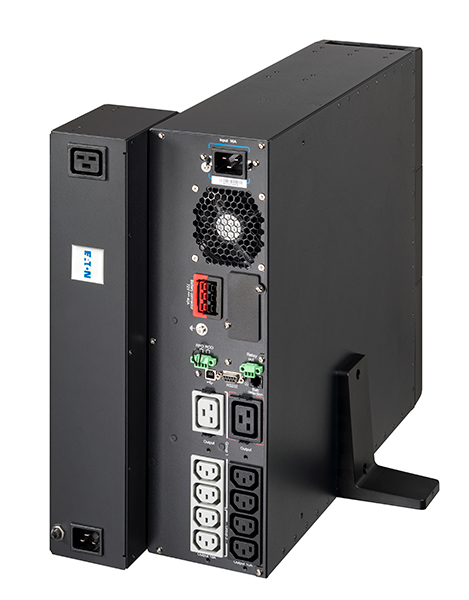

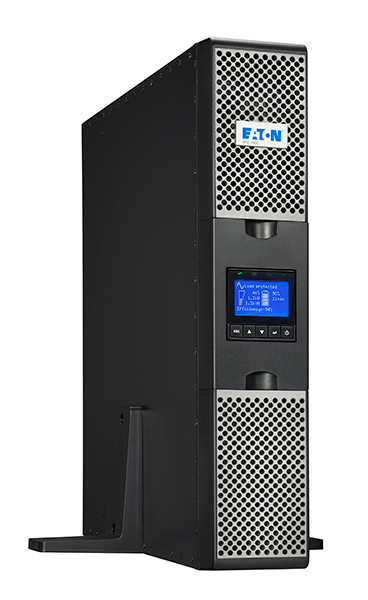

Eaton 9PX1500IRTM uninterruptible power supply (UPS) Double-conversion (Online) 1.5 kVA 1500 W 8 AC outlet(s)
Roll over image to zoom inClick to Open expanded view
Eaton 9PX1500IRTM uninterruptible power supply (UPS) Double-conversion (Online) 1.5 kVA 1500 W 8 AC outlet(s)
Eaton 9PX1500IRTM uninterruptible power supply (UPS) Double-conversion (Online) 1.5 kVA 1500 W 8 AC outlet(s)
Eaton 9PX1500IRTM uninterruptible power supply (UPS) Double-conversion (Online) 1.5 kVA 1500 W 8 AC outlet(s)
Print
Model: 9PX1500IRTM
EAN: 743172081230

Eaton 9PX1500IRTM uninterruptible power supply (UPS) Double-conversion (Online) 1.5 kVA 1500 W 8 AC outlet(s)

Manufacturer:
Eaton
Eaton 9PX1500IRTM, Double-conversion (Online), 1.5 kVA, 1500 W, Pure sine, 176 V, 276 V
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

    Description

    Eaton 9PX1500IRTM. UPS topology: Double-conversion (Online), Output power capacity: 1.5 kVA, Output power: 1500 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 8 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at half load: 14 min. Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 2U. Width: 440 mm, Depth: 450 mm, Height: 86.5 mm

    Product Properties

    • Model
    • 9PX1500IRTM
    • EAN
    • 743172081230
    • Battery
    • Automatic battery test
    • Yes
    • Battery technology
    • Sealed Lead Acid (VRLA)
    • Hot-swap battery
    • Yes
    • Typical backup time at half load
    • 14 min
    • Design
    • Certification
    • IEC/EN 62040-1, UL 1778, CSA 22.2, IEC/EN 62040 -2, FCC Class B, CISPR22 Class B, CE /CB report (TUV) / cULus / EAC /RCM / KC / Energy Star
    • Display type
    • LCD
    • Form factor
    • Rackmount/Tower
    • LED indicators
    • Yes
    • Product colour
    • Black
    • Rack capacity
    • 2U
    • Safety
    • IEC/EN 62040-1, UL 1778, CSA 22.2
    • Features
    • Efficiency
    • 92.5%
    • Input frequency
    • 40/70 Hz
    • Input operation voltage (max)
    • 276 V
    • Input operation voltage (min)
    • 176 V
    • Noise level
    • 35 dB
    • Number of input phases
    • 1
    • Output frequency
    • 50/60 Hz
    • Output operation voltage (max)
    • 240 V
    • Output operation voltage (min)
    • 200 V
    • Output power
    • 1500 W
    • Output power capacity
    • 1.5 kVA
    • Power factor
    • 1
    • UPS topology
    • Double-conversion (Online)
    • Waveform
    • Pure sine
    • Logistics data
    • Harmonized System (HS) code
    • 85078000
    • Operational conditions
    • Operating temperature (T-T)
    • 0 - 40 °C
    • Other features
    • Nominal input voltage
    • 230 V
    • Nominal output voltage
    • 230 V
    • Packaging data
    • Bundled software
    • Intelligent Power Software suite
    • Management card included
    • No
    • Rack mount kit
    • Yes
    • Ports & interfaces
    • AC outlet types
    • C13 coupler
    • AC outlets quantity
    • 8 AC outlet(s)
    • Power plug
    • C14 coupler
    • RS-232 ports
    • 1
    • Serial interface
    • Yes
    • Serial interface type
    • RS-232
    • USB 2.0 ports quantity
    • 1
    • USB port
    • Yes
    • Technical details
    • Sustainability certificates
    • ENERGY STAR
    • Weight & dimensions
    • Depth
    • 450 mm
    • Height
    • 86.5 mm
    • Weight
    • 18.9 kg
    • Width
    • 440 mm
