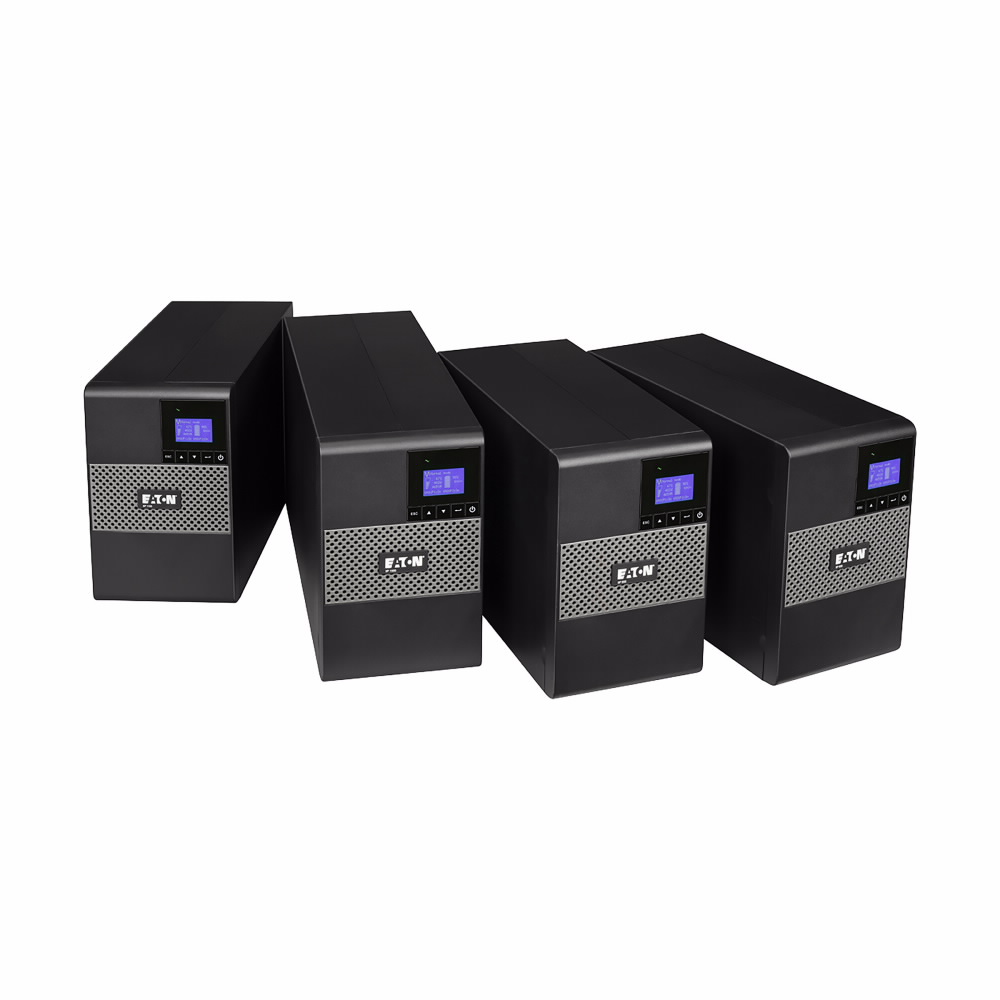

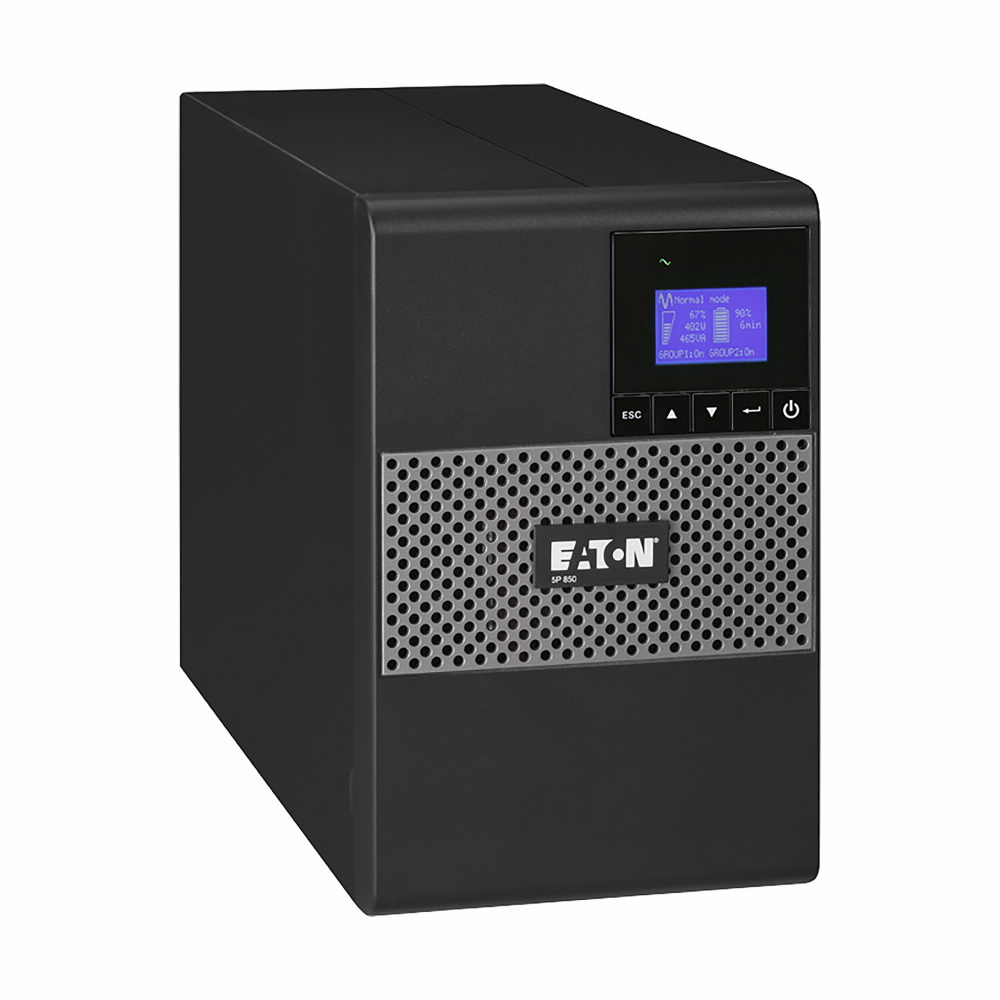

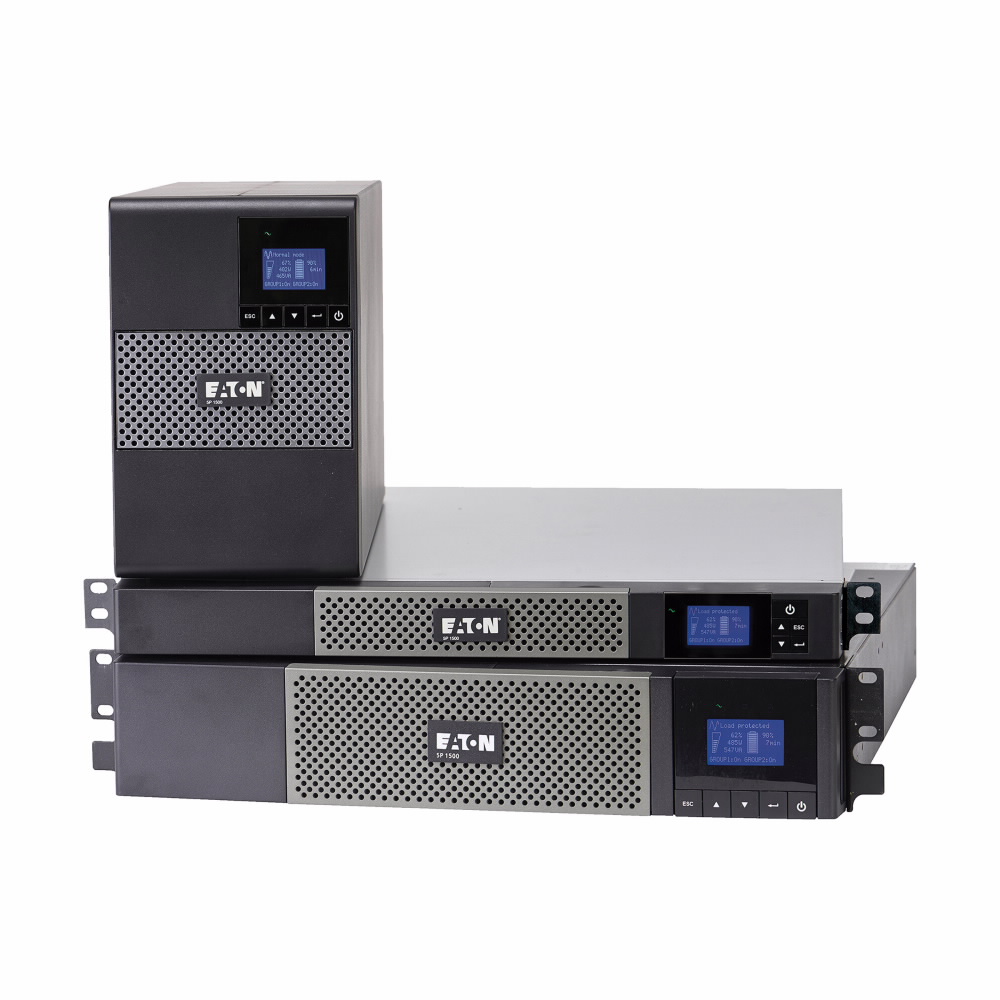

Eaton 5P850IBS uninterruptible power supply (UPS) Line-Interactive 0.85 kVA 600 W 6 AC outlet(s)
Roll over image to zoom inClick to Open expanded view
Eaton 5P850IBS uninterruptible power supply (UPS) Line-Interactive 0.85 kVA 600 W 6 AC outlet(s)
Eaton 5P850IBS uninterruptible power supply (UPS) Line-Interactive 0.85 kVA 600 W 6 AC outlet(s)
Eaton 5P850IBS uninterruptible power supply (UPS) Line-Interactive 0.85 kVA 600 W 6 AC outlet(s)
Print
Model: 5P850IBS
EAN: 3553340620102

Eaton 5P850IBS uninterruptible power supply (UPS) Line-Interactive 0.85 kVA 600 W 6 AC outlet(s)

Manufacturer:
Eaton
Eaton 5P850IBS, Line-Interactive, 0.85 kVA, 600 W, Sine, 150 V, 150 V
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

    Description

    Eaton 5P850IBS. UPS topology: Line-Interactive, Output power capacity: 0.85 kVA, Output power: 600 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 6 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 7 Ah, Battery voltage: 12 V. Form factor: Tower, Product colour: Black, Display type: LCD. Width: 230 mm, Depth: 430 mm, Height: 220 mm

    Product Properties

    • Model
    • 5P850IBS
    • EAN
    • 3553340620102
    • Battery
    • Automatic battery test
    • Yes
    • Battery capacity
    • 7 Ah
    • Battery technology
    • Sealed Lead Acid (VRLA)
    • Battery voltage
    • 12 V
    • Hot-swap battery
    • Yes
    • Number of battery cells
    • 2
    • Typical backup time at full load
    • 4 min
    • Design
    • Certification
    • IEC/EN 62040-1 UL 1778 IEC/EN 62040-2 EAC cTUVus
    • Display type
    • LCD
    • Form factor
    • Tower
    • Product colour
    • Black
    • Features
    • Automatic Voltage Regulation (AVR)
    • Yes
    • Efficiency
    • 97%
    • Input frequency
    • 47/70 Hz
    • Input operation voltage (max)
    • 150 V
    • Input operation voltage (min)
    • 150 V
    • Noise level
    • 40 dB
    • Number of input phases
    • 1
    • Number of output phases
    • 1
    • Output frequency
    • 50/60 Hz
    • Output operation voltage (max)
    • 240 V
    • Output operation voltage (min)
    • 200 V
    • Output power
    • 600 W
    • Output power capacity
    • 0.85 kVA
    • Output power factor
    • 0.7
    • Power factor
    • 0.7
    • UPS topology
    • Line-Interactive
    • Waveform
    • Sine
    • Operational conditions
    • Operating altitude
    • 0 - 2000 m
    • Operating relative humidity (H-H)
    • 0 - 90%
    • Packaging data
    • Cables included
    • Input power cable, Serial, USB cable
    • Quick installation guide
    • Yes
    • Ports & interfaces
    • AC outlet types
    • C13 coupler
    • AC outlets quantity
    • 6 AC outlet(s)
    • Power plug
    • C14 coupler
    • Serial interface
    • Yes
    • Serial interface type
    • RS-232
    • Serial ports quantity
    • 1
    • USB port
    • Yes
    • USB port type
    • USB Type-B
    • Technical details
    • Sustainability certificates
    • CE
    • Sustainability compliance
    • Yes
    • Weight & dimensions
    • Depth
    • 430 mm
    • Height
    • 220 mm
    • Weight
    • 12 kg
    • Width
    • 230 mm
