Description

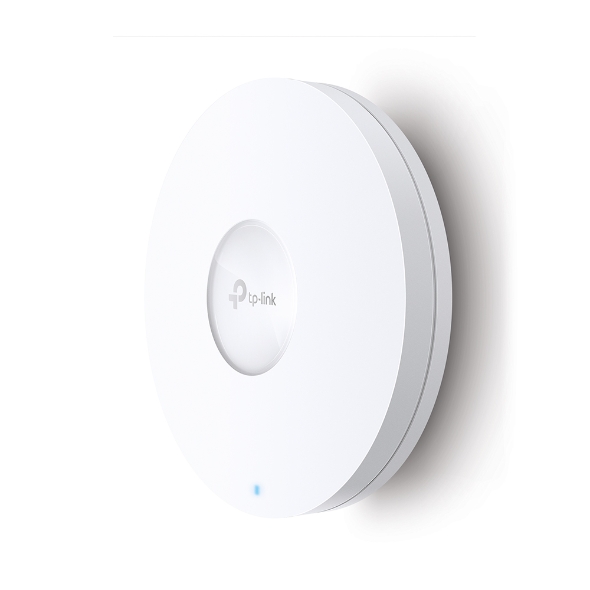

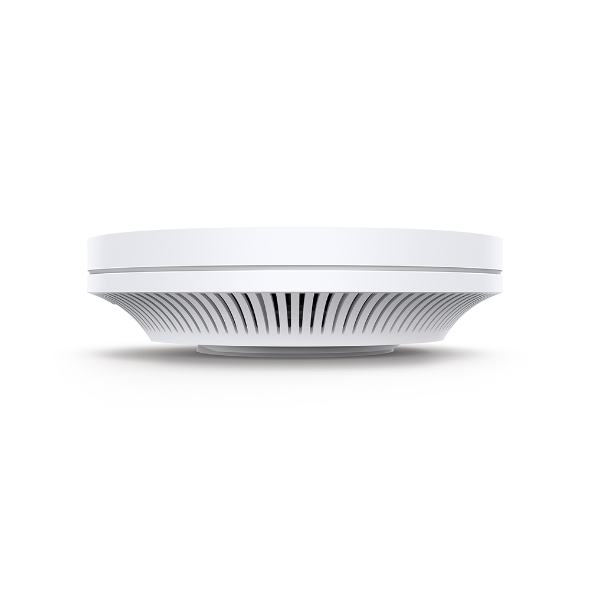

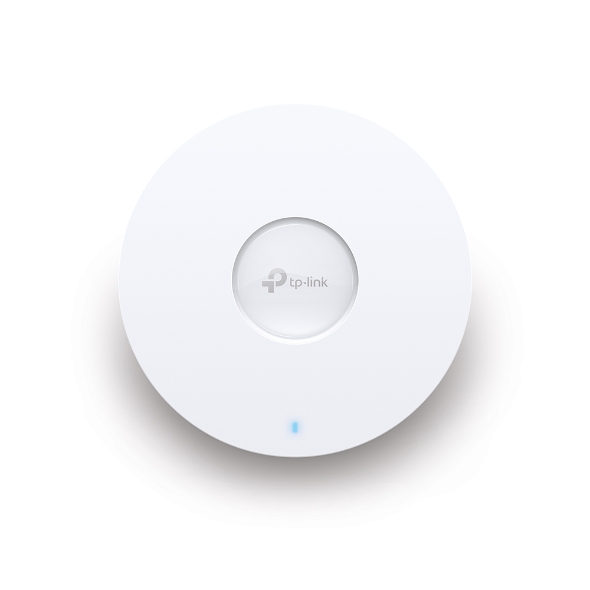

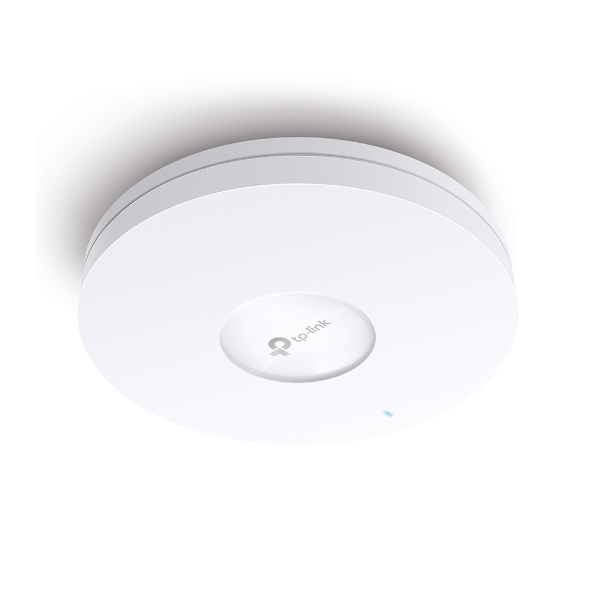

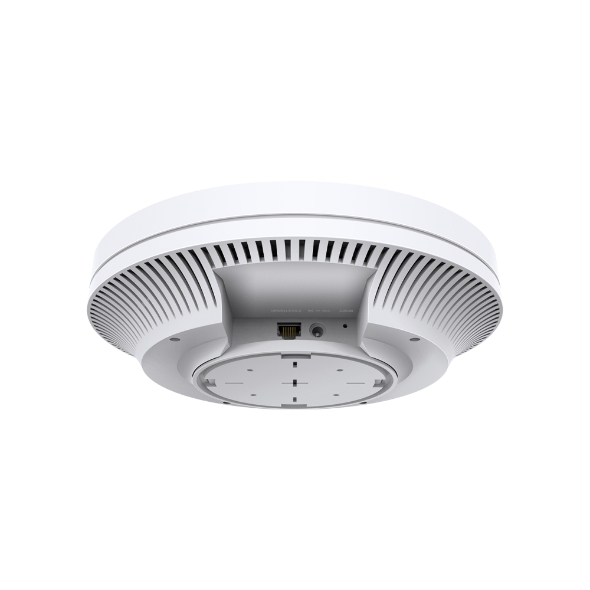

TP-Link Omada AX5400 Ceiling Mount WiFi 6 Access Point. 2.4 GHz, 5 GHz, Maximum data transfer rate: 5400 Mbit/s, Ethernet LAN data rates: 2500 Mbit/s. Power over Ethernet (PoE). Product colour: White

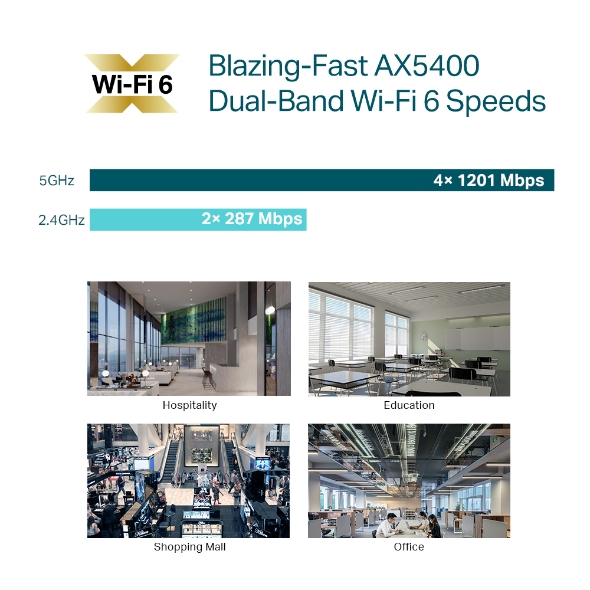

Blazing-Fast WiFi 6 Speeds - Delivers astonishing wireless speeds of up to 54 Gbps powered by the latest WiFi 6 technology
Higher Network Efficiency - OFDMA and DL/UL MU-MIMO* deliver data to multiple devices simultaneously with less lag
Long-Range Coverage - Dedicated high-power amplifier and professional antennas with IP67 weatherproof enclosure

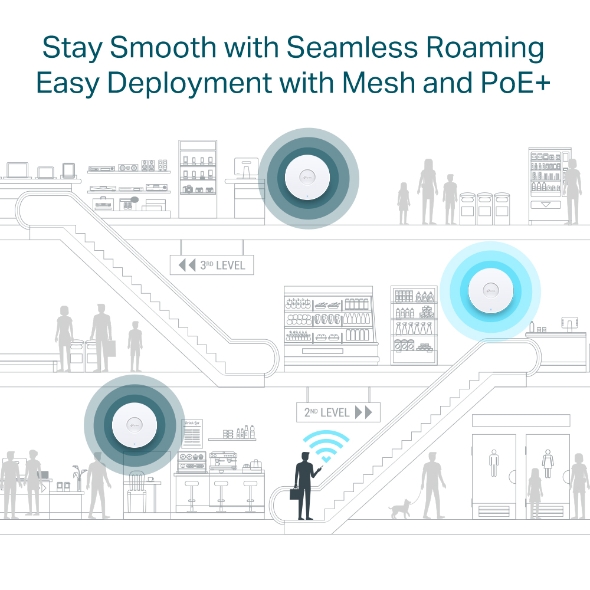

Optimized Network Experience - Ensures uninterrupted WiFi connections with seamless roaming and Omada Mesh technology*

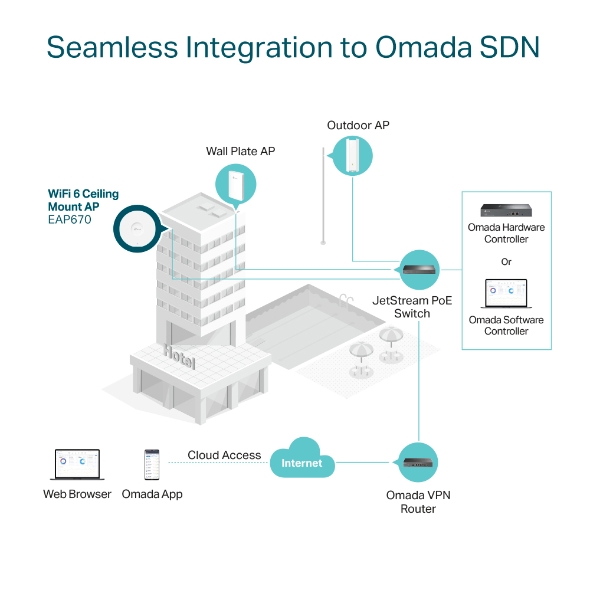

Centralized Cloud Management - Integrates into Omada SDN for cloud access and remote management

Product Properties

Manufacturer
TP-LINK

Model
EAP670

EAN
4897098681510

Antenna

Antenna direction type
Omni-directional

Antenna gain level (max)
5 dBi

Antenna type
Internal

Antennas quantity
6

Bullet points

Point
Centralized Cloud Management - Integrates into Omada SDN for cloud access and remote management

Certificates

Certification
CE, FCC, RoHS

Design

International Protection (IP) code
IP67

LED indicators
Yes

Placement
Ceiling, Wall

Product colour
White

Reset button
Yes

Features

2.4 GHz
Yes

5 GHz
Yes

6 GHz
No

Automatic channel scanning
Yes

Automatic channel selection
Yes

Band steering
Yes

BeamForming
Yes

Ethernet LAN data rates
2500 Mbit/s

Frequency band
2.4 - 5 GHz

Maximum data transfer rate
5400 Mbit/s

Maximum data transfer rate (2.4 GHz)
574 Mbit/s

Maximum data transfer rate (5 GHz)
4804 Mbit/s

MIMO
Yes

MIMO type
Multi User MIMO

Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n

Number of users
250 user(s)

Quality of Service (QoS) support
Yes

Rate limiting
Yes

Transmitting power (CE)
<20 dBm(2.4 GHz, EIRP); <23 dBm(5 GHz, band1 & band2, EIRP); <30 dBm(5 GHz, band3, EIRP)

Transmitting power (FCC)
<25 dBm (2.4 GHz); <28 dBm (5 GHz)

VLAN support
No

Wireless isolation
Yes

Logistics data

Harmonized System (HS) code
85176990

Management features

Firmware upgradeable
Yes

Web-based management
Yes

Packaging content

Quantity per pack
1 pc(s)

Packaging data

Package depth
304 mm

Package height
82 mm

Package weight
1.32 kg

Package width
302 mm

Power

Input current
1.5 A

Power over Ethernet (PoE)
Yes

Security

Access Control List (ACL)
Yes

Number of SSID supported
16

Remote Authentication Dial-In User Service (RADIUS)
Yes

Service Set Identifier (SSID) features
Multiple SSIDs

Weight & dimensions

Depth
243 mm

Height
64 mm

Width
243 mm
