Description

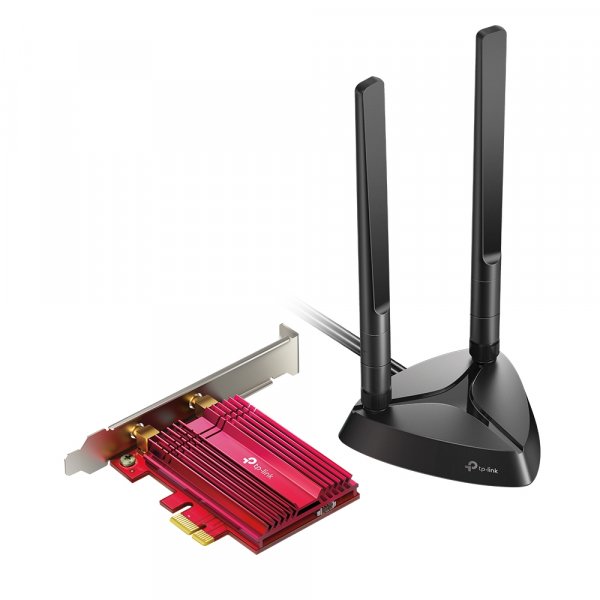

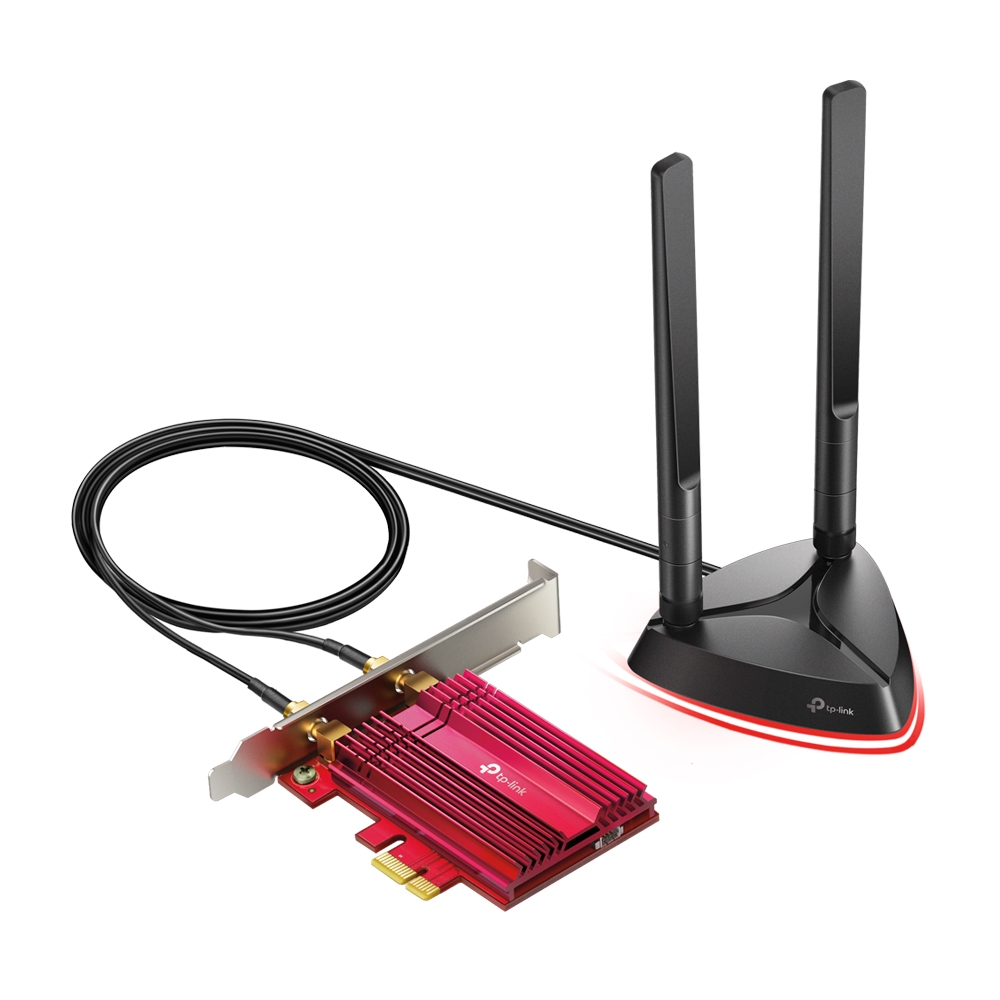

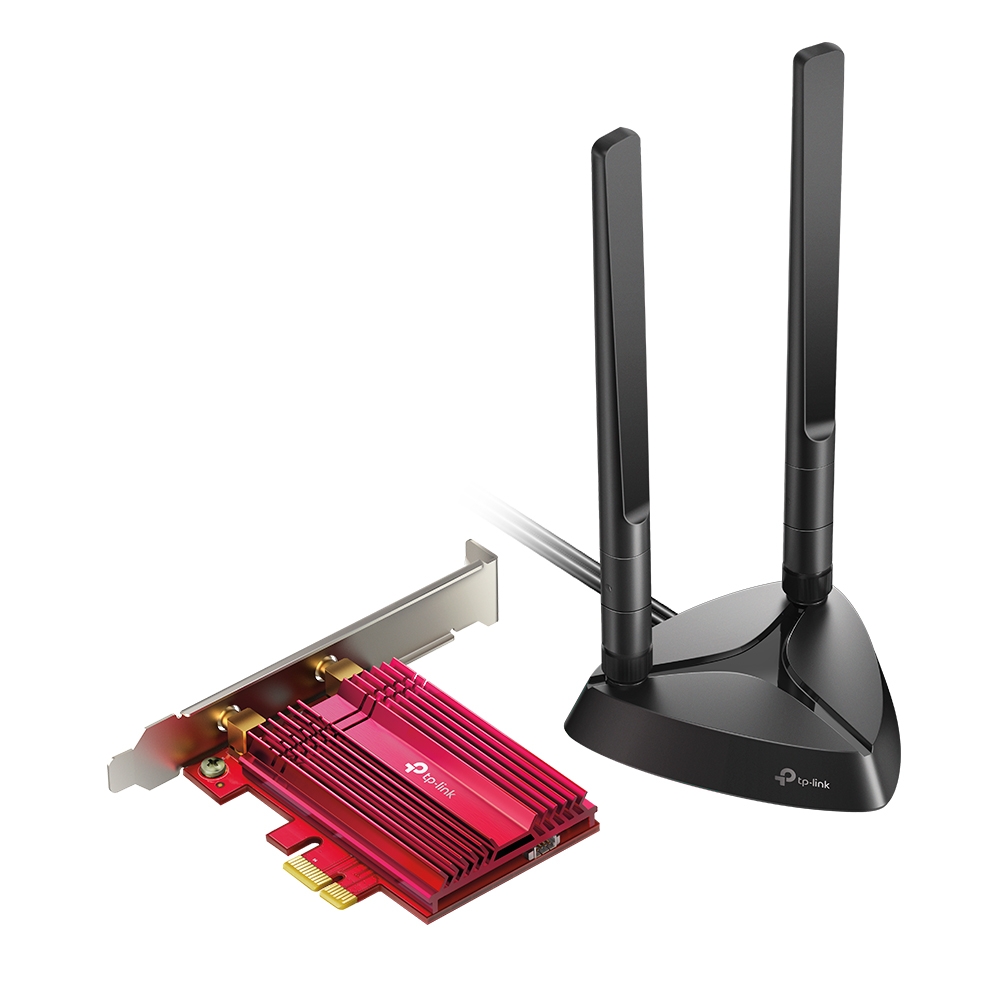

TP-Link Archer TX3000E. Internal. Connectivity technology: Wireless, Host interface: PCI Express, Interface: WLAN / Bluetooth. Maximum data transfer rate: 2402 Mbit/s, Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi band: Dual-band (2.4 GHz / 5 GHz). Product colour: Black, Red

Unrivaled Wi-Fi 6 Speed—Breaks the gigabit barrier with speed up to 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz)†
Smoother Experience—75% lower latency ensures ultra-responsive real-time gaming*
Reliable Connections—Intel® Wi-Fi 6 chipset brings faster and clearer Wi-Fi to fully unlock the potential of your Wi-Fi 6 router^

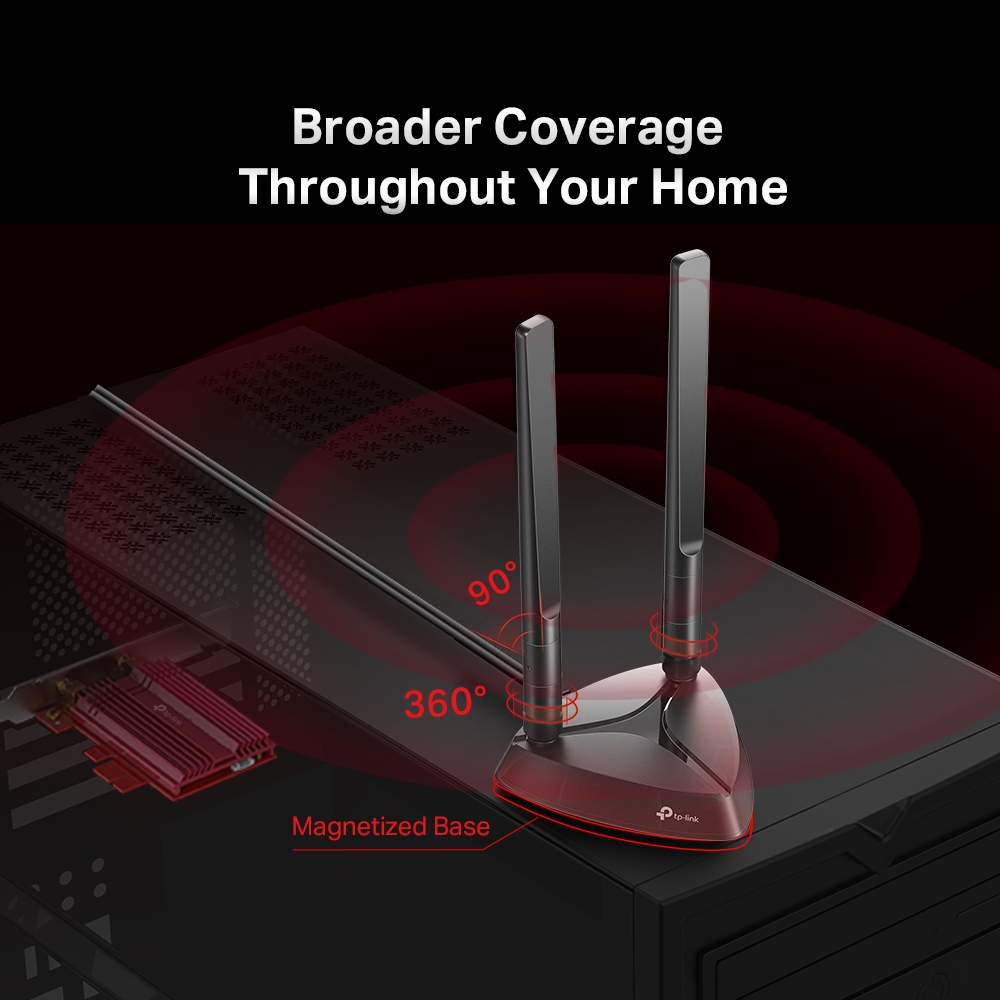

Wider Signal Coverage—Two multi-directional antennas with magnetized base are designed for optimum signal reception
Bluetooth 5.0—The latest Bluetooth technology achieves 2× Faster Speed and 4× Broader Coverage than BT 4.2***
Improved Security—The latest security enhancements WPA3 provides enhanced protection in personal password safety**

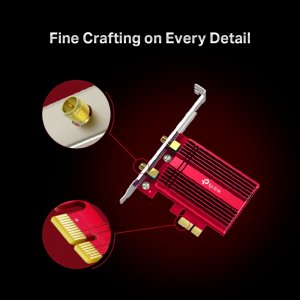

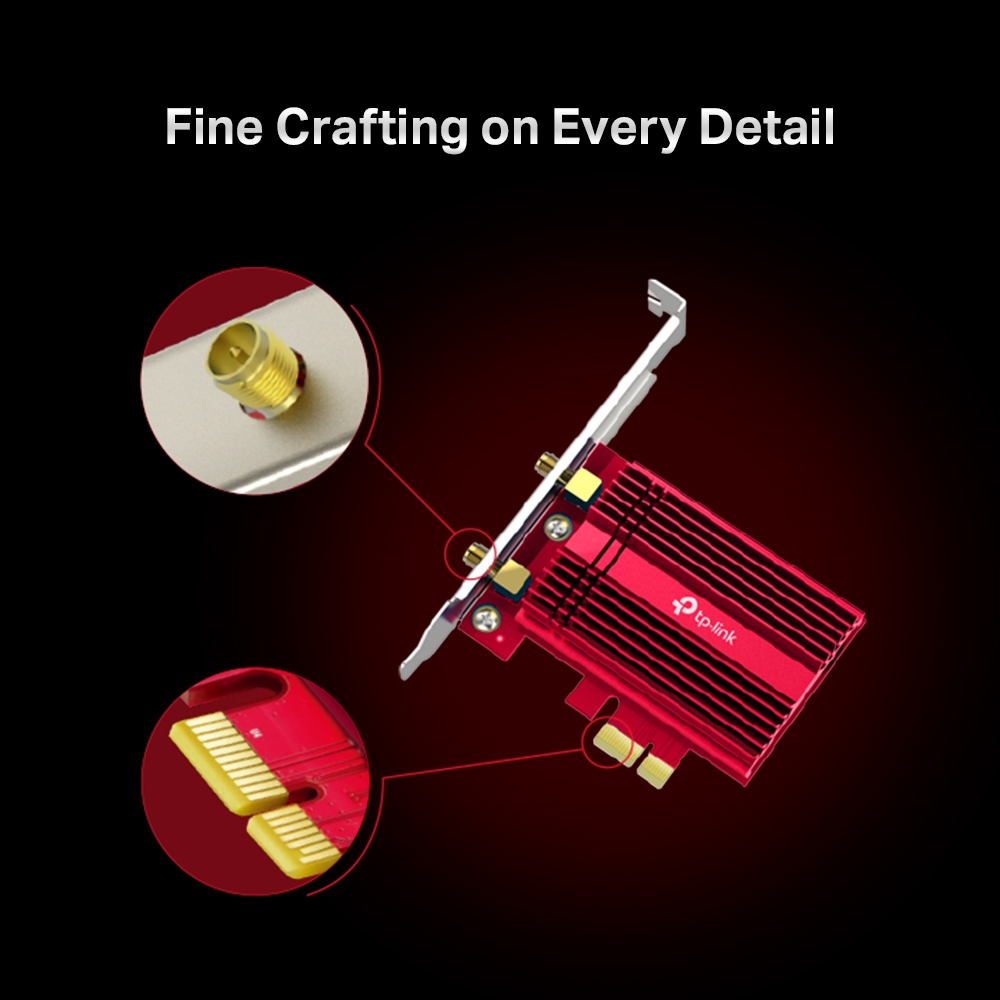

Fine Crafting—Specialized heatsink and gold plating is crafted to improve stability and reliability even in hot environments
Backward Compatibility – Full support for 802.11ac/a/b/g/n standards

Product Properties

Manufacturer
TP-LINK

Model
ARCHER TX3000E

EAN
6935364052256

Bullet points

Point
Backward Compatibility – Full support for 802.11ac/a/b/g/n standards

Smoother Experience—75% lower latency ensures ultra-responsive real-time gaming*

Design

Antenna
Yes

Antenna design
External

Chipset
Intel Wi-Fi 6

Component for
PC

Internal
Yes

Operating modes
Infrastructure mode

Product colour
Black, Red

Receiver sensitivity
5 GHz : 11ax HT160：-56.25dBm 11ax HT80: -59dBm 11ax HT40: -62.25dBm 11ax HT20: -65dBm 11ac HT160：-62dBm 11ac HT80: -65.5dBm 11ac HT40: -69.75dBm 11ac HT20: -73.75dBm 11n HT40: -74.5dBm 11n HT20: -77.5dBm 11a 54Mbps: -77.75dBm 11a 6Mbps: -94.5dBm 2.4GHz : 11ax HT40: -60.75dBm 11ax HT20: -63.75dBm 11n HT40: -73dBm 11n HT20: -76.25dBm 11g 54Mbps: -76.5dBm 11b 11Mbps: -89dBm

Transmitting power (CE)
23 dBm

Transmitting power (FCC)
27 dBm

Logistics data

Harmonized System (HS) code
85176990

Network

Bluetooth
Yes

Bluetooth version
5.0

Frequency range
2.4 - 5 GHz

Maximum data transfer rate
2402 Mbit/s

Modulation
16-QAM, 64-QAM, 256-QAM, CCK, DBPSK, DQPSK, OFDM

Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n

Security algorithms
64-bit WEP, 128-bit WEP, 802.1x RADIUS, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3

Top Wi-Fi standard
Wi-Fi 6 (802.11ax)

Wi-Fi
Yes

Wi-Fi band
Dual-band (2.4 GHz / 5 GHz)

Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)

WLAN data transfer rates supported
54,300,574,1733,2402 Mbit/s

Operational conditions

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
5 - 90%

Storage temperature (T-T)
-40 - 70 °C

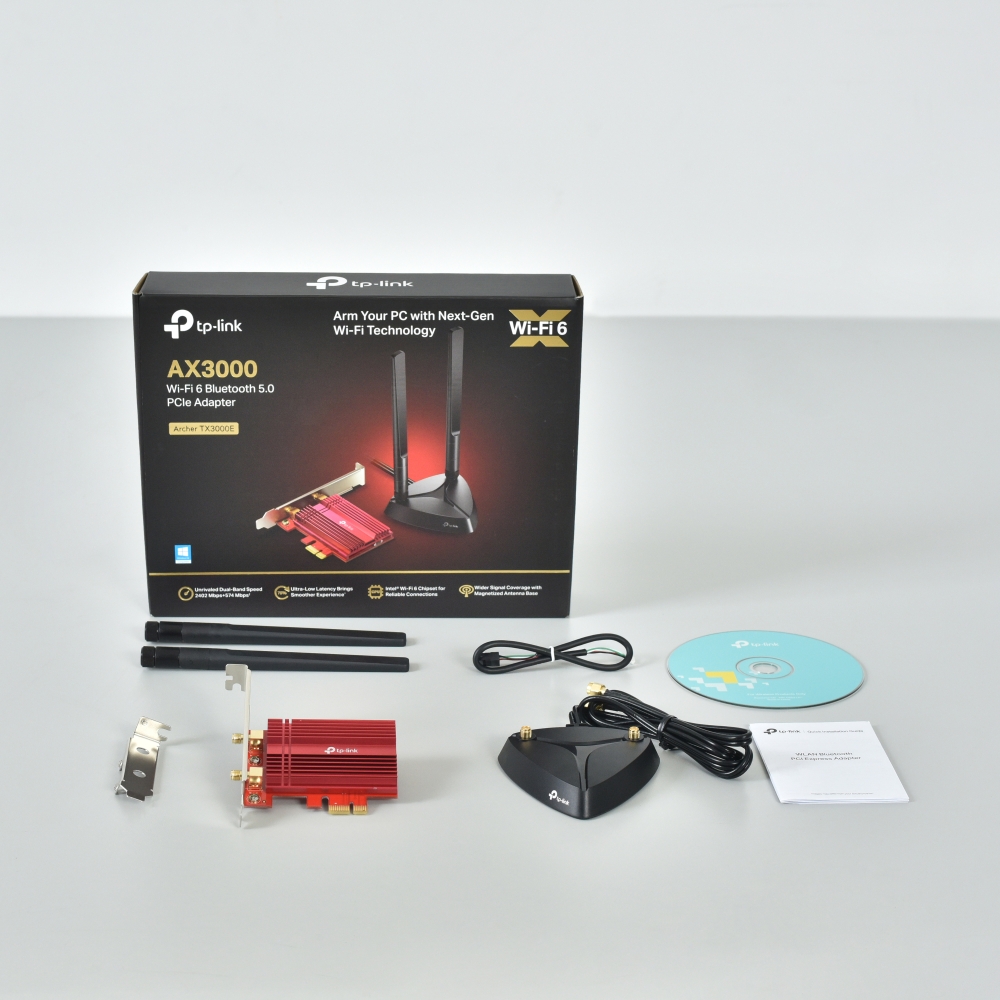

Packaging content

Bluetooth header cable
Yes

Mounting brackets included
Yes

Quick installation guide
Yes

Resource CD
Yes

Packaging data

Package depth
215 mm

Package height
47 mm

Package weight
480 g

Package width
270 mm

Ports & interfaces

Connectivity technology
Wireless

Host interface
PCI Express

Interface
WLAN / Bluetooth

Sustainability

Sustainability compliance
Yes

System requirements

Windows operating systems supported
Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 10 x64

Technical details

Compliance certificates
CE, Federal Communications Commission (FCC), RoHS

Weight & dimensions

Depth
120.8 mm

Height
21.5 mm

Width
95.2 mm

TP-Link Archer TX3000E Internal WLAN / Bluetooth 2402 Mbit/s
