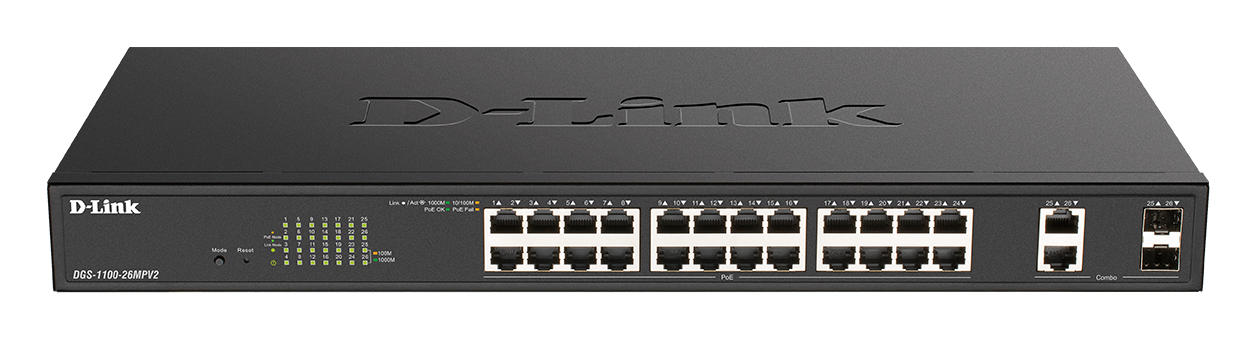

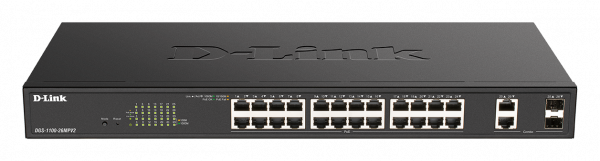

D-Link DGS-1100-26MPV2 network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Roll over image to zoom inClick to Open expanded view
D-Link DGS-1100-26MPV2 network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
D-Link DGS-1100-26MPV2 network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Print
Model: DGS-1100-26MPV2
EAN: 790069453342

D-Link DGS-1100-26MPV2 network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Manufacturer:
D-Link
D-Link DGS-1100-26MPV2, Managed, L2, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Rack mounting
Please log in to see your price
Related products

Description

D-Link DGS-1100-26MPV2. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Full duplex. MAC address table: 8 entries, Switching capacity: 52 Gbit/s. Networking standards: IEEE 802.1D,IEEE 802.1w,IEEE 802.3af,IEEE 802.3at. Power over Ethernet (PoE). Rack mounting
  • Simple Layer 2 Management
  • Web-based User Interface
  • PoE options up to 370W power budget
  • Limited-Lifetime Warranty after registration

Product Properties

  • Model
  • DGS-1100-26MPV2
  • EAN
  • 790069453342
  • Bullet points
  • Point
  • Limited-Lifetime Warranty after registration
    PoE options up to 370W power budget
    Simple Layer 2 Management
    Web-based User Interface
  • Data transmission
  • Forwarding rate
  • 38.69 Mpps
  • Jumbo frames support
  • Y
  • MAC address table
  • 8 entries
  • Switching capacity
  • 52 Gbit/s
  • Design
  • Housing material
  • Metal
  • Product colour
  • Black
  • Rack mounting
  • Y
  • Management features
  • ARP inspection
  • Y
  • MIB support
  • • RFC768 UDP • RFC791 IP • RFC792 ICMP • RFC793 TCP • RFC826 ARP • RFC1213 MIB II • RFC1493 Bridage MIB • RFC1907 SNMPv2 MIB • RFC1215 MIB Traps Convention
  • Quality of Service (QoS) support
  • Y
  • Switch layer
  • L2
  • Switch type
  • Managed
  • Web-based management
  • Y
  • Multicast features
  • IPv4 multicast entries
  • 1
  • IPv6 multicast entries
  • 1
  • Multicast support
  • Y
  • Number of multicast groups filtered
  • 1
  • Network
  • Auto MDI/MDI-X
  • Y
  • Auto-negotiation
  • Y
  • Broadcast storm control
  • Y
  • Copper ethernet cabling technology
  • 10GBASE-T,1000BASE-T
  • Flow control support
  • Y
  • Full duplex
  • Y
  • Half duplex
  • Y
  • Head-of-line (HOL) blocking
  • Y
  • Link aggregation
  • Y
  • Networking standards
  • IEEE 802.1D,IEEE 802.1w,IEEE 802.3af,IEEE 802.3at
  • Port mirroring
  • Y
  • Rate limiting
  • Y
  • Spanning tree protocol
  • Y
  • Virtual LAN features
  • Port-based VLAN,Voice VLAN
  • VLAN support
  • Y
  • Operational conditions
  • Heat dissipation
  • 287 BTU/h
  • Operating relative humidity (H-H)
  • 0 - 95%
  • Operating temperature (T-T)
  • -10 - 50 °C
  • Storage relative humidity (H-H)
  • 0 - 95%
  • Storage temperature (T-T)
  • -40 - 70 °C
  • Performance
  • Fanless
  • Y
  • Flash memory
  • 16 MB
  • MTBF (PoE)
  • 317.777 h
  • Noise level
  • 50.5 dB
  • Ports & interfaces
  • Combo SFP ports quantity
  • 2
  • Switch Port Speed
  • Gigabit Ethernet (10/100/1000)
  • Power
  • AC input frequency
  • 50/60 Hz
  • AC input voltage
  • 100 - 240 V
  • Power consumption (max)
  • 454.1 W
  • Power supply included
  • Y
  • Power over Ethernet (PoE)
  • Power over Ethernet (PoE)
  • Y
  • Power over Ethernet (PoE) ports quantity
  • 24
  • Power over Ethernet (PoE) power per port
  • 370 W
  • Power over Ethernet plus (PoE+) ports quantity
  • 24
  • Protocols
  • IPv4 & IPv6 features
  • IPv4 FIB
  • Security
  • DHCP features
  • DHCP client
  • IGMP snooping
  • Y
  • MAC address filtering
  • Y
  • Security algorithms
  • SSL/TLS
  • Static port security
  • Y
  • Weight & dimensions
  • Depth
  • 208 mm
  • Height
  • 44 mm
  • Weight
  • 2.8 kg
  • Width
  • 440 mm
