Description

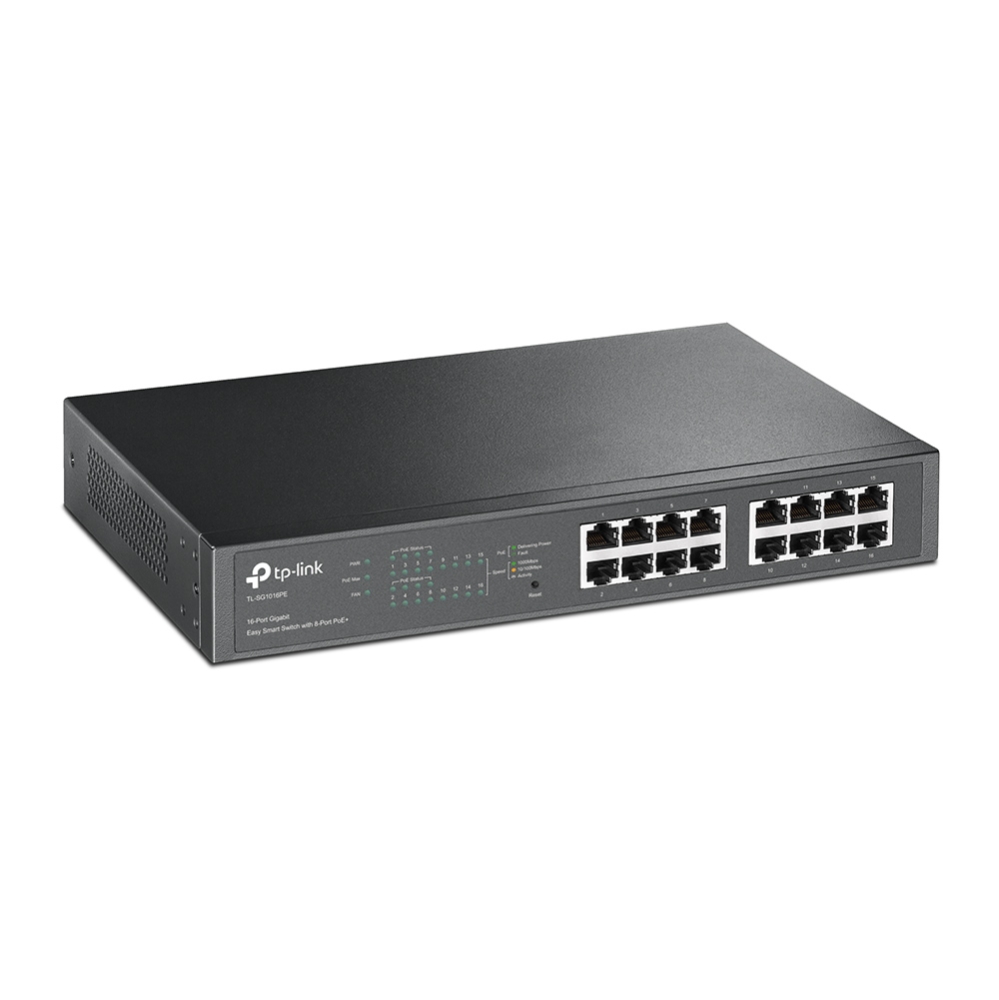

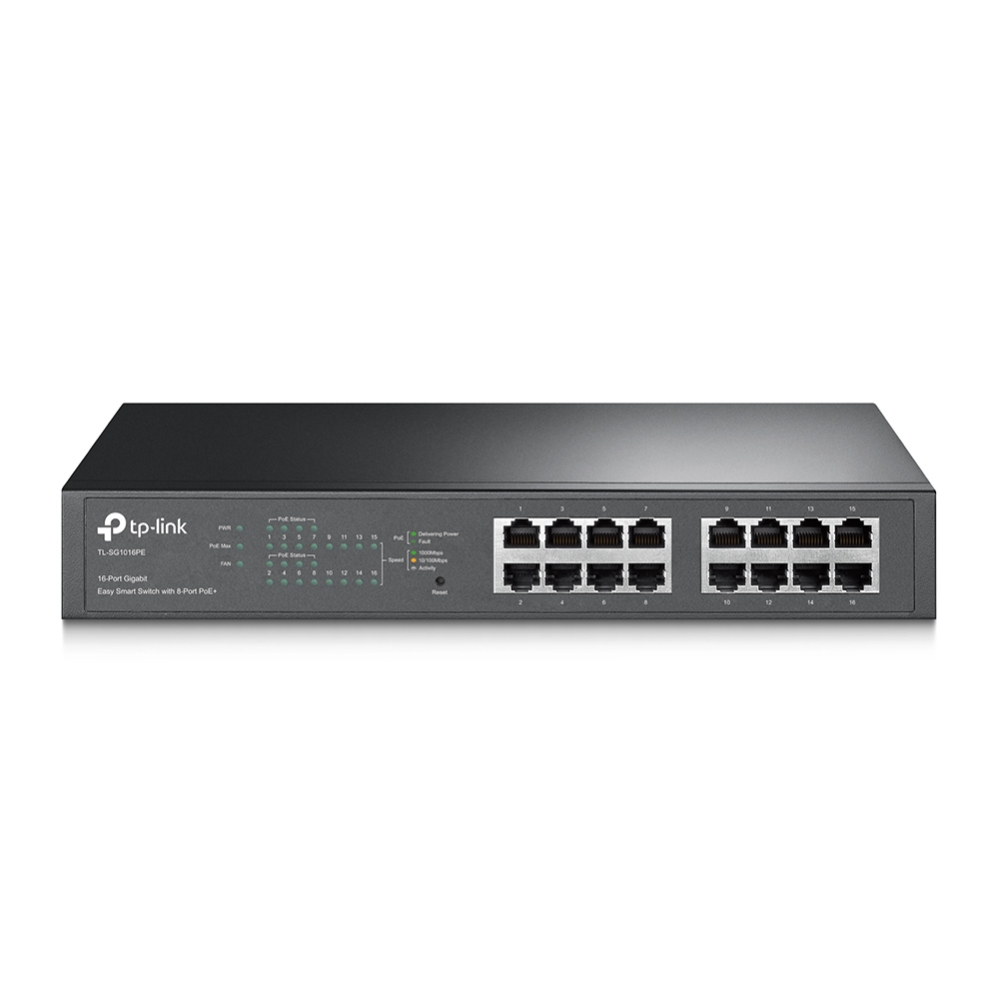

TP-Link TL-SG1016PE. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE.... Power over Ethernet (PoE). Rack mounting

16× 10/100/1000Mbps RJ45 ports
Equipped with 8× PoE+ supported ports to transfer data and power over a single cable
With a total PoE power budget of 150 W,* up to 30 W per port
Works with IEEE 802.3af/at compliant devices, expanding home and office networks
Simple network set-up on top of plug-and-play connectivity
Web-based user interface and management utility simplify configuration

Product Properties

Manufacturer
TP-LINK

Model
TL-SG1016PE

EAN
6935364082925

Bullet points

Point
16× 10/100/1000Mbps RJ45 ports

Equipped with 8× PoE+ supported ports to transfer data and power over a single cable

Simple network set-up on top of plug-and-play connectivity

Web-based user interface and management utility simplify configuration

With a total PoE power budget of 150 W,* up to 30 W per port

Works with IEEE 802.3af/at compliant devices, expanding home and office networks

Certificates

Certification
FCC, CE, RoHS

Data transmission

Jumbo frames
10000

Jumbo frames support
Yes

MAC address table
8000 entries

Number of queues
4

Store-and-forward
Yes

Switching capacity
32 Gbit/s

Throughput
23.8 Mpps

Design

LED indicators
Yes

Number of fans
1 fan(s)

Product colour
Black

Rack mounting
Yes

Stackable
No

Logistics data

Harmonized System (HS) code
85176990

Management features

Quality of Service (QoS) support
Yes

Switch layer
L2

Switch type
Managed

Web-based management
Yes

Network

10G support
No

Auto MDI/MDI-X
Yes

Auto-negotiation
Yes

Broadcast storm control
Yes

Cable types supported
Cat3, Cat4, Cat5, Cat5e, Cat6

Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T

Flow control support
Yes

Full duplex
Yes

Link aggregation
Yes

Networking standards
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x

Number of VLANs
4000

Port mirroring
Yes

Rate limiting
Yes

Virtual LAN features
Port-based VLAN, Tagged VLAN

VLAN support
Yes

Operational conditions

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
5 - 90%

Storage temperature (T-T)
-40 - 70 °C

Packaging content

Cables included
AC

Rack mount kit
Yes

Ports & interfaces

Gigabit Ethernet (copper) ports quantity
16

Installed SFP modules quantity
0

Installed SFP+ modules quantity
0

Switch Number of Ports
16

Switch Port Speed
Gigabit Ethernet (10/100/1000)

Power

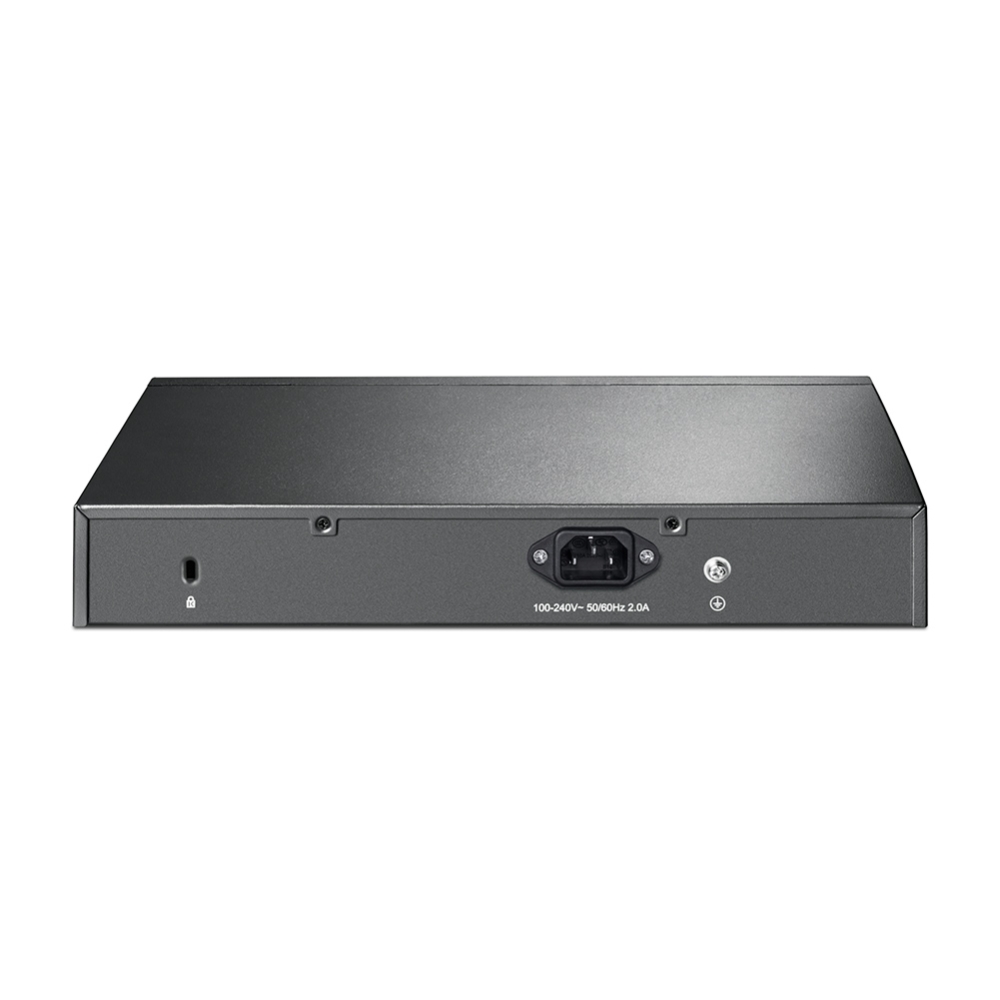

AC input frequency
50 - 60 Hz

AC input voltage
100 - 240 V

Power consumption (max)
124.4 W

Power supply included
Yes

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes

Power over Ethernet (PoE) power per port
30 W

Power over Ethernet plus (PoE+) ports quantity
8

Total Power over Ethernet (PoE) budget
150 W

Security

IGMP snooping
Yes

Loop protection
Yes

Static port security
Yes

Weight & dimensions

Depth
180 mm

Height
44 mm

Width
294 mm

TP-Link TL-SG1016PE network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
