Description

TP-LINK TL-SF1006P. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 6. MAC address table: 2000 entries, Switching capacity: 1.2 Gbit/s. Networking standards: IEEE 802.3af,IEEE 802.3at. DC input voltage: 53.5 V. Power over Ethernet (PoE)

6× 10/100 Mbps RJ45 ports
4× PoE+ ports transfer data and power on individual cables
Works with IEEE 802.3af/at compliant PDs
Up to 250m data and power transmitting range under Extend Mode**

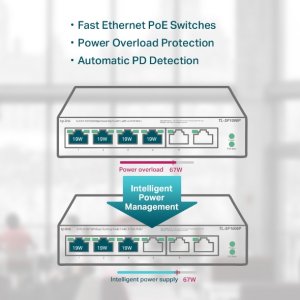

Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application
Supports PoE Power up to 30 W for each PoE port
Supports PoE Power up to 67 W for all PoE ports*
Plug and play with no configuration required

Product Properties

Manufacturer
TP-LINK

Model
TL-SF1006P

EAN
6935364030940

Bullet points

Point
4× PoE+ ports transfer data and power on individual cables

6× 10/100 Mbps RJ45 ports

Plug and play with no configuration required

Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application

Supports PoE Power up to 30 W for each PoE port

Supports PoE Power up to 67 W for all PoE ports*

Up to 250m data and power transmitting range under Extend Mode**

Works with IEEE 802.3af/at compliant PDs

Data transmission

MAC address table
2000 entries

Store-and-forward
Y

Switching capacity
1.2 Gbit/s

Design

Certification
FCC, CE, RoHS

Housing material
Metal

Product colour
Black

Rack mounting
N

Stackable
N

Network

Auto MDI/MDI-X
Y

Auto-negotiation
Y

Cable types supported
Cat3,Cat4,Cat5,Cat5e

MAC address auto-aging supported
Y

MAC address auto-learning supported
Y

Networking standards
IEEE 802.3af,IEEE 802.3at

Operational conditions

Heat dissipation
252.34 BTU/h

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
5 - 90%

Storage temperature (T-T)
-40 - 70 °C

Performance

Fanless
Y

Ports & interfaces

Switch Number of Ports
6

Switch Port Speed
Fast Ethernet (10/100)

Power

DC input voltage
53.5 V

Input current
1.31 A

Power consumption (max)
74 W

Power supply included
Y

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Y

Power over Ethernet plus (PoE+) ports quantity
4

Weight & dimensions

Depth
101 mm

Height
25 mm

Width
158 mm

TP-LINK TL-SF1006P network switch Fast Ethernet (10/100) Power over Ethernet (PoE) Black
