Description

TP-LINK T3700G-28TQ. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45. MAC address table: 32 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.1D,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ab,IEEE 802.3ad,IEEE.... Power connector: DC-in jack. Rack mounting, Form factor: 1U

Abundant Layer 3 routing protocols including RIP/OSPF/ECMP/VRRP that support a scalable network
True Physical Stacking technology supports up to 8 units and 320Gbps backplane bandwidth for high scalability and efficient redundancy
10 Gigabit Ethernet uplink provides high-bandwidth applications for congestion relief and smooth data delivery

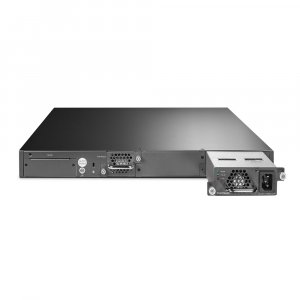

Removable power unit and redundant power supply functionality minimizes downtime
PIM-SM/PIM-DM/IGMP Snooping for resilient video deployments

Product Properties

Manufacturer
TP-LINK

Model
T3700G-28TQ

EAN
6935364021825

Bullet points

Point
Abundant Layer 3 routing protocols including RIP/OSPF/ECMP/VRRP that support a scalable network

PIM-SM/PIM-DM/IGMP Snooping for resilient video deployments

Removable power unit and redundant power supply functionality minimizes downtime

Data transmission

Forwarding rate
95.2 Mpps

Jumbo frames support
Y

MAC address table
32 entries

Number of IP interfaces
128

Number of static routes
256

Static route
Y

Switching capacity
128 Gbit/s

Design

Certification
CE, FCC, RoHS

Form factor
1U

LED indicators
Y

Number of fans
4 fan(s)

Product colour
Black

Rack mounting
Y

Stackable
Y

Management features

Quality of Service (QoS) support
Y

Switch layer
L3

Switch type
Managed

System event log
Y

Web-based management
Y

Multicast features

Multicast support
Y

Network

10G support
Y

Broadcast storm control
Y

Copper ethernet cabling technology
10BASE-T,100BASE-T,100BASE-TX,1000BASE-TX,1000BASE-T

Ethernet LAN data rates
10,100,1000 Mbit/s

Networking standards
IEEE 802.1D,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z

Port mirroring
Y

Spanning tree protocol
Y

VLAN support
Y

Operational conditions

Heat dissipation
214.96 BTU/h

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
5 - 90%

Storage temperature (T-T)
-40 - 70 °C

Optical fiber

Fiber ethernet cabling technology
10GBASE-LR,10GBASE-SR,100BASE-FX

Performance

Fanless
Y

Ports & interfaces

Combo SFP ports quantity
4

Console port
RJ-45

Power connector
DC-in jack

SFP+ module slots quantity
2

Switch Number of Ports
24

Switch Port Speed
Gigabit Ethernet (10/100/1000)

Power

AC input frequency
50/60 Hz

AC input voltage
110 - 240 V

Power consumption (typical)
53 W

Power supply included
Y

Power over Ethernet (PoE)

Power over Ethernet (PoE)
N

Protocols

Management protocols
SNMP, RMON, DHCP/BOOTP, DHCP Snooping, DHCP Option82, CPU, NDP/NTDP, TFTP, Web, VCT

Security

DHCP features
DHCP client,DHCP server

IGMP snooping
Y

MAC address filtering
Y

Security algorithms
802.1x RADIUS,SSH,SSH-2,SSL/TLS

Weight & dimensions

Depth
330 mm

Height
44 mm

Width
440 mm

TP-LINK T3700G-28TQ network switch Managed L3 Gigabit Ethernet (10/100/1000) 1U Black
