Description

TP-LINK T2600G-18TS. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16, Console port: RJ-45. MAC address table: 8000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.3ab,IEEE 802.3ad,IEEE.... Power connector: DC-in jack

16 Gigabit RJ45 Ports and 2 Gigabit SFP Slots
Selectable RJ45 or Micro-USB Console Port
L2+ feature——Static Routing, helps route internal traffic for more efficient use of network resources
IP-MAC-Port-VID Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X Authentication and Radius provide you with robust security strategies
L2/L3/L4 QoS and IGMP snooping that optimize voice and video application
DDM provides monitoring of all SFP Modules inserted to the switch
IPv6 supported with dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbor discovery
Web, CLI (Console Port, Telnet, SSH), SNMP, RMON and Dual Image bring abundant management policies

Product Properties

Manufacturer
TP-LINK

Model
T2600G-18TS

EAN
6935364099503

Bullet points

Point
16 Gigabit RJ45 Ports and 2 Gigabit SFP Slots

DDM provides monitoring of all SFP Modules inserted to the switch

IPv6 supported with dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbor discovery

L2/L3/L4 QoS and IGMP snooping that optimize voice and video application

Selectable RJ45 or Micro-USB Console Port

Web, CLI (Console Port, Telnet, SSH), SNMP, RMON and Dual Image bring abundant management policies

Data transmission

Jumbo frames
9216

Jumbo frames support
Y

MAC address table
8000 entries

Switching capacity
32 Gbit/s

Design

Certification
CE, FCC, RoHS

LED indicators
Y

Product colour
Black

Management features

MIB support
RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618, RFC2925

Quality of Service (QoS) support
Y

Switch layer
L2

Switch type
Managed

Web-based management
Y

Network

10G support
N

Copper ethernet cabling technology
10BASE-T,100BASE-TX,1000BASE-T

Networking standards
IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z

Port mirroring
Y

Operational conditions

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
5 - 90%

Storage temperature (T-T)
-40 - 70 °C

Ports & interfaces

Combo SFP ports quantity
2

Console port
RJ-45

Gigabit Ethernet (copper) ports quantity
16

Power connector
DC-in jack

Switch Number of Ports
16

Switch Port Speed
Gigabit Ethernet (10/100/1000)

Power

AC input frequency
50 - 60 Hz

AC input voltage
100 - 240 V

Power over Ethernet (PoE)

Power over Ethernet (PoE)
N

Protocols

Management protocols
IGMPv1,IGMPv2,IGMPv3

Security

Access Control List (ACL)
Y

DHCP features
DHCP snooping,DHCP relay,DHCP client

IGMP snooping
Y

MAC address filtering
Y

Security algorithms
802.1x RADIUS,HTTPS,SSH,SSL/TLS

SSH/SSL support
Y

Static port security
Y

Weight & dimensions

Depth
220 mm

Height
44 mm

Width
440 mm

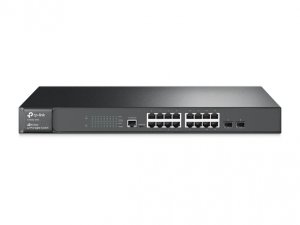

TP-LINK T2600G-18TS network switch Managed L2 Gigabit Ethernet (10/100/1000) Black
