Description

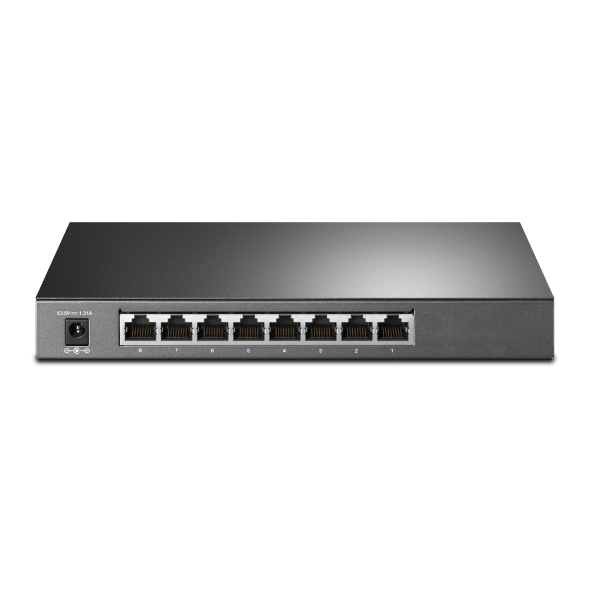

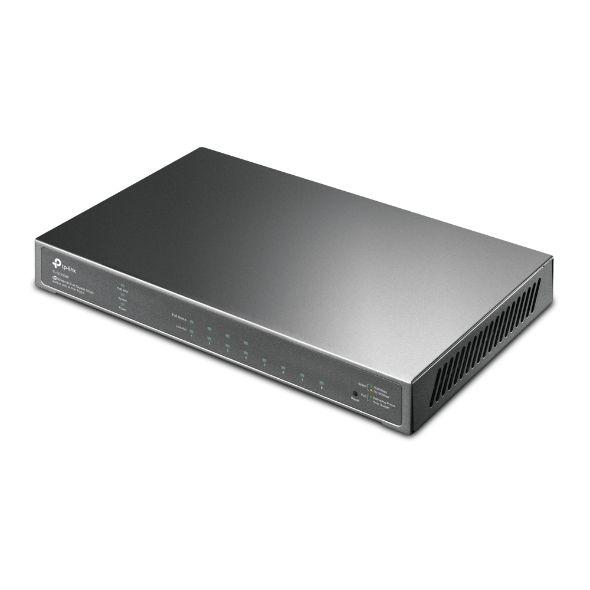

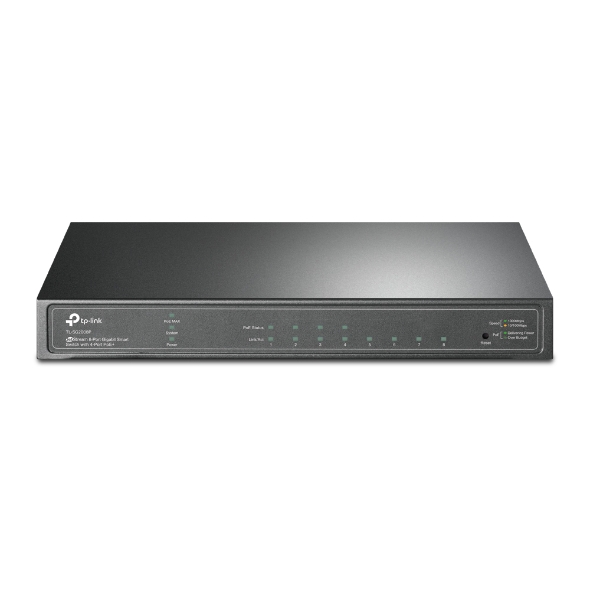

TP-LINK JetStream 8-Port Gigabit Smart Switch with 4-Port PoE+. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 8000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ab,IEEE.... Power over Ethernet (PoE)

62 W PoE Budget: 4× 802.3at/af-compliant PoE+ ports with a total power supply of 62 W*
Full Gigabit Ports: 4× gigabit PoE+ ports and 4× gigabit non-PoE ports provide high-speed connections
Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring
Centralized Management: Cloud access and Omada app for ultra convenience and easy management
Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more
Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping

Product Properties

Manufacturer
TP-LINK

Model
TL-SG2008P

EAN
6935364072957

Bullet points

Point
62 W PoE Budget: 4× 802.3at/af-compliant PoE+ ports with a total power supply of 62 W*

Centralized Management: Cloud access and Omada app for ultra convenience and easy management

Full Gigabit Ports

Integrated into Omada SDN

Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping

Robust Security Strategies

Data transmission

Jumbo frames
9000

Jumbo frames support
Y

MAC address table
8000 entries

Number of queues
8

Packet buffer memory
0.5 MB

Switching capacity
16 Gbit/s

Design

Certification
CE, FCC, RoHS

LED indicators
Y

Product colour
Black

Management features

Quality of Service (QoS) support
Y

Switch type
Managed

System event log
Y

Web-based management
Y

Multicast features

Multicast support
Y

Network

10G support
N

Auto MDI/MDI-X
Y

Auto-negotiation
Y

Broadcast storm control
Y

Flow control support
Y

Networking standards
IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x

Number of VLANs
4094

Port mirroring
Y

Rate limiting
Y

VLAN support
Y

Operational conditions

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
5 - 90%

Storage temperature (T-T)
-40 - 70 °C

Packaging data

Manual
Y

Package type
Box

Performance

Fanless
Y

Ports & interfaces

Fast Ethernet (copper) ports quantity
8

Switch Number of Ports
8

Switch Port Speed
Gigabit Ethernet (10/100/1000)

Power

Power supply included
Y

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Y

Power over Ethernet plus (PoE+) ports quantity
4

Protocols

IPv4 & IPv6 features
IPv6 Telnet,IPv6 ping,IPv6 tracert

Management protocols
SNMPv1/v2c/v3

Security

Authentication
MAC-based authentication, Web-based authentication

Authentication type
RADIUS

DHCP features
DHCP client,DHCP relay,DHCP snooping,DHCPv6 server,DHCPv6 snooping

IGMP snooping
Y

MAC address filtering
Y

Security algorithms
802.1x RADIUS

Weight & dimensions

Depth
126 mm

Height
26 mm

Width
209 mm
