Description

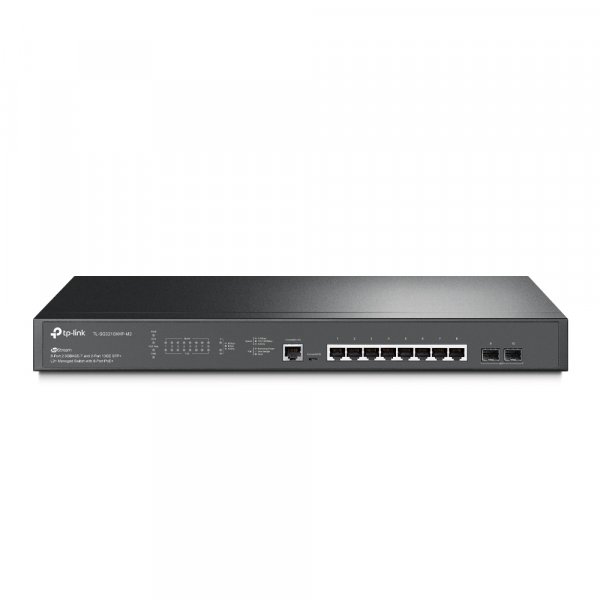

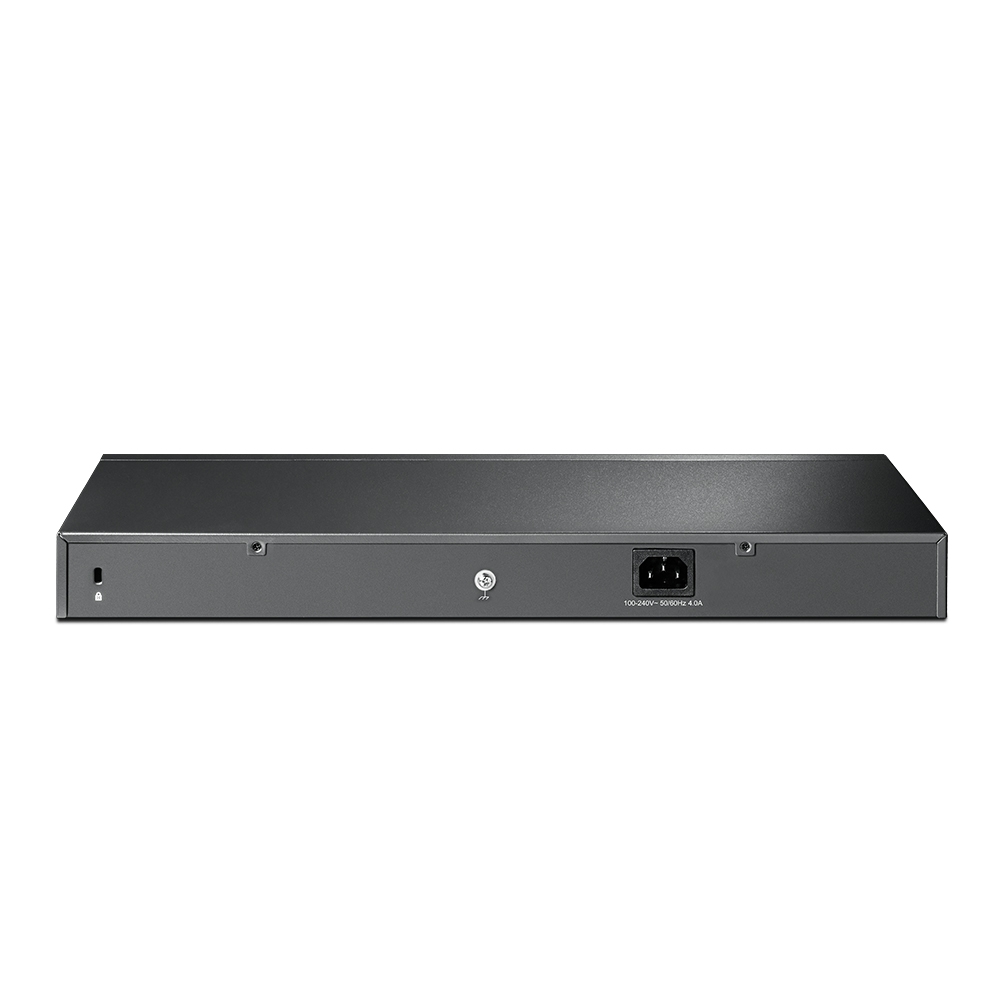

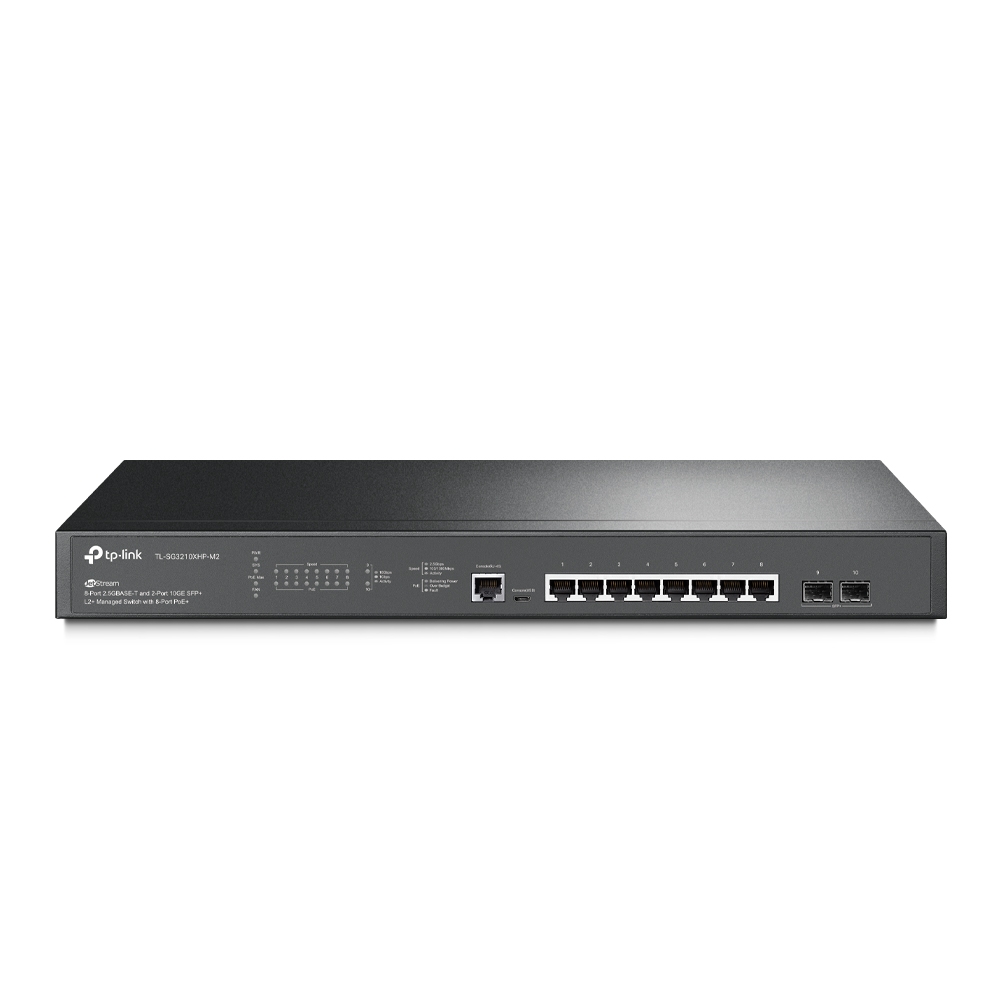

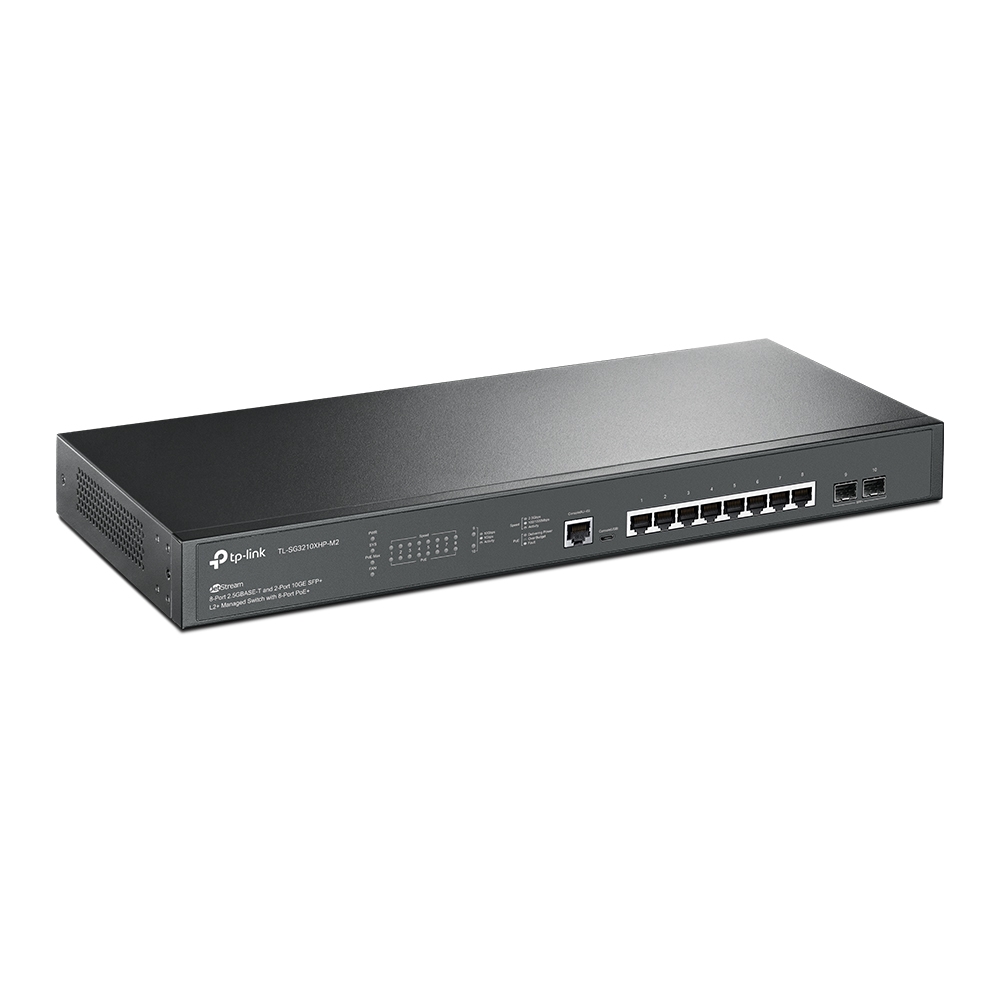

TP-LINK JetStream 8-Port 2.5GBASE-T and 2-Port 10GE SFP+ L2+ Managed Switch with 8-Port PoE+. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports quantity: 8, Console port: RJ-45/micro-USB. MAC address table: 16000 entries, Switching capacity: 80 Gbit/s. Networking standards: IEEE 802.1D,IEEE 802.1s,IEEE 802.1w. Power connector: AC-in jack. Rack mounting

2.5G PoE+ Ports for WiFi 6: 8× 2.5 Gbps ports smash the gigabit barrier and unlock the full potential of WiFi 6 APs
10G Lightning-Fast Uplink: 2× 10 Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching capacity
240 W PoE Budget: 8× 802.3at/af-compliant PoE+ ports with a total power supply of 240 W*
Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring
Centralized Management: Cloud access and Omada app for ultra convenience and easy management
Static Routing: Helps route internal traffic for more efficient use of network resources
Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more
Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping

Product Properties

Manufacturer
TP-LINK

Model
TL-SG3210XHP-M2

EAN
6935364030803

Bullet points

Point
10G Lightning-Fast Uplink

2.5G PoE+ Ports for WiFi 6

240 W PoE Budget: 8× 802.3at/af-compliant PoE+ ports with a total power supply of 240 W*

Centralized Management: Cloud access and Omada app for ultra convenience and easy management

Integrated into Omada SDN

Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping

Robust Security Strategies

Static Routing: Helps route internal traffic for more efficient use of network resources

Data transmission

Forwarding rate
59.52 Mpps

MAC address table
16000 entries

Store-and-forward
Y

Switching capacity
80 Gbit/s

Design

Certification
CE, FCC, RoHS

Number of fans
2 fan(s)

Product colour
Black

Rack mounting
Y

Management features

ARP inspection
Y

Cloud-managed
Y

Configuring Location Settings (CLI)
Y

MIB support
Y

Quality of Service (QoS) support
Y

Switch layer
L2+

Switch type
Managed

System event log
Y

Web-based management
Y

Multicast features

Multicast Listener Discovery (MLD) snooping
Y

Multicast support
Y

Network

10G support
Y

Broadcast storm control
Y

Ethernet LAN data rates
100,1000,2500 Mbit/s

Flow control support
Y

Head-of-line (HOL) blocking
Y

IP routing
Y

Link aggregation
Y

Networking standards
IEEE 802.1D,IEEE 802.1s,IEEE 802.1w

Policy-based routing
Y

Port mirroring
Y

Rate limiting
Y

Routing entries
128

Spanning tree protocol
Y

VLAN support
Y

Operational conditions

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 45 °C

Storage relative humidity (H-H)
5 - 90%

Storage temperature (T-T)
-40 - 70 °C

Packaging data

Cables included
AC

Package type
Box

Quick start guide
Y

Ports & interfaces

Console port
RJ-45/Micro-USB

Power connector
AC-in jack

SFP+ module slots quantity
2

Switch Number of Ports
8

Power

AC input frequency
50/60 Hz

AC input voltage
100 - 240 V

Power supply included
Y

Power over Ethernet (PoE)

Power over Ethernet (PoE)
N

Security

Authentication
MAC-based authentication, Port-based authentication

DHCP features
DHCP client,DHCP relay,DHCP server,DHCPv6 snooping

IGMP snooping
Y

MAC address filtering
Y

Password protection
Y

SSH/SSL support
Y

Static port security
Y

Weight & dimensions

Depth
180 mm

Height
44 mm

Width
440 mm
