Description

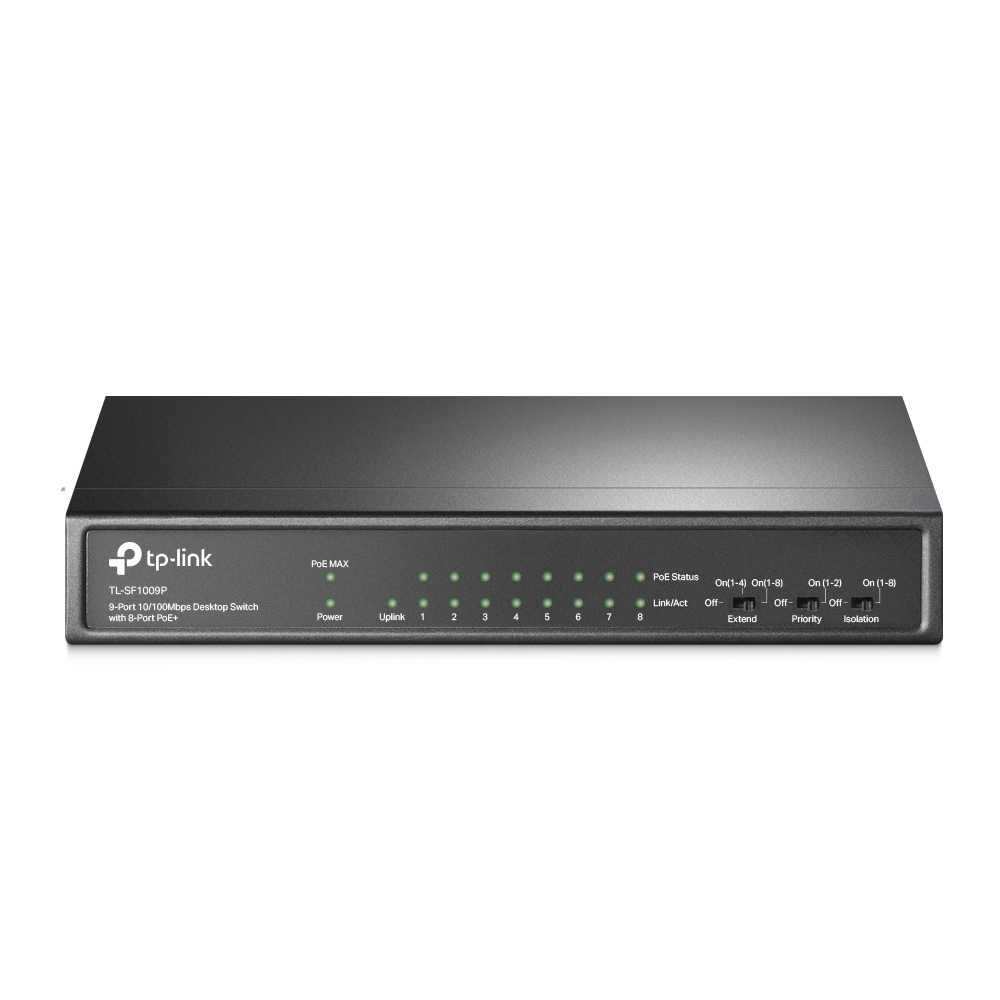

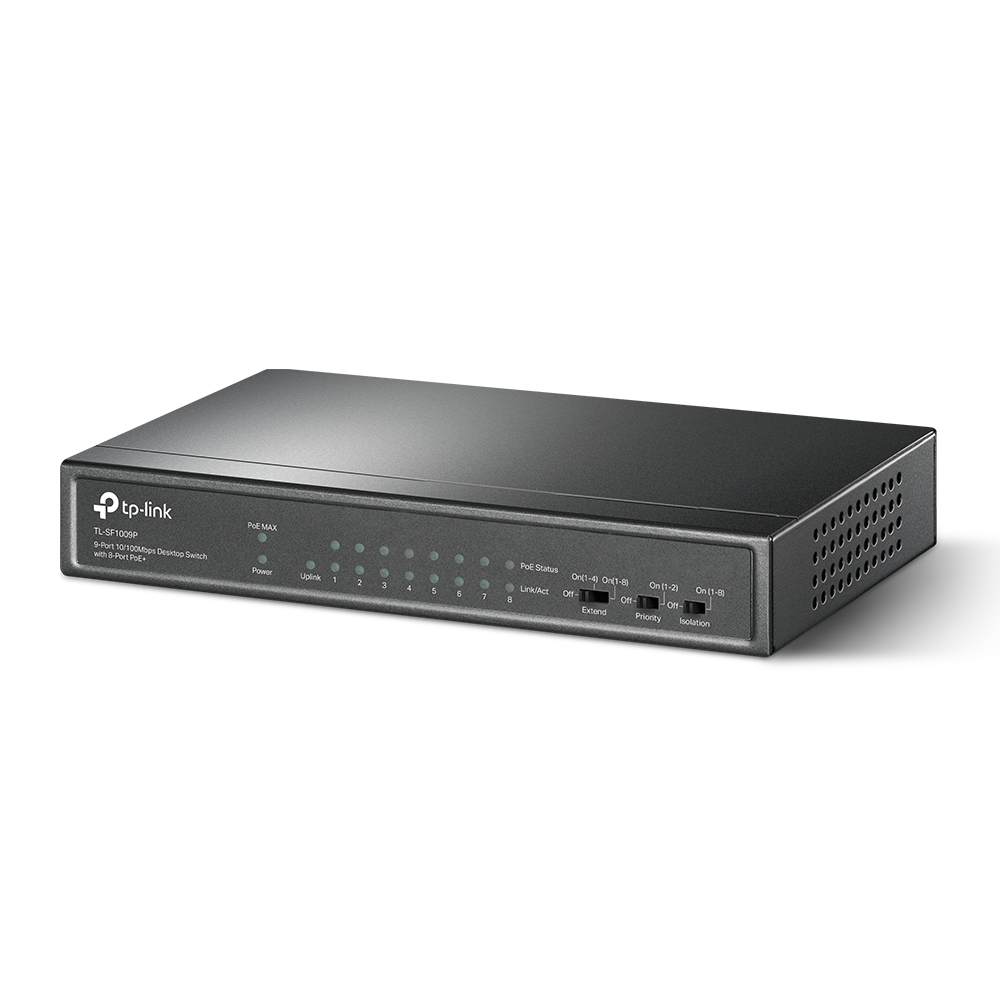

TP-LINK 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 9. Full duplex. MAC address table: 2000 entries, Switching capacity: 1.8 Gbit/s. Networking standards: IEEE 802.3af,IEEE 802.3at,IEEE 802.3x. Power over Ethernet (PoE)

9× 10/100 Mbps RJ45 ports
8× PoE+ ports transfer data and power on individual cables
Works with IEEE 802.3af/at compliant PDs
Supports PoE Power up to 30 W for each PoE port

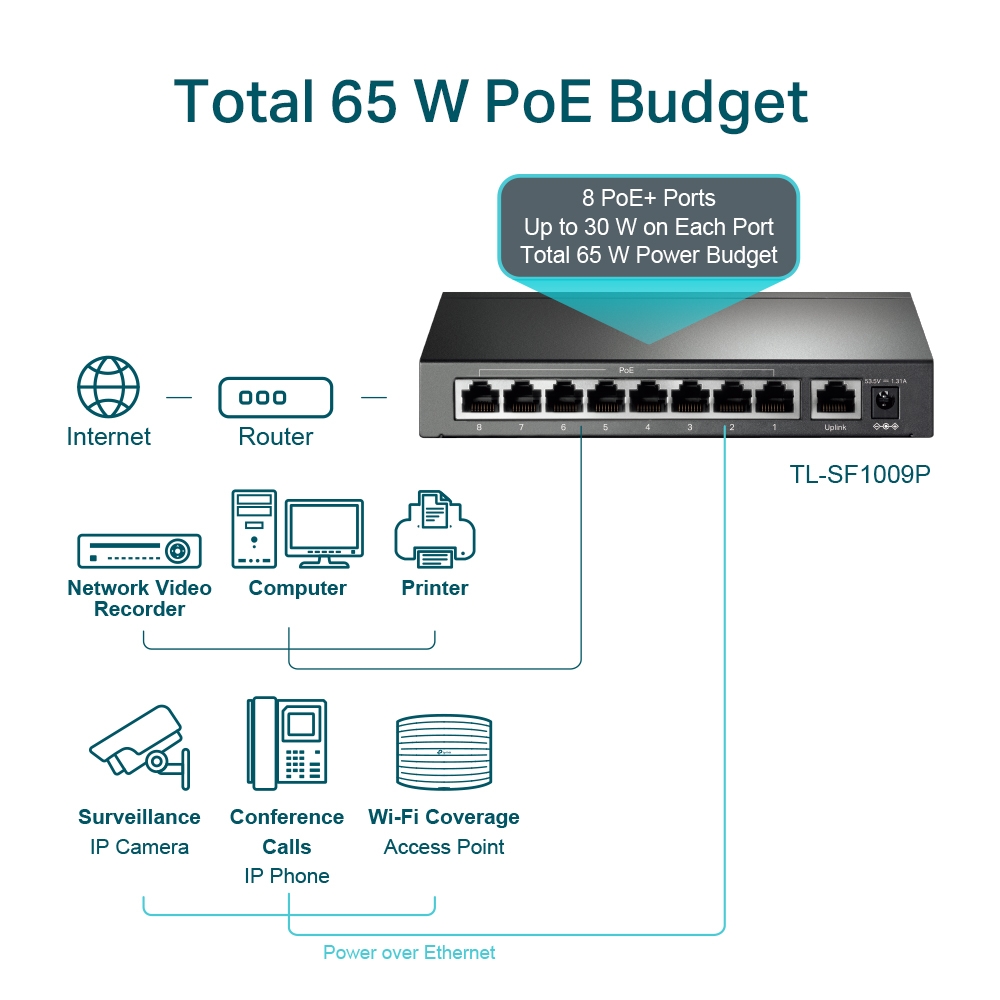

Supports PoE Power up to 65 W for 8 PoE ports*

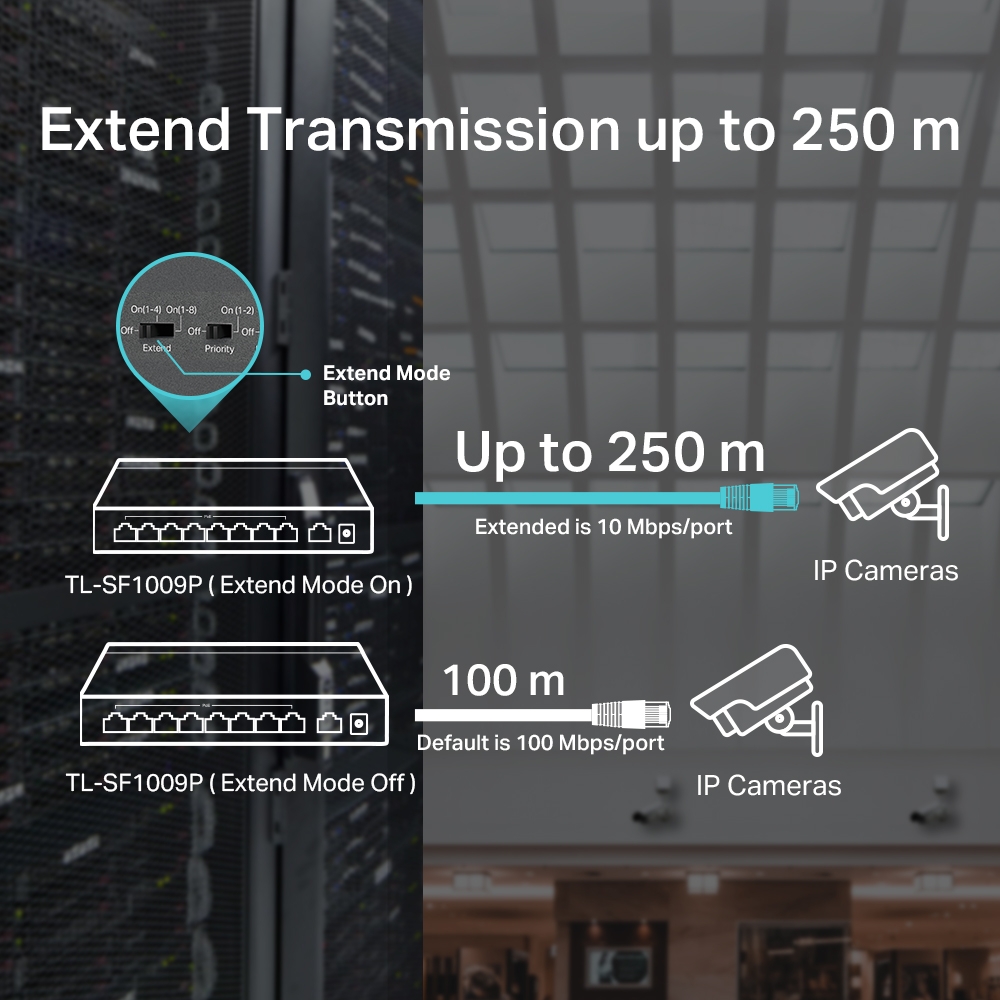

Up to 250 m data and power transmitting range under Extend Mode**

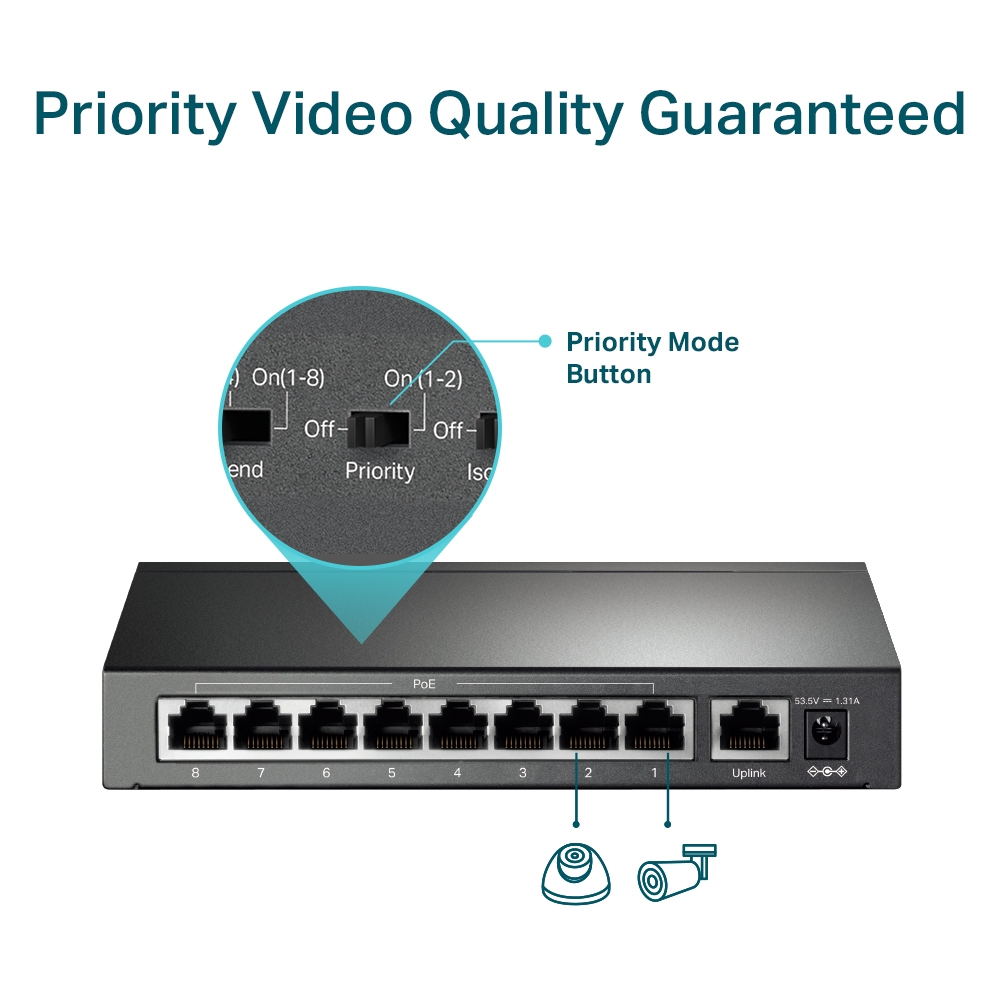

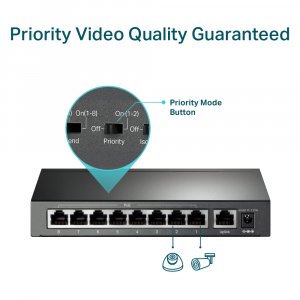

Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application
Isolation Mode allows one-click client traffic separation for higher security and performance

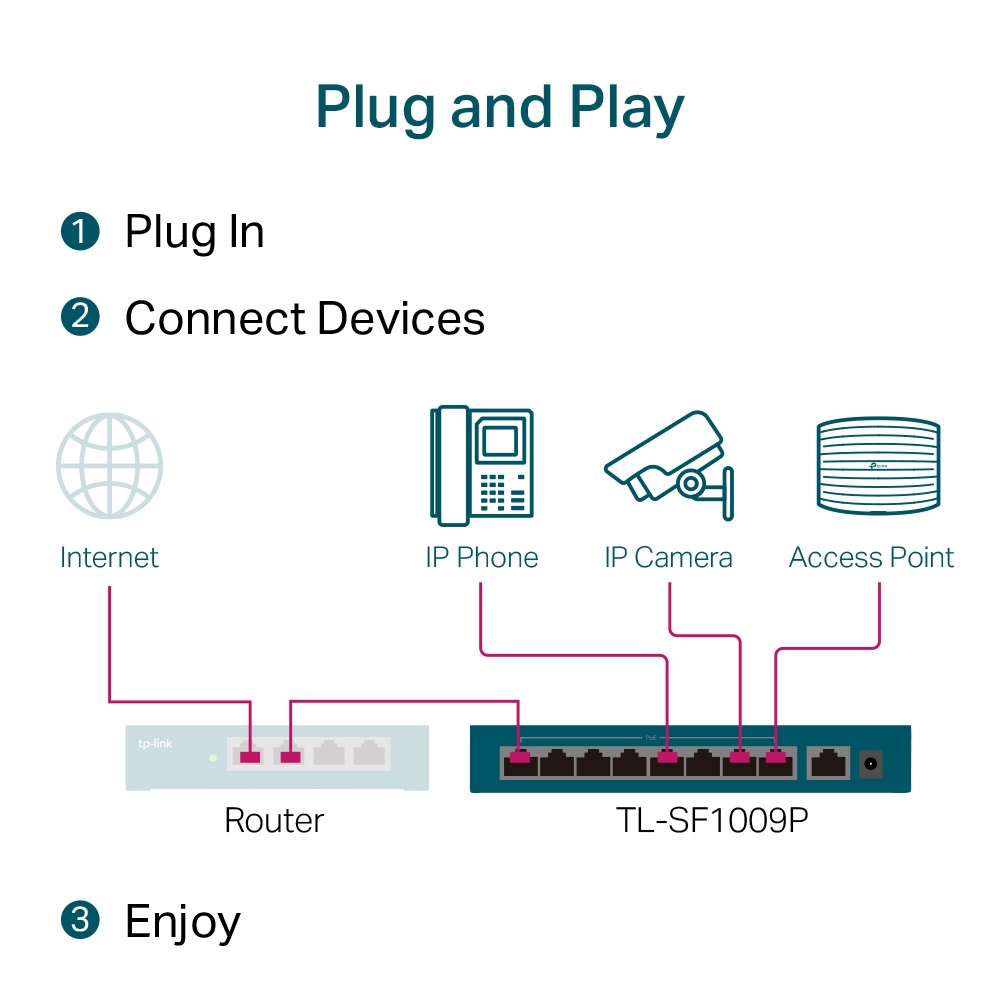

Plug and play with no configuration required

Product Properties

Manufacturer
TP-LINK

Model
TL-SF1009P

EAN
6935364052973

Bullet points

Point
8× PoE+ ports transfer data and power on individual cables

9× 10/100 Mbps RJ45 ports

Isolation Mode allows one-click client traffic separation for higher security and performance

Plug and play with no configuration required

Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application

Supports PoE Power up to 30 W for each PoE port

Supports PoE Power up to 65 W for 8 PoE ports*

Up to 250 m data and power transmitting range under Extend Mode**

Works with IEEE 802.3af/at compliant PDs

Data transmission

MAC address table
2000 entries

Store-and-forward
Y

Switching capacity
1.8 Gbit/s

Design

Certification
FCC, CE, RoHS

LED indicators
Activity, Link, PoE, Power

Product colour
Black

Management features

Switch type
Unmanaged

Network

10G support
N

Auto MDI/MDI-X
Y

Auto-negotiation
Y

Cable types supported
Cat3,Cat4,Cat5,Cat5e

Copper ethernet cabling technology
10BASE-T,100BASE-TX

Flow control support
Y

Full duplex
Y

Half duplex
Y

MAC address auto-aging supported
Y

MAC address auto-learning supported
Y

Networking standards
IEEE 802.3af,IEEE 802.3at,IEEE 802.3x

Operational conditions

Heat dissipation
262.84 BTU/h

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
5 - 90%

Storage temperature (T-T)
-40 - 70 °C

Packaging data

Quick start guide
Y

Performance

Fanless
Y

Ports & interfaces

Switch Number of Ports
9

Switch Port Speed
Fast Ethernet (10/100)

Power

Power consumption (max)
77.08 W

Power supply included
Y

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Y

Power over Ethernet (PoE) ports quantity
8

Power over Ethernet (PoE) power per port
30 W

Total Power over Ethernet (PoE) budget
65 W

Weight & dimensions

Depth
98 mm

Height
27 mm

Width
171 mm
