Description

TP-LINK 5-Port 2.5G Desktop Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 16000 entries, Switching capacity: 25 Gbit/s. Networking standards: IEEE 802.3,IEEE 802.3ab,IEEE 802.3p,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z. DC input voltage: 12 V

Five 2.5 Gbps Ports. 5× 2.5-Gigabit ports unlock the highest performance of your Multi-Gig bandwidth and devices, and provide up to 25 Gbps of switching capacity
Super-Fast Connections. Provides super-fast connections to 2.5G NAS, 2.5G Server, gaming computer, 2.5G WiFi 6 AP, 4K video, and more
Ideal for Various Scenarios. Built for LAN parties, home entertainment, small and home offices, and instant transfer for workstations
Hassle-Free Cabling. Instantly upgrade to 2.5 Gbps without the need to upgrade to Cat6 wiring, reducing wiring costs and hassle.**

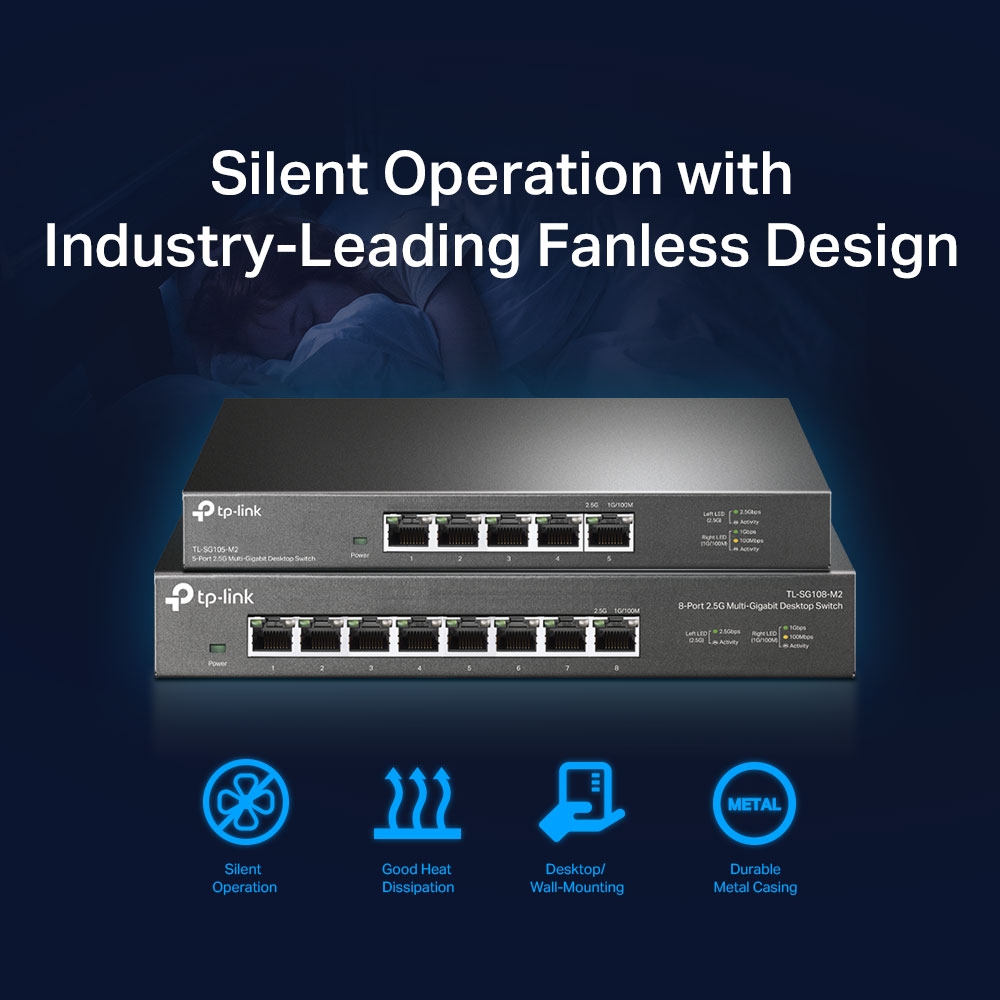

Silent Operation. Industry-leading fanless design ensures silent operation, ideal for any home or business
Plug and Play. Allows for easy deployment without the need for a technician
Metal Casing. Durable metal casing and desktop/wall-mounting design are well-suited for different environments

Product Properties

Manufacturer
TP-LINK

Model
TL-SG105-M2

EAN
6935364052898

Bullet points

Point
Plug and Play. Allows for easy deployment without the need for a technician

Data transmission

Forwarding rate
18.6 Mpps

MAC address table
16000 entries

Store-and-forward
Y

Switching capacity
25 Gbit/s

Design

Certification
CE, FCC ,RoHS

LED indicators
Y

Product colour
Black

Management features

Switch type
Unmanaged

Network

10G support
N

Ethernet LAN data rates
10,100,1000 Mbit/s

Networking standards
IEEE 802.3,IEEE 802.3ab,IEEE 802.3p,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z

Operational conditions

Heat dissipation
41.32 BTU/h

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
5 - 90%

Storage temperature (T-T)
-40 - 70 °C

Packaging data

Cables included
LAN (RJ-45)

Quick start guide
Y

Ports & interfaces

Switch Number of Ports
5

Switch Port Speed
Gigabit Ethernet (10/100/1000)

Power

DC input voltage
12 V

Input current
1 A

Power consumption (max)
12.11 W

Power supply included
Y

Power over Ethernet (PoE)

Power over Ethernet (PoE)
N

Weight & dimensions

Depth
126 mm

Height
26 mm

Width
209 mm
