Description

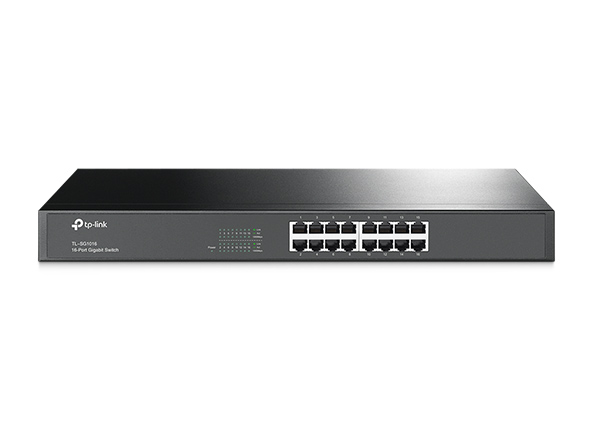

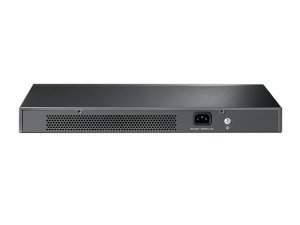

TP-LINK 16-Port Gigabit Rackmount Network Switch. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.1p,IEEE 802.3ab,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x. Rack mounting

16 10/100/1000Mbps RJ45 ports
Innovative energy-efficient technology saves power consumption
Supports MAC address self-learning and auto MDI/MDIX
Standard 19-inch rack-mountable steel case

Product Properties

Manufacturer
TP-LINK

Model
TL-SG1016 V12

EAN
6935364081263

Bullet points

Point
16 10/100/1000Mbps RJ45 ports

Innovative energy-efficient technology saves power consumption

Standard 19-inch rack-mountable steel case

Supports MAC address self-learning and auto MDI/MDIX

Data transmission

Forwarding rate
23.8 Mpps

Jumbo frames
10000

Jumbo frames support
Y

MAC address table
8000 entries

Store-and-forward
Y

Switching capacity
32 Gbit/s

Design

Certification
FCC, CE, RoHS

LED indicators
Y

Product colour
Black

Rack mounting
Y

Management features

Cloud-managed
Y

Configuring Location Settings (CLI)
Y

Quality of Service (QoS) support
Y

Switch layer
L2

Switch type
Managed

System event log
Y

Traffic classification
Y

Traffic shaping
Y

User operation log
Y

Web-based management
Y

Network

Auto MDI/MDI-X
Y

Auto-negotiation
Y

Cable types supported
Cat3,Cat4,Cat5,Cat5e

Copper ethernet cabling technology
10BASE-T,100BASE-TX,1000BASE-T

Ethernet LAN data rates
10,100,480,800,1000 Mbit/s

Flow control support
Y

Full duplex
Y

Head-of-line (HOL) blocking
Y

IP routing
Y

Networking standards
IEEE 802.1p,IEEE 802.3ab,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x

Policy-based routing
Y

Port mirroring
Y

VLAN support
Y

Operational conditions

Heat dissipation
31.6 BTU/h

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
5 - 90%

Storage temperature (T-T)
-40 - 70 °C

Packaging data

Package depth
250 mm

Package height
80 mm

Package width
528 mm

Ports & interfaces

Switch Number of Ports
16

Switch Port Speed
Gigabit Ethernet (10/100/1000)

Power

AC input frequency
50/60 Hz

AC input voltage
100 - 240 V

Power consumption (typical)
9.26 W

Security

Access Control List (ACL)
Y

DHCP features
DHCP client,DHCP server,DHCP snooping

IGMP snooping
Y

Password protection
Y

Security algorithms
802.1x RADIUS

Static port security
Y

Weight & dimensions

Depth
180 mm

Height
44 mm

Width
440 mm
