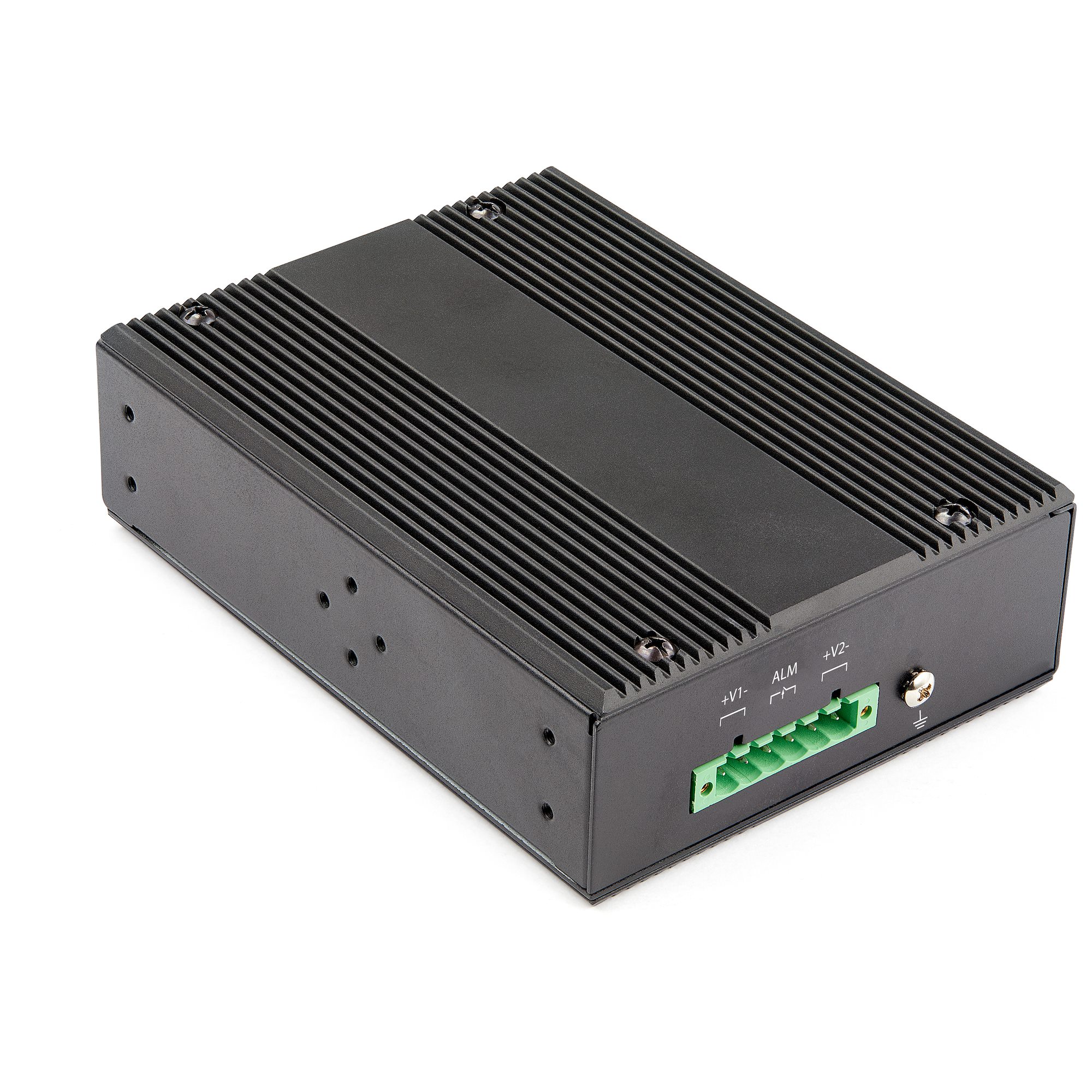

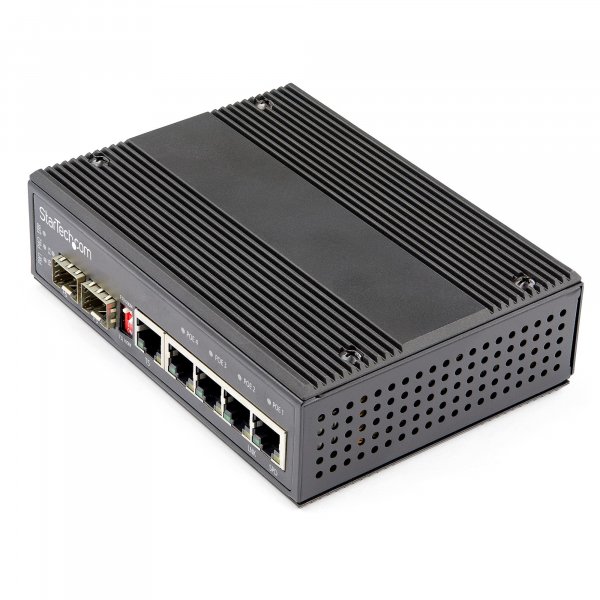

StarTech.com Industrial 5 Port Gigabit Ethernet Switch - 4 PoE RJ45 +2 SFP Slots 30W PoE+ 12-48VDC 10/100/1000 Rugged Power Over Ethernet LAN Switch -40C to 75C - DIN Mountable
Roll over image to zoom inClick to Open expanded view
StarTech.com Industrial 5 Port Gigabit Ethernet Switch - 4 PoE RJ45 +2 SFP Slots 30W PoE+ 12-48VDC 10/100/1000 Rugged Power Over Ethernet LAN Switch -40C to 75C - DIN Mountable
StarTech.com Industrial 5 Port Gigabit Ethernet Switch - 4 PoE RJ45 +2 SFP Slots 30W PoE+ 12-48VDC 10/100/1000 Rugged Power Over Ethernet LAN Switch -40C to 75C - DIN Mountable
StarTech.com Industrial 5 Port Gigabit Ethernet Switch - 4 PoE RJ45 +2 SFP Slots 30W PoE+ 12-48VDC 10/100/1000 Rugged Power Over Ethernet LAN Switch -40C to 75C - DIN Mountable
StarTech.com Industrial 5 Port Gigabit Ethernet Switch - 4 PoE RJ45 +2 SFP Slots 30W PoE+ 12-48VDC 10/100/1000 Rugged Power Over Ethernet LAN Switch -40C to 75C - DIN Mountable
Print
Model: IES1G52UP12V
EAN: 65030889834

StarTech.com Industrial 5 Port Gigabit Ethernet Switch - 4 PoE RJ45 +2 SFP Slots 30W PoE+ 12-48VDC 10/100/1000 Rugged Power Over Ethernet LAN Switch -40C to 75C - DIN Mountable

Manufacturer:
StarTech.com
StarTech.com Industrial 5 Port Gigabit Ethernet Switch - 4 PoE RJ45 +2 SFP Slots 30W PoE+ 12-48VDC 10/100/1000 Rugged Power Over Ethernet LAN Switch -40C to 75C - DIN Mountable, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (
Please log in to see your price
Related products

Description

StarTech.com Industrial 5 Port Gigabit Ethernet Switch - 4 PoE RJ45 +2 SFP Slots 30W PoE+ 12-48VDC 10/100/1000 Rugged Power Over Ethernet LAN Switch -40C to 75C - DIN Mountable. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. Switching capacity: 12 Gbit/s. Networking standards: IEEE 802.3,IEEE 802.3af,IEEE 802.3at,IEEE 802.3x. Power over Ethernet (PoE). Wall mountable
  • FIBER & PoE: Industrial 6 Port Gigabit Ethernet Switch IEEE 802.3af (PoE) or 802.3at (PoE+) 30W max per 4 x PoE ports PSE + 2 x open SFP slots
  • Use with devices like cameras, sensors, wi-fi APs
  • TECH SPECS: 10/100/1000 Mbps Auto-Negotiation
  • Unmanaged
  • 6 Total Mixed Fiber/Copper Connections: 4 PoE ports + 1 SFP + 1 Flex Copper or SFP port (MSA Compliant)
  • Total power budget: 120W

Product Properties

  • Model
  • IES1G52UP12V
  • EAN
  • 65030889834
  • Bullet points
  • Point
  • 6 Total Mixed Fiber/Copper Connections
    FIBER & PoE
    TECH SPECS: 10/100/1000 Mbps Auto-Negotiation
    Total power budget: 120W
    Unmanaged
    Use with devices like cameras, sensors, wi-fi APs
  • Data transmission
  • Jumbo frames
  • 9000
  • Jumbo frames support
  • Y
  • Switching capacity
  • 12 Gbit/s
  • Design
  • Certification
  • CE, RoHS, FCC
  • DIN rail mounting
  • Y
  • Housing material
  • Aluminium, Steel
  • International Protection (IP) code
  • IP30
  • LED indicators
  • Activity, Link, PoE, Power
  • Product colour
  • Black
  • Safety
  • EN60950-1
  • Wall mountable
  • Y
  • Logistics data
  • Master (outer) case height
  • 22.5 cm
  • Master (outer) case length
  • 34.5 cm
  • Master (outer) case width
  • 35.5 cm
  • Products per master (outer) case
  • 10 pc(s)
  • Management features
  • Switch type
  • Unmanaged
  • Network
  • 10G support
  • N
  • Auto MDI/MDI-X
  • Y
  • Auto-negotiation
  • Y
  • Copper ethernet cabling technology
  • 10BASE-T,100BASE-T,1000BASE-T
  • Flow control support
  • Y
  • Full duplex
  • Y
  • Networking standards
  • IEEE 802.3,IEEE 802.3af,IEEE 802.3at,IEEE 802.3x
  • Operational conditions
  • Operating relative humidity (H-H)
  • 5 - 95%
  • Operating temperature (T-T)
  • -40 - 75 °C
  • Storage temperature (T-T)
  • -40 - 85 °C
  • Other features
  • Terminal block port
  • Y
  • Packaging data
  • Package depth
  • 162 mm
  • Package height
  • 64 mm
  • Package weight
  • 900 g
  • Package width
  • 211 mm
  • Quick start guide
  • Y
  • Terminal block included
  • Y
  • Performance
  • Buffer size
  • 128 KB
  • Mean time between failures (MTBF)
  • 693764 h
  • Ports & interfaces
  • SFP module slots quantity
  • 2
  • Switch Number of Ports
  • 5
  • Switch Port Speed
  • Gigabit Ethernet (10/100/1000)
  • Power
  • Surge protection
  • Y
  • Surge protection voltage
  • 2 kV
  • Power over Ethernet (PoE)
  • Power over Ethernet (PoE)
  • Y
  • Power over Ethernet (PoE) power per port
  • 30 W
  • Total Power over Ethernet (PoE) budget
  • 120 W
  • Protocols
  • Supported network protocols
  • CSMA/CD
  • Weight & dimensions
  • Depth
  • 142 mm
  • Height
  • 43 mm
  • Weight
  • 701.4 g
  • Width
  • 105 mm
