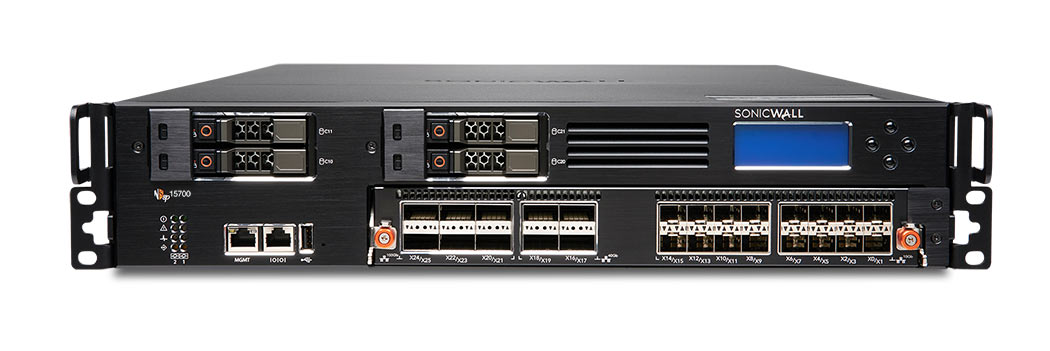

SonicWall NSsp 15700 hardware firewall 2U 105000 Mbit/s
Roll over image to zoom inClick to Open expanded view
Print
Model: 02-SSC-5827
EAN: 758479258278

SonicWall NSsp 15700 hardware firewall 2U 105000 Mbit/s

Manufacturer:
Sonicwall
SonicWall NSsp 15700, 105000 Mbit/s, 28.5 Gbit/s, 32000 Mbit/s, FCC Class A, ICES Class A, CE (EMC Class A, LVD, RoHS), C-Tick, VCCI Class A, MSIP/KCC Class A,..., 3DES,128-bit AES,192-bit AES,256-bit AES,DES,MD5,SHA-1, TCP/IP, ICMP, HTTP, HTTPS, IPSec, I
Please log in to see your price
Related products

Description

SonicWall NSsp 15700. Firewall throughput: 105000 Mbit/s, Firewall (IMIX) throughput: 28.5 Gbit/s, VPN throughput: 32000 Mbit/s. Certification: FCC Class A, ICES Class A, CE (EMC Class A, LVD, RoHS), C-Tick, VCCI Class A, MSIP/KCC Class A,.... Security algorithms: 3DES,128-bit AES,192-bit AES,256-bit AES,DES,MD5,SHA-1. Supported network protocols: TCP/IP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3, Routing protocols: BGP,OSPF,RIP,RIP-1,RIP-2. Management platform: CLI, SSH, Web UI, REST APIs

Product Properties

  • Model
  • 02-SSC-5827
  • EAN
  • 758479258278
  • Data transmission
  • Firewall (IMIX) throughput
  • 28.5 Gbit/s
  • Firewall throughput
  • 105000 Mbit/s
  • Maximum connections (DPI)
  • 50000000
  • Maximum connections (SPI)
  • 80000000
  • Maximum firewall connections per second
  • 800000
  • VPN throughput
  • 32000 Mbit/s
  • Design
  • Built-in display
  • Y
  • Built-in fan
  • Y
  • Display
  • LCD
  • Form factor
  • 2U
  • Number of fans
  • 10 fan(s)
  • Rack mounting
  • Y
  • Management features
  • LED indicators
  • Y
  • Logging and monitoring
  • Analyzer, Local Log, Syslog, IPFIX, NetFlow
  • Management platform
  • CLI, SSH, Web UI, REST APIs
  • Network
  • DHCP client
  • Y
  • DHCP server
  • Y
  • Number of VLANs
  • 512
  • Quality of Service (QoS) support
  • Y
  • VPN tunnels quantity
  • 25000
  • Operational conditions
  • Operating relative humidity (H-H)
  • 5 - 95%
  • Operating temperature (T-T)
  • 0 - 40 °C
  • Storage relative humidity (H-H)
  • 5 - 95%
  • Storage temperature (T-T)
  • -40 - 70 °C
  • Other features
  • Authentication method
  • LDAP, XAUTH/RADIUS, SSO, Novell, internal user database, Terminal Services, Citrix
  • Packaging content
  • Bundled software
  • Secure Upgrade Plus - Essential Edition 2Y
  • Packaging data
  • Package depth
  • 860 mm
  • Package height
  • 280 mm
  • Package weight
  • 37.3 kg
  • Package width
  • 630 mm
  • Performance
  • Certification
  • FCC Class A, ICES Class A, CE (EMC Class A, LVD, RoHS), C-Tick, VCCI Class A, MSIP/KCC Class A, UL, cUL, TUV/GS, CB, Mexico UL DGN notification, WEEE, REACH, ANATEL, BSMI, ICSA Firewall, ICSA Anti-Virus, FIPS 140-2, Common Criteria NDPP (Firewall and IPS), UC APL, USGv6, CsFC
  • Ports & interfaces
  • Connectivity technology
  • Wired
  • Console port
  • RJ-45
  • Ethernet LAN data rates
  • 10000,40000,100000 Mbit/s
  • Number of console ports
  • 1
  • Remote management port
  • RJ-45 (Gigabit)
  • SFP module slots quantity
  • 6
  • SFP+ module slots quantity
  • 20
  • Power
  • AC input frequency
  • 50/60 Hz
  • AC input voltage
  • 100-240 V
  • Number of power supply units
  • 2
  • Power consumption (max)
  • 1065 W
  • Power supply
  • 1200 W
  • Redundant power supply (RPS) support
  • Y
  • Protocols
  • Routing protocols
  • BGP,OSPF,RIP,RIP-1,RIP-2
  • Supported network protocols
  • TCP/IP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3
  • Security
  • Security algorithms
  • 3DES,128-bit AES,192-bit AES,256-bit AES,DES,MD5,SHA-1
  • Storage
  • SSD capacity
  • 480 GB
  • Storage Capacity
  • 960 GB
  • Storage media type
  • SSD
  • System requirements
  • Compatible operating systems
  • Microsoft Windows Vista 32/64-bit, Windows 7 32/64-bit, Windows 8.0 32/64-bit, Windows 8.1 32/64-bit, Windows 10, Mac OS X 10.4+, Linux FC3+/Ubuntu 7+/OpenSUSE, Apple iOS, Mac OS X, Google Android, Kindle Fire, Chrome, Windows 8.1 (Embedded)
  • Weight & dimensions
  • Depth
  • 686 mm
  • Height
  • 88 mm
  • Weight
  • 26 kg
  • Width
  • 438 mm
