Description

Samsung LH75QBNEBGC/EN. Display diagonal: 190.5 cm (75"), Display resolution: 3840 x 2160 pixels, Display brightness: 350 cd/m². Product design: Digital signage flat panel, Product colour: Black, Panel mounting interface: 400 x 400 mm. Purpose: Universal, International Protection (IP) code: IP5X. Power consumption (typical): 159 W, Power consumption (standby): 0.5 W, AC input voltage: 100 - 240 V. Width: 1684.6 mm, Depth: 60.4 mm, Height: 966.7 mm

Revitalize customer engagement in retail and transportation settings
Elevate content quality through a unique combination of picture-enhancing features
Facilitate secure, PC-free meetings through rigid three-layer protection

Product Properties

Manufacturer
Samsung

Model
LH75QBNEBGC/EN

EAN
8801643312169

Bullet points

Point
Elevate content quality through a unique combination of picture-enhancing features

Facilitate secure, PC-free meetings through rigid three-layer protection

Revitalize customer engagement in retail and transportation settings

Design

Bezel width (bottom)
1.35 cm

Bezel width (side)
1.35 cm

Bezel width (top)
1.35 cm

Panel mounting interface
400 x 400 mm

Product colour
Black

Product design
Digital signage flat panel

VESA mounting
Y

Display

Colour gamut
72%

Contrast ratio (typical)
6000:1

Display brightness
350 cd/m²

Dynamic contrast ratio marketing name
Mega Contrast

HD type
4K Ultra HD

Horizontal scan range
30 - 81 kHz

Pixel pitch
0.42975 x 0.42975 mm

Response time
8 ms

Screen Resolution
3840 x 2160 pixels

Screen Size
190.5 cm (75")

Supported graphics resolutions
3840 x 2160

Vertical scan range
48 - 75 Hz

Viewing angle, horizontal
178°

Viewing angle, vertical
178°

Operational conditions

Operating relative humidity (H-H)
10 - 80%

Operating temperature (T-T)
0 - 40 °C

Other features

Annual energy consumption
232 kWh

Energy efficiency class (old)
A

Packaging data

Package depth
234 mm

Package height
1131 mm

Package weight
50.5 kg

Package width
1871 mm

Performance

International Protection (IP) code
IP5X

Purpose
Universal

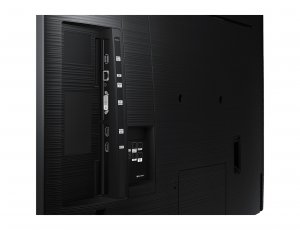

Ports & interfaces

Audio (L/R) in
1

Audio (L/R) out
1

DVI port
Y

DVI-I ports quantity
1

Ethernet LAN
Y

Ethernet LAN (RJ-45) ports
1

HDMI ports
2

Infrared data port
Y

RS-232 interface
Y

USB port
Y

USB ports quantity
2

Wi-Fi
Y

Power

AC input frequency
50 - 60 Hz

AC input voltage
100 - 240 V

Power consumption (standby)
0.5 W

Power consumption (typical)
159 W

Weight & dimensions

Depth
60.4 mm

Height
966.7 mm

Weight
38 kg

Width
1684.6 mm

Samsung LH75QBNEBGC/EN Digital signage flat panel 190.5 cm (75") 4K Ultra HD Black
