Description

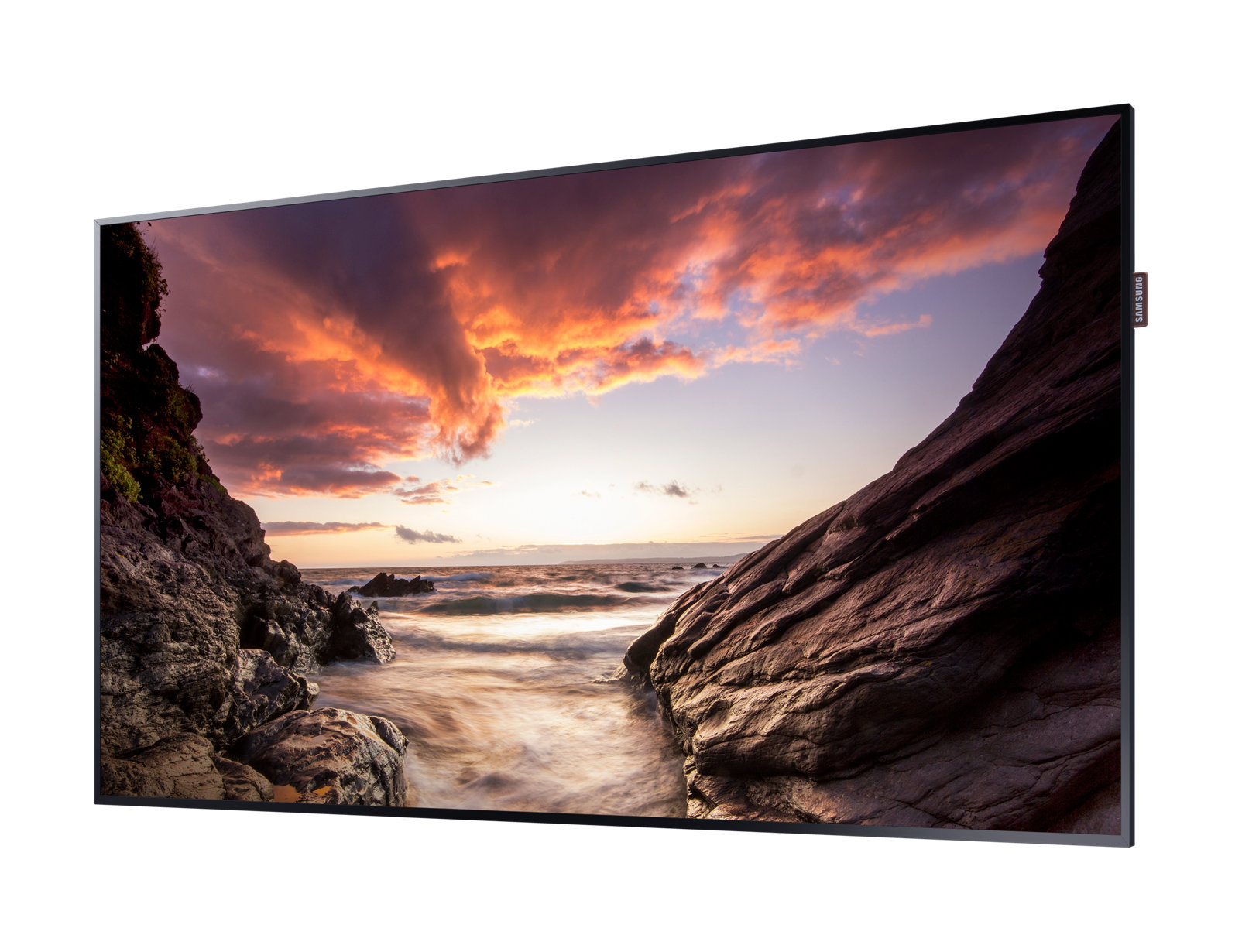

Samsung LH49PHFPMGC. Display diagonal: 124.5 cm (49"), Display technology: LED, Display resolution: 1920 x 1080 pixels. RMS rated power: 20 W. Product design: Digital signage flat panel, Product colour: Black, Placement supported: Indoor. Purpose: Universal, Operating hours (hours/days): 24/7. Power consumption (typical): 112 W, Power consumption (standby): 0.5 W, AC input voltage: 100 - 240 V

Next gen Smart Signage Platform (SSP) 4.0 powered by Tizen OS for powerful, streamlined 24/7 remote content management
IP5X certified dust protection provides proven durability for smooth installation without the need for additional housing
Non-glare, high brightness panel offers improved visibility in bright ambient light
Ultra-slim, ADA-Compliant profile of just 1.1" chassis depth and 6.9mm bezel width

Product Properties

Manufacturer
Samsung

Model
LH49PHFPMGC/EN

EAN
8806088677293

Audio

Built-in speaker(s)
Y

Number of built-in speakers
2

RMS rated power
20 W

Bullet points

Point
Non-glare, high brightness panel offers improved visibility in bright ambient light

Ultra-slim, ADA-Compliant profile of just 1.1" chassis depth and 6.9mm bezel width

Computer system

Computer system
Y

Internal memory
2.5 GB

Internal storage capacity
8 GB

Operating System
Tizen 4.0

Processor cores
4

Processor family
ARM Cortex

Processor frequency
1.3 GHz

Processor model
A12

Design

Bezel width (bottom)
8.9 mm

Bezel width (side)
6.9 mm

Bezel width (top)
6.9 mm

Orientation
Horizontal/Vertical

Panel mounting interface
400 x 400 mm

Placement supported
Indoor

Product colour
Black

Product design
Digital signage flat panel

VESA mounting
Y

Display

Contrast ratio (typical)
4000:1

Display brightness
700 cd/m²

HD type
Full HD

LED backlighting type
Edge-LED BLU

Native aspect ratio
16:9

Response time
8 ms

Screen Resolution
1920 x 1080 pixels

Screen Size
124.5 cm (49")

Screen Type
LED

Touchscreen
N

Viewing angle, horizontal
178°

Viewing angle, vertical
178°

Operational conditions

Operating relative humidity (H-H)
10 - 80%

Operating temperature (T-T)
0 - 40 °C

Other features

Annual energy consumption
160 kWh

DisplayPort version
1.2

Energy efficiency class (old)
B

Plug and Play
Y

Quick start guide
Y

SMART Signage TV (SSTV)
Y

Packaging content

Batteries included
Y

Cables included
AC

Handheld remote control
Y

Packaging data

Package depth
165.1 mm

Package height
718.8 mm

Package weight
18.1 kg

Package width
1193.8 mm

Performance

HDCP
Y

On Screen Display (OSD)
Y

Operating hours (hours/days)
24/7

Purpose
Universal

TV tuner integrated
N

Ports & interfaces

Audio (L/R) in
1

Audio (L/R) out
1

DisplayPorts quantity
2

DVI port
Y

DVI-I ports quantity
1

Ethernet LAN
Y

Ethernet LAN (RJ-45) ports
1

HDMI ports
2

RS-232C
Y

USB port
Y

USB ports quantity
2

USB version
2.0

Wi-Fi
Y

Power

AC input frequency
50 - 60 Hz

AC input voltage
100 - 240 V

Power consumption (standby)
0.5 W

Power consumption (typical)
112 W

Technical details

Sustainability certificates
RoHS, ENERGY STAR

Weight & dimensions

Depth
27.9 mm

Height
622.3 mm

Weight
13.2 kg

Width
1092.2 mm

Samsung LH49PHFPMGC signage display Digital signage flat panel 124.5 cm (49") LED Full HD Black Tizen 4.0
