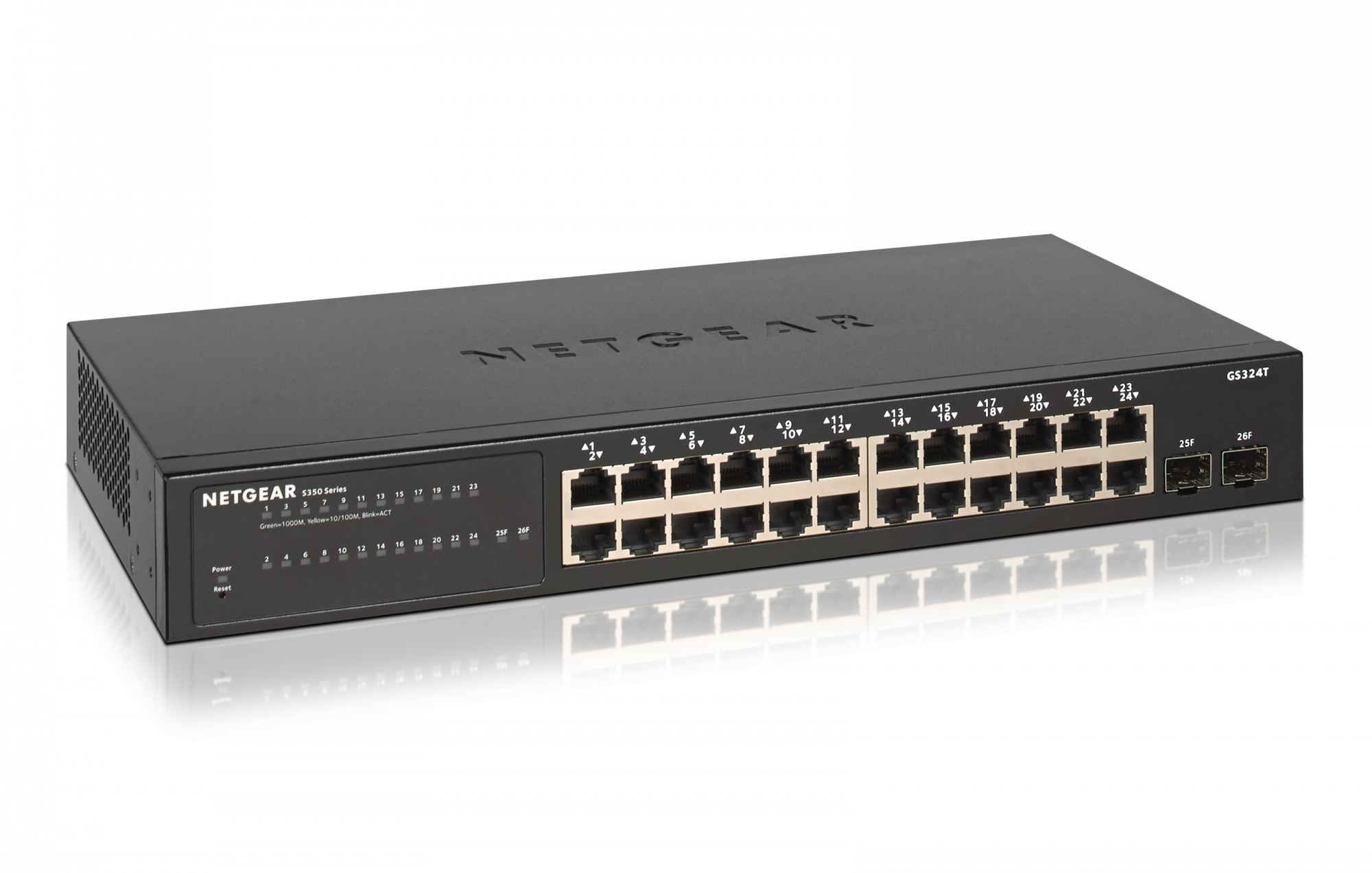

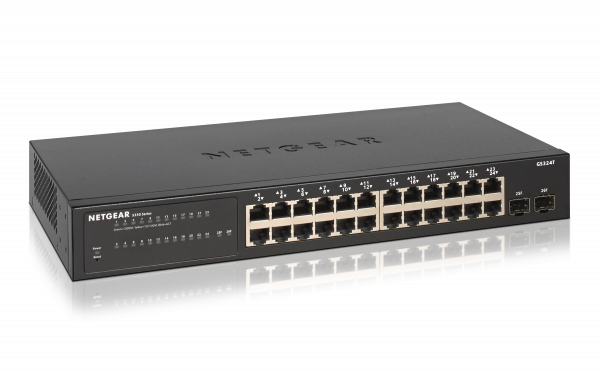

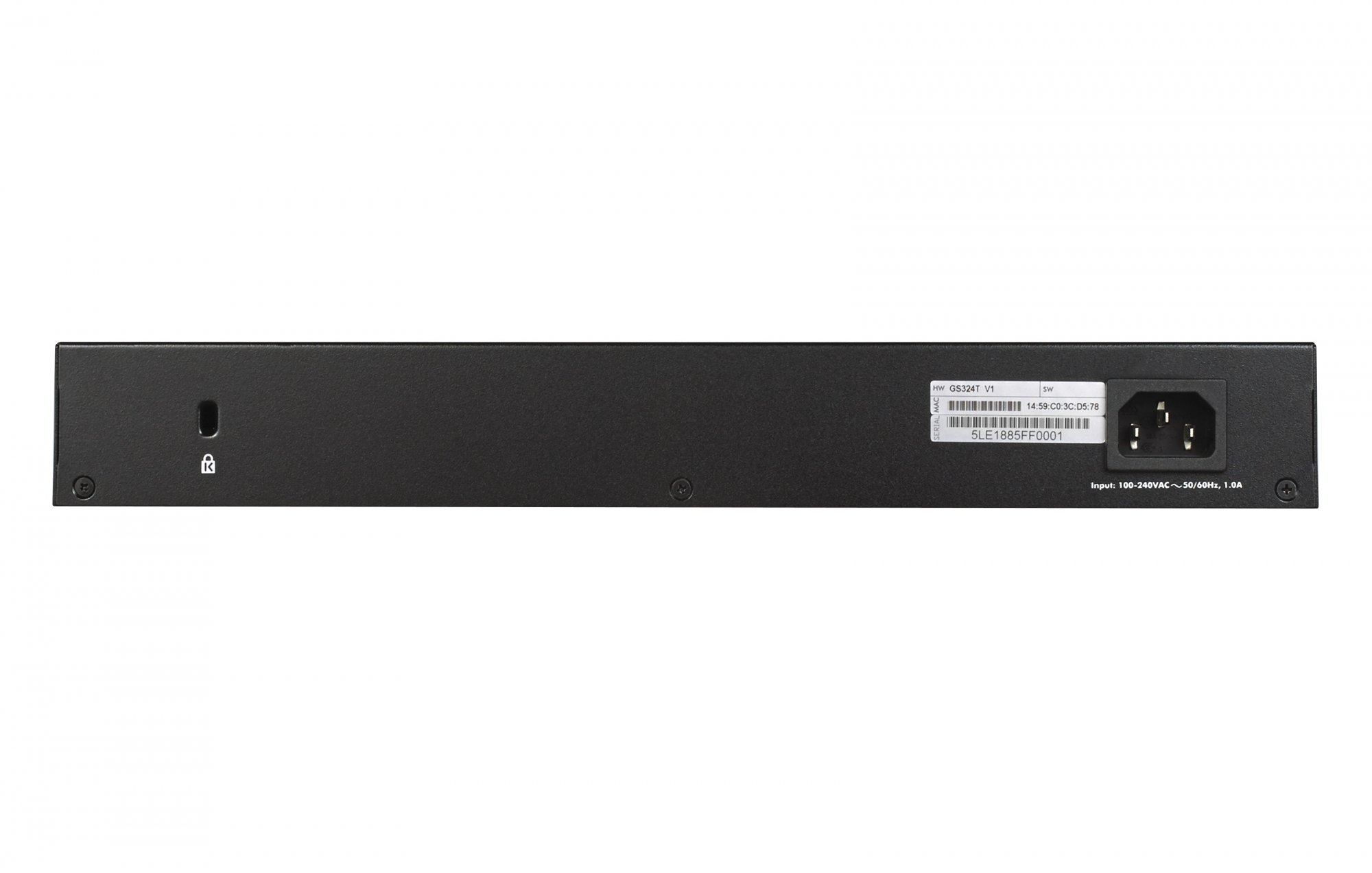

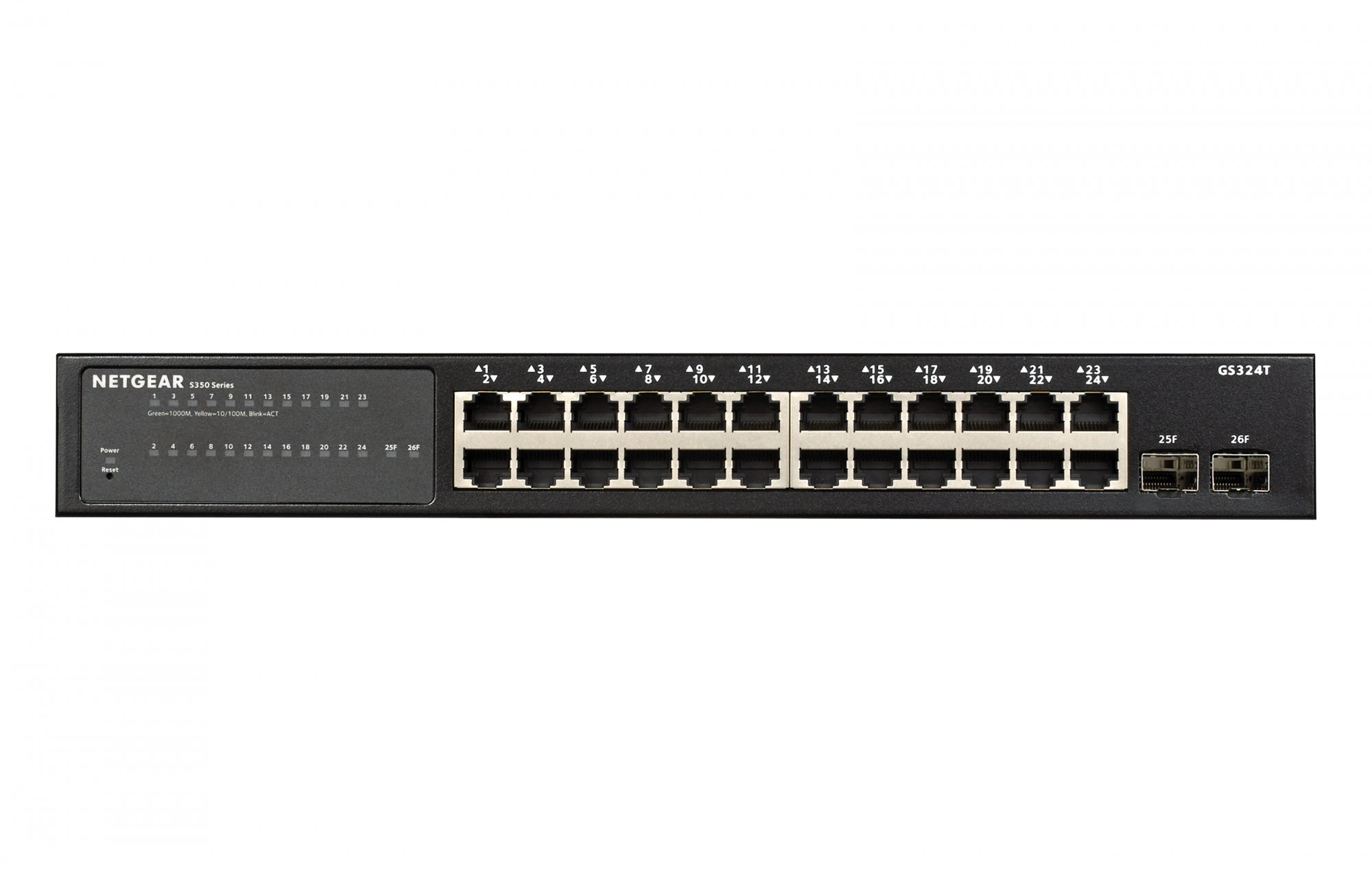

NETGEAR GS324T Managed L2/L3/L4 Gigabit Ethernet (10/100/1000) Black
Roll over image to zoom inClick to Open expanded view
NETGEAR GS324T Managed L2/L3/L4 Gigabit Ethernet (10/100/1000) Black
NETGEAR GS324T Managed L2/L3/L4 Gigabit Ethernet (10/100/1000) Black
NETGEAR GS324T Managed L2/L3/L4 Gigabit Ethernet (10/100/1000) Black
Print
Model: GS324T-100EUS
EAN: 606449135572

NETGEAR GS324T Managed L2/L3/L4 Gigabit Ethernet (10/100/1000) Black

Manufacturer:
Netgear
NETGEAR GS324T, Managed, L2/L3/L4, Gigabit Ethernet (10/100/1000), Full duplex, Rack mounting
Please log in to see your price
Related products

Description

NETGEAR GS324T. Switch type: Managed, Switch layer: L2/L3/L4. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 16000 entries, Switching capacity: 52 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE.... Power connector: AC-in jack. Rack mounting

Product Properties

  • Model
  • GS324T-100EUS
  • EAN
  • 606449135572
  • Data transmission
  • Jumbo frames support
  • Yes
  • MAC address table
  • 16000 entries
  • Store-and-forward
  • Yes
  • Switching capacity
  • 52 Gbit/s
  • Design
  • LED indicators
  • Yes
  • Product colour
  • Black
  • Rack mounting
  • Yes
  • Logistics data
  • Harmonized System (HS) code
  • 85176990
  • Master (outer) case gross weight
  • 8.85 kg
  • Master (outer) case height
  • 271 mm
  • Master (outer) case length
  • 481 mm
  • Master (outer) case width
  • 270 mm
  • Products per master (outer) case
  • 3 pc(s)
  • Management features
  • ARP inspection
  • Yes
  • Quality of Service (QoS) support
  • Yes
  • Switch layer
  • L2/L3/L4
  • Switch type
  • Managed
  • Virtual Cable Test (VCT)
  • Yes
  • Network
  • Auto-negotiation
  • Yes
  • Broadcast storm control
  • Yes
  • Flow control support
  • Yes
  • Full duplex
  • Yes
  • Link aggregation
  • Yes
  • Networking standards
  • IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3az, IEEE 802.3x
  • Number of VLANs
  • 256
  • Port mirroring
  • Yes
  • Rate limiting
  • Yes
  • Spanning tree protocol
  • Yes
  • Virtual LAN features
  • Private VLAN, Voice VLAN, Port-based VLAN
  • VLAN support
  • Yes
  • Operational conditions
  • Operating temperature (T-T)
  • 0 - 40 °C
  • Packaging content
  • Cables included
  • AC
  • Quick start guide
  • Yes
  • Packaging data
  • Mounting brackets included
  • Yes
  • Package depth
  • 465 mm
  • Package height
  • 79 mm
  • Package type
  • Box
  • Package weight
  • 2.71 kg
  • Package width
  • 229 mm
  • Performance
  • Buffer size
  • 512 KB
  • Firmware upgradeable
  • Yes
  • Ports & interfaces
  • Installed SFP modules quantity
  • 0
  • Installed SFP+ modules quantity
  • 0
  • Power connector
  • AC-in jack
  • SFP module slots quantity
  • 2
  • Switch Number of Ports
  • 24
  • Switch Port Speed
  • Gigabit Ethernet (10/100/1000)
  • Power
  • AC input frequency
  • 50 - 60 Hz
  • AC input voltage
  • 100 - 240 V
  • Input current
  • 5 A
  • Power consumption (max)
  • 13.5 W
  • Power over Ethernet (PoE)
  • Power over Ethernet (PoE)
  • No
  • Security
  • Access Control List (ACL)
  • Yes
  • ARP attack prevention
  • Yes
  • DHCP features
  • DHCP client
  • DoS attack prevention
  • Yes
  • IGMP snooping
  • Yes
  • Loop protection
  • Yes
  • Weight & dimensions
  • Depth
  • 169 mm
  • Height
  • 43 mm
  • Weight
  • 1.62 kg
  • Width
  • 328 mm
