Description

NEC ME383W. Projector brightness: 3800 ANSI lumens, Projection technology: 3LCD, Projector native resolution: WXGA (1280x800). Light source type: Lamp, Service life of light source: 10000 h, Service life of light source (economic mode): 20000 h. Focus: Manual, Focal length range: 17.4 - 29 mm, Aperture range (F-F): 1.7 - 2.2. Analog signal format system: NTSC, PAL, PAL 60, SECAM. Serial interface type: RS-232

Minimized cost of ownership – due to long lamp life and filter exchange intervals
Versatile and mobile – compact and light-weight with HDMI and integrated 16W speaker
Display content that demands attention – with WXGA resolution and superb brightness levels and colour ranges, your viewers will enjoy an outstanding visual experience
Wide array of flexible application scenarios – thanks to multi-source conferencing and efficient split-screen operation supported by a wide future-ready range of digital connectivity

Product Properties

Manufacturer
NEC

Model
60005220

EAN
5028695614338

Bullet points

Point
Minimized cost of ownership – due to long lamp life and filter exchange intervals

Versatile and mobile – compact and light-weight with HDMI and integrated 16W speaker

Design

Market positioning
Business

Product colour
White

Product type
Standard throw projector

Features

Noise level
37 dB

Noise level (economic mode)
29 dB

Lens system

Aperture range (F-F)
1.7 - 2.2

Focal length range
17.4 - 29 mm

Focus
Manual

Zoom capability
Yes

Light source

Lamp power
225 W

Lamp power (economic mode)
151 W

Light source type
Lamp

Service life of light source
10000 h

Service life of light source (economic mode)
20000 h

Logistics data

Harmonized System (HS) code
85286200

Multimedia

Built-in speaker(s)
Yes

Number of built-in speakers
1

RMS rated power
16 W

Network

Ethernet LAN
Yes

Ethernet LAN (RJ-45) ports
1

Operational conditions

Operating relative humidity (H-H)
20 - 80%

Operating temperature (T-T)
5 - 40 °C

Storage relative humidity (H-H)
20 - 80%

Storage temperature (T-T)
-10 - 50 °C

Packaging content

Manual
Yes

Remote control included
Yes

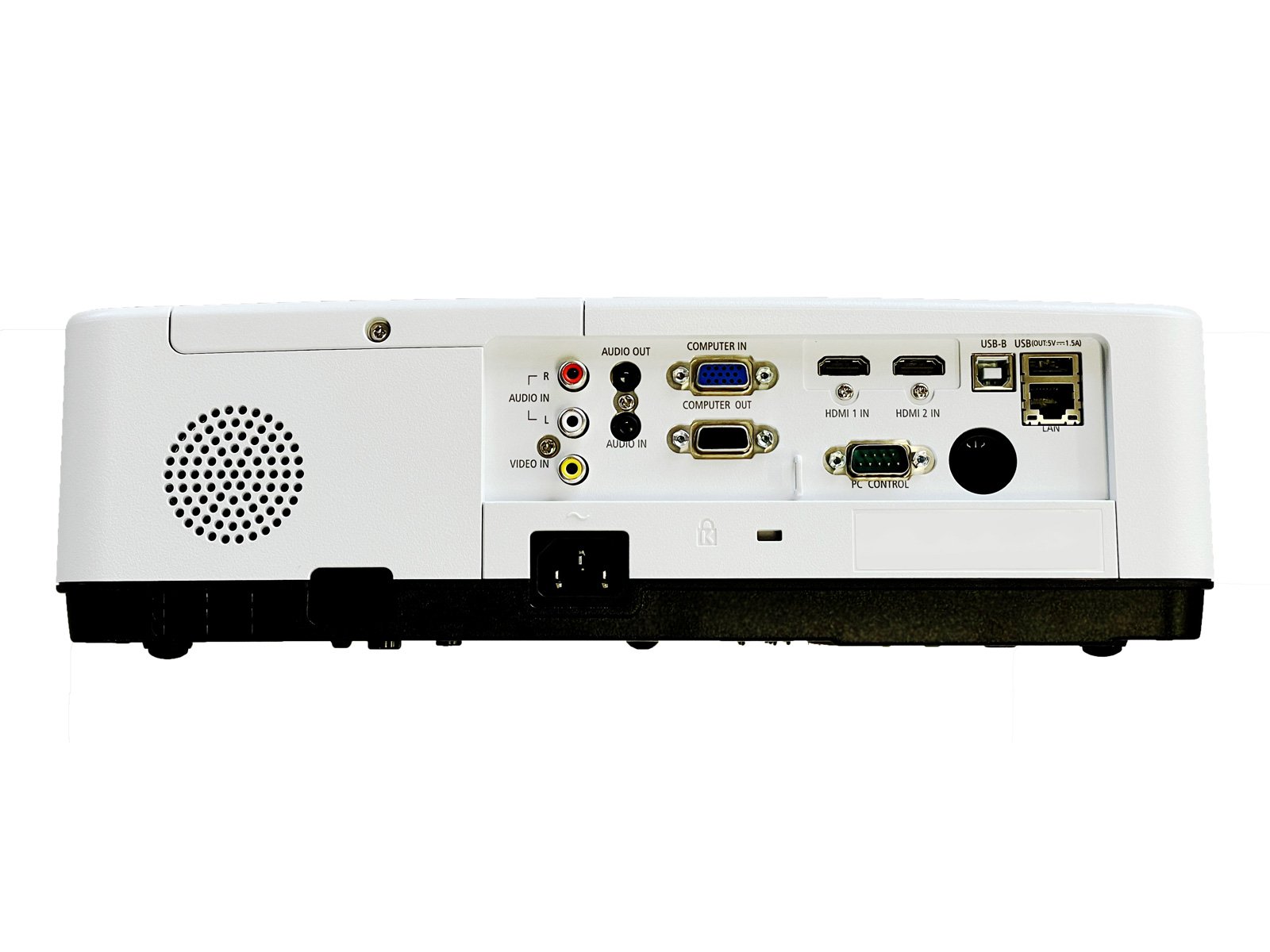

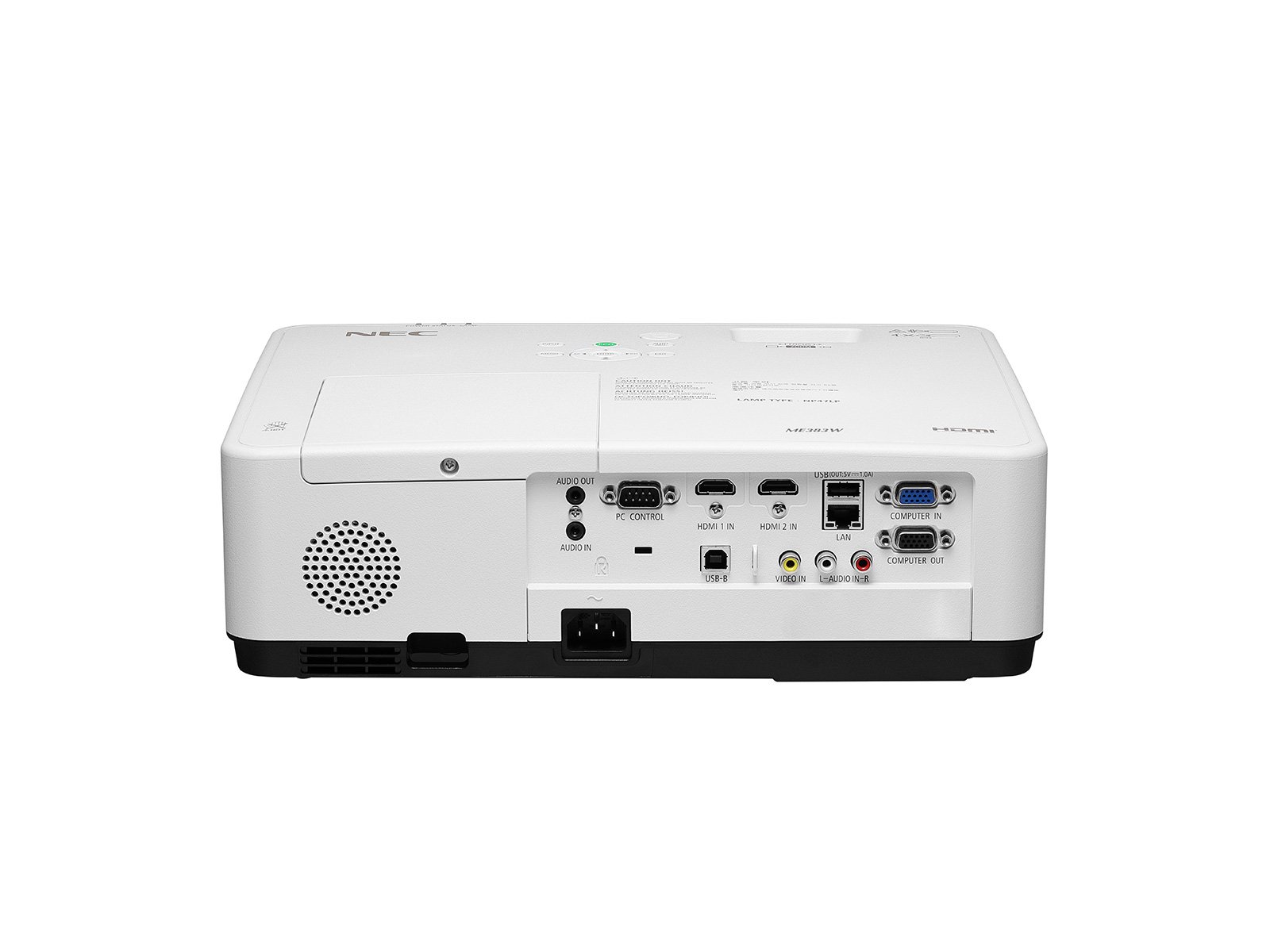

Ports & interfaces

HDMI ports
2

PC Audio in
Yes

PC Audio out
Yes

Serial interface type
RS-232

USB 2.0 ports quantity
1

USB 2.0 Type-B ports quantity
1

VGA (D-Sub) ports quantity
1

Power

AC input frequency
50 - 60 Hz

AC input voltage
100 - 240 V

Auto power off
Yes

Power consumption (economy mode)
196 W

Power consumption (standby)
0.5 W

Power consumption (typical)
288 W

Power source
AC

Projector

Contrast ratio (typical)
16000:1

Horizontal scan range
15 - 100 kHz

Keystone correction, horizontal
-30 - 30°

Keystone correction, vertical
-30 - 30°

Native aspect ratio
16:10

Projection distance
0.94 - 11.59 m

Projection technology
3LCD

Projector brightness
3800 ANSI lumens

Projector native resolution
WXGA (1280x800)

Screen size compatibility
762 - 7620 mm (30 - 300")

Vertical scan range
50 - 120 Hz

Technical details

Compliance certificates
RoHS, WEEE

Sustainability certificates
ErP

Video

Analog signal format system
NTSC, PAL, PAL 60, SECAM

Weight & dimensions

Depth
261 mm

Height
104.6 mm

Weight
3.2 kg

Width
345 mm

NEC ME383W Standard throw projector 3800 ANSI lumens 3LCD WXGA (1280x800) White
