Description

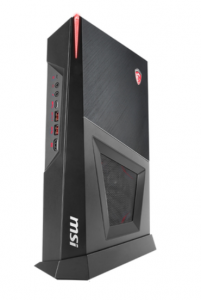

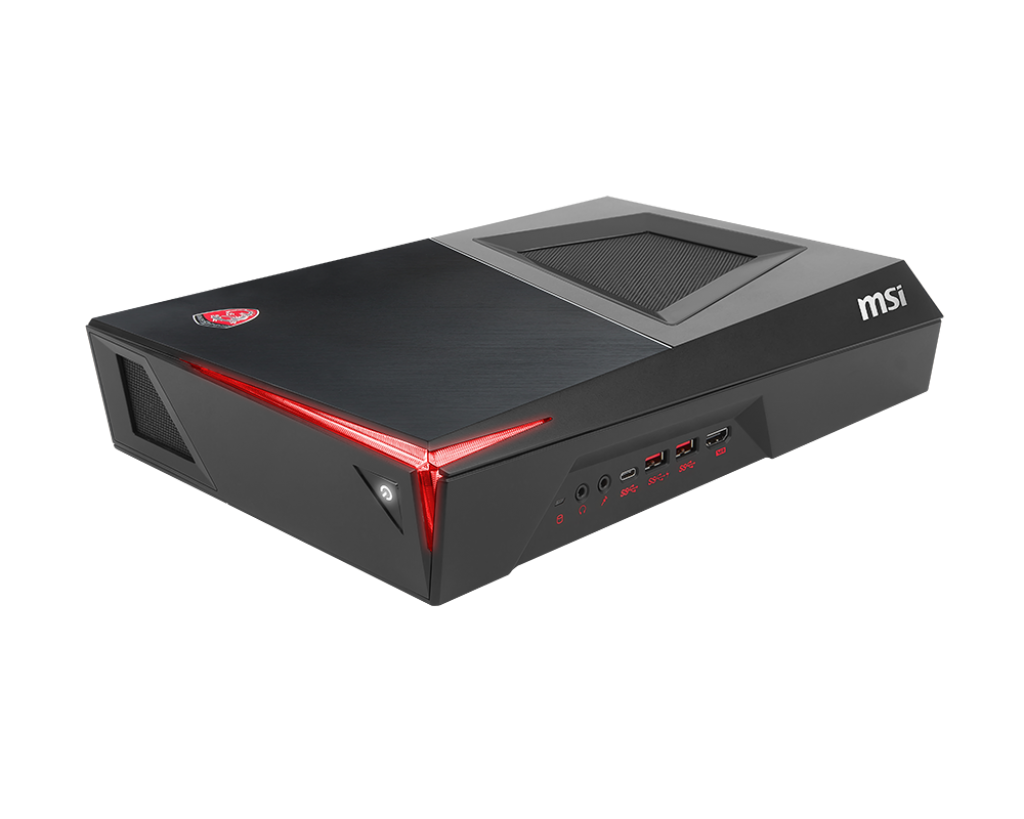

MSI Trident 7RB-200UK. Processor frequency: 3 GHz, Processor family: 7th gen Intel® Core™ i5, Processor model: i5-7400. Internal memory: 8 GB, Internal memory type: DDR4-SDRAM, Memory clock speed: 2400 MHz. Total storage capacity: 1000 GB, Storage media: HDD. On-board graphics adapter model: Intel® HD Graphics 630, Discrete graphics adapter model: NVIDIA® GeForce® GTX 1050 Ti. Power supply: 230 W. Chassis type: Small Desktop. Product type: PC. Weight: 3.17 kg. Product colour: Black

Intel® Identity Protection Technology (Intel® IPT)

Protect Your Identity and Business Intel® Identity Protection Technology (Intel® IPT) protects enterprises from being penetrated by stolen credentials and online user account access with an added layer of hardware-based security and authentication as well as a multifactor authentication framework to manage different authentication methods.

Intel® Turbo Boost Technology

Higher Performance When You Need It Most Intel® Turbo Boost Technology 2.01 accelerates processor and graphics performance by increasing the operating frequency when operating below specification limits. The maximum frequency varies depending on workload, hardware, software, and overall system configuration.

Conflict-Free processor

Does not contain "conflict minerals": tantalum, tin, tungsten, and gold.

Product Properties

Manufacturer
MSI

Model
9S6-B90611-200

EAN
4719072519698

Design

Chassis type
Small Desktop

Product colour
Black

Graphics

CUDA
Y

Discrete graphics adapter
Y

Discrete graphics adapter model
NVIDIA® GeForce® GTX 1050 Ti

Discrete graphics memory type
GDDR5

Graphics adapter HDMI ports quantity
1

Graphics Memory
4 GB

Graphics Processor
Intel® HD Graphics 630

Maximum on-board graphics adapter memory
64 GB

Number of displays supported (on-board graphics)
3

NVIDIA G-SYNC
Y

NVIDIA GameWorks VR
Y

On-board graphics adapter
Y

On-board graphics adapter base frequency
350 MHz

On-board graphics adapter DirectX version
12.0

On-board graphics adapter dynamic frequency (max)
1000 MHz

On-board graphics adapter family
Intel® HD Graphics

On-board graphics adapter ID
5912

On-board graphics adapter OpenGL version
4.4

Memory

Internal memory type
DDR4-SDRAM

Memory channels
Dual-channel

Memory clock speed
2400 MHz

Memory Installed
8 GB

Memory Slot Support
32 GB

Memory slots
2x SO-DIMM

Network

Bluetooth
Y

Bluetooth version
4.2

Cabling technology
10/100/1000Base-T(X)

Ethernet LAN
Y

Ethernet LAN data rates
10,100,1000 Mbit/s

Top Wi-Fi standard
Wi-Fi 5 (802.11ac)

Wi-Fi
Y

Wi-Fi standards
802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac)

WLAN controller model
Intel Dual Band Wireless-AC 3168

Packaging content

Cables included
AC

Display included
N

Manual
Y

Performance

Audio output channels
5.1 channels

Motherboard chipset
Intel® H110

Product type
PC

Virtual Reality (VR) ready
Y

Ports & interfaces

DVI port
N

Ethernet LAN (RJ-45) ports
1

HDMI ports
1

Headphone outputs
1

Line-in
Y

Line-out
Y

Microphone in
Y

USB 2.0 ports quantity
4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1

Power

Power supply
230 W

Processor

Bus type
DMI3

ECC supported by processor
N

Maximum internal memory supported by processor
64 GB

Maximum number of PCI Express lanes
16

Memory clock speeds supported by processor
1333,1600,2133,2400 MHz

Memory types supported by processor
DDR3L-SDRAM,DDR4-SDRAM

Memory voltage supported by processor
1.35 V

Number of Cores
4

Number of processors installed
1

PCI Express configurations
1x16,1x8+2x4,2x8

PCI Express slots version
3.0

Processor
i5-7400

Processor boost frequency
3.5 GHz

Processor cache
6 MB

Processor cache type
Smart Cache

Processor codename
Kaby Lake

Processor family
7th gen Intel® Core™ i5

Processor frequency
3 GHz

Processor lithography
14 nm

Processor manufacturer
Intel

Processor operating modes
64-bit

Processor series
Intel Core i5-7400 Desktop Series

Processor socket
LGA 1151 (Socket H4)

Processor threads
4

Stepping
B0

System bus rate
8 GT/s

Thermal Design Power (TDP)
65 W

Tjunction
100 °C

Processor special features

Conflict-Free processor
Y

CPU configuration (max)
1

Embedded options available
N

Enhanced Intel SpeedStep Technology
Y

Execute Disable Bit
Y

Idle States
Y

Intel 64
Y

Intel Clear Video Technology
Y

Intel Enhanced Halt State
Y

Intel Identity Protection Technology version
1.00

Intel Secure Key Technology version
1.00

Intel Software Guard Extensions (Intel SGX)
Y

Intel Stable Image Platform Program (SIPP)
N

Intel Stable Image Platform Program (SIPP) version
0.00

Intel Trusted Execution Technology
N

Intel TSX-NI
N

Intel TSX-NI version
0.00

Intel Virtualization Technology (VT-x)
Y

Intel Virtualization Technology for Directed I/O (VT-d)
Y

Intel VT-x with Extended Page Tables (EPT)
Y

Intel® AES New Instructions (Intel® AES-NI)
Y

Intel® Clear Video HD Technology (Intel® CVT HD)
Y

Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)
Y

Intel® Hyper Threading Technology (Intel® HT Technology)
N

Intel® Identity Protection Technology (Intel® IPT)
Y

Intel® InTru™ 3D Technology
Y

Intel® OS Guard
Y

Intel® Quick Sync Video Technology
Y

Intel® Secure Key
Y

Intel® Turbo Boost Technology
2.0

Processor ARK ID
97147

Processor code
SR32W

Processor package size
37.5 x 37.5 mm

Scalability
1S

Supported instruction sets
AVX 2.0,SSE4.1,SSE4.2

Thermal Monitoring Technologies
Y

Thermal solution specification
PCG 2015C

Storage

Card reader integrated
N

HDD interface
SATA

Number of storage drives installed
1000

Number of storage drives supported
1

Optical drive type
N

Storage Capacity
1000 GB

Storage type
HDD

Total HDDs capacity
1000 GB

Weight & dimensions

Depth
97.6 mm

Height
251.3 mm

Package weight
6.09 kg

Weight
3.17 kg

Width
353.7 mm

MSI Trident 7RB-200UK DDR4-SDRAM i5-7400 Small Desktop 7th gen Intel® Core™ i5 8 GB 1000 GB HDD PC Black
