Description

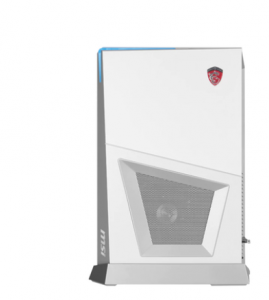

MSI Trident 3 Arctic-060EU. Processor frequency: 3.6 GHz, Processor family: 7th gen Intel® Core™ i7, Processor model: i7-7700. Internal memory: 16 GB, Internal memory type: DDR4-SDRAM, Memory clock speed: 2400 MHz. Total storage capacity: 1256 GB, Storage media: HDD+SSD. On-board graphics adapter model: Intel® HD Graphics 630, Discrete graphics adapter model: NVIDIA® GeForce® GTX 1070. Operating system installed: Windows 10 Home. Power supply: 330 W. Chassis type: Small Desktop. Product type: PC. Product colour: White

Intel® Identity Protection Technology (Intel® IPT)

Protect Your Identity and Business Intel® Identity Protection Technology (Intel® IPT) protects enterprises from being penetrated by stolen credentials and online user account access with an added layer of hardware-based security and authentication as well as a multifactor authentication framework to manage different authentication methods.

Intel® Turbo Boost Technology

Higher Performance When You Need It Most Intel® Turbo Boost Technology 2.01 accelerates processor and graphics performance by increasing the operating frequency when operating below specification limits. The maximum frequency varies depending on workload, hardware, software, and overall system configuration.

Conflict-Free processor

Does not contain "conflict minerals": tantalum, tin, tungsten, and gold.

Product Properties

Manufacturer
MSI

Model
9S6-B90612-060

EAN
4719072512712

Design

Chassis type
Small Desktop

Product colour
White

Graphics

CUDA
Y

Discrete graphics adapter
Y

Discrete graphics adapter model
NVIDIA® GeForce® GTX 1070

Discrete graphics memory type
GDDR5

Graphics adapter HDMI ports quantity
1

Graphics Memory
8 GB

Graphics Processor
Intel® HD Graphics 630

Maximum on-board graphics adapter memory
64 GB

Number of discrete graphics adapters
1

Number of displays supported (on-board graphics)
3

NVIDIA G-SYNC
Y

NVIDIA GameWorks VR
Y

On-board graphics adapter
Y

On-board graphics adapter base frequency
350 MHz

On-board graphics adapter DirectX version
12.0

On-board graphics adapter dynamic frequency (max)
1150 MHz

On-board graphics adapter family
Intel® HD Graphics

On-board graphics adapter ID
0x5912

On-board graphics adapter OpenGL version
4.4

Memory

Internal memory type
DDR4-SDRAM

Memory channels
Dual-channel

Memory clock speed
2400 MHz

Memory Installed
16 GB

Memory layout (slots x size)
2 x 8 GB

Memory Slot Support
32 GB

Memory slots
2x SO-DIMM

Network

Bluetooth
Y

Bluetooth version
4.2

Cabling technology
10/100/1000Base-T(X)

Ethernet LAN
Y

Ethernet LAN data rates
10,100,1000 Mbit/s

Top Wi-Fi standard
Wi-Fi 5 (802.11ac)

Wi-Fi
Y

Wi-Fi standards
Wi-Fi 5 (802.11ac)

Packaging content

AC adapter included
Y

Display included
N

Manual
Y

Performance

Audio output channels
5.1 channels

Market positioning
Gaming

Motherboard chipset
Intel® H110

Product type
PC

Virtual Reality (VR) ready
Y

Ports & interfaces

DVI port
N

Ethernet LAN (RJ-45) ports
1

HDMI ports
3

Headphone outputs
1

Line-in
Y

Line-out
Y

Microphone in
Y

USB 2.0 ports quantity
4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1

Power

Power supply
330 W

Processor

Bus type
DMI3

ECC supported by processor
N

Maximum internal memory supported by processor
64 GB

Maximum number of PCI Express lanes
16

Memory clock speeds supported by processor
1333,1600,2133,2400 MHz

Memory types supported by processor
DDR3L, DDR4-SDRAM

Memory voltage supported by processor
1.35 V

Number of Cores
4

Number of processors installed
1

PCI Express configurations
1x16,1x8+2x4,2x8

PCI Express slots version
3.0

Processor
i7-7700

Processor boost frequency
4.2 GHz

Processor cache
8 MB

Processor cache type
Smart Cache

Processor codename
Kaby Lake

Processor family
7th gen Intel® Core™ i7

Processor frequency
3.6 GHz

Processor lithography
14 nm

Processor manufacturer
Intel

Processor operating modes
64-bit

Processor socket
LGA 1151 (Socket H4)

Processor threads
8

Stepping
B0

System bus rate
8 GT/s

Thermal Design Power (TDP)
65 W

Tjunction
100 °C

Processor special features

Conflict-Free processor
Y

CPU configuration (max)
1

Embedded options available
Y

Enhanced Intel SpeedStep Technology
Y

Execute Disable Bit
Y

Idle States
Y

Intel 64
Y

Intel Clear Video Technology
Y

Intel Enhanced Halt State
Y

Intel Identity Protection Technology version
1.00

Intel Secure Key Technology version
1.00

Intel Software Guard Extensions (Intel SGX)
Y

Intel Stable Image Platform Program (SIPP)
Y

Intel Stable Image Platform Program (SIPP) version
1.00

Intel Trusted Execution Technology
Y

Intel TSX-NI
Y

Intel TSX-NI version
1.00

Intel Virtualization Technology (VT-x)
Y

Intel Virtualization Technology for Directed I/O (VT-d)
Y

Intel VT-x with Extended Page Tables (EPT)
Y

Intel® AES New Instructions (Intel® AES-NI)
Y

Intel® Clear Video HD Technology (Intel® CVT HD)
Y

Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)
Y

Intel® Hyper Threading Technology (Intel® HT Technology)
Y

Intel® Identity Protection Technology (Intel® IPT)
Y

Intel® InTru™ 3D Technology
Y

Intel® OS Guard
Y

Intel® Quick Sync Video Technology
Y

Intel® Secure Key
Y

Intel® Turbo Boost Technology
2.0

Processor ARK ID
97128

Processor code
SR338

Processor package size
37.5 x 37.5 mm

Scalability
1S

Supported instruction sets
AVX 2.0,SSE4.1,SSE4.2

Thermal Monitoring Technologies
Y

Thermal solution specification
PCG 2015C

Software

Operating system installed
Windows 10 Home

Storage

Card reader integrated
N

HDD capacity
1000 GB

HDD size
2.5"

Number of HDDs installed
1

Number of SSDs installed
1

Number of storage drives installed
2

Optical drive type
N

SSD capacity
128 GB

SSD form factor
M.2

Storage Capacity
1256 GB

Storage type
HDD+SSD

Weight & dimensions

Depth
251.3 mm

Height
97.6 mm

Package weight
6.09 kg

Weight
3.17 kg

Width
353.7 mm

MSI Trident 3 Arctic-060EU DDR4-SDRAM i7-7700 Small Desktop 7th gen Intel® Core™ i7 16 GB 1256 GB HDD+SSD Windows 10 Home PC White
