Description

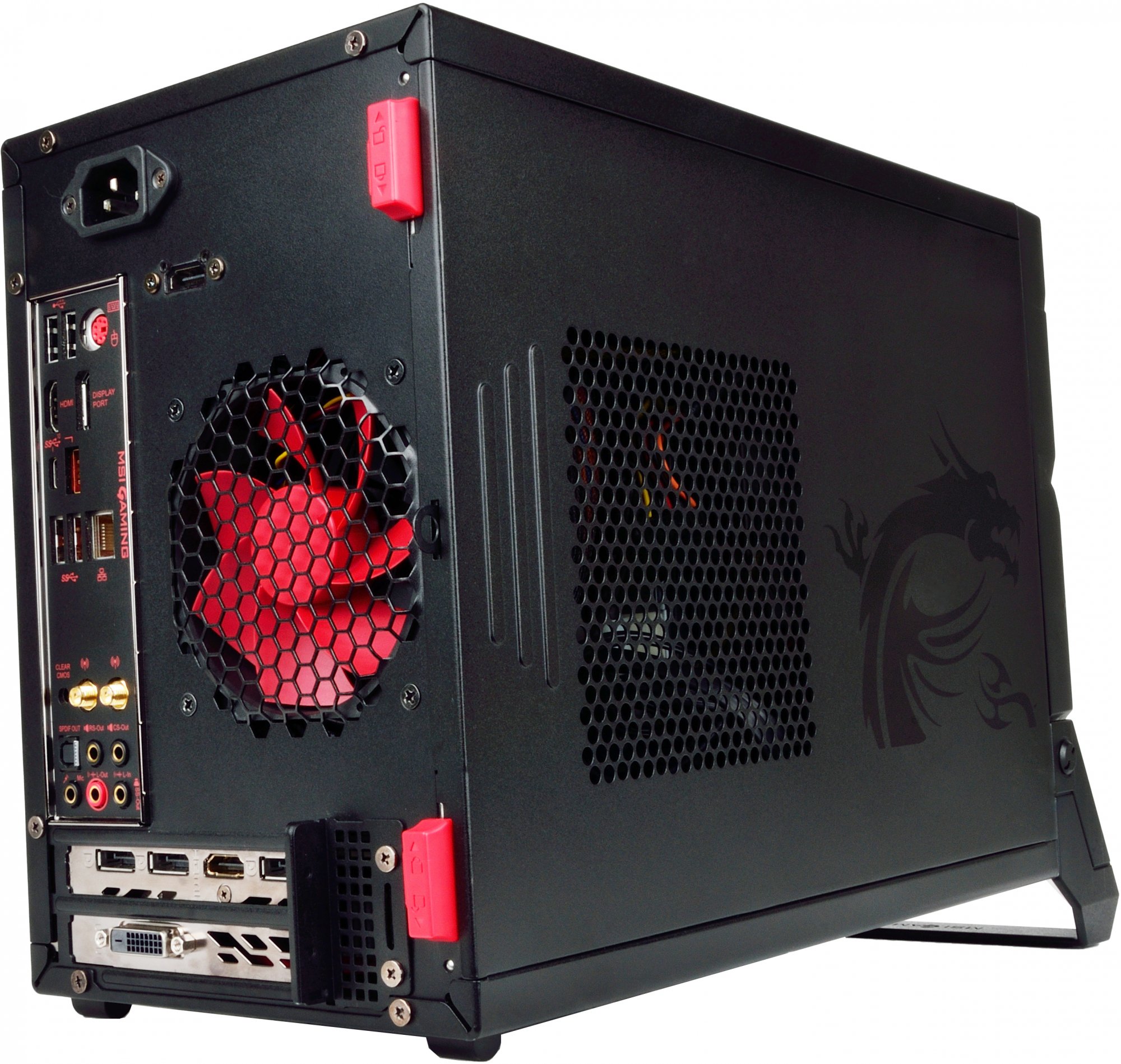

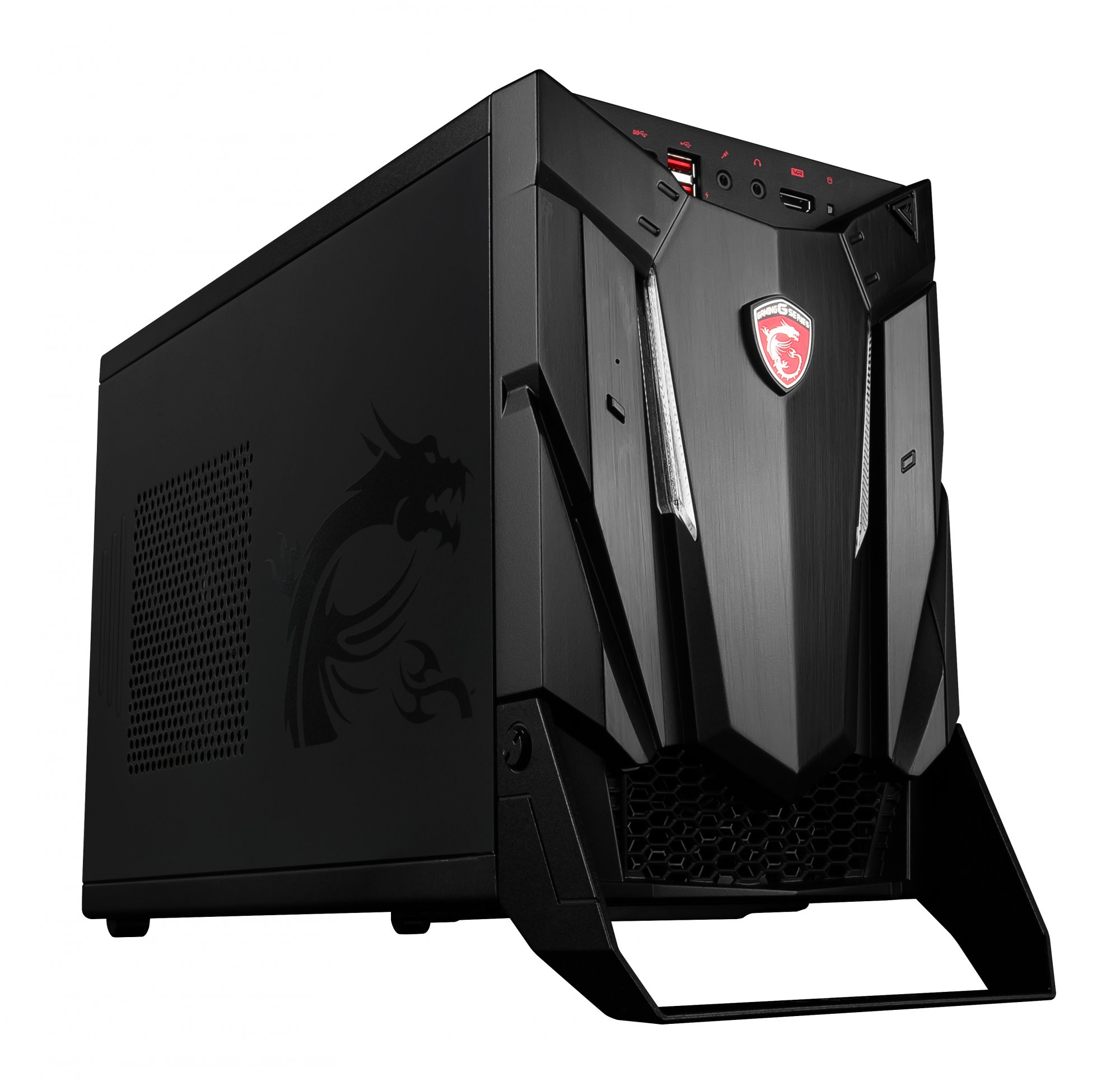

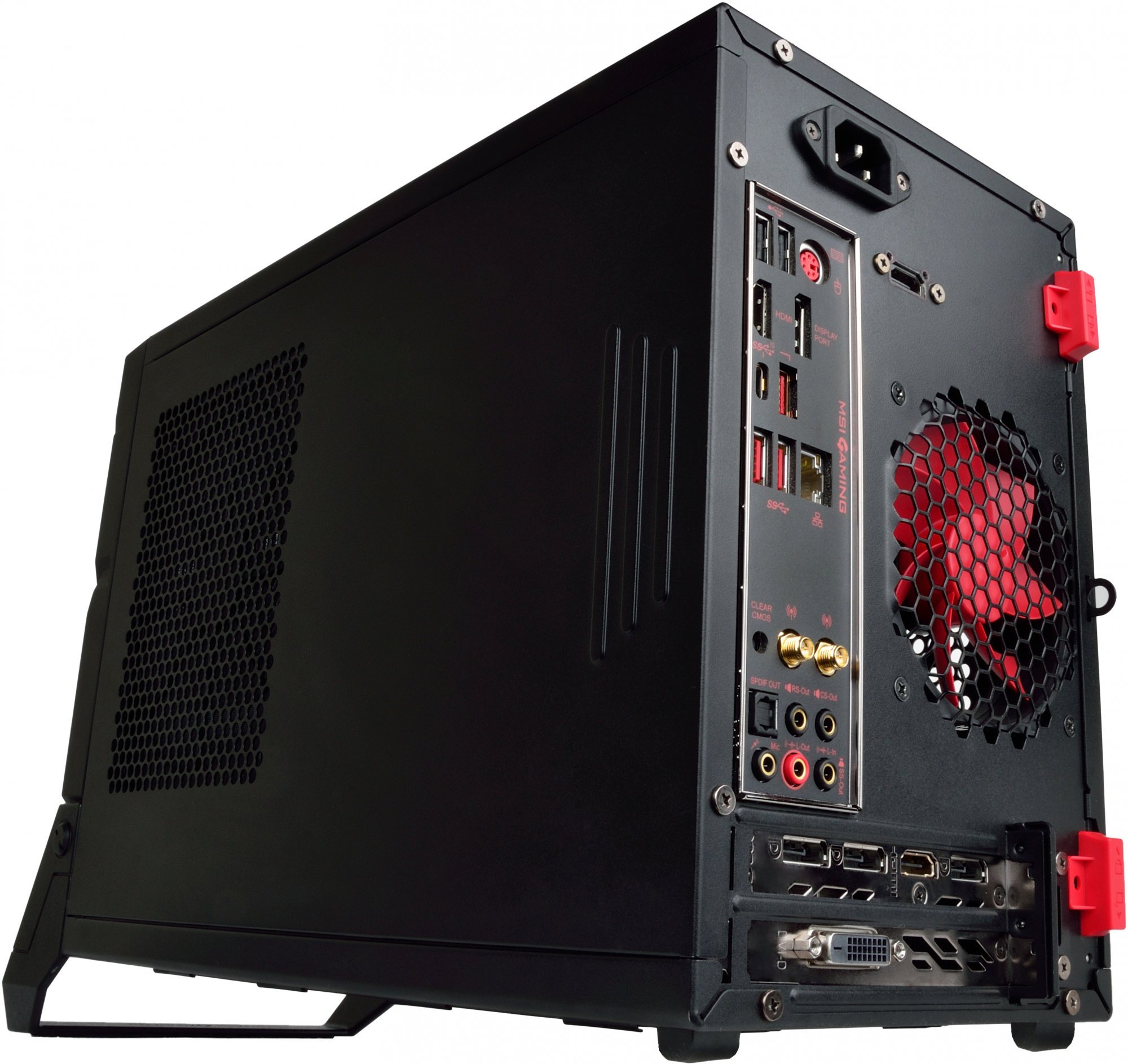

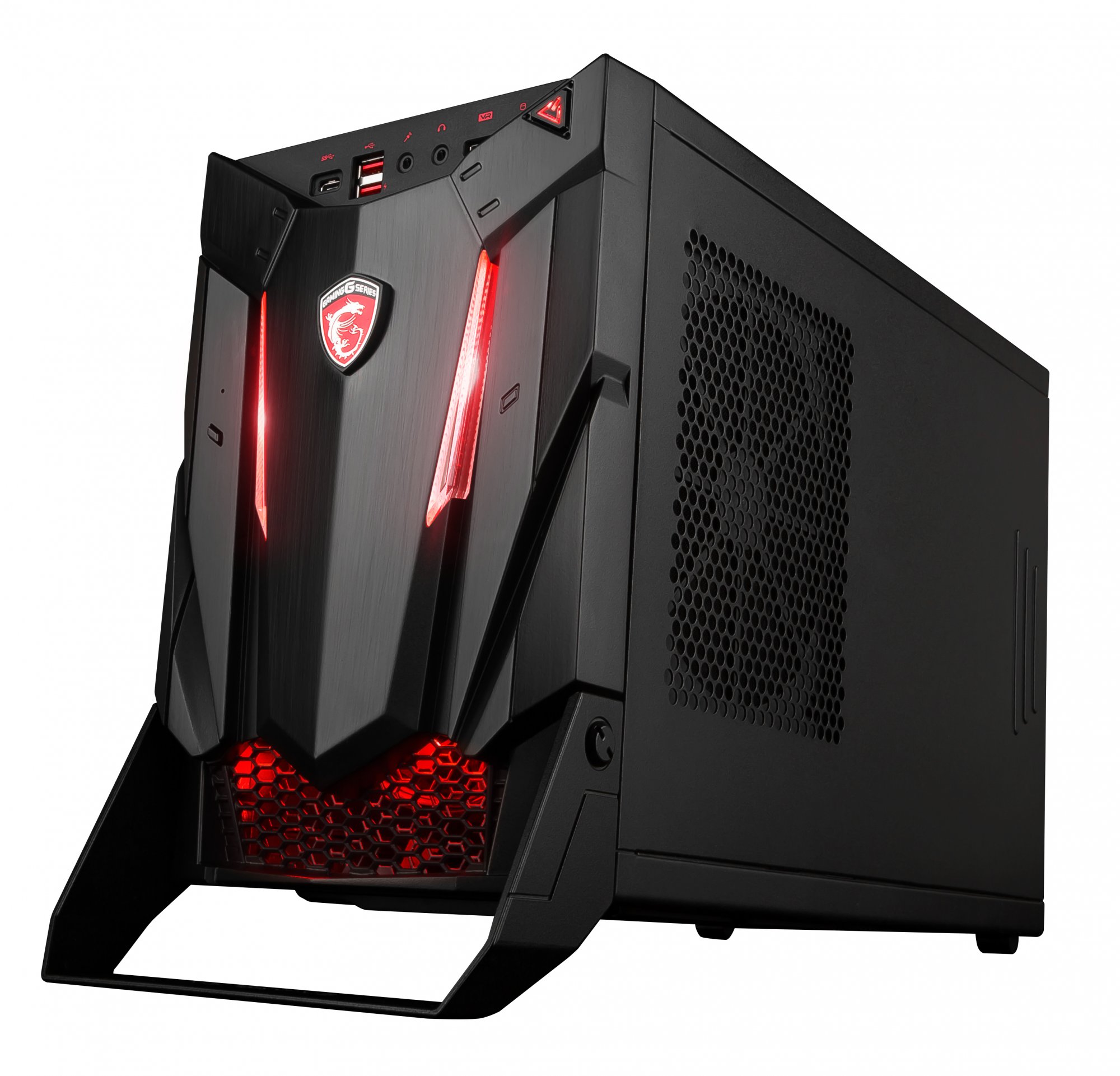

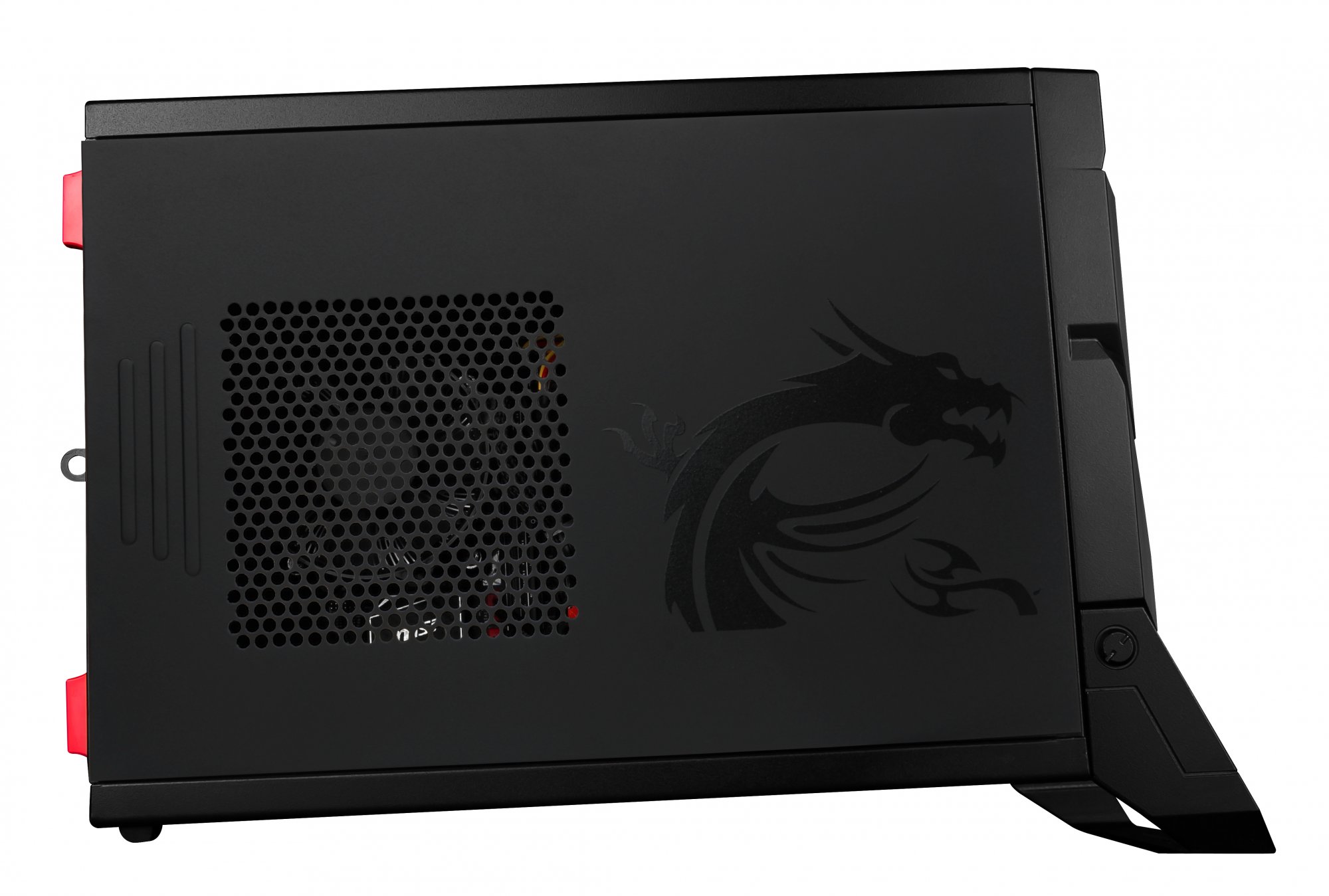

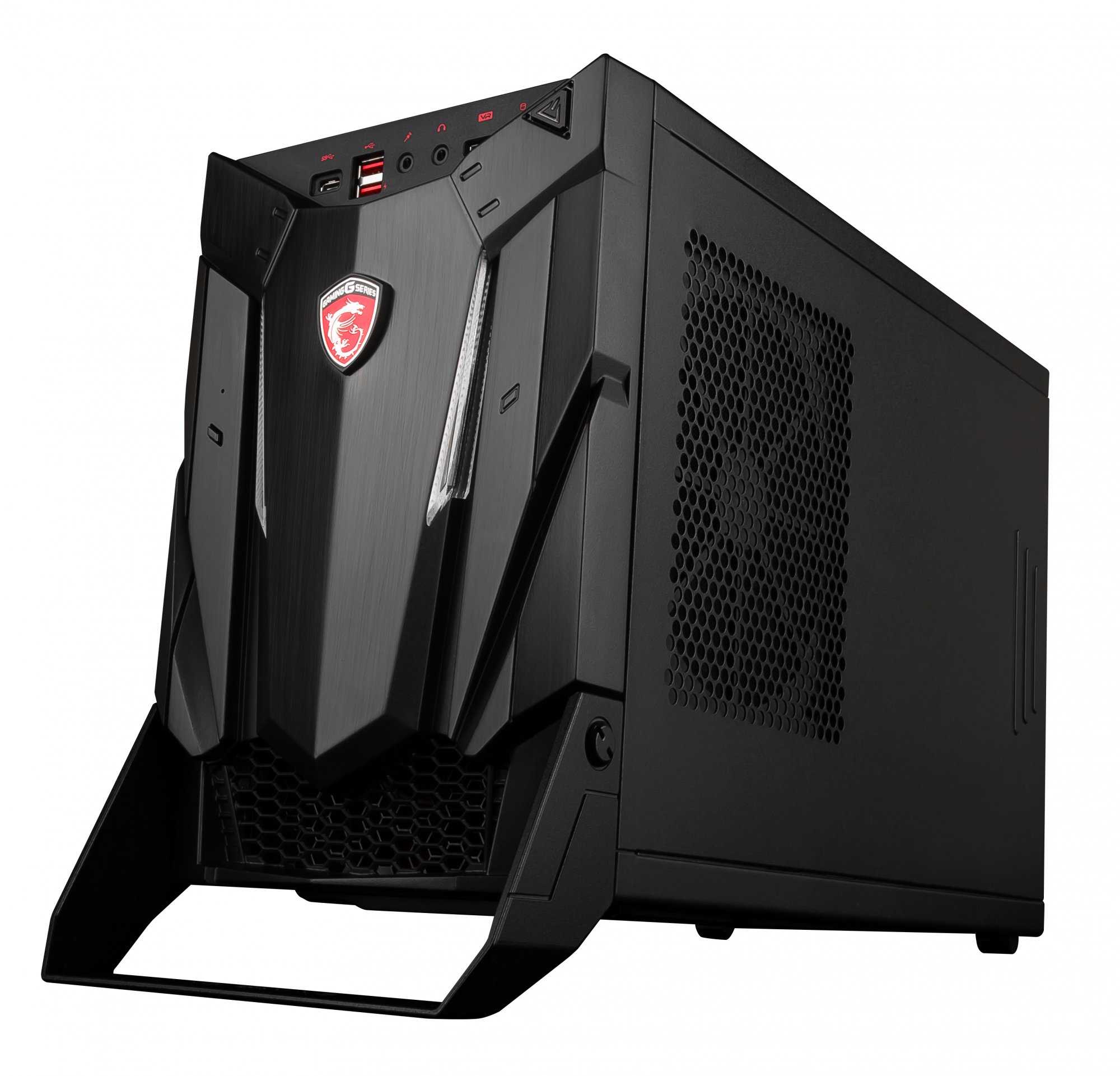

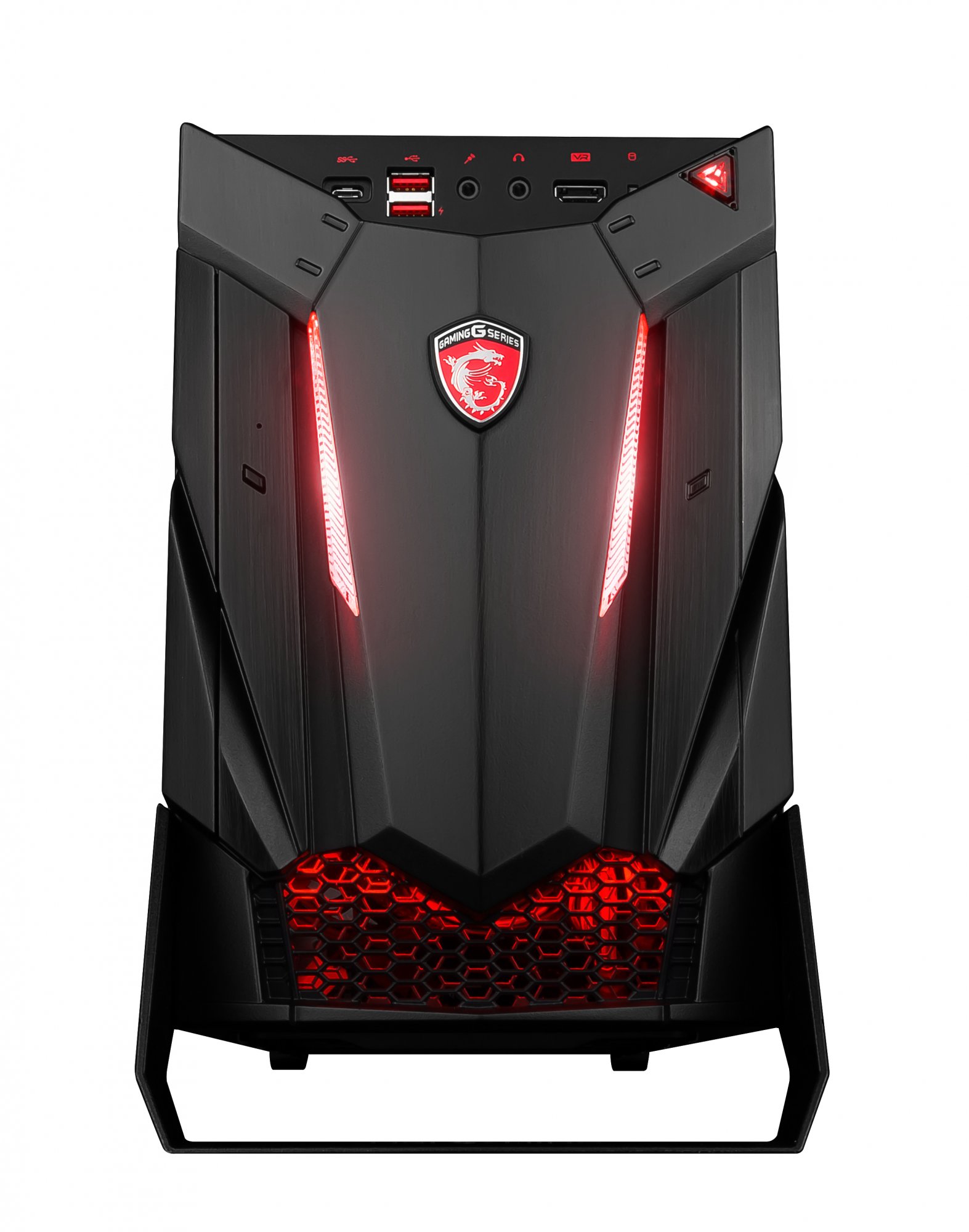

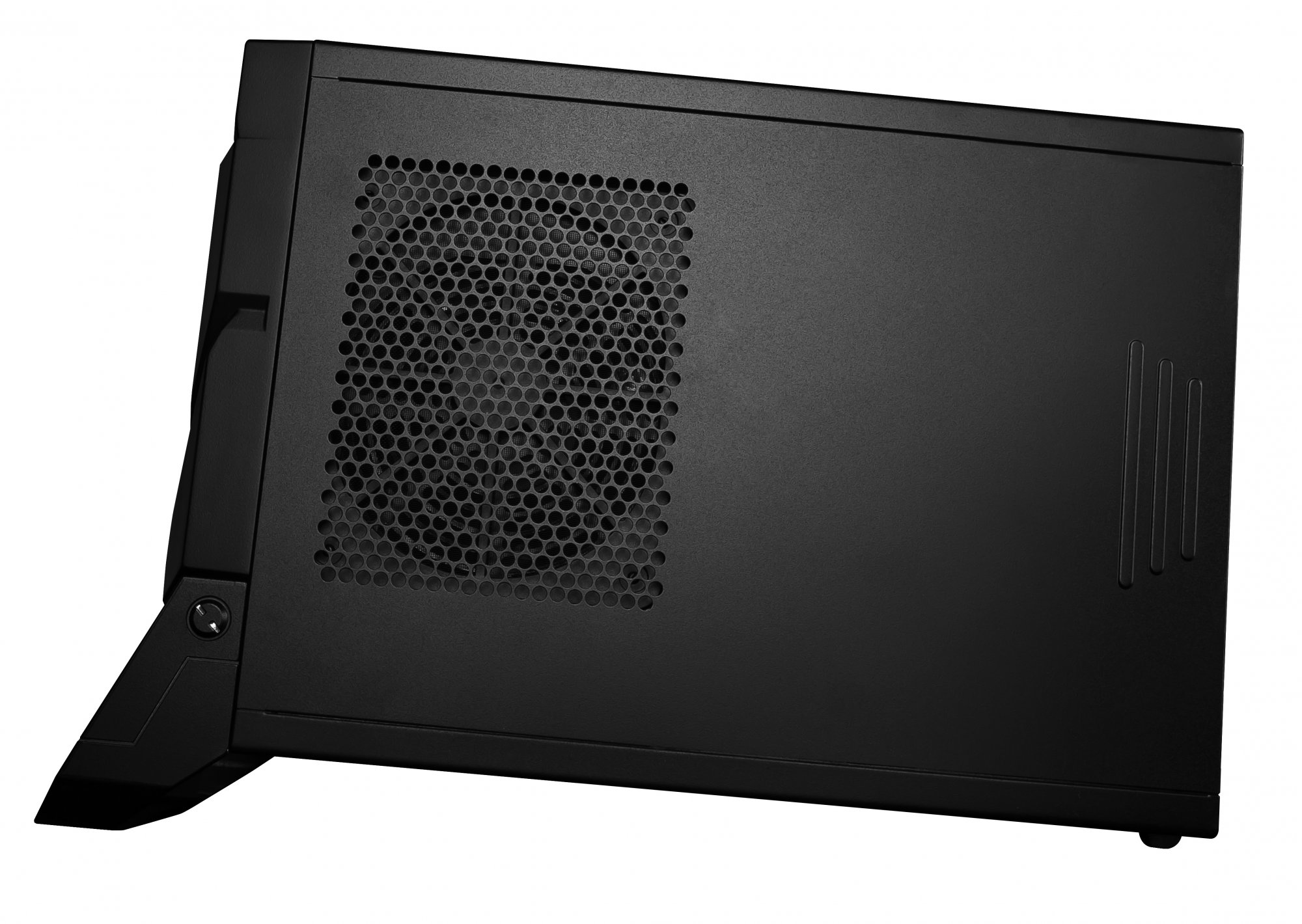

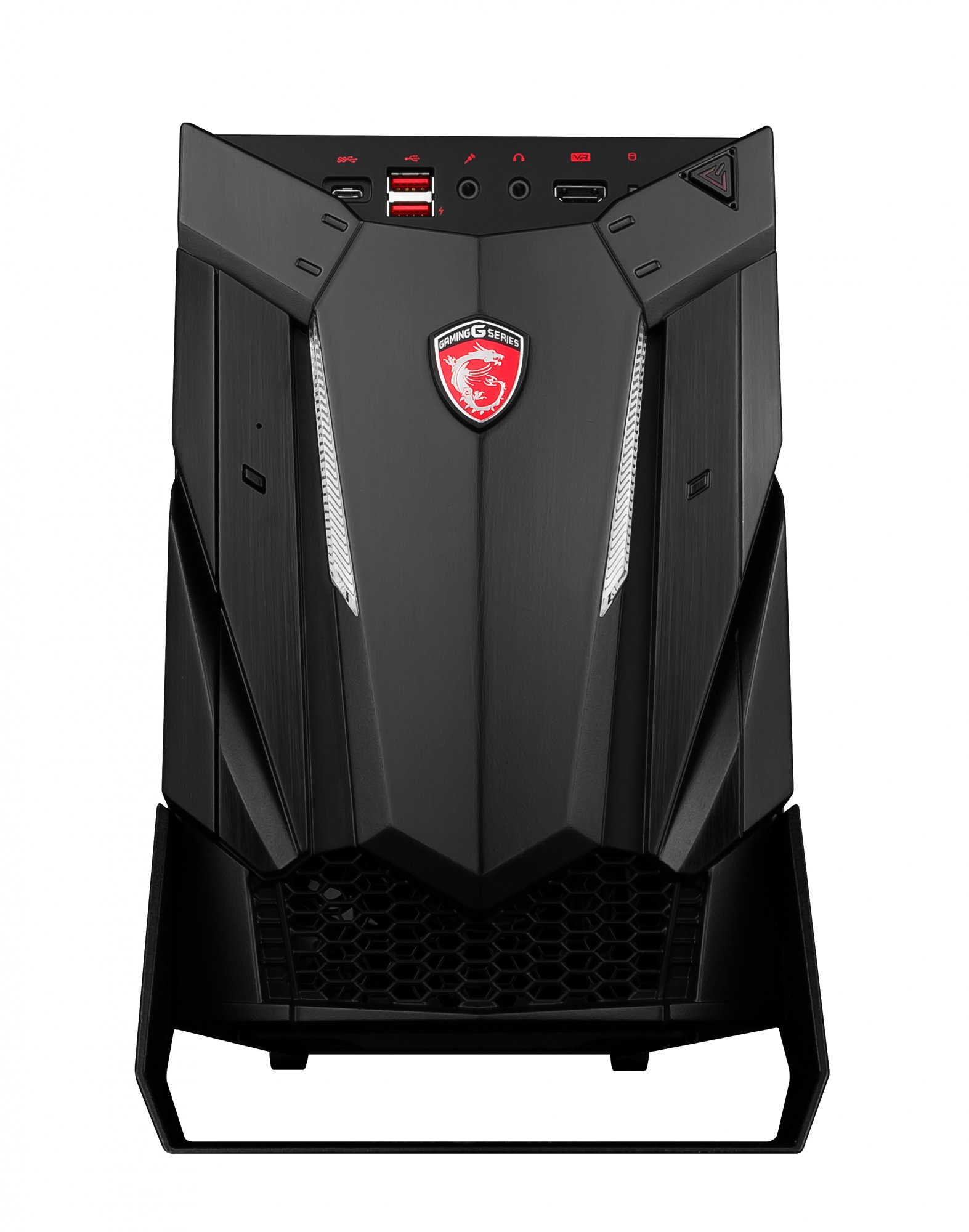

MSI Nightblade 3 VR7RC. Processor frequency: 3 GHz, Processor family: 7th gen Intel® Core™ i5, Processor model: i5-7400. Internal memory: 8 GB, Internal memory type: DDR4-SDRAM. Total storage capacity: 1128 GB, Storage media: HDD+SSD, Optical drive type: DVD Super Multi. On-board graphics adapter model: Intel® HD Graphics 630, Discrete graphics adapter model: NVIDIA® GeForce® GTX 1060. Operating system installed: Windows 10 Home, Operating system architecture: 64-bit. Power supply: 500 W. Chassis type: Desktop. Product type: PC

Intel® Identity Protection Technology (Intel® IPT)

Protect Your Identity and Business Intel® Identity Protection Technology (Intel® IPT) protects enterprises from being penetrated by stolen credentials and online user account access with an added layer of hardware-based security and authentication as well as a multifactor authentication framework to manage different authentication methods.

Intel® Turbo Boost Technology

Higher Performance When You Need It Most Intel® Turbo Boost Technology 2.01 accelerates processor and graphics performance by increasing the operating frequency when operating below specification limits. The maximum frequency varies depending on workload, hardware, software, and overall system configuration.

Conflict-Free processor

Does not contain "conflict minerals": tantalum, tin, tungsten, and gold.

Product Properties

Manufacturer
MSI

Model
9S6-B91011-035

EAN
4719072516277

Design

Chassis type
Desktop

Placement supported
Vertical

Product colour
Black

Graphics

CUDA
Y

Discrete graphics adapter
Y

Discrete graphics adapter model
NVIDIA® GeForce® GTX 1060

Discrete graphics memory type
GDDR5

Graphics Memory
6 GB

Graphics Processor
Intel® HD Graphics 630

Maximum on-board graphics adapter memory
64 GB

Number of discrete graphics adapters
1

Number of displays supported (on-board graphics)
3

NVIDIA G-SYNC
Y

NVIDIA GameWorks VR
Y

On-board graphics adapter
Y

On-board graphics adapter base frequency
350 MHz

On-board graphics adapter DirectX version
12.0

On-board graphics adapter dynamic frequency (max)
1000 MHz

On-board graphics adapter ID
5912

On-board graphics adapter OpenGL version
4.4

Memory

Internal memory type
DDR4-SDRAM

Memory channels
Dual-channel

Memory Installed
8 GB

Memory Slot Support
32 GB

Memory slots
2x DIMM

Network

Bluetooth
Y

Bluetooth version
4.2

Ethernet LAN
Y

Ethernet LAN data rates
10,100,1000 Mbit/s

Top Wi-Fi standard
Wi-Fi 5 (802.11ac)

Wi-Fi
Y

Wi-Fi standards
Wi-Fi 5 (802.11ac)

Other features

Optical drives quantity
1

Packaging content

Cables included
AC

Display included
N

Manual
Y

Performance

Audio output channels
7.1 channels

Market positioning
Gaming

Product type
PC

Virtual Reality (VR) ready
Y

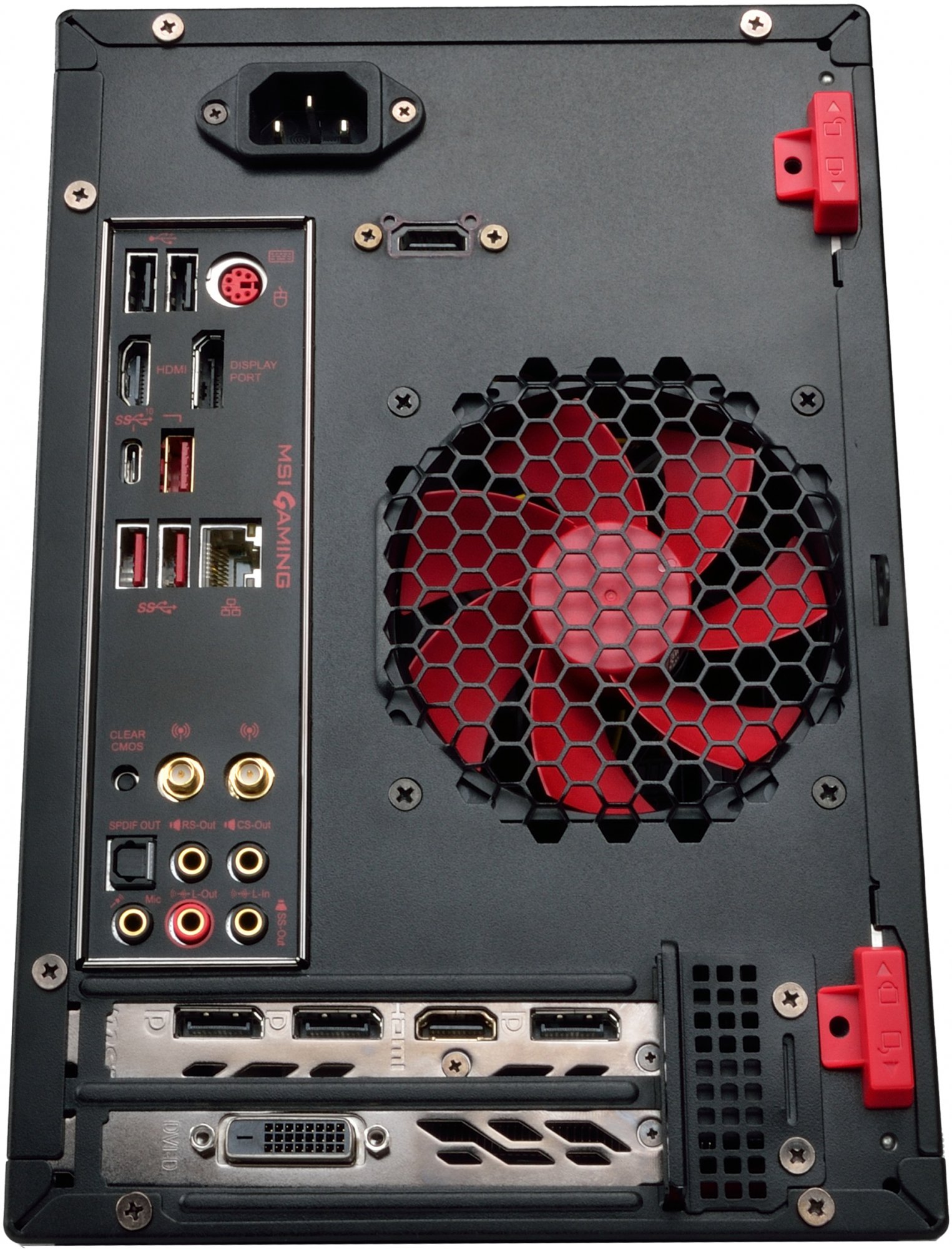

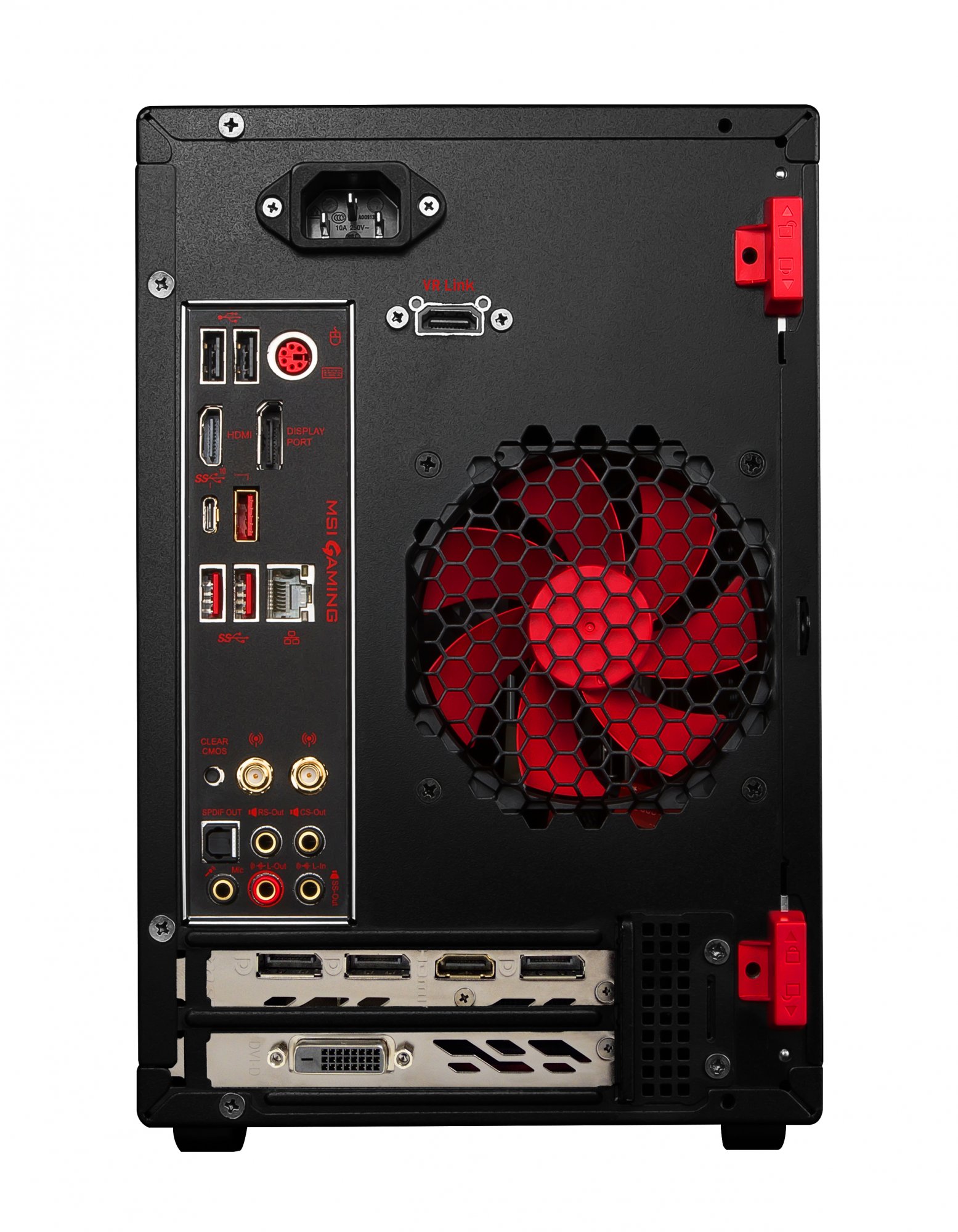

Ports & interfaces

DisplayPorts quantity
1

DVI port
N

Ethernet LAN (RJ-45) ports
1

HDMI ports
3

Headphone outputs
1

Line-in
Y

Line-out
Y

Microphone in
Y

PS/2 ports quantity
1

S/PDIF out port
Y

USB 2.0 ports quantity
4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
2

Power

Power supply
500 W

Processor

Bus type
DMI3

ECC supported by processor
N

Maximum internal memory supported by processor
64 GB

Maximum number of PCI Express lanes
16

Memory clock speeds supported by processor
1333,1600,2133,2400 MHz

Memory types supported by processor
DDR3L-SDRAM,DDR4-SDRAM

Memory voltage supported by processor
1.35 V

Number of Cores
4

Number of processors installed
1

PCI Express configurations
1x16,1x8+2x4,2x8

PCI Express slots version
3.0

Processor
i5-7400

Processor boost frequency
3.5 GHz

Processor cache
6 MB

Processor cache type
Smart Cache

Processor codename
Kaby Lake

Processor family
7th gen Intel® Core™ i5

Processor frequency
3 GHz

Processor lithography
14 nm

Processor manufacturer
Intel

Processor operating modes
64-bit

Processor series
Intel Core i5-7400 Desktop Series

Processor socket
LGA 1151 (Socket H4)

Processor threads
4

Stepping
B0

System bus rate
8 GT/s

Thermal Design Power (TDP)
65 W

Tjunction
100 °C

Processor special features

Conflict-Free processor
Y

CPU configuration (max)
1

Embedded options available
N

Enhanced Intel SpeedStep Technology
Y

Execute Disable Bit
Y

Idle States
Y

Intel 64
Y

Intel Clear Video Technology
Y

Intel Enhanced Halt State
Y

Intel Identity Protection Technology version
1.00

Intel Secure Key Technology version
1.00

Intel Software Guard Extensions (Intel SGX)
Y

Intel Stable Image Platform Program (SIPP)
N

Intel Stable Image Platform Program (SIPP) version
0.00

Intel Trusted Execution Technology
N

Intel TSX-NI
N

Intel TSX-NI version
0.00

Intel Virtualization Technology (VT-x)
Y

Intel Virtualization Technology for Directed I/O (VT-d)
Y

Intel VT-x with Extended Page Tables (EPT)
Y

Intel® AES New Instructions (Intel® AES-NI)
Y

Intel® Clear Video HD Technology (Intel® CVT HD)
Y

Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)
Y

Intel® Hyper Threading Technology (Intel® HT Technology)
N

Intel® Identity Protection Technology (Intel® IPT)
Y

Intel® InTru™ 3D Technology
Y

Intel® OS Guard
Y

Intel® Quick Sync Video Technology
Y

Intel® Secure Key
Y

Intel® Turbo Boost Technology
2.0

Processor ARK ID
97147

Processor code
SR32W

Processor package size
37.5 x 37.5 mm

Scalability
1S

Supported instruction sets
AVX 2.0,SSE4.1,SSE4.2

Thermal Monitoring Technologies
Y

Thermal solution specification
PCG 2015C

Software

Operating system architecture
64-bit

Operating system installed
Windows 10 Home

Storage

Card reader integrated
N

HDD capacity
1000 GB

Number of HDDs installed
1

Number of SSDs installed
1

Number of storage drives installed
2

Optical drive type
DVD Super Multi

SSD capacity
128 GB

Storage Capacity
1128 GB

Storage type
HDD+SSD

Weight & dimensions

Depth
426 mm

Height
294 mm

Weight
10 kg

Width
177 mm

MSI Nightblade 3 VR7RC DDR4-SDRAM i5-7400 Desktop 7th gen Intel® Core™ i5 8 GB 1128 GB HDD+SSD Windows 10 Home PC Black
