Description

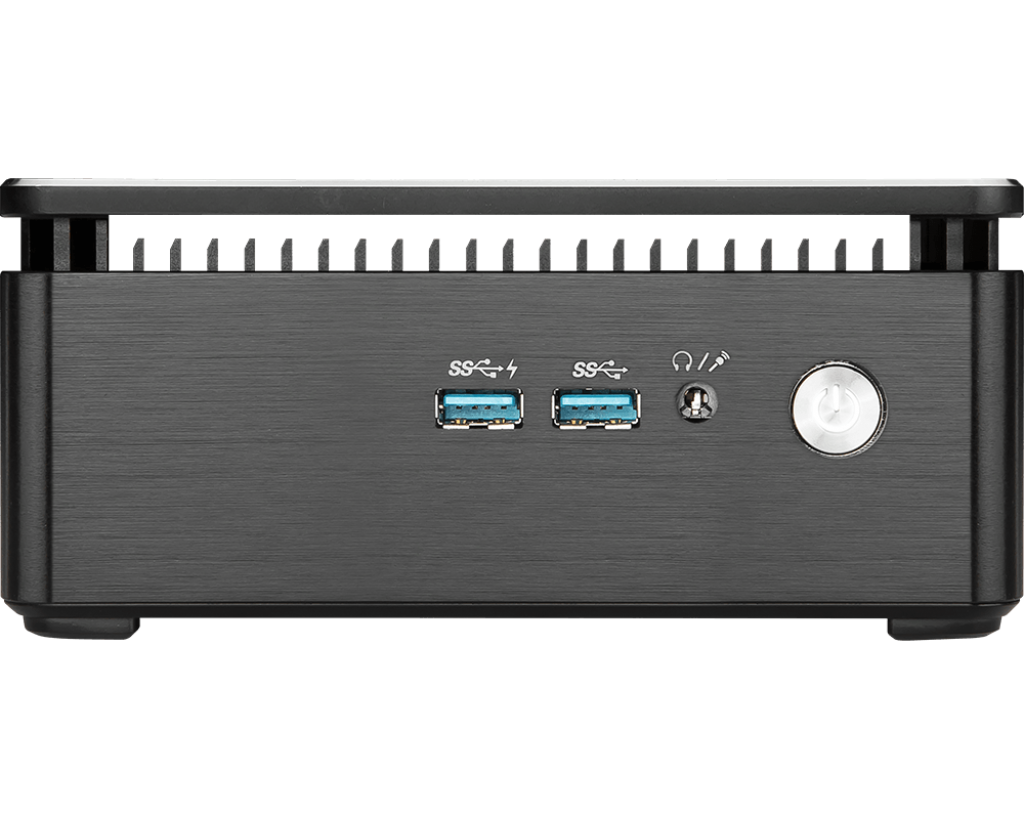

MSI Cubi 3 Silent-004BEU. Chassis type: 1.2L sized PC, Product type: Mini PC barebone. Processor socket: BGA 1356. Supported memory types: DDR4-SDRAM, Number of memory slots: 2, Maximum internal memory: 32 GB. Supported storage drive types: HDD & SSD, Storage drive interface: M.2, PCI Express, Serial ATA III. Ethernet LAN (RJ-45) ports: 1. Wi-Fi standards: Wi-Fi 5 (802.11ac). Cooling type: Passive. Power supply: 65 W

Windows 10 Home - MSI recommends Windows 10 Pro
Intel® Kabylake-U processor
DDR4 2133MHz up to 32GB (2 Slots)
The fanless design extends the product life cycle and reduces the dust into the product
Supports 4K ultra-high definition resolution
Supports dual monitors
Supports M.2 SATA/PCI-e auto switch SSD or 2.5” SATAIII HDD or SSD
Equipped Complete IO
Supports super charger
Power delivered by USB in the Off state
Embedded Software TPM and supports Hardware TPM module

Intel® Identity Protection Technology (Intel® IPT)

Protect Your Identity and Business Intel® Identity Protection Technology (Intel® IPT) protects enterprises from being penetrated by stolen credentials and online user account access with an added layer of hardware-based security and authentication as well as a multifactor authentication framework to manage different authentication methods.

Intel® Turbo Boost Technology

Higher Performance When You Need It Most Intel® Turbo Boost Technology 2.01 accelerates processor and graphics performance by increasing the operating frequency when operating below specification limits. The maximum frequency varies depending on workload, hardware, software, and overall system configuration.

Product Properties

Manufacturer
MSI

Model
936-B15911-004

EAN
4719072539719

Bullet points

Point
DDR4 2133MHz up to 32GB (2 Slots)

Embedded Software TPM and supports Hardware TPM module

Equipped Complete IO

Intel® Kabylake-U processor

Power delivered by USB in the Off state

Supports 4K ultra-high definition resolution

Supports dual monitors

Supports M.2 SATA/PCI-e auto switch SSD or 2.5” SATAIII HDD or SSD

Supports super charger

The fanless design extends the product life cycle and reduces the dust into the product

Windows 10 Home - MSI recommends Windows 10 Pro

Design

Cable lock slot
Y

Cable lock slot type
Kensington

Chassis type
1.2L sized PC

Cooling type
Passive

On/off switch
Y

Product colour
Black

Product type
Mini PC barebone

VESA mounting
Y

Expansion slots

PCI Express configurations
1x2+2x1,1x4,2x2,4x1

PCI Express slots version
3.0

Graphics

Graphics adapter family
Intel

Graphics Processor
Intel® HD Graphics 620

On-board graphics adapter
Y

Memory

Memory Slot Support
32 GB

Memory slots type
SO-DIMM

Number of memory slots
2

Supported memory clock speeds
2133 MHz

Supported memory types
DDR4-SDRAM

Network

Ethernet LAN
Y

LAN controller
Realtek RTL8111H

Wi-Fi
Y

Wi-Fi standards
Wi-Fi 5 (802.11ac)

Other features

Number of processors installed
1

Packaging content

AC adapter included
Y

Performance

Number of processors supported
1

Processor socket
BGA 1356

Windows operating systems supported
Windows 10

Ports & interfaces

Combo headphone/mic port
Y

DisplayPort version
1.2

DisplayPorts quantity
1

Ethernet LAN (RJ-45) ports
1

HDMI ports
1

HDMI version
1.4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4

Power

Power supply
65 W

Power supply type
External AC adapter

Processor

Built-in processor
Y

CPU configuration (max)
1

L3 cache
3 MB

Number of Cores
2

Processor
i5-7200U

Processor boost frequency
3.1 GHz

Processor codename
Kaby Lake

Processor family
7th gen Intel® Core™ i5

Processor frequency
2.5 GHz

Processor lithography
14 nm

Processor manufacturer
Intel

Processor threads
4

Thermal Design Power (TDP)
15 W

Processor special features

Embedded options available
N

Enhanced Intel SpeedStep Technology
Y

Execute Disable Bit
Y

Idle States
Y

Intel 64
Y

Intel Clear Video Technology
Y

Intel Flex Memory Access
Y

Intel Stable Image Platform Program (SIPP)
N

Intel Trusted Execution Technology
N

Intel TSX-NI
N

Intel Virtualization Technology (VT-x)
Y

Intel Virtualization Technology for Directed I/O (VT-d)
Y

Intel VT-x with Extended Page Tables (EPT)
Y

Intel® AES New Instructions (Intel® AES-NI)
Y

Intel® Clear Video HD Technology (Intel® CVT HD)
Y

Intel® Hyper Threading Technology (Intel® HT Technology)
Y

Intel® Identity Protection Technology (Intel® IPT)
Y

Intel® Insider™
Y

Intel® InTru™ 3D Technology
Y

Intel® My WiFi Technology (Intel® MWT)
Y

Intel® OS Guard
Y

Intel® Quick Sync Video Technology
Y

Intel® Secure Key
Y

Intel® Small Business Advantage (Intel® SBA)
Y

Intel® Smart Response Technology
Y

Intel® Turbo Boost Technology
2.0

Intel® Wireless Display (Intel® WiDi)
Y

Thermal Monitoring Technologies
Y

Storage

Number of storage drives supported
2

Storage drive interface
M.2, PCI Express, Serial ATA III

Storage drive sizes supported
2.5"

Supported storage drive types
HDD & SSD

Weight & dimensions

Depth
110.2 mm

Height
69.5 mm

Width
159.6 mm
