LG UH5F Digital signage flat panel 2.49 m (98") IPS 4K Ultra HD Black Built-in processor Web OS
Roll over image to zoom inClick to Open expanded view
LG UH5F Digital signage flat panel 2.49 m (98") IPS 4K Ultra HD Black Built-in processor Web OS
LG UH5F Digital signage flat panel 2.49 m (98") IPS 4K Ultra HD Black Built-in processor Web OS
LG UH5F Digital signage flat panel 2.49 m (98") IPS 4K Ultra HD Black Built-in processor Web OS
LG UH5F Digital signage flat panel 2.49 m (98") IPS 4K Ultra HD Black Built-in processor Web OS
LG UH5F Digital signage flat panel 2.49 m (98") IPS 4K Ultra HD Black Built-in processor Web OS
LG UH5F Digital signage flat panel 2.49 m (98") IPS 4K Ultra HD Black Built-in processor Web OS
LG UH5F Digital signage flat panel 2.49 m (98") IPS 4K Ultra HD Black Built-in processor Web OS
LG UH5F Digital signage flat panel 2.49 m (98") IPS 4K Ultra HD Black Built-in processor Web OS
Print
Model: 98UH5F-B.AEK
EAN: 8806098608874

LG UH5F Digital signage flat panel 2.49 m (98") IPS 4K Ultra HD Black Built-in processor Web OS

Manufacturer:
LG
LG UH5F, 2.49 m (98"), IPS, 3840 x 2160 pixels, 500 cd/m², 4K Ultra HD, 16:9
Please log in to see your price
Related products

Description

LG UH5F. Display diagonal: 2.49 m (98"), Display technology: IPS, Display resolution: 3840 x 2160 pixels. RMS rated power: 20 W. Product design: Digital signage flat panel, Product colour: Black, Placement supported: Indoor/outdoor. Purpose: Universal, Operating hours (hours/days): 24/7, Mean time between failures (MTBF): 50000 h. Power consumption (typical): 302 W, Power consumption (standby): 0.5 W, AC input voltage: 100 - 240 V
  • Brightness(Typ.) : 500 cd/m²
  • Bezel : 14.9 mm (Even, Off-Bezel)
  • Depth : 83.8 mm (without Handle)
  • Interface : HDMI(3)/ DP/ DVI-D/ USB 2.0(2)/ RS232C/ RJ45/ Audio/ IR
  • Built-in Speaker and Detachable Logo
ULTRA HD Resolution
ULTRA HD Resolution
With the resolution that is 4 times higher than FHD, it makes the color and details of the contents more vivid and realistic. In addition, the wide viewing angle applied with LG IPS Panel, provides clear contents with no distortion.
High Efficiency Video Coding
High Efficiency Video Coding
The UH5F/E series supports HEVC* which efficiently compresses/decompresses high-capacity UHD contents, playing ultra-high quality videos with half the network traffic than the existing H.264 codec.

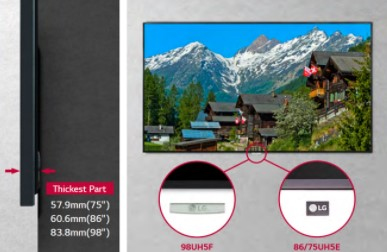

Slim Depth and Detachable Logo
Slim Depth and Detachable Logo
Although UH5F/E series is a large-sized display, the product still has a slim depth which allows easy installation by using less space. Also, the detachable logos give users flexibility to arrange the display.
Built-in Speakers
Built-in Speakers
Contents will be enriched with sound effects from built-in speakers, without the need for purchasing or installing external speakers.
High-Performance with webOS
High-Performance with webOS
Built-in Quad Core SoC can execute several tasks at once while providing smooth content playback without the need for a media player. Also LG webOS smart signage platform enhances user convenience with intuitive GUI and simple app development tools.
Various Sensor Applications
Various Sensor Applications
LG webOS smart signage platform easily supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc, via USB plug-in. The overall cost for maintenance is reduced as there's no need to purchase additional software or media players for creating value-added solutions.
Compatible with AV Control System
Compatible with AV Control System
The UH5F/E series has been certified Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.
Compatible with Video Conference System
Compatible with Video Conference System
For the optimum visual meeting, the UH5F/E series has certified its compatibility with Cisco System that offers powerful and integrated control* for a smarter video conference, eliminating a waste of time for setting up the picture quality or changing input on incoming calls.
Multi Screen with PBP/PIP
Multi Screen with PBP/PIP
PBP(Picture-By-Picture) features multi screen in a single display with upto 4 input sources while PIP (Picture-In-Picture) supports playing both main screen and sub screen at the same time with various layouts. This gives great flexibility to allocate space for each content souce.
Real-Time Monitoring & Control
Real-Time Monitoring & Control
Through the Control Manager, the embedded web monitoring solution, you can control and monitor the status of multiple UH5F/E series displays in different locations in real-time. It is available on internetconnected devices, allowing you to flexibly and rapidly respond to emergency situations anywhere.

Product Properties

  • Manufacturer
  • LG
  • Model
  • 98UH5F-B.AEK
  • EAN
  • 8806098608874
  • Audio
  • Built-in speaker(s)
  • Y
  • Number of built-in speakers
  • 2
  • RMS rated power
  • 20 W
  • Bullet points
  • Point
  • Bezel : 14.9 mm (Even, Off-Bezel)
    Brightness(Typ.) : 500 cd/m²
    Built-in Speaker and Detachable Logo
    Depth : 83.8 mm (without Handle)
    Interface : HDMI(3)/ DP/ DVI-D/ USB 2.0(2)/ RS232C/ RJ45/ Audio/ IR
  • Certificates
  • Certification
  • IEC 60950-1 / EN 60950-1 / UL 60950-1 FCC Class "A" / CE / KC
  • Computer system
  • Built-in processor
  • Y
  • Computer system
  • Y
  • Computer system type
  • System on Chip (SoC)
  • Internal memory
  • 8 GB
  • Operating System
  • Web OS
  • Processor cores
  • 4
  • Video formats supported
  • HEVC
  • Design
  • Bezel width (bottom)
  • 1.49 cm
  • Bezel width (side)
  • 1.49 cm
  • Bezel width (top)
  • 1.49 cm
  • Orientation
  • Horizontal/Vertical
  • Panel mounting interface
  • 800 x 400 mm
  • Placement supported
  • Indoor/outdoor
  • Product colour
  • Black
  • Product design
  • Digital signage flat panel
  • VESA mounting
  • Y
  • Display
  • Contrast ratio (typical)
  • 1300:1
  • Display brightness
  • 500 cd/m²
  • HD type
  • 4K Ultra HD
  • Native aspect ratio
  • 16:9
  • Response time
  • 8 ms
  • Screen Resolution
  • 3840 x 2160 pixels
  • Screen Size
  • 2.49 m (98")
  • Screen Type
  • 248 cm
  • Screen Type
  • IPS
  • Touchscreen
  • N
  • Viewing angle, horizontal
  • 178°
  • Viewing angle, vertical
  • 178°
  • Operational conditions
  • Operating relative humidity (H-H)
  • 10 - 80%
  • Operating temperature (T-T)
  • 0 - 40 °C
  • Other features
  • Annual energy consumption
  • 441 kWh
  • AUX in
  • Y
  • Energy efficiency class (old)
  • A
  • Maximum refresh rate
  • 120 Hz
  • Quick start guide
  • Y
  • Packaging content
  • Cables included
  • AC, DisplayPort
  • Remote control included
  • Y
  • Packaging data
  • Package depth
  • 420 mm
  • Package height
  • 1386 mm
  • Package weight
  • 119 kg
  • Package width
  • 2362 mm
  • Performance
  • Ambient light sensor
  • Y
  • Mean time between failures (MTBF)
  • 50000 h
  • Multi-display supported
  • Y
  • Operating hours (hours/days)
  • 24/7
  • Picture-in-Picture
  • Y
  • Purpose
  • Universal
  • Ports & interfaces
  • DisplayPorts in
  • 1
  • DisplayPorts out
  • 1
  • DisplayPorts quantity
  • 2
  • DVI port
  • Y
  • DVI-D ports quantity
  • 1
  • Ethernet LAN
  • Y
  • Ethernet LAN (RJ-45) ports
  • 1
  • HDMI output ports quantity
  • 3
  • HDMI ports
  • 3
  • Remote (IR) input
  • 1
  • RS-232C
  • Y
  • USB port
  • Y
  • USB ports quantity
  • 2
  • USB version
  • 2.0
  • Wi-Fi
  • Y
  • Power
  • AC input frequency
  • 50/60 Hz
  • AC input voltage
  • 100 - 240 V
  • Energy efficiency scale
  • A+++ to D
  • Power consumption (standby)
  • 0.5 W
  • Power consumption (typical)
  • 302 W
  • Weight & dimensions
  • Depth
  • 83.8 mm
  • Height
  • 1246.8 mm
  • Weight
  • 81.1 kg
  • Width
  • 2191.8 mm
