Description

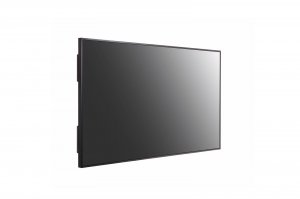

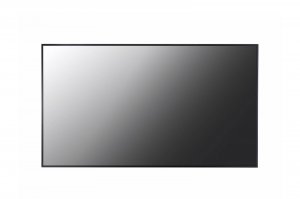

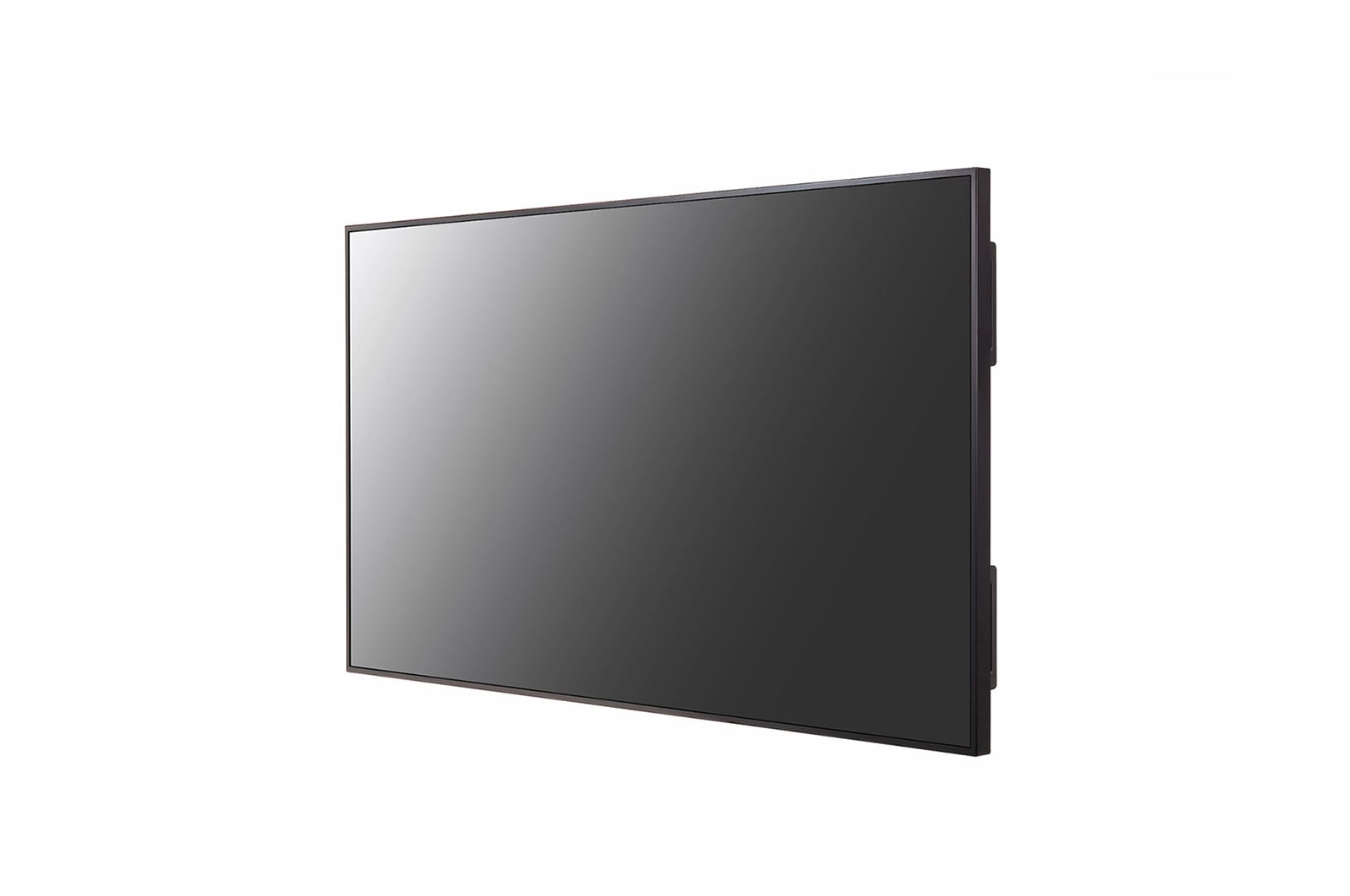

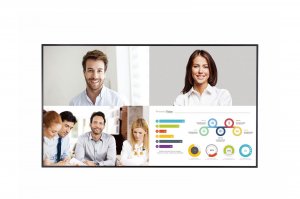

LG 98UM3F-B. Display diagonal: 2.49 m (98"), Display technology: IPS, Display resolution: 3840 x 2160 pixels. RMS rated power: 20 W. Product design: Digital signage flat panel, Product colour: Black, Placement supported: Indoor. Purpose: Universal, Operating hours (hours/days): 24/7. Power consumption (typical): 315 W, AC input voltage: 100-240 V, AC input frequency: 50/6 Hz

Brightness (Typ.) : 350 cd/m²
Bezel : 14.3mm (Even)
Depth : 60.6mm
Interface : HDMI (3)/DP/DVI-D/USB 2.0 (2)/RS232C/RJ45/Audio/IR
Built-in Speaker (10W+10W)

Product Properties

Manufacturer
LG

Model
98UM3F-B.AEK

EAN
8806098643547

Audio

Built-in speaker(s)
Y

Number of built-in speakers
2

RMS rated power
20 W

Bullet points

Point
Bezel : 14.3mm (Even)

Brightness (Typ.) : 350 cd/m²

Built-in Speaker (10W+10W)

Depth : 60.6mm

Interface : HDMI (3)/DP/DVI-D/USB 2.0 (2)/RS232C/RJ45/Audio/IR

Certificates

Certification
FCC Class "A" / CE / KC, CB / NRTL

Computer system

Computer system
Y

Operating System
Web OS

Design

Bezel width (bottom)
1.49 cm

Bezel width (side)
1.49 cm

Bezel width (top)
1.49 cm

Orientation
Horizontal/Vertical

Panel mounting interface
800 x 400 mm

Placement supported
Indoor

Product colour
Black

Product design
Digital signage flat panel

VESA mounting
Y

Display

Contrast ratio (typical)
1300:1

Display brightness
350 cd/m²

HD type
UHD+

Native aspect ratio
16:9

Panel life
50000 h

Response time
8 ms

Screen Resolution
3840 x 2160 pixels

Screen Size
2.49 m (98")

Screen Type
IPS

Touchscreen
N

Viewing angle, horizontal
178°

Viewing angle, vertical
178°

Operational conditions

Operating relative humidity (H-H)
10 - 80%

Operating temperature (T-T)
0 - 40 °C

Packaging content

Cables included
AC, DisplayPort

Handheld remote control
Y

Packaging data

Package depth
1386 mm

Package height
420 mm

Package weight
123 kg

Package width
2354 mm

Performance

Operating hours (hours/days)
24/7

Picture-in-Picture
Y

Purpose
Universal

Ports & interfaces

DisplayPorts in
1

DisplayPorts out
1

DisplayPorts quantity
2

DVI port
Y

DVI-D ports quantity
1

Ethernet LAN
Y

Ethernet LAN (RJ-45) ports
1

HDMI ports
3

Remote (IR) input
1

RS-232C
Y

USB port
Y

USB ports quantity
2

Power

AC input frequency
50/6 Hz

AC input voltage
100-240 V

Power consumption (typical)
315 W

Weight & dimensions

Depth
1246.8 mm

Height
69.4 mm

Weight
88 kg

Width
2191.8 mm

LG 98UM3F-B signage display Digital signage flat panel 2.49 m (98") IPS UHD+ Black Web OS
