Description

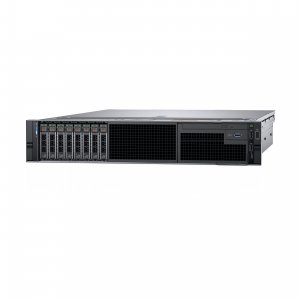

DELL PowerEdge R740. Processor family: Intel Xeon Silver, Processor frequency: 2.2 GHz, Processor model: 4210. Internal memory: 32 GB, Internal memory type: DDR4-SDRAM, Memory layout (slots x size): 1 x 32 GB. Total storage capacity: 480 GB. Ethernet LAN, Cabling technology: 10/100/1000Base-T(X). Power supply: 750 W, Redundant power supply (RPS) support. Chassis type: Rack (2U)

No OS
Intel Xeon Silver 4210 (13.75MB Cache, 2.2GHz)
32GB (2933MT/s) DDR4-SDRAM (1 x 32) & 480GB SSD
iDRAC9 Enterprise

General-purpose workhorse optimized for workload acceleration

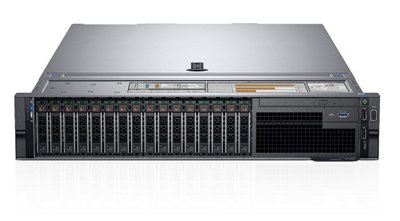

Maximize your application performance with the PowerEdge R740 server, which brings you the perfect balance of accelerator cards, storage and compute resources in a 2U, 2-socket platform. With up to three 300W accelerator cards or six 150W cards, the R740 has the versatility to adapt to virtually any application and provides the optimum platform for VDI deployments. The R740 offers up to 16 x 2.5” or 8 x 3.5” drives and iDRAC9, so you can scale to meet demands and simplify the entire IT lifecycle. Ideal workloads: -VDI -Private cloud -Artificial intelligence -Machine learning

Achieve IT transformation with the Dell EMC PowerEdge portfolio

The R740 is a general-purpose workhorse optimized for workload acceleration. With its versatility, the R740 can help you transform your data center for VDI, artificial intelligence and software-defined storage (SDS). -Simplify and accelerate VMware vSAN™ deployments with validated, pre-bundled and tailored Ready Nodes. -Scale compute resources with Intel® Xeon® Scalable processors, delivering a 27% increase in processing cores and 50% increase in bandwidth over previous generation of Xeon processors. -Scale your VDI deployments with 3 double-width GPUs, supporting up to 50% more users when compared to R730. -Free up storage space using internal M.2 SSDs optimized for boot.

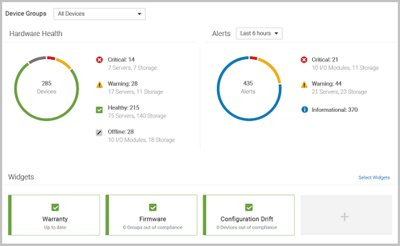

Automate productivity with intelligent, embedded management

Dell EMC automation and intelligent management mean you spend less time on routine maintenance so you can focus on bigger priorities. -Help maximize uptime and reduce the IT effort to resolve issues by up to 72% with ProSupport Plus and SupportAssist. -Leverage existing management consoles with easy integrations for VMware® vSphere®, Microsoft® System Center and Nagios®. -Help improve productivity with agent-free Dell EMC iDRAC9 for automated, efficient management. -Simplify deployment with OpenManage next-generation console and server profiles to fully configure and prep servers in rapid, scalable fashion.

Fortify your data center with comprehensive protection

Dell EMC provides a comprehensive, cyber-resilient architecture with security embedded into every server to protect your data. -Protect server configuration and firmware from malicious changes with new Configuration Lock-down. -Use system erase of local storage to help ensure data privacy when you repurpose or retire servers. -Automate updates that check file dependencies and proper update sequence, before deploying them independently from the OS/hypervisor. -Take control of your firmware consoles with embedded authentication that is designed to allow only properly designed updates to run.

Product Properties

Manufacturer
Dell

Model
KGY9T

Bullet points

Point
32GB (2933MT/s) DDR4-SDRAM (1 x 32) & 480GB SSD

iDRAC9 Enterprise

Intel Xeon Silver 4210 (13.75MB Cache, 2.2GHz)

No OS

Design

Bezel
Y

Chassis type
Rack (2U)

Product colour
Black

Rack mounting
Y

Rack rails
Y

Expansion slots

PCI Express slots version
3.0

PCI Express x8 slots
4

Graphics

Graphics Processor
Not available

Memory

Buffered memory type
Registered (buffered)

Internal memory type
DDR4-SDRAM

Memory clock speed
2933 MHz

Memory data transfer rate
2933 MT/s

Memory Installed
32 GB

Memory layout (slots x size)
1 x 32 GB

Memory ranking
2

Memory Slot Support
384 GB

Memory slots
24 x RDIMM

Network

Cabling technology
10/100/1000Base-T(X)

Ethernet interface type
Gigabit Ethernet

Ethernet LAN
Y

LAN controller
Broadcom 5720 QP

Operational conditions

Non-operating altitude
0 - 12000 m

Operating altitude
0 - 3048 m

Operating relative humidity (H-H)
10 - 80%

Operating temperature (T-T)
10 - 35 °C

Storage relative humidity (H-H)
5 - 95%

Storage temperature (T-T)
-40 - 65 °C

Packaging content

Cables included
AC

Performance

Remote administration
iDRAC9 Enterprise

Ports & interfaces

Ethernet LAN (RJ-45) ports
4

Serial ports quantity
1

USB 2.0 ports quantity
2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2

VGA (D-Sub) ports quantity
2

Power

Number of main power supplies
1

Power supply
750 W

Redundant power supply (RPS) support
Y

Processor

Embedded options available
Y

Execute Disable Bit
Y

Maximum internal memory supported by processor
1024 GB

Maximum number of PCI Express lanes
48

Memory clock speeds supported by processor
2400 MHz

Memory types supported by processor
DDR4-SDRAM

Number of Cores
10

Number of processors installed
1

Processor
4210

Processor boost frequency
3.2 GHz

Processor cache
13.75 MB

Processor codename
Cascade Lake

Processor family
Intel Xeon Silver

Processor frequency
2.2 GHz

Processor lithography
14 nm

Processor manufacturer
Intel

Processor operating modes
64-bit

Processor package size
76.0 x 56.5 mm

Processor socket
LGA 3647 (Socket P)

Processor threads
20

Scalability
2S

Supported instruction sets
AVX-512

Tcase
78 °C

Thermal Design Power (TDP)
85 W

Processor special features

Enhanced Intel SpeedStep Technology
Y

Intel 64
Y

Intel Trusted Execution Technology
Y

Intel TSX-NI
Y

Intel Virtualization Technology (VT-x)
Y

Intel Virtualization Technology for Directed I/O (VT-d)
Y

Intel VT-x with Extended Page Tables (EPT)
Y

Intel® AES New Instructions (Intel® AES-NI)
Y

Intel® Hyper Threading Technology (Intel® HT Technology)
Y

Intel® Turbo Boost Technology
2.0

Processor ARK ID
193384

Software

Compatible operating systems
- Canonical Ubuntu LTS - Citrix XenServer - Microsoft Windows Server with Hyper-V - Red Hat Enterprise Linux - SUSE Linux Enterprise Server - VMware ESXi

Operating system installed
N

Storage

Hot-Plug support
Y

Number of HDDs supported
8

Number of SSDs installed
1

Optical drive type
N

RAID support
N

SSD capacity
480 GB

SSD interface
Serial ATA

SSD size
2.5"

Storage Capacity
480 GB

Supported HDD sizes
2.5"

Supported RAID controllers
PERC H730P 2GB

Supported storage drive interfaces
SAS, Serial ATA

Weight & dimensions

Height
86.8 mm

Package depth
614 mm

Package height
297 mm

Package weight
37.7 kg

Package width
968 mm

DELL PowerEdge R740 server 2.2 GHz 32 GB Rack (2U) Intel Xeon Silver 750 W DDR4-SDRAM
