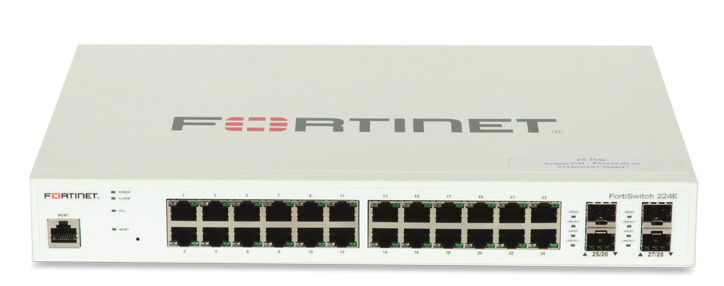

Fortinet FS-224E network switch Managed L2 Gigabit Ethernet (10/100/1000) 1U White
Roll over image to zoom inClick to Open expanded view
Print
Model: FS-224E
EAN: 842382125861

Fortinet FS-224E network switch Managed L2 Gigabit Ethernet (10/100/1000) 1U White

Manufacturer:
Fortinet
Fortinet FS-224E, Managed, L2, Gigabit Ethernet (10/100/1000), Full duplex, Rack mounting, 1U
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

Fortinet FS-224E. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Installed SFP modules quantity: 4, Console port: RJ-45. Full duplex. MAC address table: 16000 entries, Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE.... Rack mounting, Form factor: 1U

Product Properties

  • Model
  • FS-224E
  • EAN
  • 842382125861
  • Data transmission
  • Forwarding rate
  • 83 Mpps
  • Jumbo frames support
  • Y
  • Latency (1 Gbps)
  • 1 µs
  • MAC address table
  • 16000 entries
  • Packet buffer memory
  • 1.5 MB
  • Store-and-forward
  • Y
  • Switching capacity
  • 56 Gbit/s
  • Design
  • Certification
  • , CE, RCM, VCCI, BSMI, UL, CB, RoHS2
  • Form factor
  • 1U
  • LED indicators
  • Y
  • Product colour
  • White
  • Rack mounting
  • Y
  • Management features
  • Switch layer
  • L2
  • Switch type
  • Managed
  • Multicast features
  • Multicast support
  • Y
  • Network
  • 10G support
  • N
  • Auto MDI/MDI-X
  • Y
  • Broadcast storm control
  • Y
  • Copper ethernet cabling technology
  • 10BASE-T,100BASE-TX,1000BASE-T
  • Flow control support
  • Y
  • Full duplex
  • Y
  • Link aggregation
  • Y
  • Networking standards
  • IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
  • Number of VLANs
  • 4096
  • Port mirroring
  • Y
  • Spanning tree protocol
  • Y
  • Virtual LAN features
  • Tagged VLAN
  • VLAN support
  • Y
  • Operational conditions
  • Heat dissipation
  • 85 BTU/h
  • Operating relative humidity (H-H)
  • 10 - 90%
  • Operating temperature (T-T)
  • 0 - 50 °C
  • Storage temperature (T-T)
  • -20 - 70 °C
  • Performance
  • Flash memory
  • 128 MB
  • Internal memory
  • 512 MB
  • Ports & interfaces
  • Console port
  • RJ-45
  • Gigabit Ethernet (copper) ports quantity
  • 24
  • Installed SFP modules quantity
  • 4
  • Switch Number of Ports
  • 24
  • Switch Port Speed
  • Gigabit Ethernet (10/100/1000)
  • Power
  • AC input frequency
  • 50/60 Hz
  • AC input voltage
  • 100 - 240 V
  • Number of power supply units
  • 1
  • Power consumption (max)
  • 397 W
  • Power consumption (typical)
  • 380 W
  • Power supply included
  • Y
  • Redundant power supply (RPS) support
  • N
  • Power over Ethernet (PoE)
  • Power over Ethernet (PoE)
  • N
  • Protocols
  • Management protocols
  • HTTP / HTTPS, SNMP v1/v2c/v3, Telnet / SSH
  • Security
  • Authentication
  • Guest VLAN, MAC-based authentication, Port-based authentication
  • BPDU filtering/protection
  • Y
  • DHCP features
  • DHCP server,DHCP snooping,DHCPv6 snooping
  • IGMP snooping
  • Y
  • Weight & dimensions
  • Depth
  • 310 mm
  • Height
  • 44 mm
  • Weight
  • 4.83 kg
  • Width
  • 440 mm
