Description

Eaton 5S550IBS. UPS topology: Line-Interactive, Output power capacity: 1 kVA, Output power: 600 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 4 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 5 Ah, Battery voltage: 12 V. Form factor: Tower, Product colour: Black, Silver. Compliance certificates: CE, Certification: IEC/EN 62040-1 IEC/EN 62040-2 EAC

Product Properties

Manufacturer
Eaton

Model
5S550IBS

EAN
3553340620171

Battery

Automatic battery test
Yes

Battery capacity
5 Ah

Battery technology
Sealed Lead Acid (VRLA)

Battery voltage
12 V

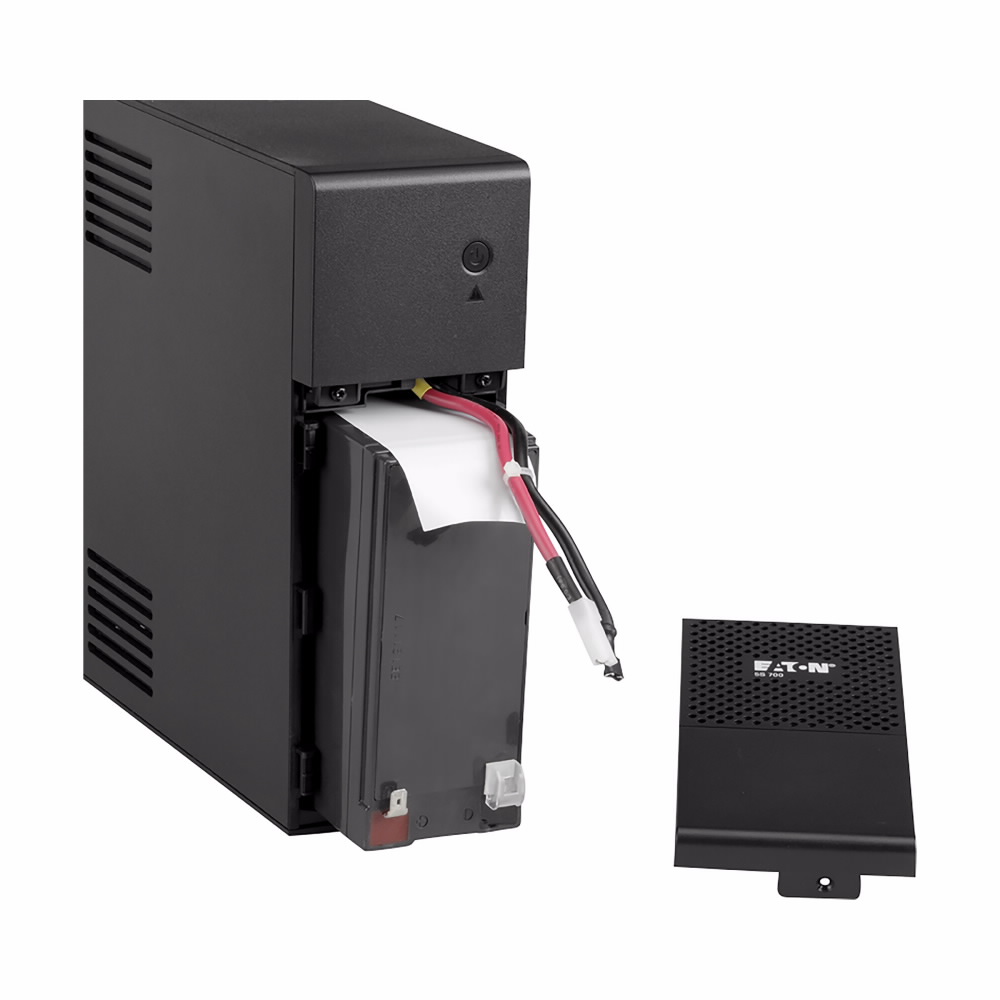

Hot-swap battery
Yes

Number of batteries supported
1

Typical backup time at full load
1 min

Certificates

Certification
IEC/EN 62040-1 IEC/EN 62040-2 EAC

Compliance certificates
CE

Design

Form factor
Tower

LED indicators
Yes

Product colour
Black, Silver

Features

Automatic Voltage Regulation (AVR)
Yes

Efficiency
97%

Input frequency
46/70 Hz

Input operation voltage (max)
275 V

Input operation voltage (min)
175 V

Noise level
25 dB

Number of input phases
1

Number of output phases
1

Output frequency
50/60 Hz

Output operation voltage (max)
276 V

Output operation voltage (min)
184 V

Output power
600 W

Output power capacity
1 kVA

Output power factor
0.6

Power factor
0.6

Power protection features
Overdischarge

Surge protection
Yes

Surge protection features
Digital Subscriber Line (DSL), Fax, Modem, Network, Telephone

UPS topology
Line-Interactive

Waveform
Sine

Operational conditions

Operating altitude
0 - 2000 m

Packaging content

Cables included
Input power cable, USB cable

Ports & interfaces

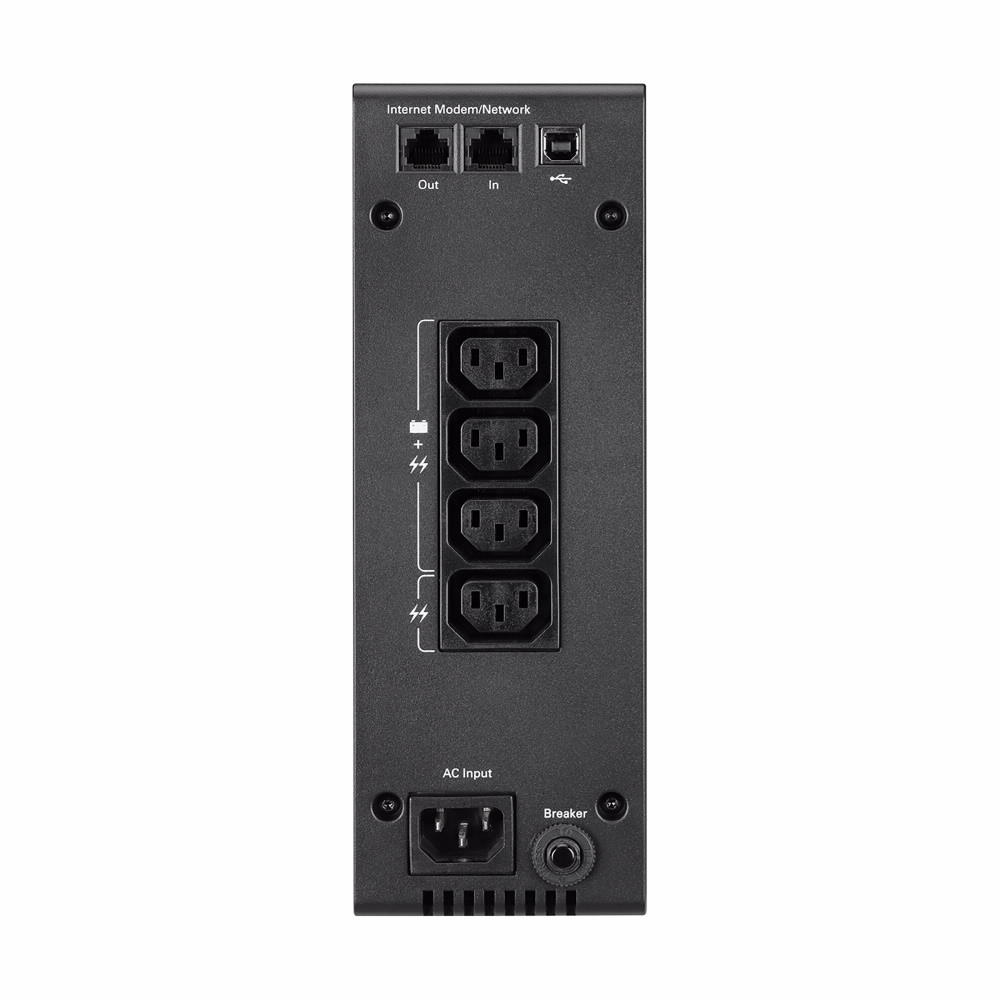

AC outlet types
C13 coupler

AC outlets quantity
4 AC outlet(s)

Power plug
C14 coupler

USB port
Yes

USB port type
USB Type-B

Sustainability

Sustainability compliance
Yes

Weight & dimensions

Depth
87 mm

Height
250 mm

Weight
5.9 kg

Width
260 mm

Eaton 5S550IBS uninterruptible power supply (UPS) Line-Interactive 1 kVA 600 W 4 AC outlet(s)
