Description

D-Link DXS-3610-54T. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 48, USB 2.0 ports quantity: 1, Console port: RJ-45. Full duplex. MAC address table: 294912 entries, Switching capacity: 2211.84 Gbit/s. Networking standards: IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x. Rack mounting, Form factor: 1U

High port density: 48 x 10 GbE Base-T ports, 6 x 100G QSFP+ ports
Stack up to 12 switches (up to 1.2 Tbps stacking bandwidth)
OpenFlow 1.3 compliance for SDN-enabled network compatibility
Modular PSU (1+1) and fan (N+1) with load sharing capabilities
Switch locator LED and ID tag for maintenance convenience
Upgradable license for full L3 and MPLS applications

Product Properties

Manufacturer
D-Link

Model
DXS-3610-54T/SI

EAN
790069454288

Bullet points

Point
High port density: 48 x 10 GbE Base-T ports, 6 x 100G QSFP+ ports

Modular PSU (1+1) and fan (N+1) with load sharing capabilities

OpenFlow 1.3 compliance for SDN-enabled network compatibility

Stack up to 12 switches (up to 1.2 Tbps stacking bandwidth)

Switch locator LED and ID tag for maintenance convenience

Upgradable license for full L3 and MPLS applications

Data transmission

Forwarding rate
1607.04 Mpps

Jumbo frames
9436

Jumbo frames support
Y

MAC address table
294912 entries

Number of queues
8

Packet buffer memory
32 MB

Static route
Y

Switching capacity
2211.84 Gbit/s

Design

Certification
CB, cUL, LVD

Electromagnetic compatibility
FCC, CE, C-Tick, IC, VCCI

Form factor
1U

Number of fans
5 fan(s)

Product colour
Black

Rack mounting
Y

Stackable
Y

Management features

ARP inspection
Y

Quality of Service (QoS) support
Y

Switch layer
L3

Switch type
Managed

Web-based management
Y

Multicast features

Multicast support
Y

Network

10G support
Y

Flow control support
Y

Full duplex
Y

Head-of-line (HOL) blocking
Y

IP routing
Y

Link aggregation
Y

Networking standards
IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x

Port mirroring
Y

Spanning tree protocol
Y

Virtual LAN features
MAC address-based VLAN,Port-based VLAN,Protocol-based VLAN

VLAN support
Y

Operational conditions

Heat dissipation
1126 BTU/h

Operating relative humidity (H-H)
0 - 95%

Operating temperature (T-T)
0 - 45 °C

Storage relative humidity (H-H)
0 - 95%

Storage temperature (T-T)
-40 - 70 °C

Performance

Noise level
76.6 dB

Physical stacking (units)
12

Virtual stacking (units)
32

Ports & interfaces

Console port
RJ-45

QSFP28 ports quantity
6

SFP+ module slots quantity
48

Switch Number of Ports
48

Switch Port Speed
10G Ethernet (100/1000/10000)

USB 2.0 ports quantity
1

Power

AC input frequency
50/60 Hz

AC input voltage
100 - 240 V

Power consumption (max)
330.2 W

Power consumption (typical)
108.2 W

Power supply included
Y

Redundant power supply (RPS) support
Y

Power over Ethernet (PoE)

Power over Ethernet (PoE)
N

Protocols

Management protocols
SNMP v1/v2c/v3

Security

Access Control List (ACL)
Y

BPDU filtering/protection
Y

DHCP features
DHCP client,DHCP server,DHCP snooping

IGMP snooping
Y

SSH/SSL support
Y

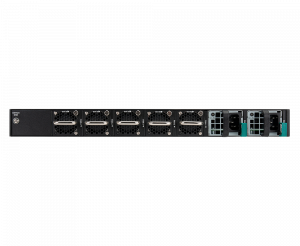

D-Link DXS-3610-54T Managed L3 10G Ethernet (100/1000/10000) 1U Black
