Product Properties

Manufacturer
D-Link

Model
DXS-3400-24TC

EAN
790069423611

Data transmission

Forwarding rate
357.12 Mpps

Jumbo frames
12000

Jumbo frames support
Y

MAC address table
48000 entries

Number of queues
8

Packet buffer memory
4 MB

Switching capacity
480 Gbit/s

Design

Electromagnetic compatibility
CE, FCC A, C-Tick, VCCI, BSMI, CCC

Number of fans
3 fan(s)

Product colour
Black

Safety
cUL, CB, CE, CCC, BSMI

Stackable
Y

Management features

ARP inspection
Y

MIB support
RFC1065, RFC1066, RFC1155, RFC1156, RFC2578, RFC1212, RFC1213, RFC1215, RFC1493, RFC4188,RFC1157, RFC2571, RFC2572, RFC2573, RFC2574, RFC2575, RFC2576, RFC1157, RFC2571, RFC2572, RFC2573, RFC2574, RFC2575, RFC2576, RFC1442, RFC1901, RFC1902, RFC1903, RFC1904, RFC1905, RFC1906, RFC1907, RFC1908, RFC2578, RFC3418, RFC3636, RFC271, RFC1757, RFC2819, RFC2021, RFC1398, RFC1643, RFC1650, RFC2358, RFC2665, RFC3635, RFC2668, RFC2674, RFC4363, RFC2863, RFC2618, RFC4022, RFC4113, RFC3298, RFC2620, RFC2925, RFC2465, RFC2466, RFC2737, RFC2787, RFC1724, RFC1850, RFC5132, RFC2932, RFC2934, RFC4292, RFC4293, RFC791, RFC768, RFC793, RFC792, RFC2463, RFC4443, RFC4884, RFC826, RFC1338, RFC1519, RFC2474, RFC3168, RFC3260, RFC1321, RFC2284, RFC2865, RFC2716, RFC1759, RFC3580, RFC3748, RFC2571, RFC2572, RFC2573, RFC2574, RFC3246, RFC3247, RFC1886, RFC1981, RFC2460, RFC2461, RFC4861, RFC2462, RFC4862, RFC2464, RFC2767, RFC3513, RFC4291, RFC2893, RFC4213, RFC3484, RFC2003, RFC1191, RFC5415

Quality of Service (QoS) support
Y

Switch layer
L3

Switch type
Managed

System event log
Y

Web-based management
Y

Multicast features

Multicast Listener Discovery (MLD) snooping
MLD v1, MLD v2

Multicast support
Y

Network

10G support
Y

Copper ethernet cabling technology
10BASE-T,10GBASE-T,100BASE-T,1000BASE-T

Flow control support
Y

Full duplex
Y

Head-of-line (HOL) blocking
Y

Link aggregation
Y

Networking standards
IEEE 802.1AX,IEEE 802.1D,IEEE 802.1Q,IEEE 802.1Qau,IEEE 802.1Qaz,IEEE 802.1Qbb,IEEE 802.1s,IEEE 802.1v,IEEE 802.1w,IEEE 802.1x,IEEE 802.3x

Number of VLANs
4094

Port mirroring
Y

Spanning tree protocol
Y

Virtual LAN features
Private VLAN,Voice VLAN,MAC address-based VLAN,Port-based VLAN

VLAN support
Y

Operational conditions

Heat dissipation
557.94 BTU/h

Operating relative humidity (H-H)
10 - 95%

Operating temperature (T-T)
-5 - 50 °C

Storage relative humidity (H-H)
5 - 95%

Storage temperature (T-T)
-40 - 70 °C

Packaging data

Package depth
575 mm

Package height
145 mm

Package weight
9.23 kg

Package width
527 mm

Performance

Built-in processor
Y

Physical stacking (units)
4

Virtual stacking (units)
32

Ports & interfaces

Combo SFP ports quantity
4

Console port
RJ-45

Fiber optic connector
SFP+

Switch Number of Ports
20

Switch Port Speed
Gigabit Ethernet (10/100/1000)

USB 2.0 ports quantity
1

Power

AC input frequency
50 - 60 Hz

AC input voltage
100 - 240 V

Input current
2 A

Power consumption (max)
159.8 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
N

Security

Access Control List (ACL)
Y

Authentication
Guest VLAN, MAC-based authentication, Port-based authentication

BPDU filtering/protection
Y

DHCP features
DHCP server,DHCP client

IGMP snooping
Y

Loop protection
Y

Security algorithms
802.1x RADIUS

SSH/SSL support
Y

Technical details

Master (outer) cases per pallet (air)
28 pc(s)

Master (outer) cases per pallet (sea)
28 pc(s)

Pallet gross length
110 cm

Pallet gross weight (air)
313.9 kg

Pallet gross weight (sea)
313.9 kg

Pallet gross width
120 cm

Pallet height (air)
138.1 cm

Pallet height (sea)
138.1 cm

Products per pallet (air)
28 pc(s)

Products per pallet (sea)
28 pc(s)

Products per shipping (inner) case
1 pc(s)

Shipping (inner) case gross weight
10.6 kg

Shipping (inner) case height
17.8 cm

Shipping (inner) case length
59.5 cm

Shipping (inner) case net weight
7.53 kg

Shipping (inner) case width
54.5 cm

Weight & dimensions

Depth
380 mm

Height
44 mm

Weight
6.65 kg

Width
441 mm

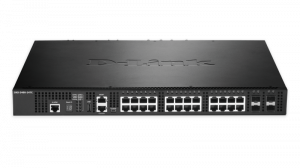

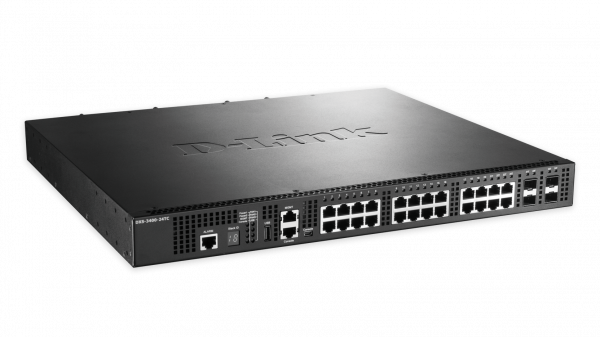

D-Link DXS-3400-24TC network switch Managed L3 Gigabit Ethernet (10/100/1000) Black
