Description

D-Link DSS-100E-9P. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 2000 entries, Switching capacity: 1.8 Gbit/s. Networking standards: IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x. Power over Ethernet (PoE)

Supports power delivery to devices up to 250m away
8 x 10/100 Mbps PoE Ethernet ports
92W power budget, with up to 30W per port
1 x Gigabit Ethernet port allows ample bandwidth for uplink connections
Equipped with 6kV surge protection to prevent damage from lightning and power surges
With plug & play, your network is ready to go immediately
Auto detection of long range connected devices

Product Properties

Manufacturer
D-Link

Model
DSS-100E-9P

EAN
790069451089

Bullet points

Point
1 x Gigabit Ethernet port allows ample bandwidth for uplink connections

8 x 10/100 Mbps PoE Ethernet ports

92W power budget, with up to 30W per port

Auto detection of long range connected devices

Equipped with 6kV surge protection to prevent damage from lightning and power surges

Supports power delivery to devices up to 250m away

With plug & play, your network is ready to go immediately

Data transmission

Forwarding rate
2.67 Mpps

MAC address table
2000 entries

Packet buffer memory
0.128 MB

Packet forwarding rate (10 Mbps)
14880 pps

Packet forwarding rate (100 Mbps)
148800 pps

Store-and-forward
Y

Switching capacity
1.8 Gbit/s

Design

Certification
CE, RoHS

LED indicators
Activity, Link, PoE, Power, Speed

Product colour
Black

Management features

Switch type
Unmanaged

Network

10G support
N

Auto MDI/MDI-X
Y

Networking standards
IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x

Operational conditions

Heat dissipation
486.7 BTU/h

Operating relative humidity (H-H)
0 - 95%

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
0 - 95%

Storage temperature (T-T)
-10 - 70 °C

Packaging data

User guide
Y

Performance

Mean time between failures (MTBF)
52308 h

Ports & interfaces

Gigabit Ethernet (copper) ports quantity
1

Switch Number of Ports
8

Switch Port Speed
Fast Ethernet (10/100)

Power

Power consumption (max)
102 W

Power supply included
Y

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Y

Power over Ethernet (PoE) ports quantity
8

Power over Ethernet (PoE) power per port
30 W

Total Power over Ethernet (PoE) budget
92 W

Weight & dimensions

Depth
104 mm

Height
26 mm

Weight
410 g

Width
177 mm

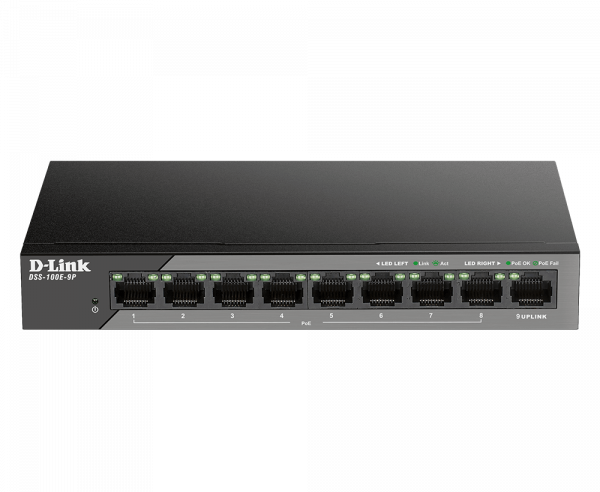

D-Link DSS-100E-9P network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Black
