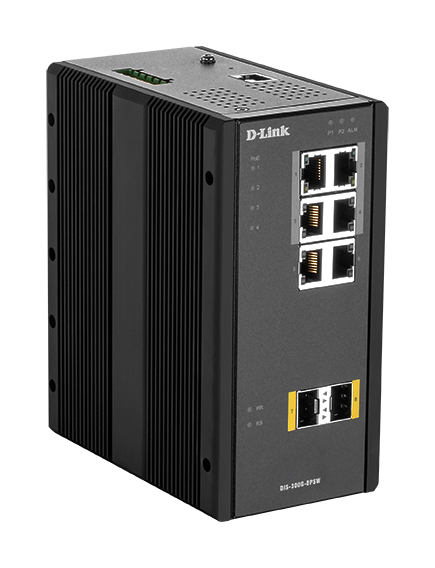

D-Link DIS‑300G‑8PSW Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Roll over image to zoom inClick to Open expanded view
D-Link DIS‑300G‑8PSW Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
D-Link DIS‑300G‑8PSW Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Print
Model: DIS-300G-8PSW
EAN: 790069437939

D-Link DIS‑300G‑8PSW Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Manufacturer:
D-Link
D-Link DIS‑300G‑8PSW, Managed, L2, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Wall mountable
Please log in to see your price
Related products

Description

D-Link DIS‑300G‑8PSW. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 6. Full duplex. MAC address table: 8000 entries. Networking standards: IEEE 802.1D,IEEE 802.1ab,IEEE 802.1ad,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.3ad,IEEE.... DC input voltage: 48 - 58 V. Power over Ethernet (PoE). Wall mountable
  • 4 x 100/1000BaseT PoE ports, 2 x 100/1000BaseT ports, 2 x 100/1000BaseSFP slots
  • 120 W PoE Power Budget
  • High availability
  • Easy-to-control management interfaces and security
  • Withstands extreme temperatures
  • Certified for vibration, shock, free-fall, EMC

Product Properties

  • Model
  • DIS-300G-8PSW
  • EAN
  • 790069437939
  • Bullet points
  • Point
  • 120 W PoE Power Budget
    4 x 100/1000BaseT PoE ports, 2 x 100/1000BaseT ports, 2 x 100/1000BaseSFP slots
    Certified for vibration, shock, free-fall, EMC
    Easy-to-control management interfaces and security
    High availability
    Withstands extreme temperatures
  • Data transmission
  • Jumbo frames
  • 9000
  • Jumbo frames support
  • Y
  • MAC address table
  • 8000 entries
  • Store-and-forward
  • Y
  • Design
  • Certification
  • IEC60068‑2‑6, IEC60068‑2‑27, IEC60068‑2‑32, UL 60950‑1, CE, FCC, RoHS, WEEE
  • DIN rail mounting
  • Y
  • Electromagnetic compatibility
  • FCC 15, EN 61000‑6‑2, EN 61000‑6‑4, EN 61000‑4‑2, ‑3, ‑4, ‑5, ‑6
  • International Protection (IP) code
  • IP30
  • LED indicators
  • Alarm, LAN, PoE, Power
  • Product colour
  • Black
  • Wall mountable
  • Y
  • Management features
  • MIB support
  • RFC 1757 RMON 1,2,3,9; RFC 2674 Q MIB RFC‑1213 MIB‑II; RFC‑1493 MIB; RFC 2233 IF MIB
  • Quality of Service (QoS) support
  • Y
  • Switch layer
  • L2
  • Switch type
  • Managed
  • System event log
  • Y
  • Traffic shaping
  • Y
  • Web-based management
  • Y
  • Multicast features
  • Multicast support
  • Y
  • Network
  • 10G support
  • N
  • Auto MDI/MDI-X
  • Y
  • Auto-negotiation
  • Y
  • Broadcast storm control
  • Y
  • Flow control support
  • Y
  • Full duplex
  • Y
  • Link aggregation
  • Y
  • Networking standards
  • IEEE 802.1D,IEEE 802.1ab,IEEE 802.1ad,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3x
  • Number of VLANs
  • 1024
  • Spanning tree protocol
  • Y
  • Virtual LAN features
  • Tagged VLAN,Protocol-based VLAN,MAC address-based VLAN,Port-based VLAN,IP subnet–based VLAN
  • VLAN support
  • Y
  • Operational conditions
  • Operating relative humidity (H-H)
  • 5 - 95%
  • Operating temperature (T-T)
  • -40 - 75 °C
  • Storage temperature (T-T)
  • -40 - 85 °C
  • Packaging data
  • Package depth
  • 242 mm
  • Package height
  • 138 mm
  • Package weight
  • 1.81 kg
  • Package width
  • 195 mm
  • Performance
  • Firmware upgradeable
  • Y
  • Ports & interfaces
  • Fiber optic connector
  • LC
  • SFP module slots quantity
  • 2
  • Switch Number of Ports
  • 6
  • Switch Port Speed
  • Gigabit Ethernet (10/100/1000)
  • Power
  • DC input voltage
  • 48 - 58 V
  • Power consumption (max)
  • 265 W
  • Power consumption (typical)
  • 14 W
  • Power protection features
  • Over current, Reverse polarity
  • Power over Ethernet (PoE)
  • Power over Ethernet (PoE)
  • Y
  • Power over Ethernet (PoE) power per port
  • 60 W
  • Power over Ethernet (PoE) voltage range
  • 54 - 58 V
  • Power over Ethernet plus (PoE+) ports quantity
  • 4
  • Total Power over Ethernet (PoE) budget
  • 120 W
  • Security
  • Authentication type
  • IEEE 802.1x,RADIUS
  • DHCP features
  • DHCP server,DHCP snooping,DHCP relay,DHCP client
  • Queue scheduling algorithms
  • SPQ,Weighted Round Robin (WRR)
  • Security algorithms
  • HTTPS,SNMP,SNMPv3,SSH
  • Technical details
  • Master (outer) cases per pallet (air)
  • 20 pc(s)
  • Master (outer) cases per pallet (sea)
  • 28 pc(s)
  • Pallet gross length
  • 120 cm
  • Pallet gross weight (air)
  • 404.4 kg
  • Pallet gross weight (sea)
  • 559.4 kg
  • Pallet gross width
  • 110 cm
  • Pallet height (air)
  • 148.5 cm
  • Pallet height (sea)
  • 2.02 m
  • Products per pallet (air)
  • 200 pc(s)
  • Products per pallet (sea)
  • 280 pc(s)
  • Products per shipping (inner) case
  • 10 pc(s)
  • Shipping (inner) case gross weight
  • 19.4 kg
  • Shipping (inner) case height
  • 27 cm
  • Shipping (inner) case length
  • 69.5 cm
  • Shipping (inner) case net weight
  • 18.1 kg
  • Shipping (inner) case width
  • 40.5 cm
  • Weight & dimensions
  • Depth
  • 154 mm
  • Height
  • 128 mm
  • Weight
  • 1.31 kg
  • Width
  • 71 mm
