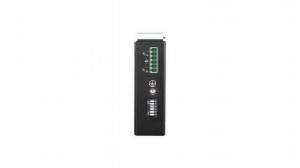

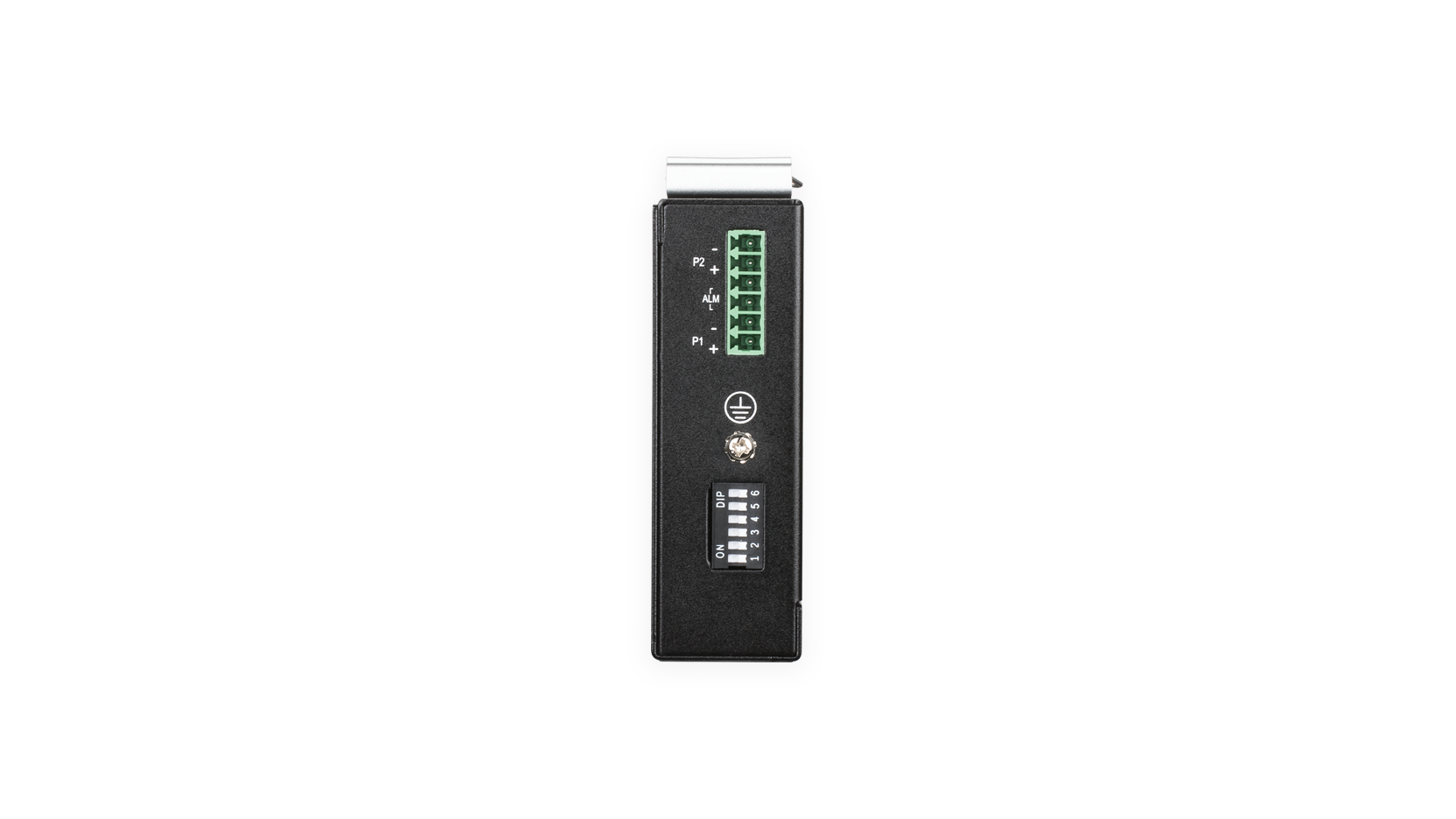

D-Link DIS‑100G‑5SW Unmanaged L2 Gigabit Ethernet (10/100/1000) Black
D-Link DIS‑100G‑5SW Unmanaged L2 Gigabit Ethernet (10/100/1000) Black
D-Link DIS‑100G‑5SW Unmanaged L2 Gigabit Ethernet (10/100/1000) Black
D-Link DIS‑100G‑5SW Unmanaged L2 Gigabit Ethernet (10/100/1000) Black
Print
Model: DIS-100G-5SW
EAN: 790069437892

D-Link DIS‑100G‑5SW Unmanaged L2 Gigabit Ethernet (10/100/1000) Black

Manufacturer:
D-Link
D-Link DIS‑100G‑5SW, Unmanaged, L2, Gigabit Ethernet (10/100/1000), Full duplex, Wall mountable
Please log in to see your price
Related products

Description

D-Link DIS‑100G‑5SW. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 4. Full duplex. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z. DC input voltage: 12 - 58 V. Wall mountable

Product Properties

  • Model
  • DIS-100G-5SW
  • EAN
  • 790069437892
  • Data transmission
  • Forwarding rate
  • 7.44 Mpps
  • Jumbo frames
  • 9000
  • Jumbo frames support
  • Y
  • MAC address table
  • 2000 entries
  • Store-and-forward
  • Y
  • Switching capacity
  • 10 Gbit/s
  • Design
  • Certification
  • IEC60068-2-6; IEC60068-2-27; IEC60068-2-32; UL 60950-1, CE, FCC, RoHS, WEEE
  • DIN rail mounting
  • Y
  • Electromagnetic compatibility
  • FCC 15, EN 61000-6-2, EN 61000-6-4, EN 61000-4-2, -3, -4, -5, -6 (3)
  • LED indicators
  • LAN, Power
  • Product colour
  • Black
  • Wall mountable
  • Y
  • Management features
  • Switch layer
  • L2
  • Switch type
  • Unmanaged
  • Traffic shaping
  • Y
  • Multicast features
  • Multicast support
  • Y
  • Network
  • 10G support
  • N
  • Auto MDI/MDI-X
  • Y
  • Auto-negotiation
  • Y
  • Broadcast storm control
  • Y
  • Flow control support
  • Y
  • Full duplex
  • Y
  • Networking standards
  • IEEE 802.3,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
  • Operational conditions
  • Heat dissipation
  • 12.18 BTU/h
  • Operating relative humidity (H-H)
  • 5 - 95%
  • Operating temperature (T-T)
  • -40 - 75 °C
  • Storage relative humidity (H-H)
  • 0 - 95%
  • Storage temperature (T-T)
  • -40 - 85 °C
  • Packaging data
  • Package depth
  • 178 mm
  • Package height
  • 83 mm
  • Package weight
  • 500 g
  • Package width
  • 140 mm
  • Ports & interfaces
  • Fiber optic connector
  • LC
  • SFP module slots quantity
  • 1
  • Switch Number of Ports
  • 4
  • Switch Port Speed
  • Gigabit Ethernet (10/100/1000)
  • Power
  • DC input voltage
  • 12 - 58 V
  • Power consumption (max)
  • 3.57 W
  • Power consumption (typical)
  • 2.74 W
  • Power protection features
  • Over current, Reverse polarity
  • Power over Ethernet (PoE)
  • Power over Ethernet (PoE)
  • N
  • Technical details
  • Master (outer) cases per pallet (air)
  • 36 pc(s)
  • Master (outer) cases per pallet (sea)
  • 54 pc(s)
  • Pallet gross length
  • 120 cm
  • Pallet gross weight (air)
  • 220 kg
  • Pallet gross weight (sea)
  • 321.6 kg
  • Pallet gross width
  • 110 cm
  • Pallet height (air)
  • 136.5 cm
  • Pallet height (sea)
  • 198 cm
  • Products per pallet (air)
  • 360 pc(s)
  • Products per pallet (sea)
  • 540 pc(s)
  • Products per shipping (inner) case
  • 10 pc(s)
  • Shipping (inner) case gross weight
  • 5.64 kg
  • Shipping (inner) case height
  • 20.5 cm
  • Shipping (inner) case length
  • 44 cm
  • Shipping (inner) case net weight
  • 5 kg
  • Shipping (inner) case width
  • 30.5 cm
  • Weight & dimensions
  • Depth
  • 29.1 mm
  • Height
  • 89.4 mm
  • Weight
  • 295 g
  • Width
  • 112.2 mm
