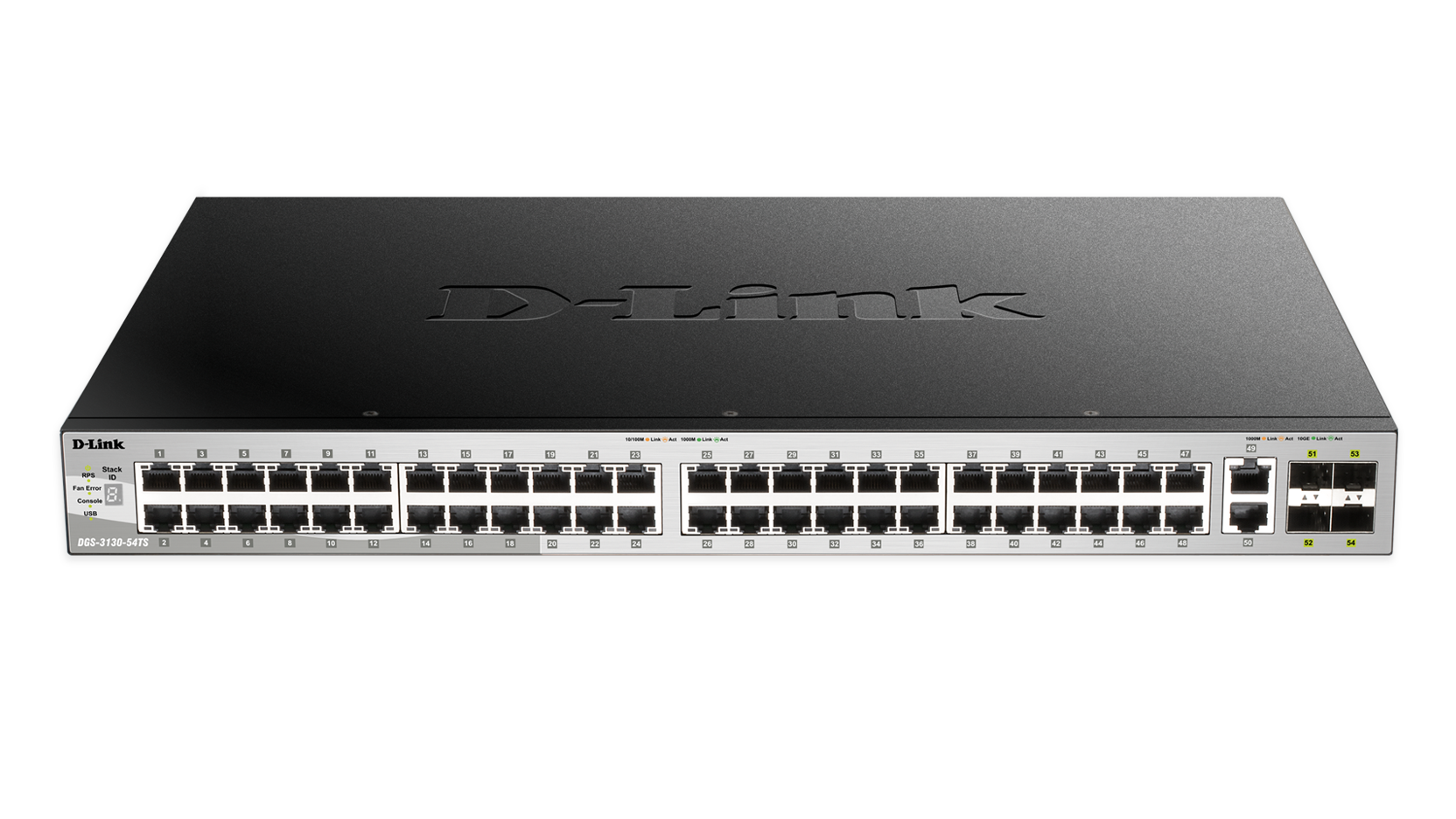

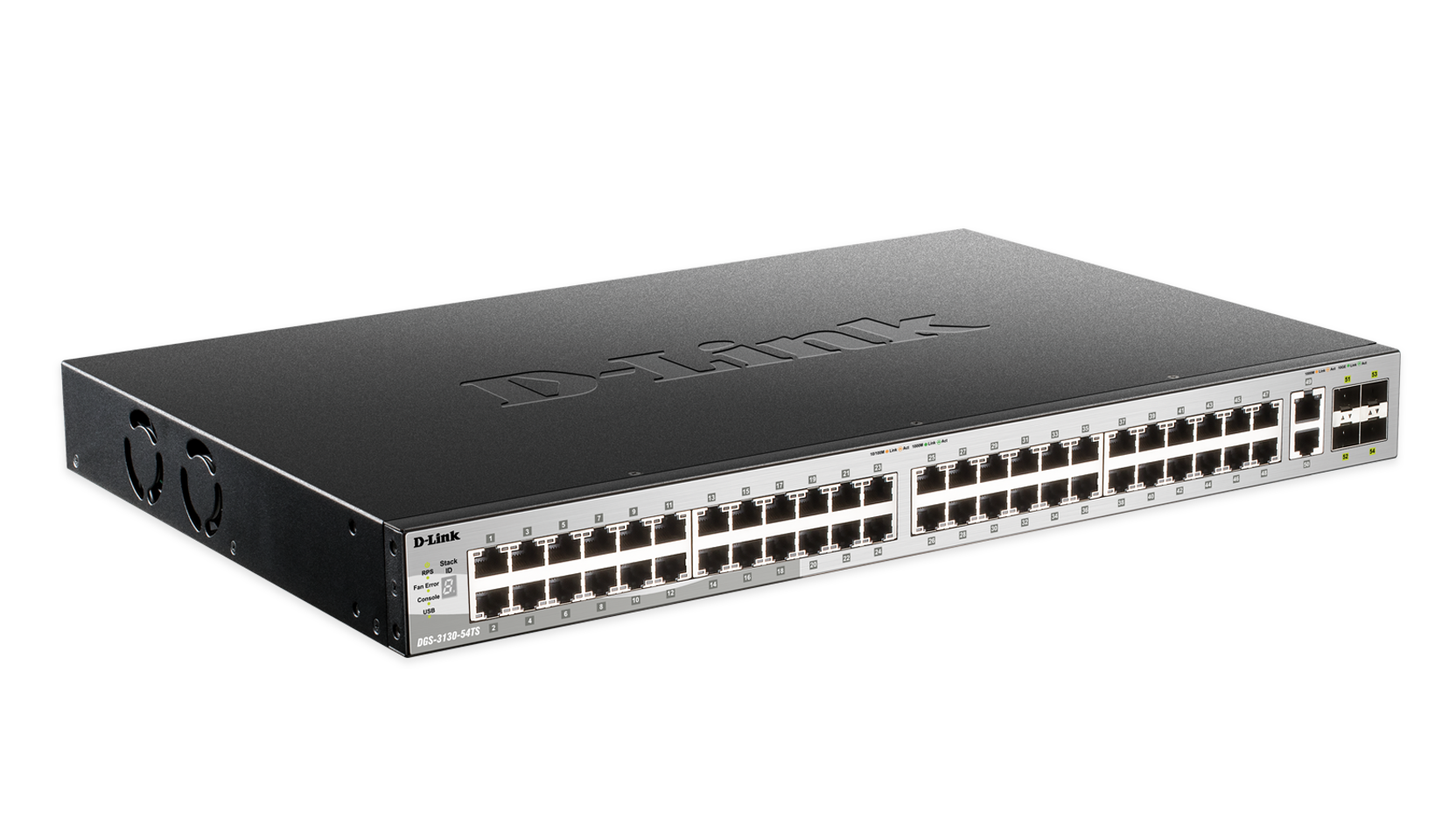

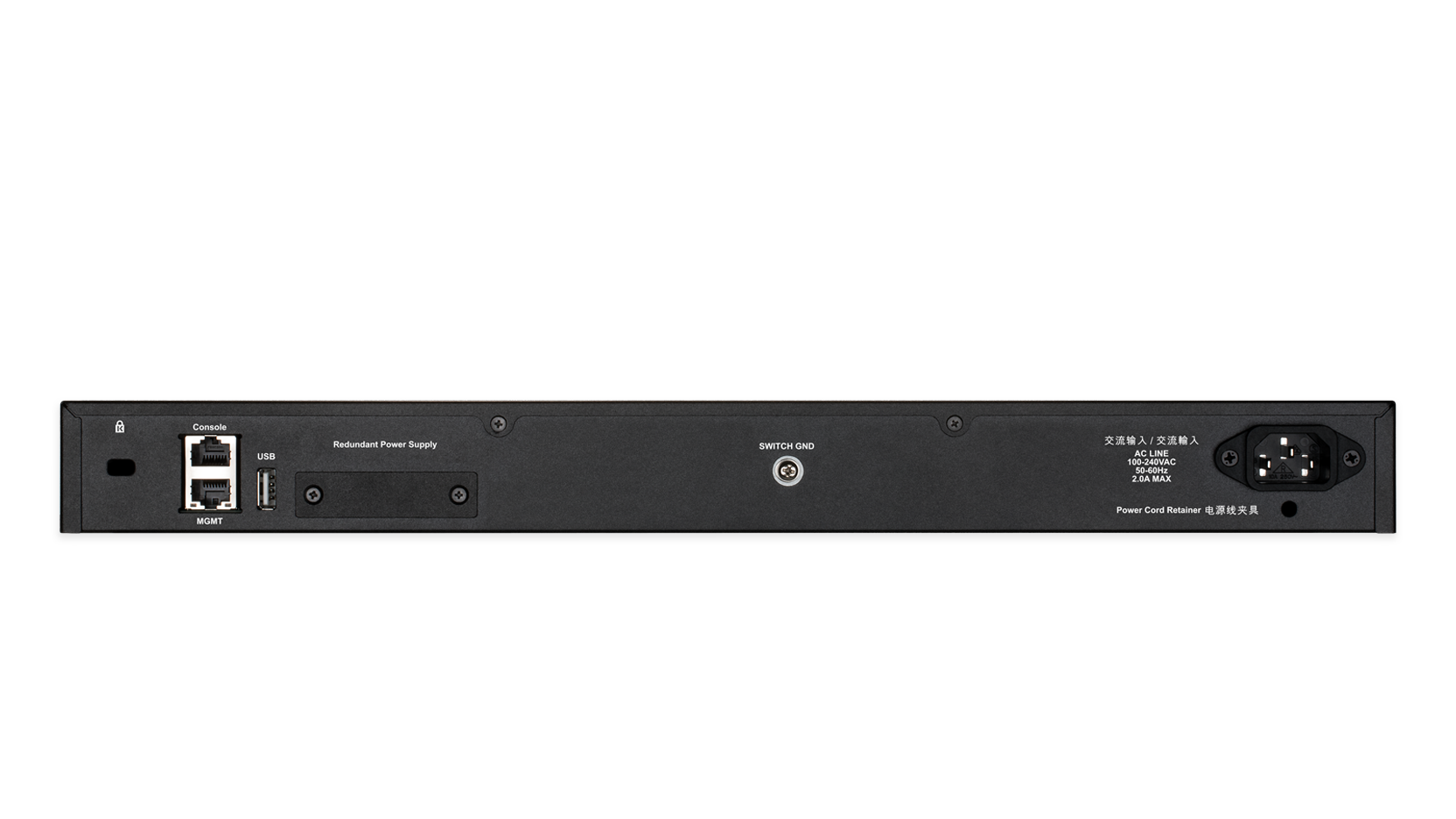

D-Link DGS-3130-54TS Managed L3 Gigabit Ethernet (10/100/1000) Black, Grey
Roll over image to zoom inClick to Open expanded view
D-Link DGS-3130-54TS Managed L3 Gigabit Ethernet (10/100/1000) Black, Grey
D-Link DGS-3130-54TS Managed L3 Gigabit Ethernet (10/100/1000) Black, Grey
D-Link DGS-3130-54TS Managed L3 Gigabit Ethernet (10/100/1000) Black, Grey
Print
Model: DGS-3130-54TS/SI
EAN: 790069435300

D-Link DGS-3130-54TS Managed L3 Gigabit Ethernet (10/100/1000) Black, Grey

Manufacturer:
D-Link
D-Link DGS-3130-54TS, Managed, L3, Gigabit Ethernet (10/100/1000)
Please log in to see your price
Related products

Description

D-Link DGS-3130-54TS. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, USB 2.0 ports quantity: 1. MAC address table: 16384 entries, Switching capacity: 216 Gbit/s. Networking standards: IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1v,IEEE 802.1w,IEEE 802.1x,IEEE.... Power connector: AC-in jack

Product Properties

  • Model
  • DGS-3130-54TS/SI
  • EAN
  • 790069435300
  • Data transmission
  • Forwarding rate
  • 161 Mpps
  • Jumbo frames support
  • Y
  • MAC address table
  • 16384 entries
  • Number of queues
  • 8
  • Packet buffer memory
  • 4 MB
  • Switching capacity
  • 216 Gbit/s
  • Design
  • Certification
  • FCC A, CE A, VCCI A, IC, RCM, BSMI, CCC
  • LED indicators
  • Y
  • Number of fans
  • 2 fan(s)
  • Product colour
  • Black, Grey
  • Safety
  • CB, cUL, BSMI, CCC
  • Stackable
  • Y
  • Management features
  • ARP inspection
  • Y
  • MIB support
  • RFC 1213; RFC 4188; RFC 1157, 2571-2576; RFC 1907; RFC 1757, 2819; RFC 2021; RFC 1398, 1643, 1650, 2358, 2665; RFC 2674 802.1p 2233, 2863 IF MIB; RFC 2618; RFC 2620; RFC 2925; RFC 2674, 4363; RFC 1065, 1066, 1155, 1156, 2578; RFC 1215; RFC 1212; RFC 1215; RFC 1157, 2571-2576; RFC 4022; RFC 4113; RFC 4293; RFC 2737
  • Quality of Service (QoS) support
  • Y
  • Switch layer
  • L3
  • Switch type
  • Managed
  • System event log
  • Y
  • Web-based management
  • Y
  • Multicast features
  • Multicast features
  • Controllable multicast
  • Multicast support
  • Y
  • Network
  • 10G support
  • Y
  • Broadcast storm control
  • Y
  • Copper ethernet cabling technology
  • 10BASE-T,10GBASE-T,100BASE-TX,1000BASE-T
  • Flow control support
  • Y
  • Head-of-line (HOL) blocking
  • Y
  • Link aggregation
  • Y
  • Networking standards
  • IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1v,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ad,IEEE 802.3ah,IEEE 802.3az,IEEE 802.3x
  • Number of VLANs
  • 4000
  • Port mirroring
  • Y
  • Spanning tree protocol
  • Y
  • Virtual LAN features
  • Private VLAN,Voice VLAN,Tagged VLAN,MAC address-based VLAN,Port-based VLAN
  • VLAN support
  • Y
  • Operational conditions
  • Heat dissipation
  • 172.72 BTU/h
  • Operating relative humidity (H-H)
  • 10 - 90%
  • Operating temperature (T-T)
  • 0 - 50 °C
  • Storage relative humidity (H-H)
  • 5 - 90%
  • Storage temperature (T-T)
  • -40 - 70 °C
  • Other features
  • I/O ports
  • 2 x 10GBASE-T
  • Packaging data
  • Package depth
  • 506 mm
  • Package height
  • 70 mm
  • Package weight
  • 4.83 kg
  • Package width
  • 427 mm
  • Performance
  • Mean time between failures (MTBF)
  • 478258 h
  • Noise level
  • 51.9 dB
  • Physical stacking (units)
  • 9
  • sFlow
  • Y
  • Telnet
  • Y
  • Virtual stacking (units)
  • 32
  • Ports & interfaces
  • Fiber optic connector
  • SFP+
  • Power connector
  • AC-in jack
  • SFP+ module slots quantity
  • 4
  • Switch Number of Ports
  • 48
  • Switch Port Speed
  • Gigabit Ethernet (10/100/1000)
  • USB 2.0 ports quantity
  • 1
  • Power
  • AC input frequency
  • 50 - 60 Hz
  • AC input voltage
  • 100 - 240 V
  • Power consumption (max)
  • 50.62 W
  • Redundant power supply (RPS) support
  • Y
  • Power over Ethernet (PoE)
  • Power over Ethernet (PoE)
  • N
  • Protocols
  • GARP VLAN Registration Protocol (GVRP)
  • Y
  • Routing protocols
  • RIP
  • Virtual Router Redundancy Protocol (VRRP)
  • Y
  • Security
  • Access Control List (ACL)
  • Y
  • Access Control List (ACL) egress
  • 512
  • Access Control List (ACL) ingress
  • 2048
  • Authentication
  • Guest VLAN, MAC-based authentication, Port-based authentication
  • BPDU filtering/protection
  • Y
  • DHCP features
  • DHCP server,DHCP snooping,DHCP relay,DHCP client
  • DoS attack prevention
  • Y
  • IGMP snooping
  • Y
  • Loop protection
  • Y
  • Password protection
  • Y
  • Queue scheduling algorithms
  • SP, WRR+SP, Weighted Round Robin (WRR)
  • Root protection
  • Y
  • Security algorithms
  • SNMP,SNMPv3,SSH-2,SSL/TLS
  • SSH/SSL support
  • Y
  • Technical details
  • Master (outer) cases per pallet (air)
  • 48 pc(s)
  • Master (outer) cases per pallet (sea)
  • 48 pc(s)
  • Pallet gross length
  • 110 cm
  • Pallet gross weight (air)
  • 522.6 kg
  • Pallet gross weight (sea)
  • 522.6 kg
  • Pallet gross width
  • 120 cm
  • Pallet height (air)
  • 197.5 cm
  • Pallet height (sea)
  • 197.5 cm
  • Products per pallet (air)
  • 96 pc(s)
  • Products per pallet (sea)
  • 96 pc(s)
  • Products per shipping (inner) case
  • 2 pc(s)
  • Shipping (inner) case gross weight
  • 10.5 kg
  • Shipping (inner) case height
  • 46 cm
  • Shipping (inner) case length
  • 52.4 cm
  • Shipping (inner) case net weight
  • 9.66 kg
  • Shipping (inner) case width
  • 19.8 cm
  • Weight & dimensions
  • Depth
  • 290 mm
  • Height
  • 44 mm
  • Weight
  • 3.72 kg
  • Width
  • 440 mm
