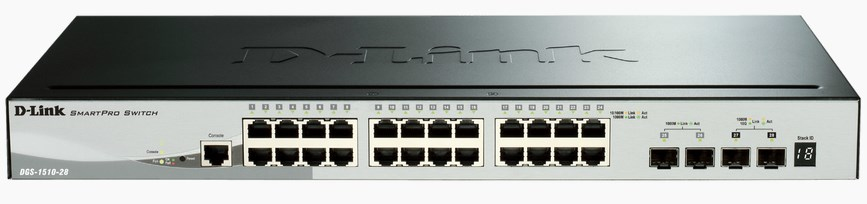

D-Link DGS-1510 Managed L3 Gigabit Ethernet (10/100/1000) Black
Roll over image to zoom inClick to Open expanded view
Print
Model: DGS-1510-28X
EAN: 790069406058

D-Link DGS-1510 Managed L3 Gigabit Ethernet (10/100/1000) Black

Manufacturer:
D-Link
D-Link DGS-1510, Managed, L3, Gigabit Ethernet (10/100/1000), Full duplex, Rack mounting
Please log in to see your price
Related products

Description

D-Link DGS-1510. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 16000 entries, Switching capacity: 92 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack. Rack mounting

Product Properties

  • Model
  • DGS-1510-28X
  • EAN
  • 790069406058
  • Data transmission
  • Jumbo frames support
  • Y
  • MAC address table
  • 16000 entries
  • Number of static routes
  • 512
  • Packet buffer memory
  • 1.5 MB
  • Store-and-forward
  • Y
  • Switching capacity
  • 92 Gbit/s
  • Throughput
  • 68.45 Mpps
  • Design
  • Certification
  • CE, FCC, C-Tick, VCCI, BSMI, CCC
  • LED indicators
  • Y
  • Product colour
  • Black
  • Rack mounting
  • Y
  • Safety
  • cUL, CB
  • Stackable
  • Y
  • Management features
  • Quality of Service (QoS) support
  • Y
  • Switch layer
  • L3
  • Switch type
  • Managed
  • Network
  • 10G support
  • Y
  • Auto MDI/MDI-X
  • Y
  • Full duplex
  • Y
  • Networking standards
  • IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x
  • Operational conditions
  • Heat dissipation
  • 72.292 BTU/h
  • Operating relative humidity (H-H)
  • 0 - 95%
  • Operating temperature (T-T)
  • -5 - 50 °C
  • Storage relative humidity (H-H)
  • 0 - 95%
  • Storage temperature (T-T)
  • -20 - 70 °C
  • Packaging data
  • Package depth
  • 511 mm
  • Package height
  • 91 mm
  • Package weight
  • 3.47 kg
  • Package width
  • 348 mm
  • Performance
  • Harmonized System (HS) code
  • 85176990
  • Noise level
  • 47.5 dB
  • Ports & interfaces
  • Power connector
  • DC-in jack
  • SFP+ module slots quantity
  • 4
  • Switch Number of Ports
  • 24
  • Switch Port Speed
  • Gigabit Ethernet (10/100/1000)
  • Power
  • AC input frequency
  • 50 - 60 Hz
  • AC input voltage
  • 100 - 240 V
  • Power consumption (typical)
  • 24 W
  • Power over Ethernet (PoE)
  • Power over Ethernet (PoE)
  • N
  • Security
  • Access Control List (ACL)
  • Y
  • MAC address filtering
  • Y
  • SSH/SSL support
  • Y
  • Static port security
  • Y
  • Technical details
  • Master (outer) cases per pallet (air)
  • 40 pc(s)
  • Master (outer) cases per pallet (sea)
  • 40 pc(s)
  • Pallet gross length
  • 110 cm
  • Pallet gross weight (air)
  • 471.4 kg
  • Pallet gross weight (sea)
  • 471.4 kg
  • Pallet gross width
  • 120 cm
  • Pallet height (air)
  • 2.05 m
  • Pallet height (sea)
  • 2.05 m
  • Products per pallet (air)
  • 120 pc(s)
  • Products per pallet (sea)
  • 120 pc(s)
  • Products per shipping (inner) case
  • 3 pc(s)
  • Shipping (inner) case gross weight
  • 11.3 kg
  • Shipping (inner) case height
  • 38.3 cm
  • Shipping (inner) case length
  • 52.9 cm
  • Shipping (inner) case net weight
  • 7.49 kg
  • Shipping (inner) case width
  • 29.6 cm
  • Weight & dimensions
  • Depth
  • 210 mm
  • Height
  • 44 mm
  • Weight
  • 2 kg
  • Width
  • 440 mm
