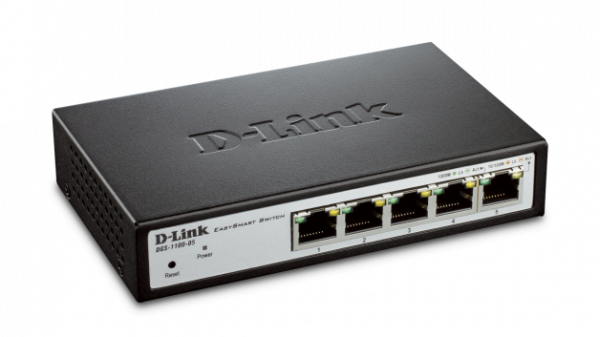

D-Link DGS-1100-05 Managed L2 Gigabit Ethernet (10/100/1000) Grey
Roll over image to zoom inClick to Open expanded view
D-Link DGS-1100-05 Managed L2 Gigabit Ethernet (10/100/1000) Grey
D-Link DGS-1100-05 Managed L2 Gigabit Ethernet (10/100/1000) Grey
D-Link DGS-1100-05 Managed L2 Gigabit Ethernet (10/100/1000) Grey
Print
Model: DGS-1100-05/E
EAN: 790069386268

D-Link DGS-1100-05 Managed L2 Gigabit Ethernet (10/100/1000) Grey

Manufacturer:
D-Link
D-Link DGS-1100-05, Managed, L2, Gigabit Ethernet (10/100/1000), Full duplex
Please log in to see your price
Related products

Description

D-Link DGS-1100-05. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5, Console port: RJ-45. Full duplex. Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x. Power connector: DC-in jack

Product Properties

  • Model
  • DGS-1100-05/E
  • EAN
  • 790069386268
  • Data transmission
  • Packet buffer memory
  • 0.125 MB
  • Store-and-forward
  • Y
  • Switching capacity
  • 10 Gbit/s
  • Throughput
  • 7.44 Mpps
  • Design
  • Certification
  • FCC, CE, VCCI
  • LED indicators
  • Y
  • Product colour
  • Grey
  • Rack mounting
  • N
  • Reset button
  • Y
  • Safety
  • UL/cUL, CE LVD
  • Management features
  • Quality of Service (QoS) support
  • Y
  • Switch layer
  • L2
  • Switch type
  • Managed
  • Web-based management
  • Y
  • Network
  • 10G support
  • N
  • Auto MDI/MDI-X
  • Y
  • Flow control support
  • Y
  • Full duplex
  • Y
  • Link aggregation
  • Y
  • Networking standards
  • IEEE 802.3,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x
  • Number of VLANs
  • 4094
  • Port mirroring
  • Y
  • Virtual LAN features
  • VLAN Identifier ( VLAN ID),Voice VLAN,Tagged VLAN,Port-based VLAN
  • VLAN support
  • Y
  • Operational conditions
  • Heat dissipation
  • 11.43 BTU/h
  • Operating relative humidity (H-H)
  • 10 - 95%
  • Operating temperature (T-T)
  • 0 - 40 °C
  • Storage relative humidity (H-H)
  • 5 - 95%
  • Storage temperature (T-T)
  • -10 - 70 °C
  • Packaging data
  • Package depth
  • 210 mm
  • Package height
  • 93 mm
  • Package weight
  • 589 g
  • Package width
  • 139 mm
  • Performance
  • Flash memory
  • 2 MB
  • Mean time between failures (MTBF)
  • 532838 h
  • Ports & interfaces
  • Console port
  • RJ-45
  • Power connector
  • DC-in jack
  • Switch Number of Ports
  • 5
  • Switch Port Speed
  • Gigabit Ethernet (10/100/1000)
  • Power
  • AC input frequency
  • 50 - 60 Hz
  • AC input voltage
  • 100 - 240 V
  • Power consumption (typical)
  • 3.35 W
  • Power over Ethernet (PoE)
  • Power over Ethernet (PoE)
  • N
  • Security
  • IGMP snooping
  • Y
  • MAC address filtering
  • Y
  • Technical details
  • Master (outer) cases per pallet (air)
  • 20 pc(s)
  • Master (outer) cases per pallet (sea)
  • 32 pc(s)
  • Pallet gross length
  • 110 cm
  • Pallet gross weight (air)
  • 284.4 kg
  • Pallet gross weight (sea)
  • 440.2 kg
  • Pallet gross width
  • 120 cm
  • Pallet height (air)
  • 132.5 cm
  • Pallet height (sea)
  • 2.08 m
  • Products per pallet (air)
  • 400 pc(s)
  • Products per pallet (sea)
  • 640 pc(s)
  • Products per shipping (inner) case
  • 20 pc(s)
  • Shipping (inner) case gross weight
  • 12.9 kg
  • Shipping (inner) case height
  • 24.3 cm
  • Shipping (inner) case length
  • 59.4 cm
  • Shipping (inner) case net weight
  • 11.8 kg
  • Shipping (inner) case width
  • 49.2 cm
  • Weight & dimensions
  • Depth
  • 85 mm
  • Height
  • 28 mm
  • Weight
  • 320 g
  • Width
  • 141 mm
