Corsair CX 750M power supply unit 750 W 24-pin ATX ATX Black
Roll over image to zoom inClick to Open expanded view
Corsair CX 750M power supply unit 750 W 24-pin ATX ATX Black
Corsair CX 750M power supply unit 750 W 24-pin ATX ATX Black
Corsair CX 750M power supply unit 750 W 24-pin ATX ATX Black
Corsair CX 750M power supply unit 750 W 24-pin ATX ATX Black
Print
Model: CP-9020061-UK
EAN: 843591030762

Corsair CX 750M power supply unit 750 W 24-pin ATX ATX Black

Manufacturer:
Corsair
Corsair CX 750M, 750 W, 100 - 240 V, 47 - 63 Hz, 6 - 12 A, +12V,+3.3V,+5V,+5Vsb,-12V, Active
Please log in to see your price
Related products

Description

Corsair CX 750M. Total power: 750 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 24-pin ATX, Cabling type: Semi-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black. Width: 150 mm, Depth: 160 mm, Height: 86 mm

Product Properties

  • Model
  • CP-9020061-UK
  • EAN
  • 843591030762
  • Design
  • Product colour
  • Black
  • Logistics data
  • Country of origin
  • China
  • Products per pallet
  • 108 pc(s)
  • Other features
  • Dimensions (WxDxH)
  • 150 x 160 x 86 mm
  • Package dimensions (WxDxH)
  • 216 x 290 x 130 mm
  • Ports quantity
  • 8
  • Packaging data
  • Package weight
  • 3.53 kg
  • Performance
  • 80 PLUS certification
  • 80 PLUS Bronze
  • ATX version
  • 2.3
  • Mean time between failures (MTBF)
  • 100000 h
  • Noise level
  • 39.9 dB
  • Power supply unit (PSU) form factor
  • ATX
  • Purpose
  • PC
  • Ports & interfaces
  • ATX Power connector (24-pin)
  • Yes

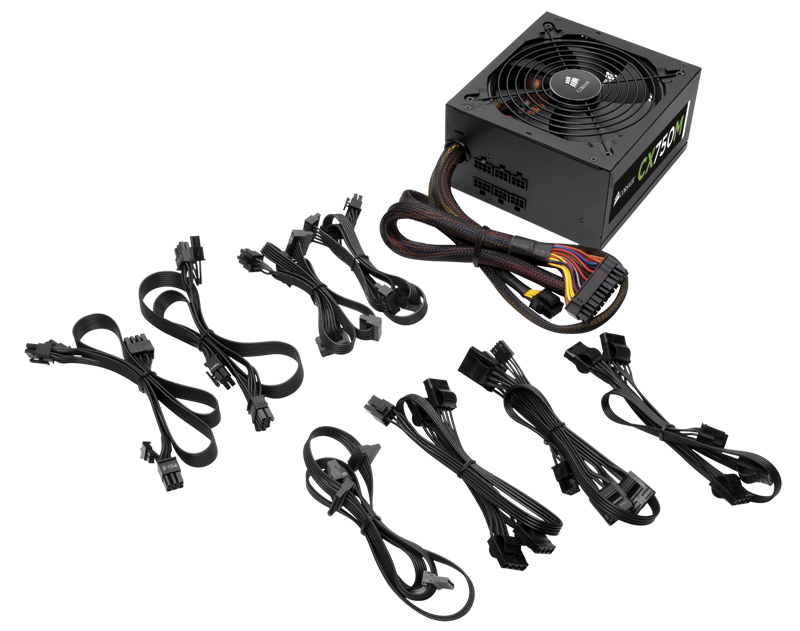

  • Cabling type
  • Semi-Modular
  • EPS power connector (8-pin)
  • Yes
  • Motherboard power connector
  • 24-pin ATX
  • Number of SATA power connectors
  • 2
  • PCI Express connector
  • Yes
  • Peripheral (Molex) power connectors (4-pin)
  • 2
  • Power
  • AC input frequency
  • 47 - 63 Hz
  • AC input voltage
  • 100 - 240 V
  • Combined power (+12V)
  • 744 W
  • Combined power (+3.3V)
  • 130 W
  • Combined power (+5V)
  • 130 W
  • Combined power (+5Vsb)
  • 15 W
  • Combined power (-12V)
  • 9.6 W
  • Efficiency
  • 85%
  • Input current
  • 6 - 12 A
  • Max output current (+12V)
  • 62 A
  • Max output current (+3.3V)
  • 25 A
  • Max output current (+5Vsb)
  • 3 A
  • Max output current (-12V)
  • 0.8 A
  • Maximum input current (@110V)
  • +12V,+3.3V,+5V,+5Vsb,-12V
  • Power Factor Correction (PFC) type
  • Active
  • Power protection features
  • Over power, Over voltage, Short circuit, Under voltage
  • Total power
  • 750 W
  • Weight & dimensions
  • Depth
  • 160 mm
  • Height
  • 86 mm
  • Weight
  • 3.27 kg
  • Width
  • 150 mm
