Description

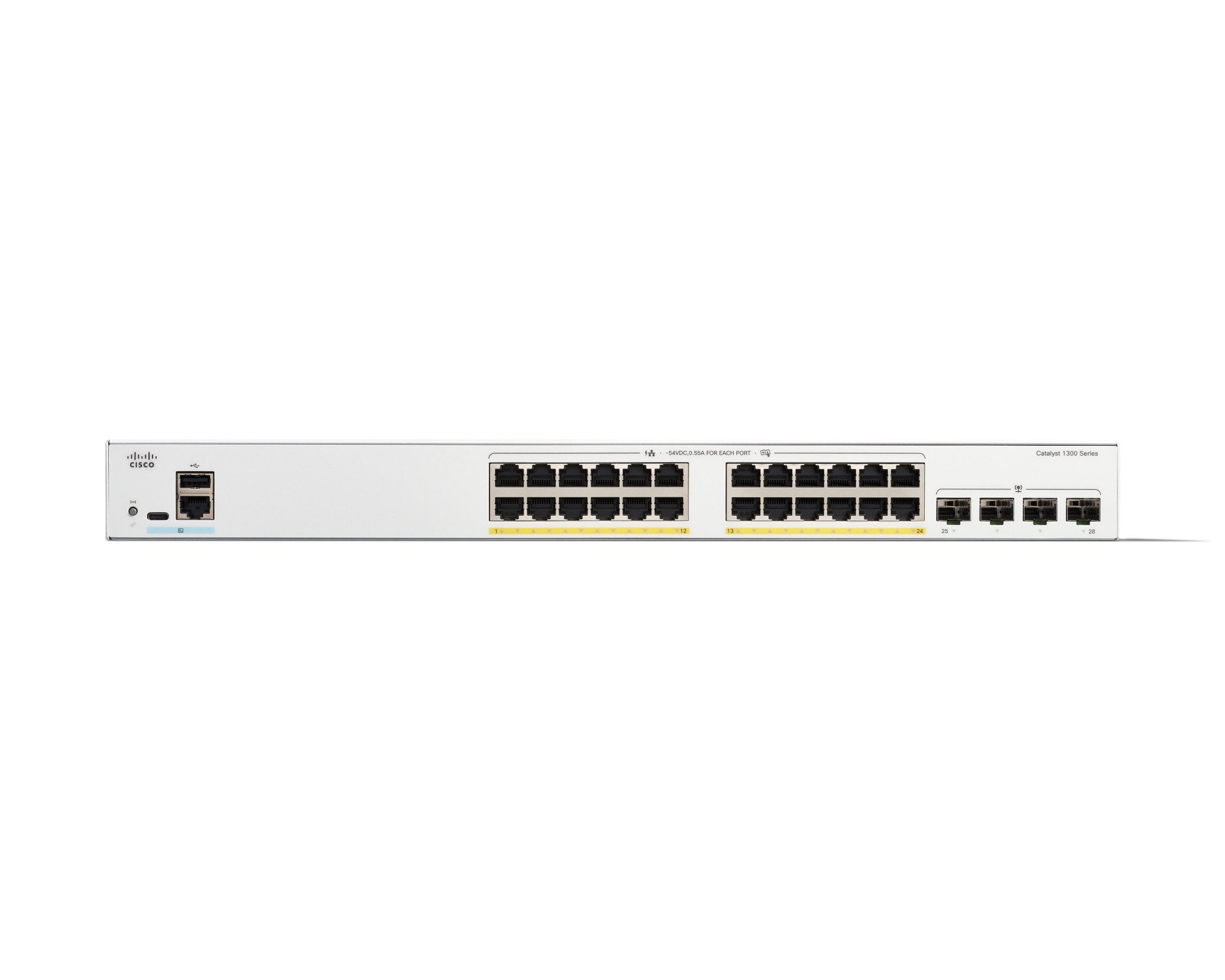

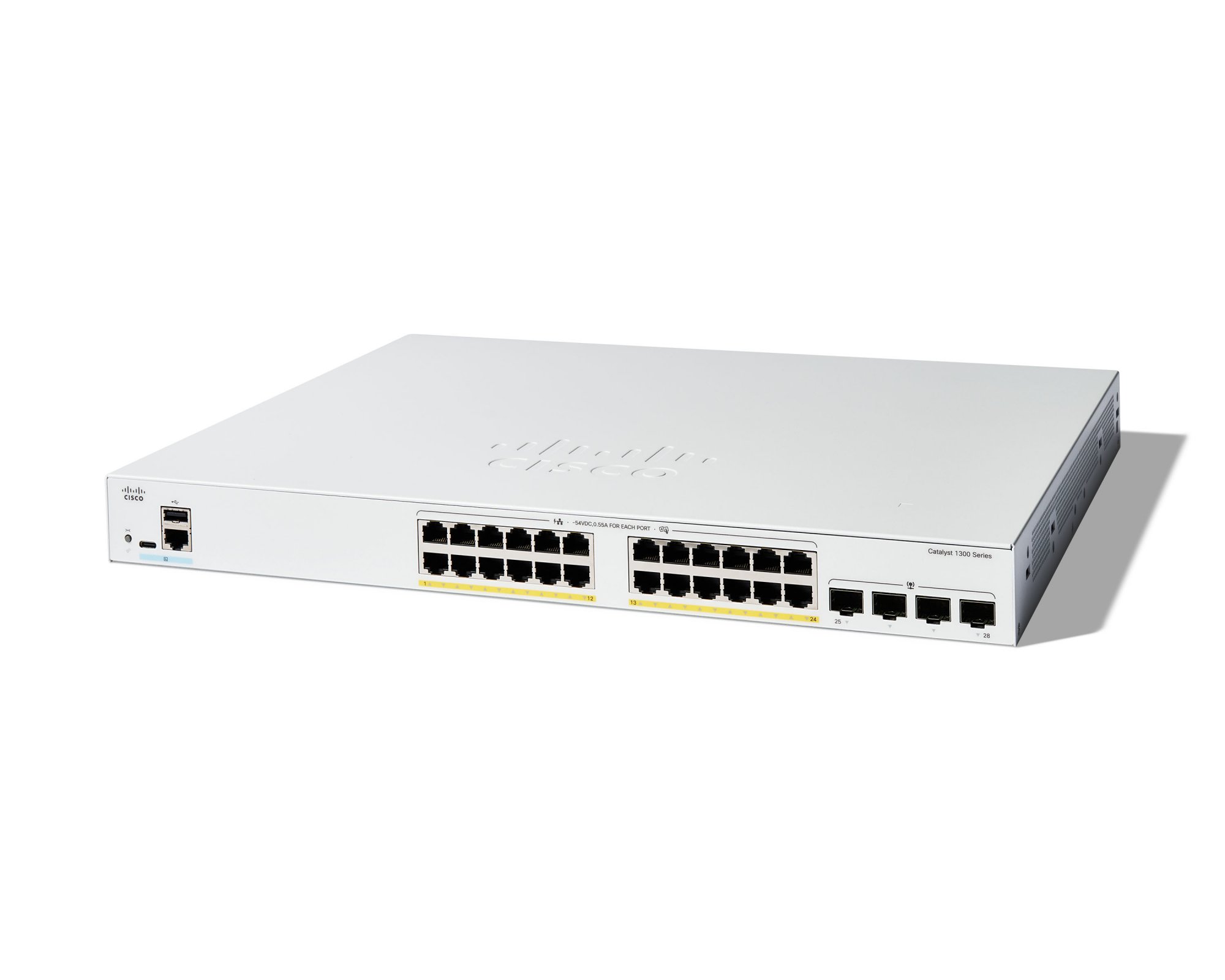

Cisco Catalyst 1300-24FP-4G Managed Switch, 24 Port GE, Full PoE, 4x1GE SFP, Limited Lifetime Protection (C1300-24FP-4G). Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45/USB Type-C. MAC address table: 16000 entries, Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE.... Power over Ethernet (PoE). Rack mounting

SWITCH PORTS: 24 ports 10/100/1000 + 4x 1GE SFP (total PoE power budget: 375W, PoE, PoE+)
SIMPLE: Intuitive Cisco Business mobile app, local web interface and Cisco Business Dashboard allows you to set up, manage and monitor the switch, with step-by-step instructions to install and configure your network in minutes – no IT expertise required
ENHANCED SECURITY: IP-MAC port binding detects and blocks deliberate network attacks. IPv6 First Hop Security provides unparalleled protection against a vast range of address spoofing and man-in-the-middle attacks on IPv6 networks
ENERGY EFFICIENT: Optimises power usage to lower operational cost. Compliant with IEEE 802.3az Energy Efficient Ethernet. Fanless in select models
PERFECT FOR SMALL BUSINESS: Requires no subscription or licences to use, and offers limited lifetime hardware warranty with complimentary 1-year technical support

Product Properties

Manufacturer
Cisco

Model
C1300-24FP-4G

Bullet points

Point
ENERGY EFFICIENT

ENHANCED SECURITY

PERFECT FOR SMALL BUSINESS

SIMPLE

SWITCH PORTS: 24 ports 10/100/1000 + 4x 1GE SFP (total PoE power budget: 375W, PoE, PoE+)

Certificates

Certification
UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A

Data transmission

Jumbo frames
9000

Jumbo frames support
Yes

MAC address table
16000 entries

Number of queues
8

Number of static routes
990

Packet buffer memory
1.5 MB

Static route
Yes

Switching capacity
56 Gbit/s

Design

Product colour
Grey

Rack mounting
Yes

Reset button
Yes

Logistics data

Country of origin
China

Management features

Configuring Location Settings (CLI)
Yes

MIB support
Y

Quality of Service (QoS) support
Yes

Switch layer
L2/L3

Switch type
Managed

Web-based management
Yes

Multicast features

Multicast support
Yes

Network

Broadcast storm control
Yes

Cable types supported
Cat5e

Head-of-line (HOL) blocking
Yes

Link aggregation
Yes

Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

Policy-based routing
Yes

Port mirroring
Yes

QinQ implementation
Selective QinQ

Rate limiting
Yes

Spanning tree protocol
Yes

Virtual LAN features
Private VLAN, Voice VLAN

VLAN support
Yes

Operational conditions

Heat dissipation
1542.3 BTU/h

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
-5 - 50 °C

Storage relative humidity (H-H)
10 - 90%

Storage temperature (T-T)
-25 - 70 °C

Other features

Packaging content
Switch, power cable, USB Type C cable and mounting hardware

Packaging data

Package depth
575.1 mm

Package height
108 mm

Package weight
7.12 kg

Package width
512.1 mm

Performance

Built-in processor
Yes

Flash memory
512 MB

Internal memory
1000 MB

Mean time between failures (MTBF)
698220 h

Memory type
DDR4-SDRAM

Noise level
34.8 dB

Plug and Play
Yes

Processor frequency
1.4 MHz

Ports & interfaces

Console port
RJ-45/USB Type-C

Installed SFP modules quantity
0

Installed SFP+ modules quantity
0

SFP module slots quantity
4

Switch Number of Ports
24

Switch Port Speed
Gigabit Ethernet (10/100/1000)

Power

AC input frequency
50/60 Hz

AC input voltage
100 - 220 V

Power consumption (typical)
37.2 W

Power plug type
Type C

Power source
AC

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes

Power over Ethernet (PoE) ports quantity
24

Total Power over Ethernet (PoE) budget
370 W

Protocols

GARP VLAN Registration Protocol (GVRP)
Yes

IPv4 & IPv6 features
ICMPv6, IPv6 SNMP, IPv6 SSH, IPv6 TFTP, IPv6 Telnet

Security

Access Control List (ACL)
Yes

Access Control List (ACL) rules
1024

Authentication
MAC-based authentication, Web-based authentication

Authentication type
RADIUS, TACACS+

DHCP features
DHCP auto-config, DHCP client, DHCP relay, DHCP server, DHCP snooping

DoS attack prevention
Yes

IGMP proxy
Yes

IGMP snooping
Yes

Queue scheduling algorithms
Weighted Round Robin (WRR)

Security algorithms
HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSH-2

SSH/SSL support
Yes

Weight & dimensions

Depth
444.5 mm

Height
43.9 mm

Weight
4.6 kg

Width
350 mm
