Description

Belkin F1DN102KVM-UN-3. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI/DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 3840 x 2160 pixels, Video bandwidth: 60 Hz. Product colour: Black, Housing material: Aluminium, Certification: FCC Класс B, UL, CE, RoHS, ICES, RCM. Power source: AC, AC input voltage: 100-240 V, Input current: 1.5 A. Width: 317.5 mm, Depth: 162.6 mm, Height: 63.5 mm

Universal video support for up to 3840x2160@60hz refresh (on HDMI Console Output) 3840x2160@30Hz or 2860x1600@120Hz (on HDMI and DisplayPort Console Output)
Unique combo video connector that accepts DisplayPort or HDMI
Multi-platform support: Supports cross-platform systems, including DisplayPort, HDMI, and DVI-D video interface technologies via Belkin Passive Cables with high retention connectors
Common Criteria Validated to NIAP Protection Profile 3.0
Supports up to two host computers
Supports one display for the user
Supports CAC readers
Supports DCU remote control units
Unidirectional data paths: Optical data diodes prevent peripherals from being used to breach systems
Display security: Protected display interface prevents data leakage via the monitor

Product Properties

Manufacturer
Belkin

Model
F1DN102KVM-UN-3

EAN
745883761029

Bullet points

Point
Common Criteria Validated to NIAP Protection Profile 3.0

Display security: Protected display interface prevents data leakage via the monitor

Multi-platform support

Supports CAC readers

Supports DCU remote control units

Supports one display for the user

Supports up to two host computers

Unidirectional data paths: Optical data diodes prevent peripherals from being used to breach systems

Unique combo video connector that accepts DisplayPort or HDMI

Design

Certification
FCC Класс B, UL, CE, RoHS, ICES, RCM

Housing material
Aluminium

Product colour
Black

Rack mounting
Y

Operational conditions

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
0 - 80%

Storage temperature (T-T)
-20 - 60 °C

Packaging content

AC adapter included
Y

Cables included
AC

Manual
Y

Performance

HD type
4K Ultra HD

Hot-Plug support
Y

Maximum resolution
3840 x 2160 pixels

Video bandwidth
60 Hz

Ports & interfaces

Audio connections
Y

Console ports
DisplayPort,HDMI

Console USB ports quantity
1

DisplayPort version
1.2a

DisplayPorts quantity
2

HDMI version
2.0

Keyboard port type
USB

Mouse port type
USB

Number of computers controlled
2

USB 2.0 Type-A hub ports quantity
2

USB 2.0 Type-B ports quantity
1

Video port type
HDMI/DisplayPort

Power

AC input voltage
100-240 V

External power adapter
Y

Input current
1.5 A

Power source
AC

Weight & dimensions

Depth
162.6 mm

Height
63.5 mm

Weight
2.2 kg

Width
317.5 mm

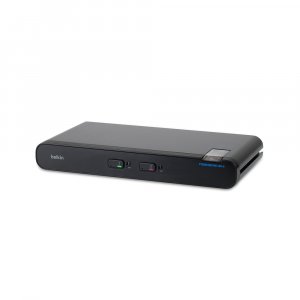

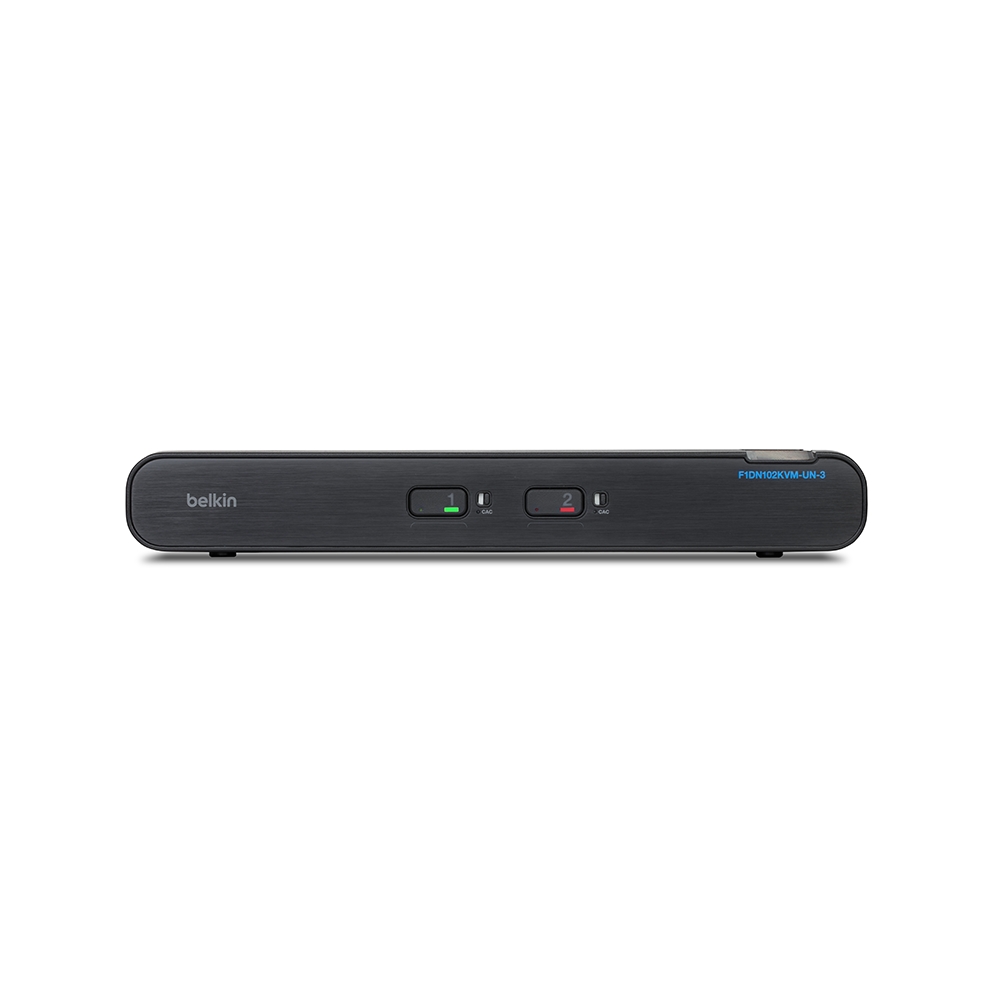

Belkin F1DN102KVM-UN-3 KVM switch Rack mounting Black
