Description

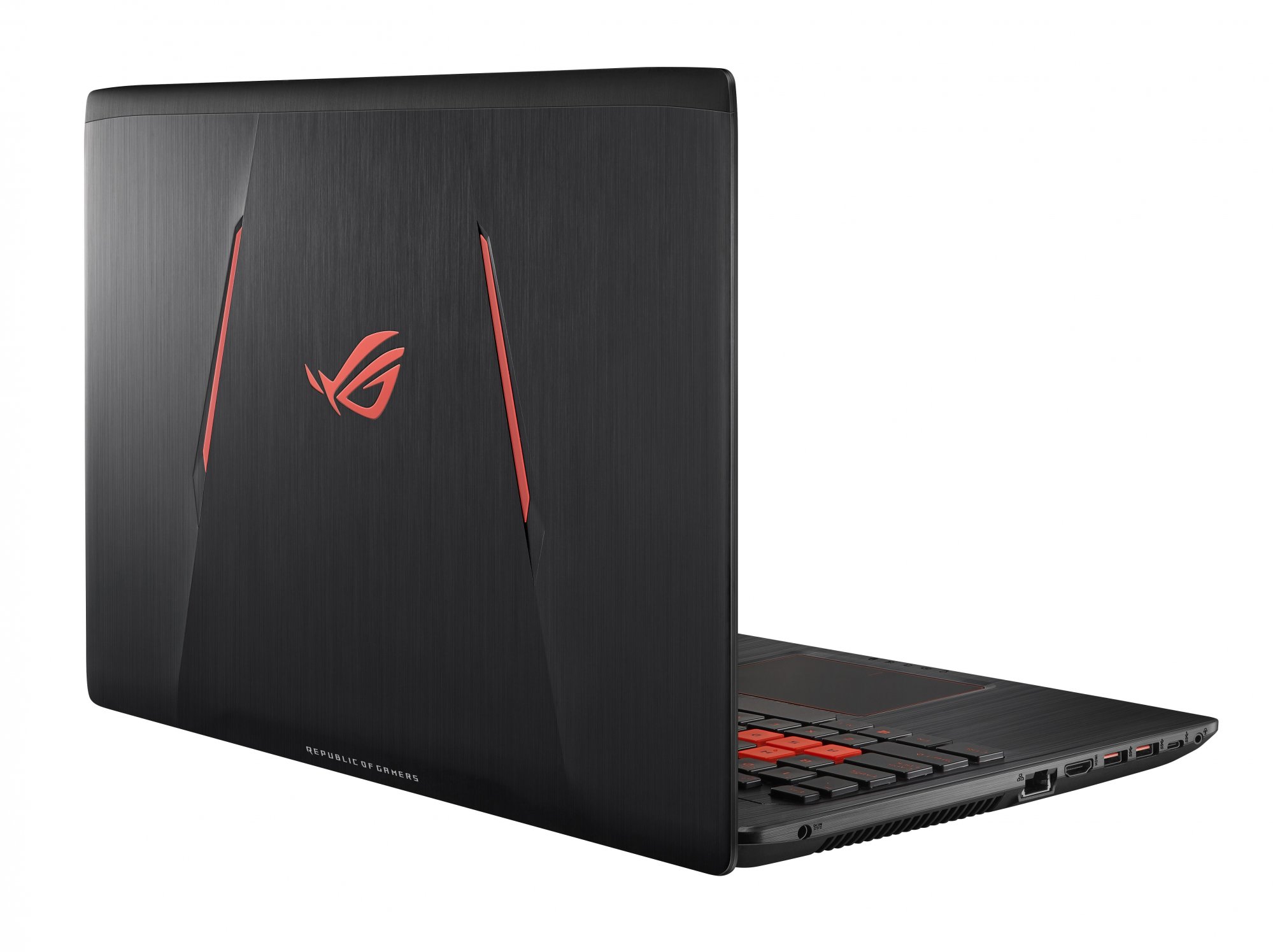

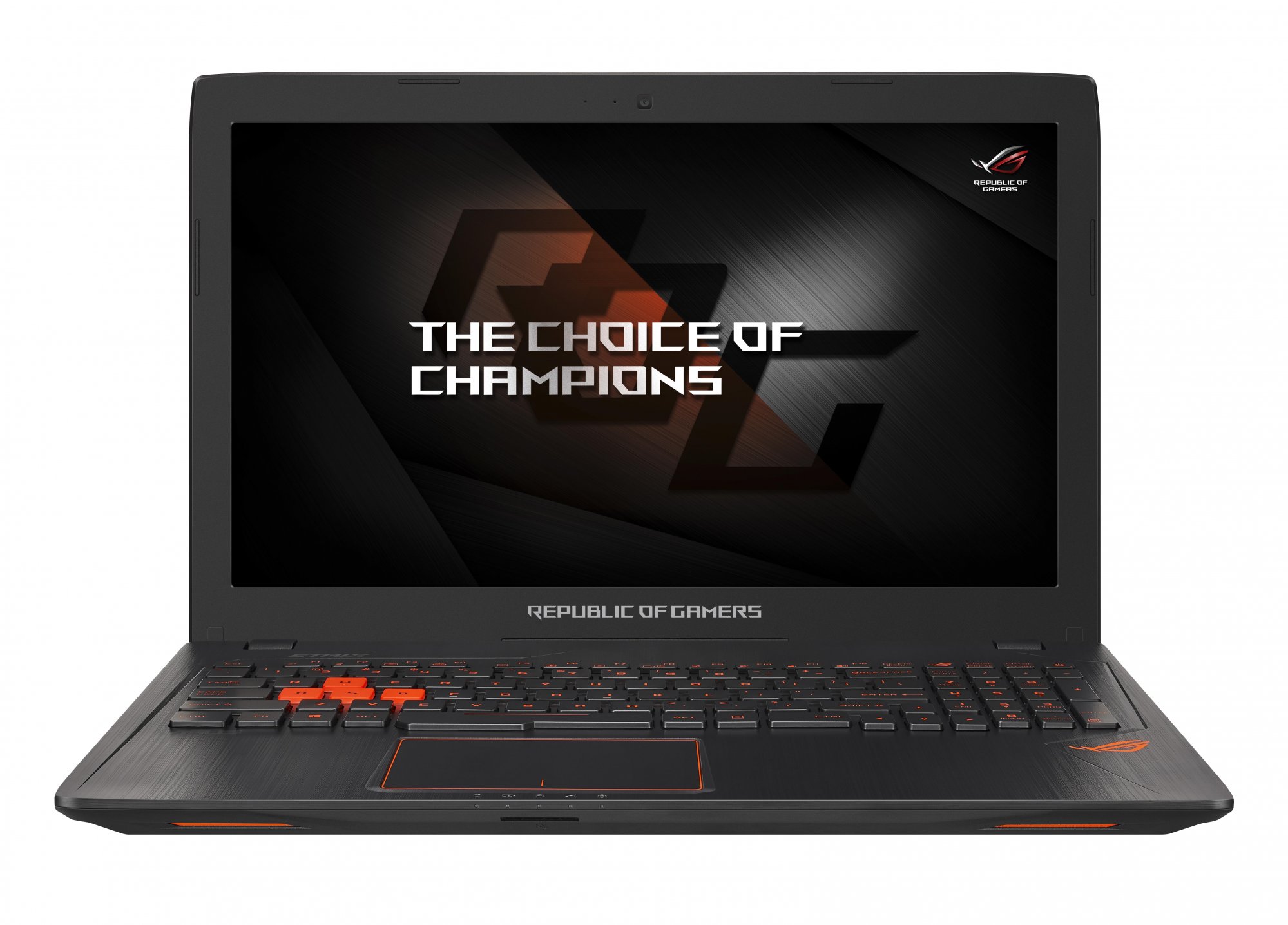

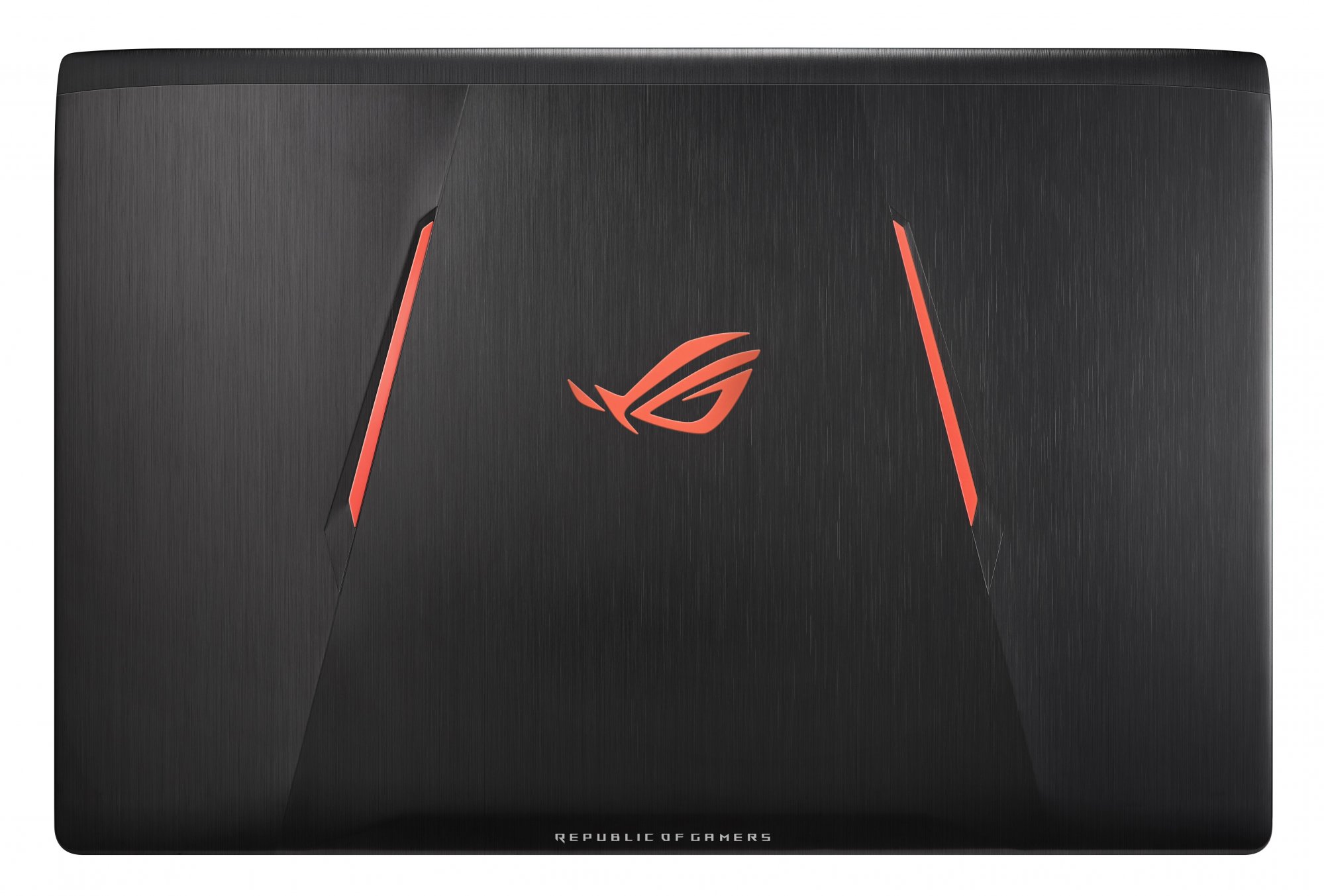

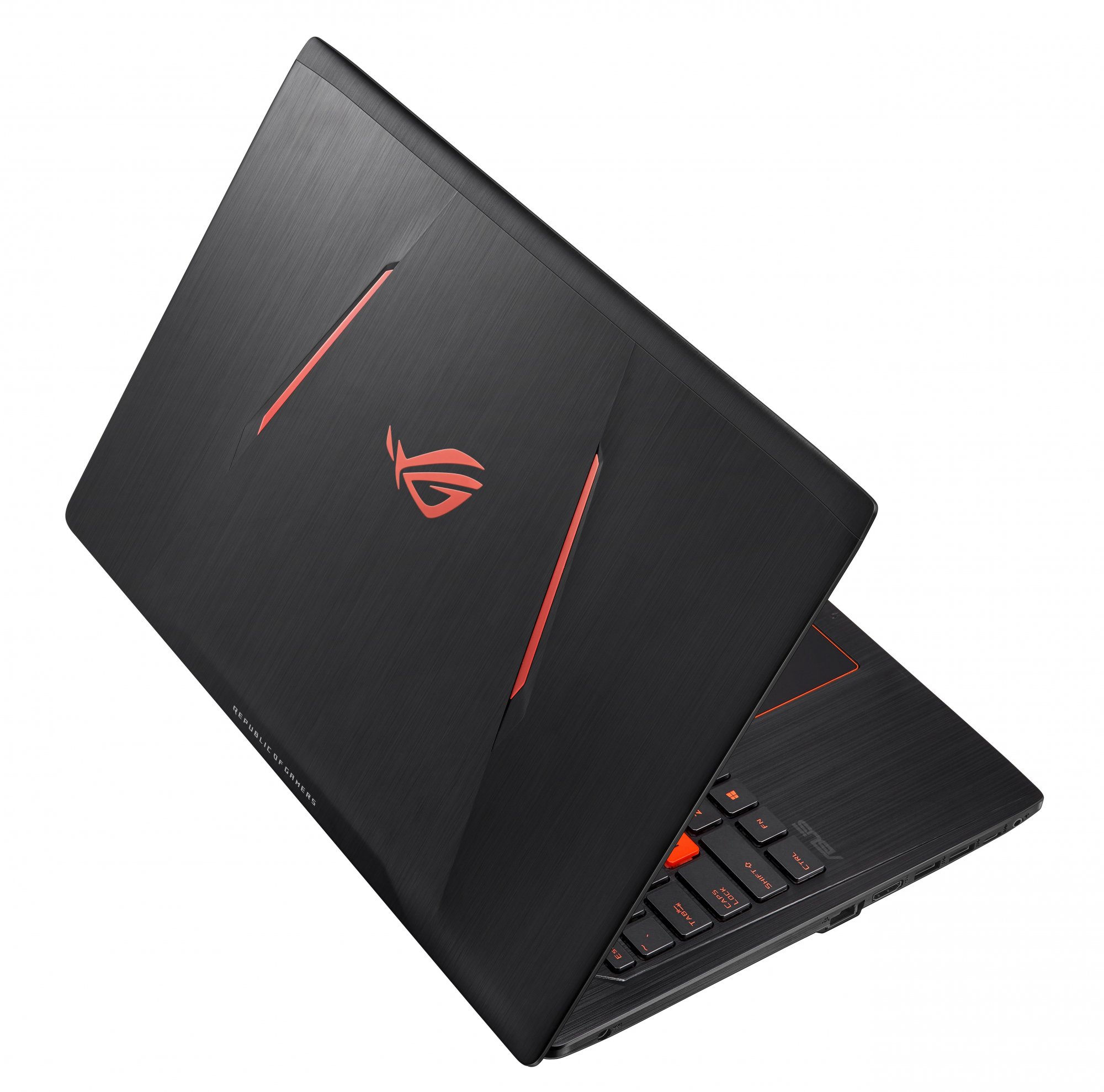

ASUS ROG Strix GL553VD-DM985T. Product type: Notebook, Form factor: Clamshell. Processor family: 7th gen Intel® Core™ i5, Processor model: i5-7300HQ, Processor frequency: 2.5 GHz. Display diagonal: 39.6 cm (15.6"), Display resolution: 1920 x 1080 pixels. Internal memory: 8 GB, Internal memory type: DDR4-SDRAM. Total storage capacity: 2000 GB, Storage media: HDD. On-board graphics adapter model: Intel® HD Graphics 630, Discrete graphics adapter model: NVIDIA® GeForce® GTX 1050. Operating system installed: Windows 10 Home. Product colour: Black

Intel® Identity Protection Technology (Intel® IPT)

Protect Your Identity and Business Intel® Identity Protection Technology (Intel® IPT) protects enterprises from being penetrated by stolen credentials and online user account access with an added layer of hardware-based security and authentication as well as a multifactor authentication framework to manage different authentication methods.

Intel® Turbo Boost Technology

Higher Performance When You Need It Most Intel® Turbo Boost Technology 2.01 accelerates processor and graphics performance by increasing the operating frequency when operating below specification limits. The maximum frequency varies depending on workload, hardware, software, and overall system configuration.

Conflict-Free processor

Does not contain "conflict minerals": tantalum, tin, tungsten, and gold.

Product Properties

Manufacturer
Asus

Model
GL553VD-DM985T

EAN
4712900777857

Audio

Built-in microphone
Y

Battery

Battery capacity (Watt-hours)
48 Wh

Number of battery cells
4

Camera

Front camera
Y

Design

Form factor
Clamshell

Market positioning
Gaming

Product colour
Black

Product type
Notebook

Display

Display surface
Matt

HD type
Full HD

LED backlight
Y

Native aspect ratio
16:9

Screen Resolution
1920 x 1080 pixels

Screen Size
39.6 cm (15.6")

Touchscreen
N

Graphics

Discrete graphics adapter
Y

Discrete graphics adapter model
NVIDIA® GeForce® GTX 1050

Graphics Processor
Intel® HD Graphics 630

Maximum on-board graphics adapter memory
64 GB

On-board graphics adapter
Y

On-board graphics adapter base frequency
350 MHz

On-board graphics adapter DirectX version
12.0

On-board graphics adapter dynamic frequency (max)
1000 MHz

On-board graphics adapter ID
0x591B

On-board graphics adapter OpenGL version
4.4

Keyboard

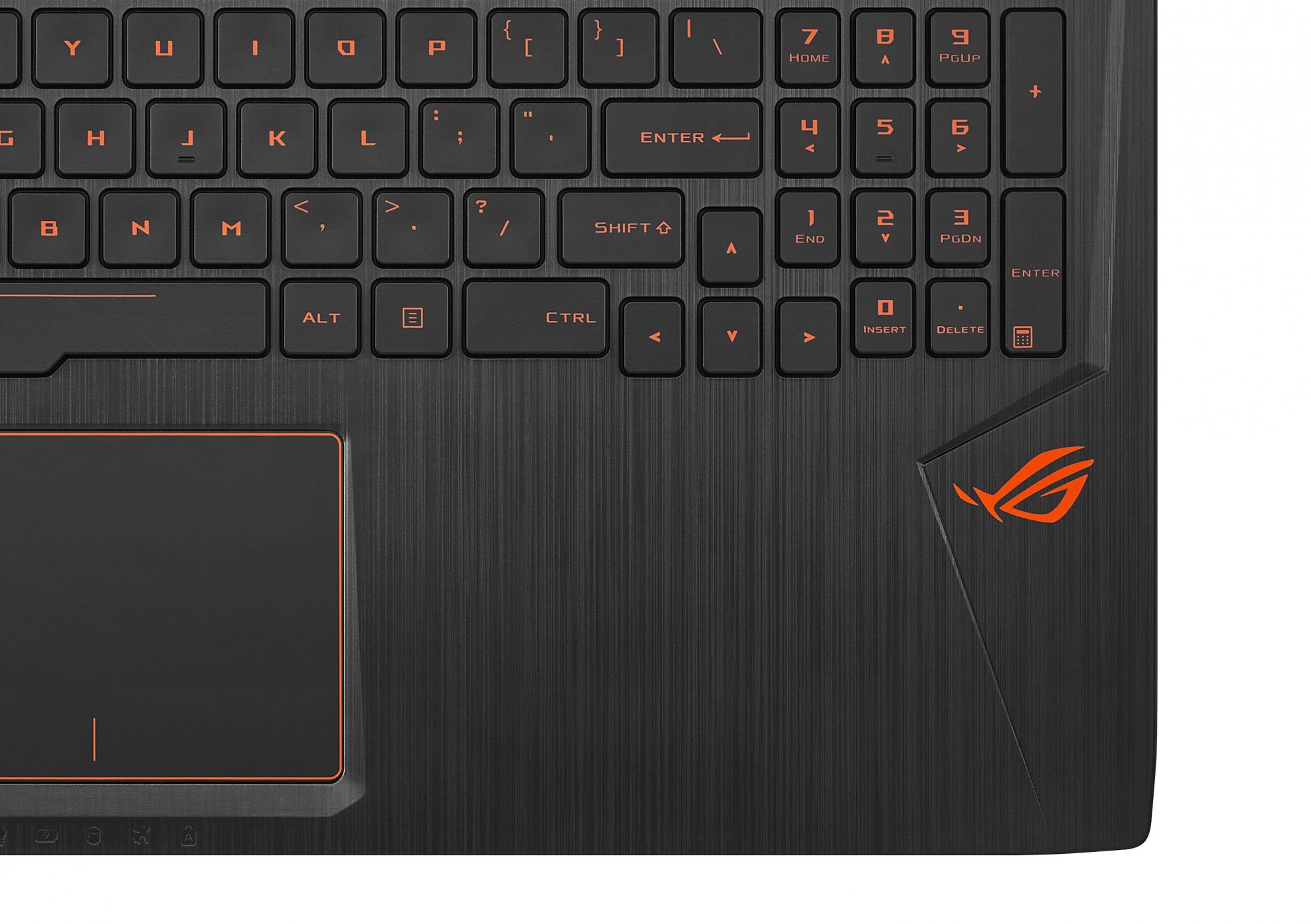

Full-size keyboard
Y

Keyboard backlit
Y

Numeric keypad
Y

Pointing device
Touchpad

Windows keys
Y

Memory

Internal memory type
DDR4-SDRAM

Memory clock speed
2133 MHz

Memory Installed
8 GB

Memory Slot Support
32 GB

Memory slots
2x SO-DIMM

Network

Ethernet LAN
Y

Ethernet LAN data rates
10,100,1000 Mbit/s

Wi-Fi
Y

Wi-Fi standards
802.11b,802.11g,Wi-Fi 4 (802.11n)

Other features

AC adapter included
Y

Maximum internal memory (64-bit)
32 GB

Packaging content

Manual
Y

Power cord included
Y

Ports & interfaces

Charging port type
DC-in jack

Combo headphone/mic port
Y

Docking connector
N

DVI port
N

Ethernet LAN (RJ-45) ports
1

HDMI ports
1

USB 2.0 ports quantity
1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1

Power

AC adapter frequency
50 - 60 Hz

AC adapter output current
6.3 A

AC adapter output voltage
19 V

AC adapter power
120 W

Processor

Bus type
DMI3

Configurable TDP-down
35 W

ECC supported by processor
N

Maximum number of PCI Express lanes
16

Motherboard chipset
Intel® HM175

Number of Cores
4

PCI Express configurations
1x16,1x8+2x4,2x8

PCI Express slots version
3.0

Processor
i5-7300HQ

Processor boost frequency
3.5 GHz

Processor cache
6 MB

Processor codename
Kaby Lake

Processor family
7th gen Intel® Core™ i5

Processor frequency
2.5 GHz

Processor lithography
14 nm

Processor manufacturer
Intel

Processor operating modes
64-bit

Processor series
Intel Core i5-700 Desktop Series

Processor threads
4

System bus rate
8 GT/s

Thermal Design Power (TDP)
45 W

Tjunction
100 °C

Processor special features

Conflict-Free processor
Y

CPU configuration (max)
1

Embedded options available
N

Enhanced Intel SpeedStep Technology
Y

Execute Disable Bit
Y

Idle States
Y

Intel 64
Y

Intel Clear Video Technology
Y

Intel Enhanced Halt State
Y

Intel Flex Memory Access
Y

Intel Identity Protection Technology version
1.00

Intel Secure Key Technology version
1.00

Intel Small Business Advantage (SBA) version
1.00

Intel Smart Response Technology version
1.00

Intel Software Guard Extensions (Intel SGX)
Y

Intel Stable Image Platform Program (SIPP)
N

Intel Stable Image Platform Program (SIPP) version
0.00

Intel Trusted Execution Technology
N

Intel TSX-NI
N

Intel TSX-NI version
0.00

Intel Virtualization Technology (VT-x)
Y

Intel Virtualization Technology for Directed I/O (VT-d)
Y

Intel VT-x with Extended Page Tables (EPT)
Y

Intel® AES New Instructions (Intel® AES-NI)
Y

Intel® Clear Video HD Technology (Intel® CVT HD)
Y

Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)
Y

Intel® Hyper Threading Technology (Intel® HT Technology)
N

Intel® Identity Protection Technology (Intel® IPT)
Y

Intel® InTru™ 3D Technology
Y

Intel® My WiFi Technology (Intel® MWT)
Y

Intel® OS Guard
Y

Intel® Quick Sync Video Technology
Y

Intel® Secure Key
Y

Intel® Smart Response Technology
Y

Intel® Turbo Boost Technology
2.0

Intel® Wireless Display (Intel® WiDi)
Y

Processor ARK ID
97456

Processor package size
42 x 28 mm

Supported instruction sets
AVX 2.0,SSE4.1,SSE4.2

Thermal Monitoring Technologies
Y

Software

Operating system installed
Windows 10 Home

Storage

HDD capacity
2000 GB

HDD size
2.5"

Storage Capacity
2000 GB

Storage type
HDD

Weight & dimensions

Depth
255 mm

Height
30 mm

Weight
2.5 kg

Width
383 mm

ASUS ROG Strix GL553VD-DM985T notebook DDR4-SDRAM 39.6 cm (15.6") 1920 x 1080 pixels 7th gen Intel® Core™ i5 8 GB 2000 GB HDD NVIDIA® GeForce® GTX 1050 Windows 10 Home Black
