Description

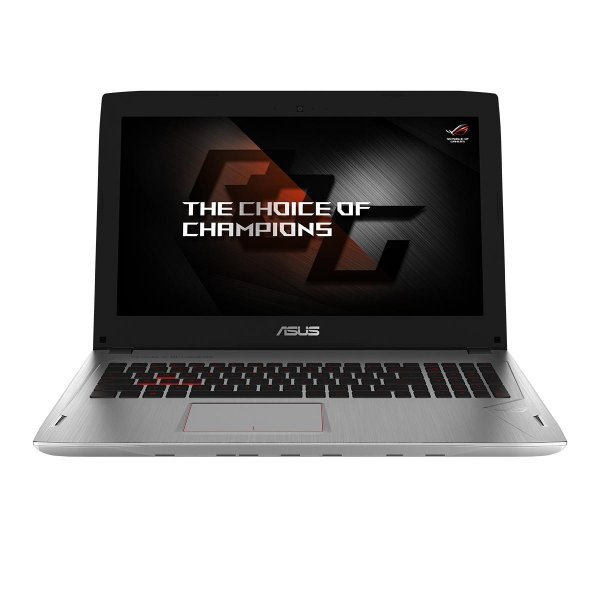

ASUS ROG Strix GL502VS-FY385T. Product type: Notebook, Form factor: Clamshell. Processor family: 7th gen Intel® Core™ i7, Processor model: i7-7700HQ, Processor frequency: 2.8 GHz. Display diagonal: 39.6 cm (15.6"), Display resolution: 1920 x 1080 pixels. Internal memory: 16 GB, Internal memory type: DDR4-SDRAM. Total storage capacity: 1256 GB, Storage media: HDD+SSD. On-board graphics adapter model: Intel® HD Graphics 630, Discrete graphics adapter model: NVIDIA® GeForce® GTX 1070. Operating system installed: Windows 10 Home. Product colour: Titanium

Intel® Identity Protection Technology (Intel® IPT)

Protect Your Identity and Business Intel® Identity Protection Technology (Intel® IPT) protects enterprises from being penetrated by stolen credentials and online user account access with an added layer of hardware-based security and authentication as well as a multifactor authentication framework to manage different authentication methods.

Intel® Turbo Boost Technology

Higher Performance When You Need It Most Intel® Turbo Boost Technology 2.01 accelerates processor and graphics performance by increasing the operating frequency when operating below specification limits. The maximum frequency varies depending on workload, hardware, software, and overall system configuration.

Conflict-Free processor

Does not contain "conflict minerals": tantalum, tin, tungsten, and gold.

Product Properties

Manufacturer
Asus

Model
GL502VS-FY385T

EAN
4712900728538

Audio

Audio system
SonicMaster

Built-in microphone
Y

Battery

Battery capacity (Watt-hours)
62 Wh

Number of battery cells
4

Camera

Front camera
Y

Certificates

Certification
UL, TUV, CE Marking Compliance, FCC Compliance, BSMI, Australia C-TICK / NZ A-Tick Compliance, CCC, GOST-R, CB, Energy star, WEEE, RoHS

Design

Form factor
Clamshell

Market positioning
Gaming

Product colour
Titanium

Product type
Notebook

Display

HD type
Full HD

LED backlight
Y

Native aspect ratio
16:9

Screen Resolution
1920 x 1080 pixels

Screen Size
39.6 cm (15.6")

Touchscreen
N

Graphics

Discrete graphics adapter
Y

Discrete graphics adapter model
NVIDIA® GeForce® GTX 1070

Graphics Memory
8 GB

Graphics Processor
Intel® HD Graphics 630

Maximum on-board graphics adapter memory
64 GB

On-board graphics adapter
Y

On-board graphics adapter base frequency
350 MHz

On-board graphics adapter DirectX version
12.0

On-board graphics adapter dynamic frequency (max)
1100 MHz

On-board graphics adapter ID
0x591B

On-board graphics adapter OpenGL version
4.4

Keyboard

Full-size keyboard
Y

Numeric keypad
Y

Pointing device
Touchpad

Windows keys
Y

Memory

Internal memory type
DDR4-SDRAM

Memory Installed
16 GB

Memory Slot Support
32 GB

Memory slots
2x SO-DIMM

Network

Bluetooth
Y

Bluetooth version
4.0

Ethernet LAN
Y

Ethernet LAN data rates
10,100,1000 Mbit/s

Top Wi-Fi standard
Wi-Fi 5 (802.11ac)

Wi-Fi
Y

Wi-Fi standards
802.11a,Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n)

Other features

AC adapter included
Y

Packaging content

Manual
Y

Power cord included
Y

Ports & interfaces

Charging port type
DC-in jack

Combo headphone/mic port
Y

Docking connector
N

DVI port
N

Ethernet LAN (RJ-45) ports
1

HDMI ports
1

Mini DisplayPorts quantity
1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1

Power

AC adapter frequency
50 - 60 Hz

AC adapter input voltage
100 - 240 V

AC adapter output current
9.23 A

AC adapter output voltage
19.5 V

AC adapter power
230 W

Processor

Bus type
DMI3

Configurable TDP-down
35 W

ECC supported by processor
N

Maximum number of PCI Express lanes
16

Motherboard chipset
Intel® HM175

Number of Cores
4

PCI Express configurations
1x16,1x8,2x4,2x8

PCI Express slots version
3.0

Processor
i7-7700HQ

Processor boost frequency
3.8 GHz

Processor cache
6 MB

Processor cache type
Smart Cache

Processor codename
Kaby Lake

Processor family
7th gen Intel® Core™ i7

Processor frequency
2.8 GHz

Processor lithography
14 nm

Processor manufacturer
Intel

Processor operating modes
64-bit

Processor series
Intel Core i7-7700 Mobile Series

Processor threads
8

System bus rate
8 GT/s

Thermal Design Power (TDP)
45 W

Tjunction
100 °C

Processor special features

Conflict-Free processor
Y

CPU configuration (max)
1

Embedded options available
N

Enhanced Intel SpeedStep Technology
Y

Execute Disable Bit
Y

Graphics & IMC lithography
14 nm

Idle States
Y

Intel 64
Y

Intel Clear Video Technology
Y

Intel Enhanced Halt State
Y

Intel Flex Memory Access
Y

Intel Identity Protection Technology version
1.00

Intel Secure Key Technology version
1.00

Intel Small Business Advantage (SBA) version
1.00

Intel Smart Response Technology version
1.00

Intel Software Guard Extensions (Intel SGX)
Y

Intel Stable Image Platform Program (SIPP)
N

Intel Stable Image Platform Program (SIPP) version
0.00

Intel Trusted Execution Technology
N

Intel TSX-NI
N

Intel TSX-NI version
0.00

Intel Virtualization Technology (VT-x)
Y

Intel Virtualization Technology for Directed I/O (VT-d)
Y

Intel VT-x with Extended Page Tables (EPT)
Y

Intel® AES New Instructions (Intel® AES-NI)
Y

Intel® Clear Video HD Technology (Intel® CVT HD)
Y

Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)
Y

Intel® Hyper Threading Technology (Intel® HT Technology)
Y

Intel® Identity Protection Technology (Intel® IPT)
Y

Intel® InTru™ 3D Technology
Y

Intel® My WiFi Technology (Intel® MWT)
Y

Intel® OS Guard
Y

Intel® Quick Sync Video Technology
Y

Intel® Secure Key
Y

Intel® Smart Cache
Y

Intel® Smart Response Technology
Y

Intel® Turbo Boost Technology
2.0

Intel® Wireless Display (Intel® WiDi)
Y

Processor ARK ID
97185

Processor package size
42 x 28 mm

Supported instruction sets
AVX 2.0,SSE4.1,SSE4.2

Thermal Monitoring Technologies
Y

Security

Cable lock slot
Y

Cable lock slot type
Kensington

Password protection
Y

Password protection type
BIOS, HDD, User

Software

Operating system architecture
64-bit

Operating system installed
Windows 10 Home

Storage

Card reader integrated
Y

Compatible memory cards
MMC,SD,SDHC,SDXC

HDD capacity
1000 GB

Number of HDDs installed
1

Optical drive type
N

SSD capacity
256 GB

Storage Capacity
1256 GB

Storage type
HDD+SSD

Technical details

Sustainability certificates
RoHS, ENERGY STAR

Weight & dimensions

Depth
266 mm

Height
30.1 mm

Weight
2.3 kg

Width
390 mm

ASUS ROG Strix GL502VS-FY385T notebook DDR4-SDRAM 39.6 cm (15.6") 1920 x 1080 pixels 7th gen Intel® Core™ i7 16 GB 1256 GB HDD+SSD NVIDIA® GeForce® GTX 1070 Wi-Fi 5 (802.11ac) Windows 10 Home Titanium
